Redfoot Isuzu Motorhome ‘EQ Smart Level’ Levelling System Avida Longreach

12VDC Powered Hydraulic Auto Smart levelling system

This kit is for Motorhomes made on a Isuzu NQR450 based chassis

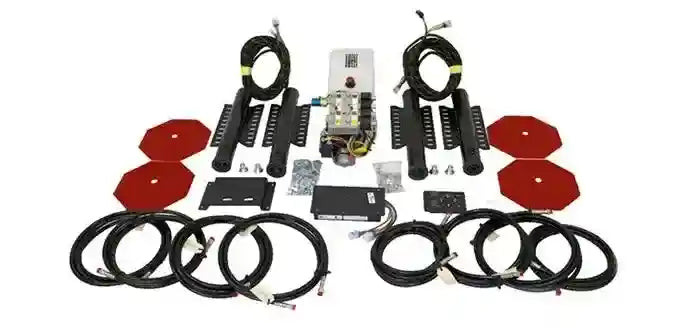

Kit Includes:

• 4 x 15, 2" bore cylinders
• Custom front and rear bolt on mounting bracket
• Custom hose kit
• Harness
• Bolt kit
• Feet
• Smart Controller
• 12v Hydraulic Pump
• Built in Blue Tooth Smart Levelling.

Maximum lifting capacity 20 ton.

The Redfoot Isuzu Smart Levelling solutions are custom designed for your Isuzu Motorhome. RedFoot have done all the work for you. By custom designed we mean the Redfoot Isuzu Smart Levelling systems include:

1. Custom Brackets that are designed specifically to facilitate the easy attachment of the Hydraulic Cylinders to the Chassis. No welding required!
2. Custom Designed 12-volt Hydraulic Pump (with manual override) to power all 4 cylinders in extend and retract modes
3. Four Custom designed Hydraulic Cylinders that match the wedge shape of the Izusu Chassis where the front sits lower to the ground than the rear
4. Eight Custom length hydraulic hoses and connectors that facilitate the flexible placement of the hydraulic pump on the Izusu Chassis.
5. Custom Bolt sets that facilitate perfect alignment of all systems parts

The Redfoot Isuzu Smart Levelling Systems are compatible with both iPhone and Android smart phones System.

This is the industry’s new standard and it has changed the way levelling is done. Redfoot Smart Level allows you to level your Isuzu motorhome with your smart phone by using built in Bluetooth capability. The automatic, one touch operation levels your motorhome in less than two minutes.

This sequential levelling is a patented process that provides a more precise level throughout the length of the vehicle, adding stability to the vehicle while levelling it as low to the ground as possible. It is quick, easy and on the level!
