Redfoot Isuzu Motorhome Levelling System Isuzu NQR 450 MAXI Smart Level (no brackets) bolt-on
$7,249.00
Ships from Offsite Warehouse – will ship separately from other items.
ISNQR 450MAX-SL
Not available for immediate instore pickup.
Redfoot Isuzu Motorhome Levelling System Isuzu NQR 450 MAXI Smart Level bolt-on
12VDC powered hydraulic auto smart levelling system

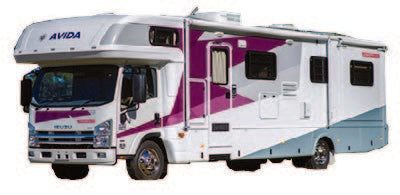

This kit fits motorhomes built on an Isuzu NQR450 chassis.

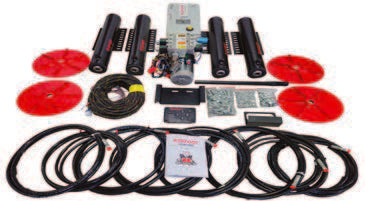

Features
- 12V hydraulic pump with manual override powers four cylinders
- Four 18 inch, 3 inch bore hydraulic cylinders designed for Isuzu chassis wedge shape
- Bolt on system - no welding
- Eight custom length hydraulic hoses and connectors (shipped separately)
- Complete harness and bolt kit included
- Levelling feet included for stable ground contact
- Smart controller with built-in Bluetooth for iPhone and Android compatibility
- Sequential auto levelling process for precise and stable vehicle positioning
- Maximum lifting capacity: 28 tonnes
Installation and Use
This kit suits many motorhomes on an Isuzu chassis. Installer must verify underfloor to ground clearance before ordering. Refer to the “How to Measure Guide” for correct measurements.
Levelling is done automatically via smartphone app with one-touch operation. The system levels the motorhome in under two minutes, improving stability by levelling close to the ground.
Measuring for your Redfoot Hydraulic Levelling system involves verifying your underfloor-to-ground clearance to determine the correct cylinder size.
Measuring for Pre-Installation (Vehicle Clearance)
Before ordering your kit, you must measure your chassis and suspension to ensure the cylinders fit.
Find a Level Surface:
Park your RV or caravan on a flat, solid surface (like concrete).
Measure the Rear Clearance:
Measure from the underfloor to the ground, exactly behind the rear axle.
- If your measurement is > 630 mm, you qualify for a "High" clearance kit.
- If your measurement is < 630 mm, you require a "Low" clearance kit.
Verify Cylinder Specs:
Ensure your chosen cylinder stroke (ranging from 13 to 24 inches) fits your retracted and extended requirements to guarantee maximum leveling ability on uneven ground.
-
