Redfoot Hydraulic Flip Levelling System with Remote for Caravans

The Redfoot Flip Remote Levelling system is a custom designed solution with manual push button functions suitable for Large heavy Caravans. RedFoot have done all the work for you.

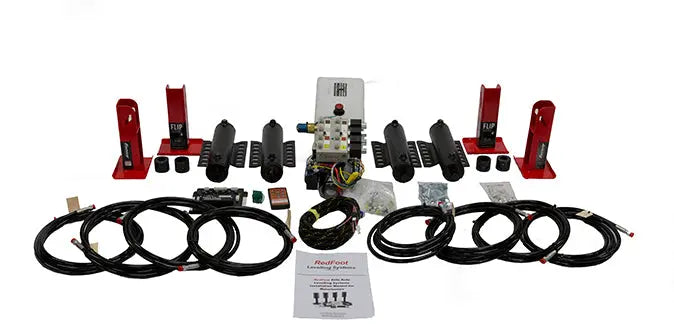

The Redfoot Flip Remote Levelling systems include:

Single Pump system with 4 port manifold. Wireless remote controls. 4 x 9" Hydraulic Cylinders, std brackets, 4 x Flip Legs. Max Lifting Capacity 4T

1. Custom Brackets that are designed specifically to facilitate the easy attachment of the Hydraulic Cylinders to the Chassis. No welding required!

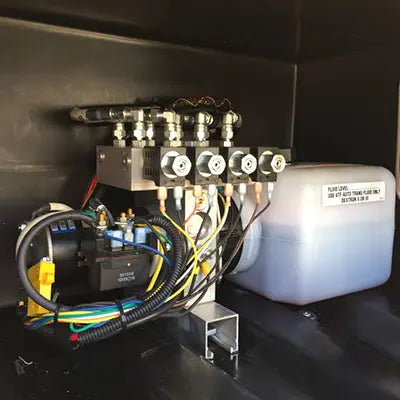

2. Powerful 12-volt DC Hydraulic Pump (connects to a auxiliary battery) to power all 4 cylinders in extend and retract modes

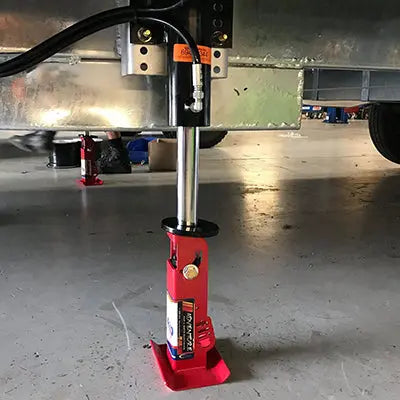

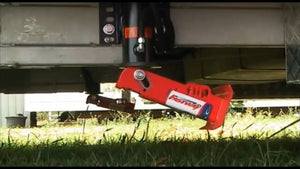

3. Four custom designed hydraulic cylinders with flip foot that match the profile height of most caravan chassis.
4. Eight Custom length hydraulic hoses and connectors that facilitate the flexible placement of the hydraulic pump.
5. Custom Bolt sets that facilitate perfect alignment of all systems parts.

In addition to these custom designed features, all Redfoot Flip Remote Levelling systems come with:

• Redfoot hand held remote control panel
• Complete pump with manual override
• All required harness and hoses
• All necessary mounting brackets and hardware
• DIY Installation manual

Check out these benefits of the Redfoot Flip Remote Levelling System:

• Easy push button remote operation
• Prevents vehicle rocking and motion
• Custom design Flip foot to improve travel and departure clearances
• Simple plug and play wiring installation
• Reduces levelling time to just a few minutes
• Huge lifting capacity up to 4 ton GTM and a system weight of only 80kg
• One pump operates all cylinder legs
• Stows legs away quickly and easily with ‘All Retract’ feature.
• Standard with manual override

It is no wonder the Redfoot Flip Remote Levelling System has quickly become the number one choice for large heavy Caravan Owners. Utilising four powerful double acting hydraulic cylinders, the Redfoot Flip Remote Levelling system can extend and retract the legs during the levelling sequence. The one touch operation levels a Large Caravan within minutes, operating two cylinders leg with one push button process.

Caravans in Australia can come in many different weights, heights and configurations. When selecting a Redfoot levelling system for your caravan it is important to know the GTM (Gross Trailer Mass) of your van. We have used the caravans maximum GTM weight as a guide for selecting each of our Redfoot levelling systems. It is very important to follow this guide as each levelling system is not designed to lift beyond the recommended GTM capacity.

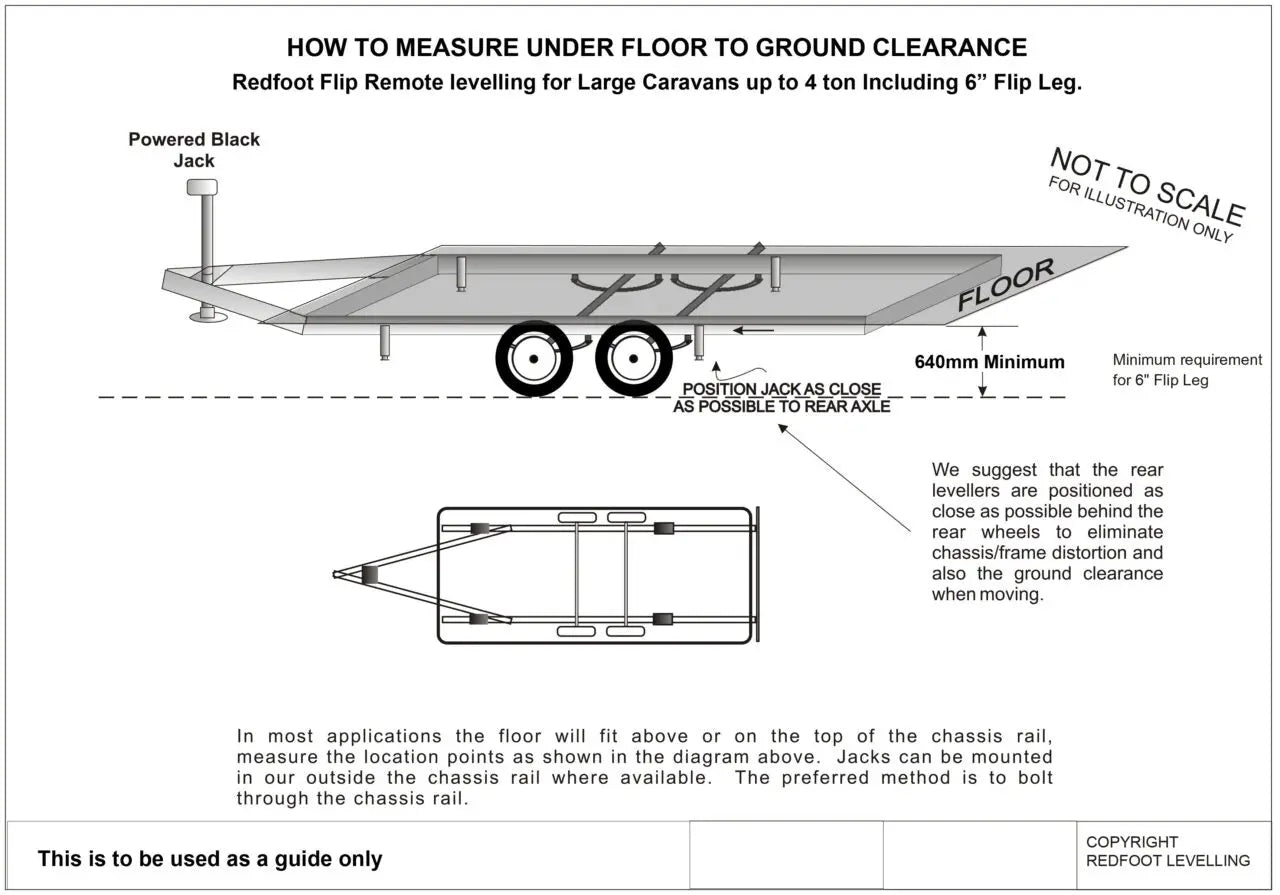

When measuring the underfloor the ground clearance it is advised to measure the selected location positions as shown in the diagram below. These location positions are important as they will provide the most travel clearance and departure clearance when in transit.

Most caravans in Australia are built with 4″, 5″ or 6″ RHS chassis rails and can accommodate the direct affixing of our solutions. We recommend drilling through and the chassis in most installations. Our levelling systems provide bolt on style brackets to attach to the pre-drilled chassis rail.

Choosing the Redfoot Flip Remote Jack Levelling system is as easy as 1,2,3,4.

Step 1. Determine the size and type of chassis rail. E.g. 6″ or 150mm RHS

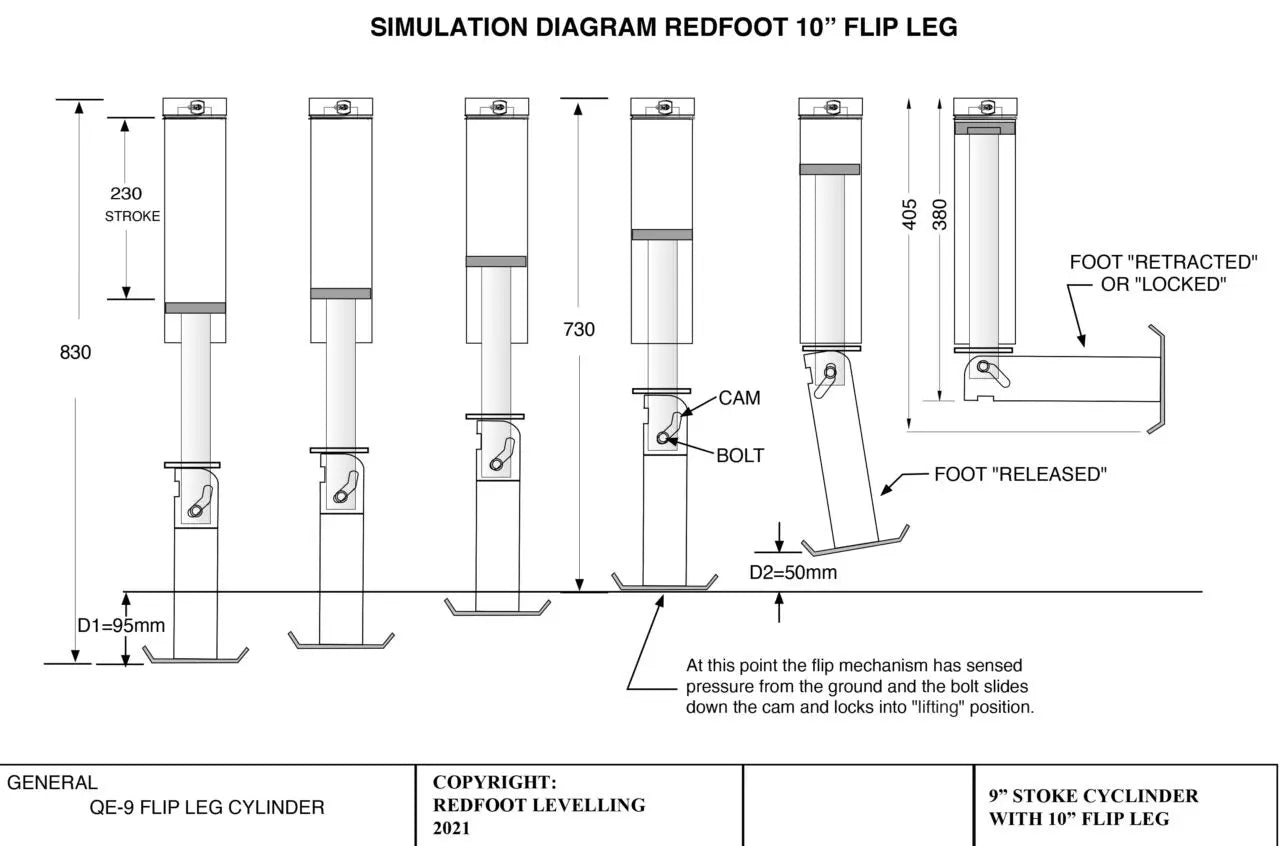

Step 2. Confirm and measure the underfloor to ground clearance behind the rear axle as shown in the diagram below. If your measurement is above 640 mm you will be able to install with the minimal clearance as shown in the Simulated Flip Leg Cylinder diagram. If the measurement is below the 640 mm then the van suspension will need to be raised to meet this height or does not qualify. * A provision for retrofitting can be achieved on some lower caravans by cutting through the floor to affix the jack cylinders. This solution would require an experienced installer or service workshop.

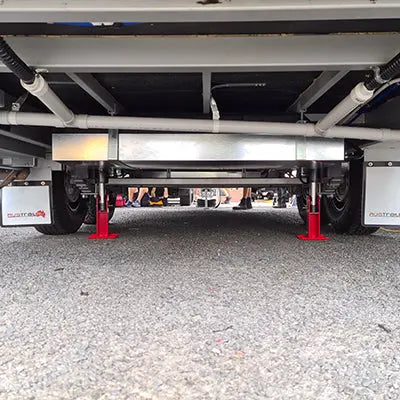

Step 3. By reviewing the location positions in the diagram below look at where you could potentially locate the jack cylinders. Jacks can be mounted inside or out side the chassis rails and in some installs you may require the relocation of storage tanks, plumbing pipes etc.. .

Step 4. Now compile your results from steps 1, 2 and 3 and confirm the results as qualified.

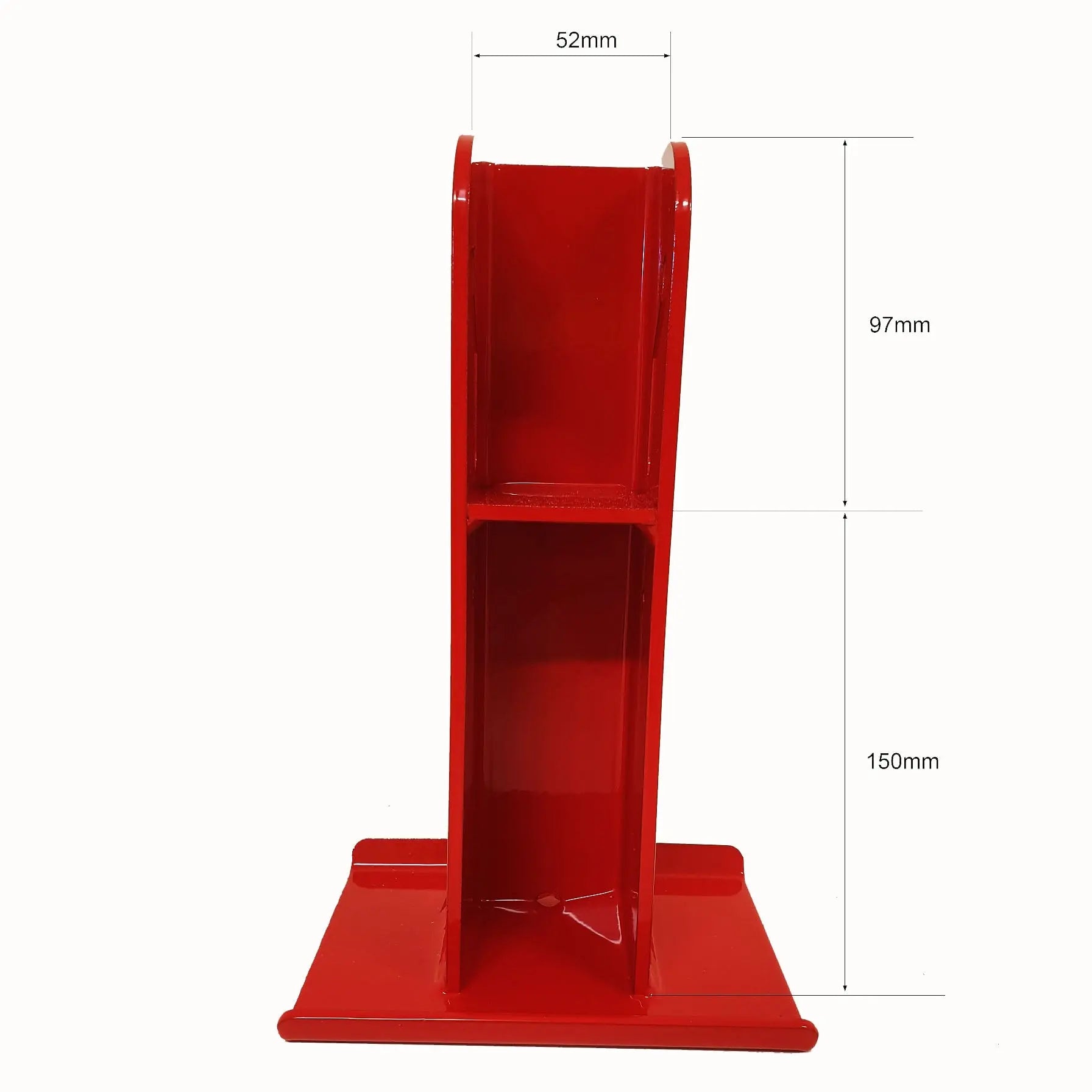

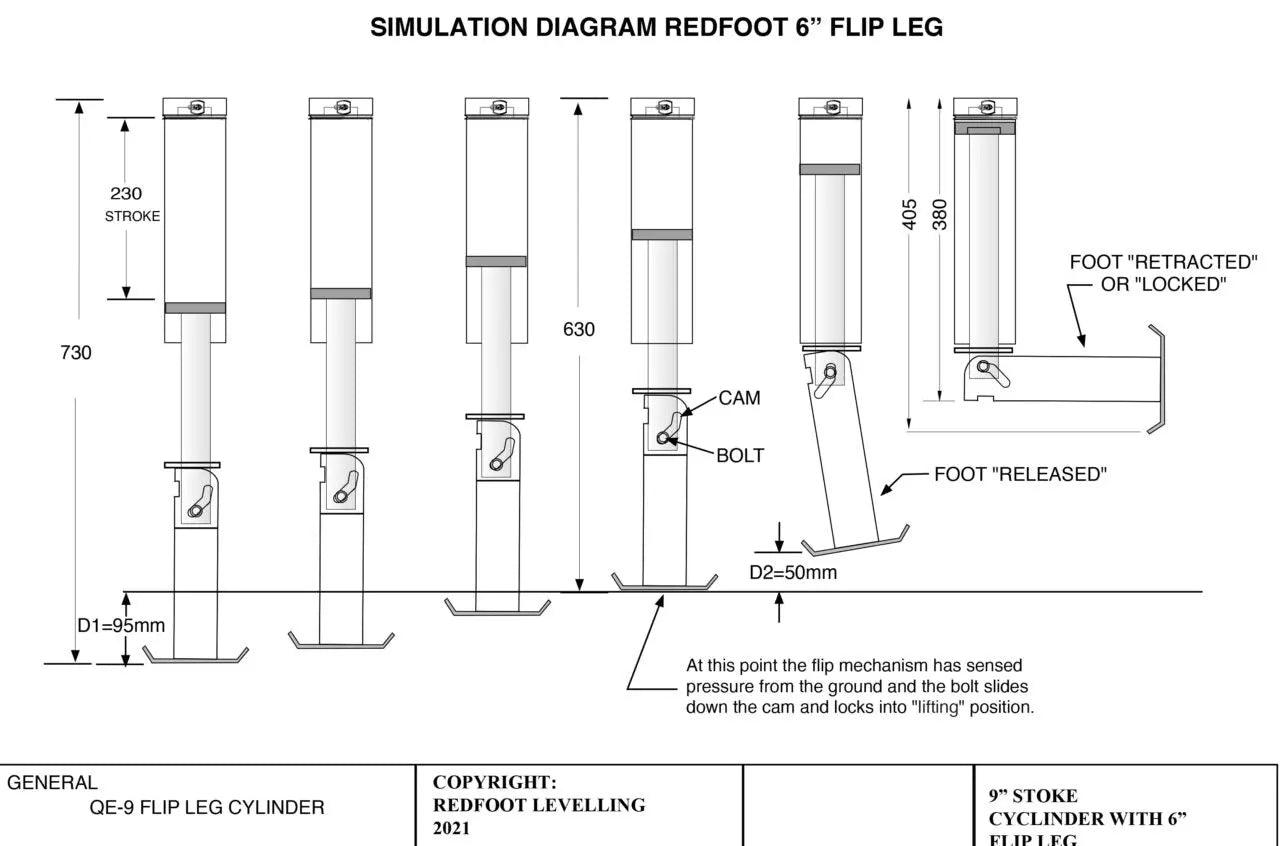

MEASURING FOR 6″ FLIP LEG:

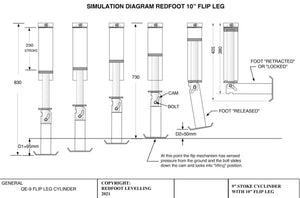

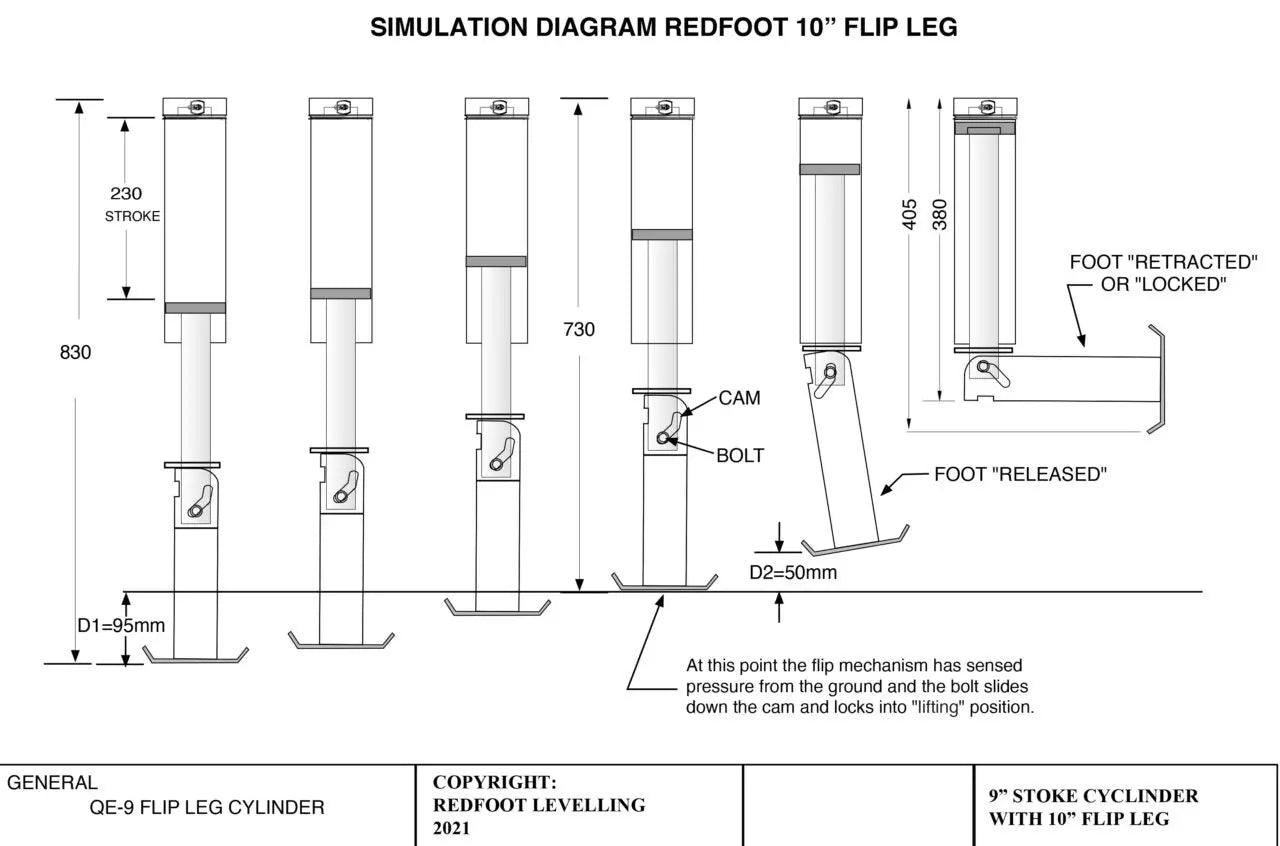

MEASURING FOR 10″ FLIP LEG:
