Everything Caravans

710-140A-B

Dual Battery Voltage Sensitive Relay VSR 12volt and 24 volt 140amp

Notify me when this product is available:

Digital Voltage Sensing Relay (DVSR) 12/24V 710-140A   RRP $158

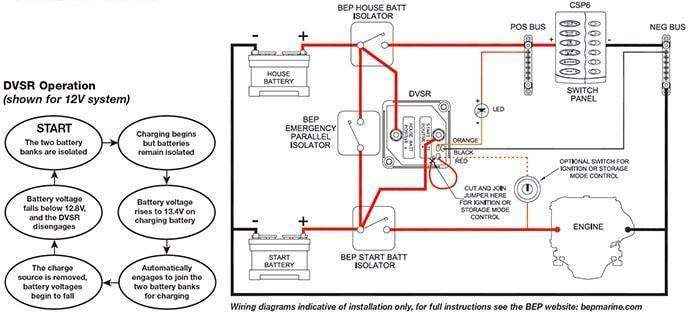

The Digital Voltage Sensing Relay (VSR) allows the charging of a second battery bank from any single charging source. When the voltage on the charged bank rises sufficiently, the VSR engages allowing the 2nd battery bank to charge. When charging stops and voltage falls, the VSR automatically isolates the battery banks, ensuring that engine start batteries are kept fully charged. Digital circuitry provides superior reliability and extremely low power consumption. Digital enhancements have introduced remote sensing circuitry that allows an optional connection from the ignition switch to provide the same functionality as single sense VSR and zero power consumption when engine is off. Another benefit is a zero stand by current draw when remote sensing circuit is utilized with a storage mode switch fitted (switch in open position).
  • Safely charge two or more independent battery banks from one charge source such as an alternator or battery charger
  • Charges engine starting batteries before combining auxiliary bank for charging
  • Protects start batteries from becoming flattened by domestic loads
  • Isolates electronics from harmful electrical surges from starter motors
  • Simple to install 3 wire connection leaves alternator wiring intact
  • No volt drop vs diode isolators
  • Ignition protected
  • Surface or panel mountable
  • Replaces previous models 710-125A and 710-125A-DS
  • Multi voltage, auto selects between 12 and 24V DC operation
  • Digital circuits provide very low power consumption and enhanced performance
  • Remote status LED output option
  • Continuous rating: 140
  • Engages: 13.2 VDC
  • Disengages: 12.7 VDC leaving plenty of vehicle starting power
Very clever VSR (DVSR) will allow charging of your 2nd battery and will not deplete your starting battery. Perfect for 4wd, Caravan Fridge Hotwire, Motorhome and RV.   12 Volt, 12v Plugs and Sockets, 12volt, Battery, Battery Charger, Battery Combiner, BEP, Car Accessories, DC DC Charging, Deep Cycle, Dual Battery, Misc Solar Items
