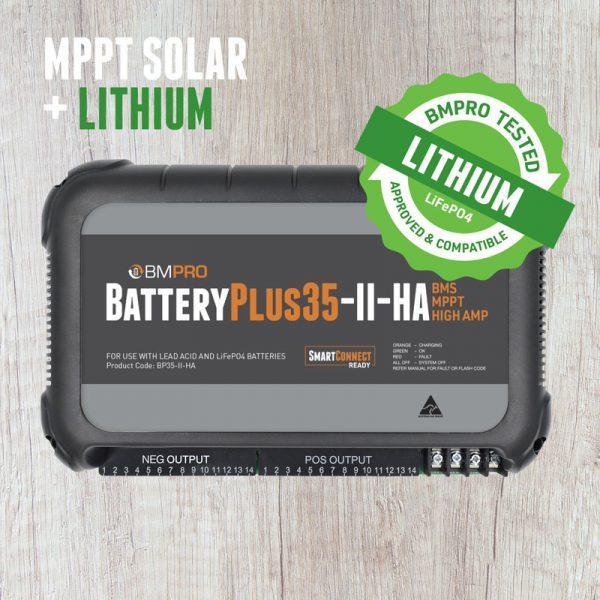

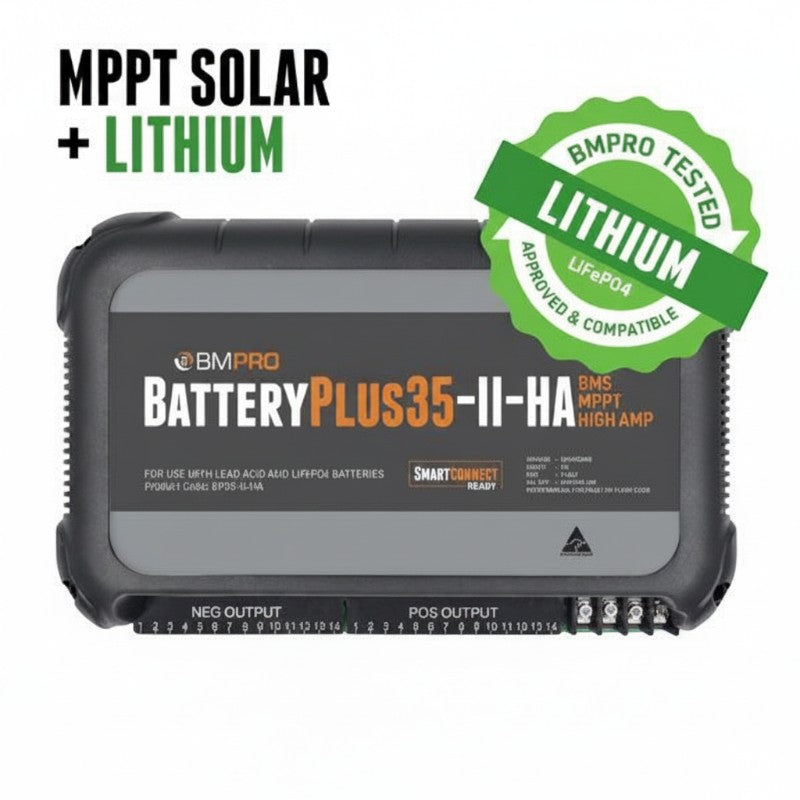

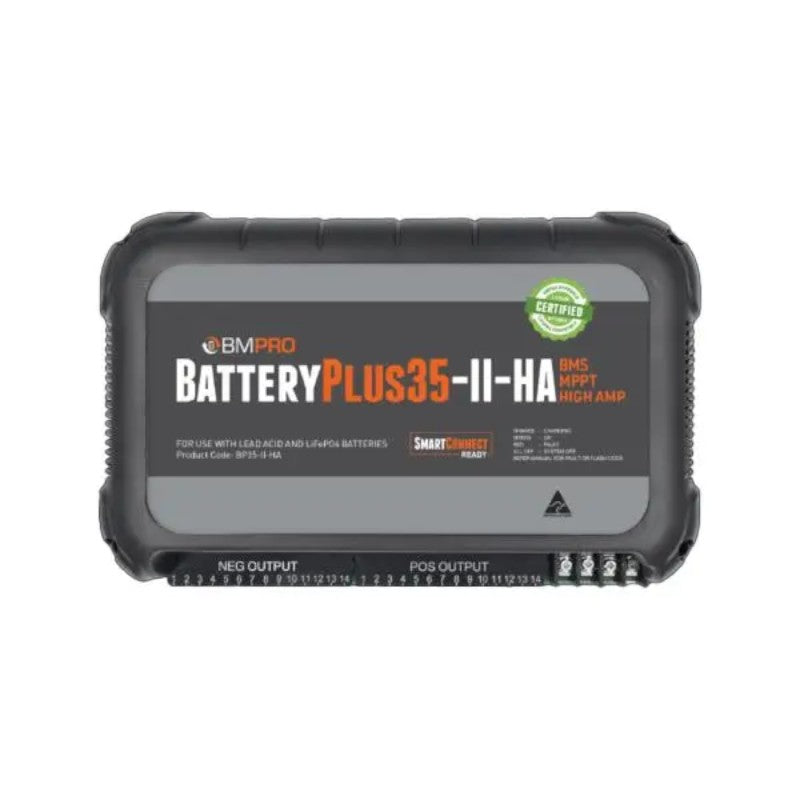

BMPRO Batteryplus35-Ii-Ha Battery Management System - Lithium Compatible

$1,039.00

$1,039.00 ~~$1,149.00~~

Tax included. Shipping calculated at checkout.

BATTERYPLUS35-II-HA

Share this product.

Trusted choice!

Trading since 1975. Over 200k online transactions. All payments methods accepted. Use PayPal for the safest transaction.

Shop safely with us

BMPRO battery plus 35-li

Great service and delivery .And agreat up grade in changing to Lithium set up .

Awesome

great to deal with :)

Bmpro Batteryplus35-Ii-Ha Battery Management System - Lithium Compatible

BM PRO Li compatible BMS

Excellent service from purchase to fast delivery to regional SA.
BMS was easy to swap with original SR system.Working perfectly.

Great setup

Recently installed this system myself. And paired with the odyssey link 104 and wireless sensors for gas, fridge and tyre pressures it gives a great insight as to how long is left on the battery and how much power each appliance is using while also making sure the batteries are in top condition. Look forward to adding in the water level sensors at some stage soon. Thanks for the great service from everything caravans

1 2 3

Up to $110 off

All In One - Battery Management System - High Output

Suitable for Lithium

Battery Management System gives you control over your caravan’s house battery and 12V appliances.

BMPRO offers all-in-one caravan battery management solutions which include power supply and distribution board for 12V loads plus a smart charger, a solar regulator and multiple battery protection features with built in LVD and automatic fuses.

This is a complete battery management system specifically designed for caravan applications. This is an all in one power solution which combines a 35A power supply for 12V loads, a 30A multistage 240v charger and an MPPT 30A Solar Regulator as well as battery protection.

You can connect the unit via CAN bus cable to the Trek battery monitor or to Odyssey touch screen via an OdysseyLink - this allows you to monitor the status of your battery and control your caravan DC Functions.

You can connect solar panels this MPPT battery management system and power batteries with renewable energy.

BatteryPlus35-II-HA is prewired with a permanent mains power supply cable and plug for use with 240V.

The unit also features a 40A rated uncontrolled battery output/input. This output is specifically designed for loads which do not need to be isolated or have a current rating of higher than the inbuilt circuit protection of the individual outputs and have a current rating less than 40 A. Use it to connect, for example:

Proactive Electronic Stability Control SwayControl
Emergency Trailer Break-Away Safety System TrailSafe
Heaters
Stereo memory

This connection does not turn off if you have a master switch connected.

Total output current 35A
30A multistage battery charger
Inbuilt solar MMPT regulator (420W, 30A, 25V max input)
Distribution board with 12 at 10A and 2 at I5A DC outputs for load connection
Electronic resettable fuses
CAN bus connection for BMPRO accessories
In-built battery management system
Solar and Aux Blending
Auxiliary DC input
Load current limit
Low voltage disconnect
Compatible with lead acid and lithium (LiFePO4) deep cycle batteries

Input Voltage Range 110-240V AC ± 10%, 50-60Hz
Output Current 35A (Load + Batter y Current)
Factory Set Voltage 13.65V (Float Voltage)
Output Ripple Voltage 150mV
Battery Current Limit max. 30A
Low Voltage Disconnect (Lead Acid) 10.5V ± 0.2V
Battery Connect after LVD (Lead Acid) 12.8V ± 0.2V
Low Voltage Disconnect (LiFePO4) 12.0V ± 0.2V
Battery Connect after LVD (LiFePO4) 13.8V ± 0.2V
Battery Drain 15mA (when in Storage Mode)
AC/DC Efficiency 83%
Cooling Fan Thermally Controlled
Solar Output Current 30A (nominal)
Solar Start Voltage 17.5V
Solar Input Voltage (after start-up) 15-25V
Ambient Temperature 0-50 °C
Communication Communication bus available
Weight 2kg
