15A AC Power External inlet and 16A RCD IP44 Black CMS 230Vac Plug N Play

15A AC Power External Inlet with 16A RCD – IP44 Black CMS 230V Plug and Play

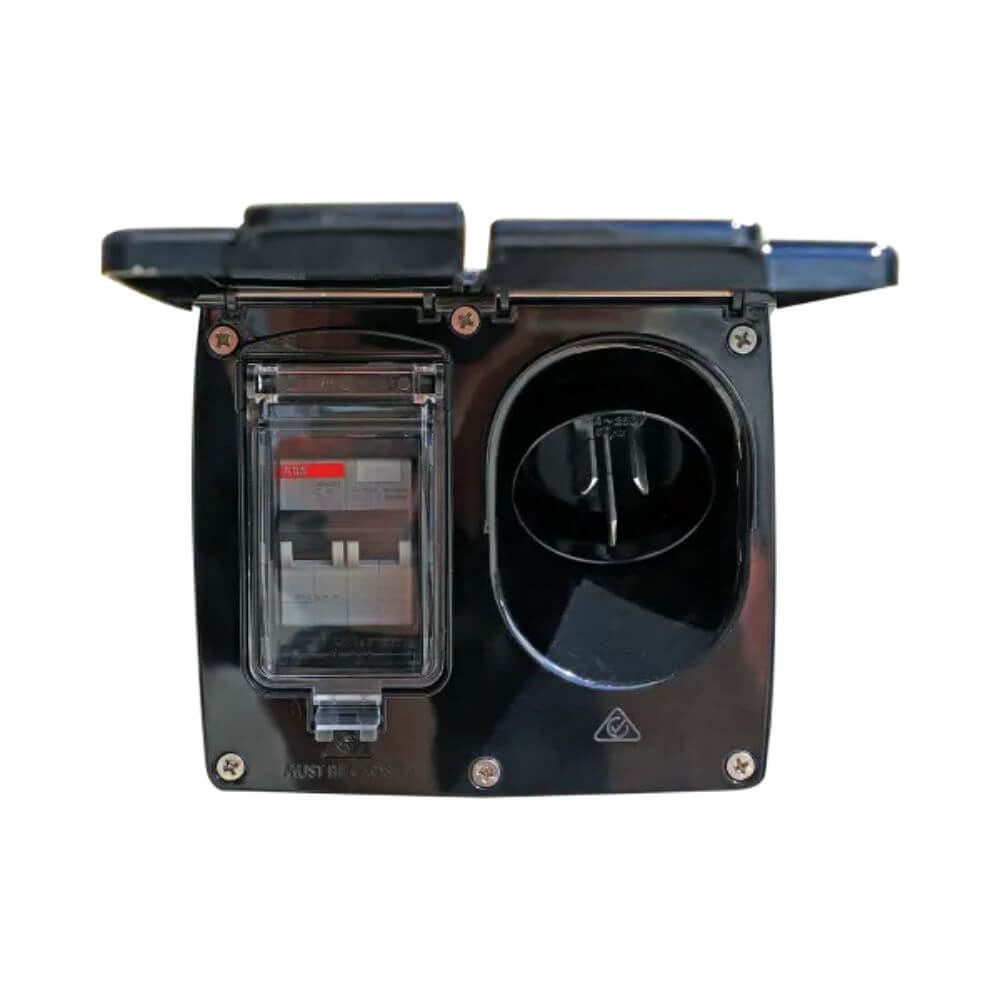

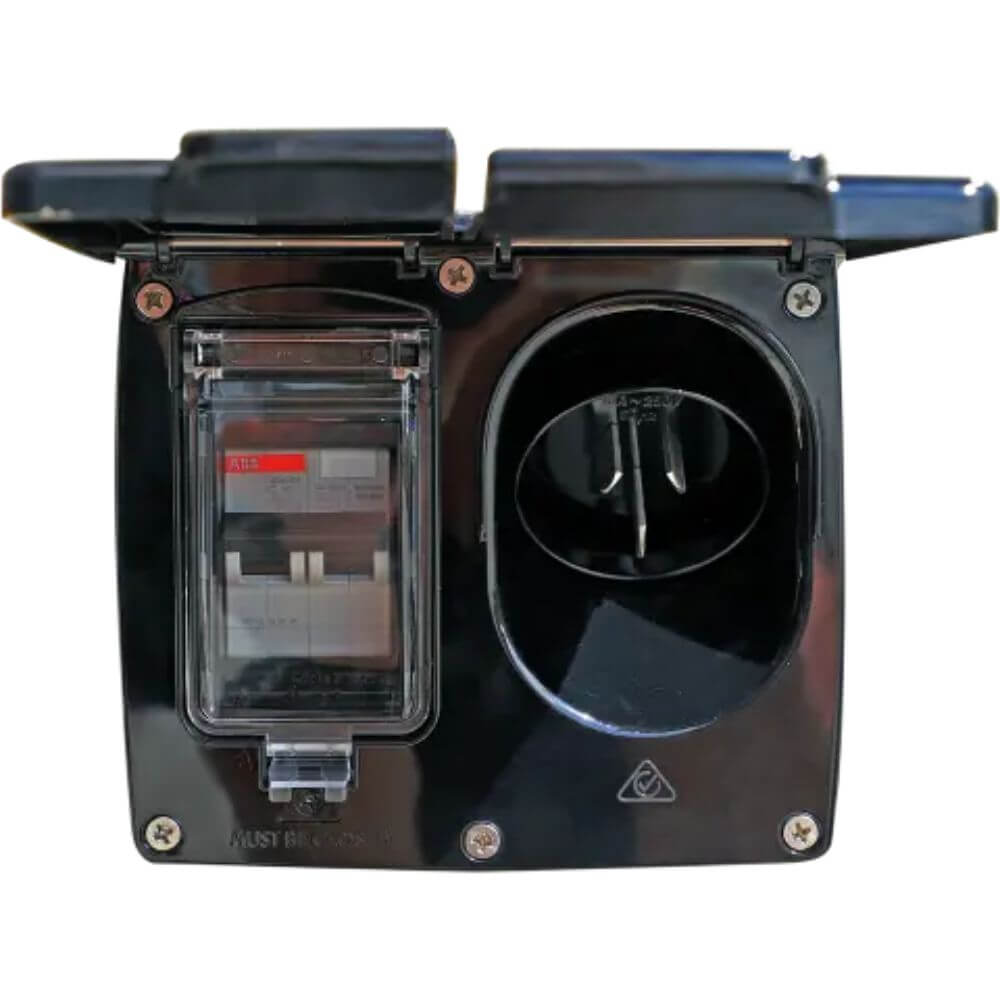

The 15A AC Power External Inlet with 16A RCD provides a ready-to-use power entry point for caravans, motorhomes, and RVs. Part of the CMS Electracom system, it facilitates safe 230V AC power connection with built-in 16A Residual Current Device (RCD) protection.

This unit features a 15A external inlet paired with a 16A RCD to help protect your electrical installations and appliances. It is designed for straightforward installation, speeding up setup before electrician certification.

Note: Not compatible with Jayco “J” type connectors. Verify compatibility before purchase.

Features

• Integrated 15A AC external inlet with 16A RCD protection
• IP44 rated for splash and dust resistance
• Plug-and-play CMS Electracom system compatibility
• Suitable for caravans, motorhomes, and 4WD canopies
• DIY-friendly installation reduces setup time
• Durable black finish

Specifications

• Input Current: 15A AC
• RCD Rating: 16A Residual Current Device
• Voltage: 230V AC
• Ingress Protection: IP44
• Colour: Black
• Dimensions (W × H × D): 130 × 110 × 80 mm

System Overview

Standard CMS setup includes:

• 15A external power inlet (this unit)
• 16A circuit breaker or RCD for protection
• Connected power outlets using plug-and-play loom cables

Expand circuits or add lines for appliances such as battery chargers, hot water units, or air conditioners using additional cables and adapters.

Installation Notes

• Each circuit must have a 16A circuit breaker or RCD
• Maximum 10 double or 12 single power points per circuit
• Sealed cable ends (25 × 16 mm) ensure safe connections
• Allow extra cable length for maintenance
• Power points need minimum 32 mm recess depth
• Install wiring before fitting wall sheeting where possible

All components meet Australian and New Zealand electrical standards for recreational vehicles.
