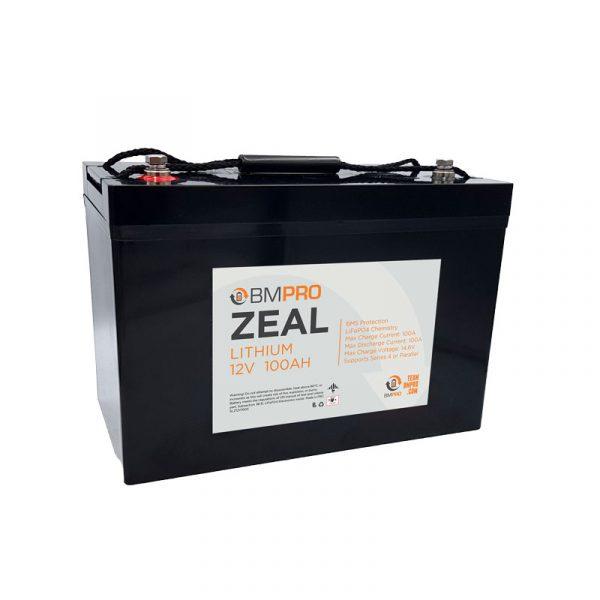

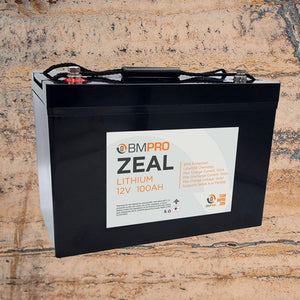

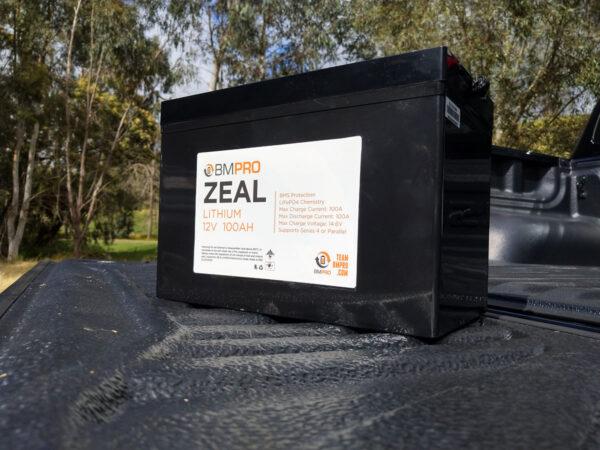

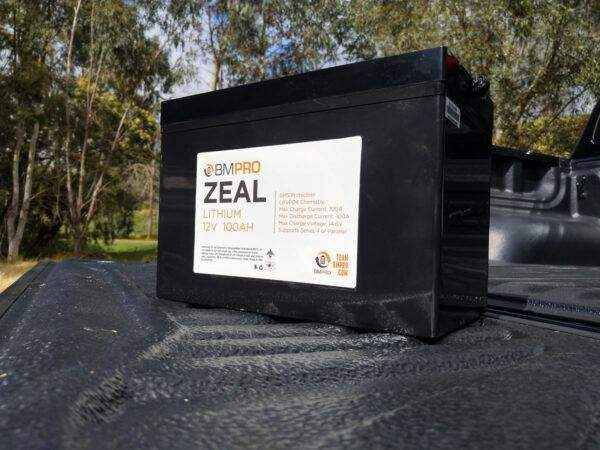

BMPRO Zeal 12v 100Ah Lithium Battery Lifepo4

LIFEPO4 – THE BEST CHOICE FOR OFFGRID Adventures

Lithium batteries also known as LiFePO4 batteries have numerous advantages over lead acid deep cycle batteries:

• LAST LONGER – 5 X greater than lead acid
• CAPACITY – 60% greater utilisation
• LIGHTER – 1/2 weight of Sealed Lead Acid
• FASTER RECHARGE capability means you can get on the road quicker
• MORE EFFICIENT flatter discharge curve means longer, more efficient run-time
• LOW SELF DISCHARGE rate means greater reliability after long periods of no use

Integrated BMS protects the individual cells from overcharge / discharge, temperature and short circuit.

• economical 12V Lithium Iron Phosphate (LiFePO4) solution
• sturdy design
• fast recharge capabilities
• low self-discharge rate
• long runtime
• 3 year warranty

• The battery features light-weight aluminium encased LiFePO4 prismatic cells, considered to be the most stable lithium cells available.

  BMPRO Zeal 12V 100Ah lithium battery can be used in deep cycle applications for 4WD and recreational vehicles.

  Connect up to 4 batteries in parallel or series for larger power needs.

  Not suitable for cranking, under bonnet applications.

  Nominal Voltage 12.8V
  Nominal Capacity (25ºC, 0.33C) 100Ah
  Weight 12.8 kg
  Dimensions 306 (L) x 167 (W) x 211 (H) mm
  Max Discharge Current 100A
  Max Pulse Discharge Current (3 sec) 300A
  Max Charge Voltage 14.6±0.2V
  Standby Voltage 13.8±0.2V
  Cut-off Voltage 10V
  Terminal type M8
  Cycle Life (100% DoD) 1800+
  Warranty 3 years

  Recommended inverter matching:

  • 100Ahr – up to 1200W inverter
  • 200Ahr – up to 2000W inverter (can handle 3000W at peak)
  • 300Ahr – 3000w inverter
