H1807

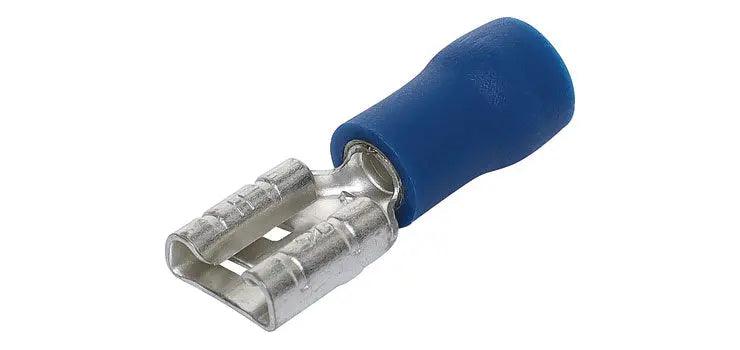

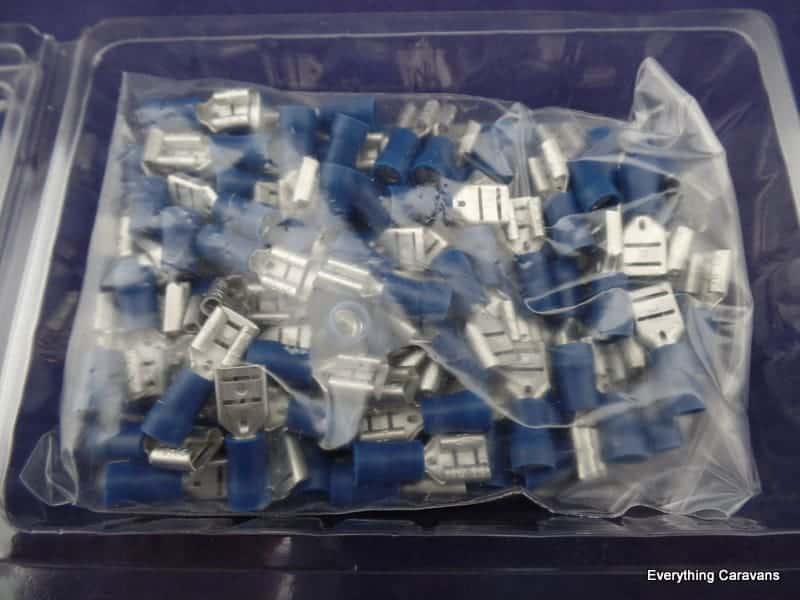

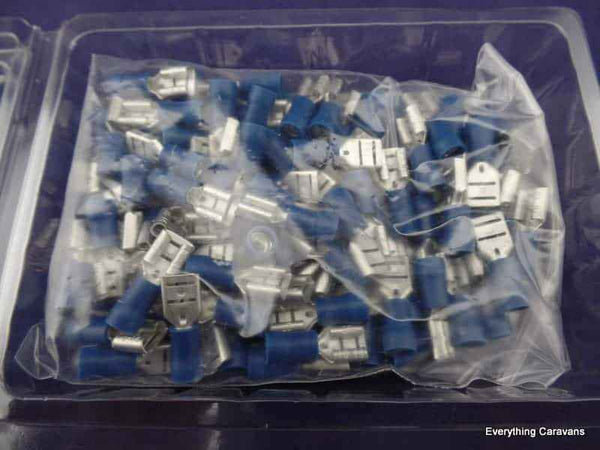

Blue 6.3mm Female Half Insulated Spade Crimp Pk 100

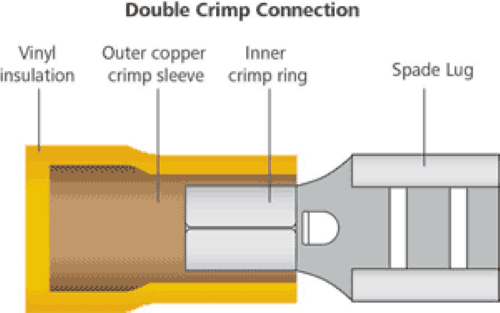

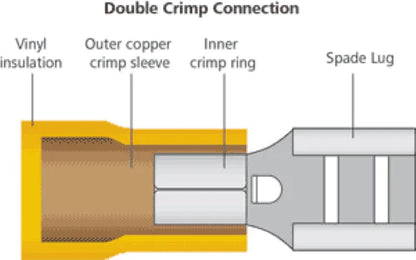

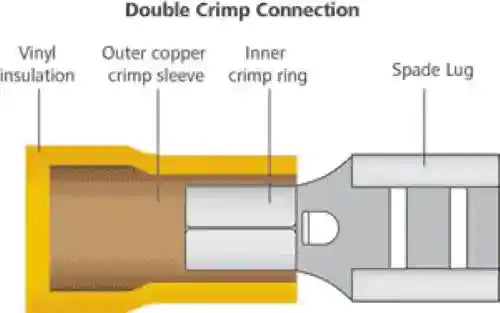

Spade type with double crimp Wire: 1.5 - 2.5mmØ Stud:6.3mm Max. voltage: 300V 100 pieces in each pack What Is A Double Crimp? A double crimp features two crimping surfaces. Firstly, an inner crimping ring which is directly attached to the spade lug, this crimps to the exposed cable core. Secondly the outer crimping ring secures both the cable core and outer sheath to the crimp terminal. This results is a vastly more reliable connection. The diagram below shows how the outer crimping ring surrounds the inner ring, ensuring a quality connection every time 12 Volt, 12v Plugs and Sockets, Narva
