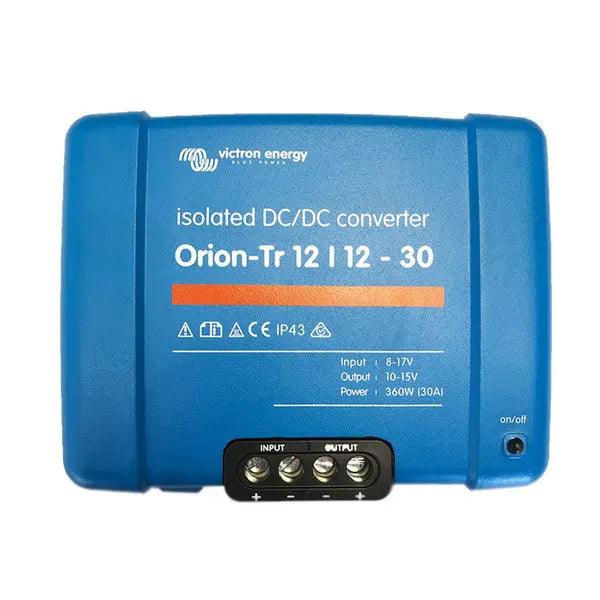

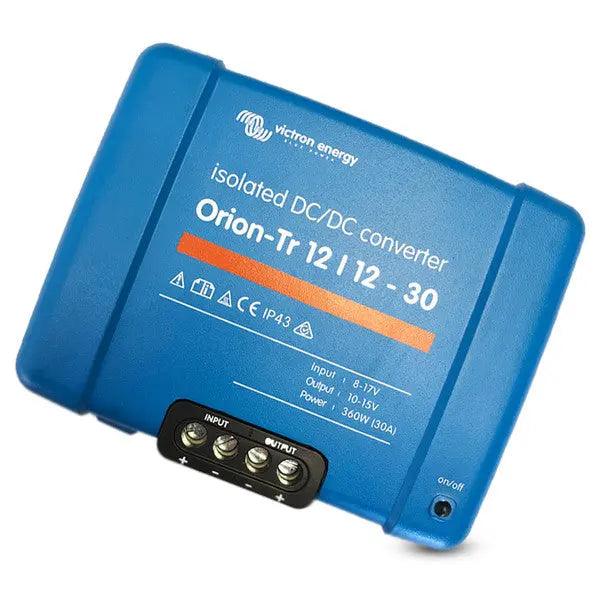

Victron Orion-Tr 12volt 12volt 30A Isolated DC-DC Converter

Victron Orion-Tr 12/12-30A (360W) Isolated DC-DC converter

Ideal to use as a simple 12volt DC/DC charger for Lithium Batteries - we use these (instead of DC Charger) if the tow vehicle wiring will not cope with full 30amp supply. For AGM batteries use the Victron DCDC Charger.

5 year warranty

Remote on-off
The remote on-off eliminates the need for a high current switch in the input wiring. The remote on-off can be operated with a low power switch or by for example the engine run/stop switch (see manual).

Adjustable output voltage: can also be used as a battery charger
For example to charge a 12 Volt starter or accessory battery in an otherwise 24V system.

All models are short circuit proof and can be paralleled to increase output current
An unlimited number of units can be connected in parallel.

IP43 protection
When installed with the screw terminals oriented downwards.

Screw terminals
No special tools needed for installation.

Input fused

• Input voltage range 10-17V
• Under voltage shut down 7V
• Under voltage restart 7,5V
• Nominal output voltage 12,2V
• Output voltage adjust range 10-15V
• Output voltage tolerance +/- 0,2V
• Output noise 2mV rms
• Cont. output current at nominal
• output voltage and 40°C 30A
• Maximum output current (10 s) at nominal output voltage minus 20% 40A
• Short circuit output current 60A
• Cont. output power at 25°C 430W
• Cont. output power at 40°C 360W
• Efficiency 87%
• Off load current 80mA
• Galvanic isolation 200V dc between input, output and case
• Operating temperature range -20 to +55°C (derate 3% per °C above 40°C)
• Humidity Max. 95% non-condensing
• DC connection Screw terminals
• Maximum cable cross-section 16 mm² (AWG6)
• Weight: 1,8 kg (3 lb)
• Dimensions 130h x 186w x 80d mm
