Victron 12v 175w Poly Solar Panel 1485mm x 668mm X30mm

Victron 12V 175W Polycrystalline Solar Panel 1485mm x 668mm x 30mm

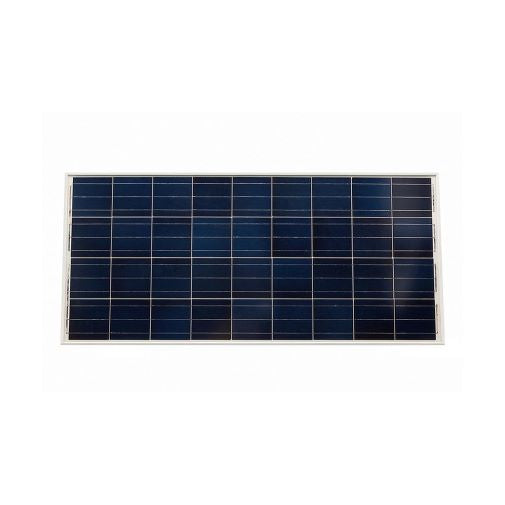

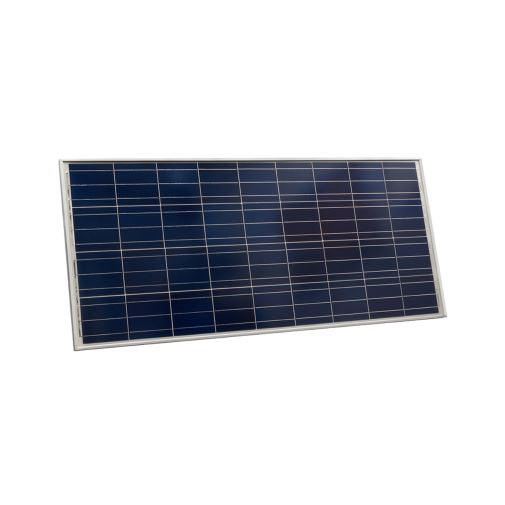

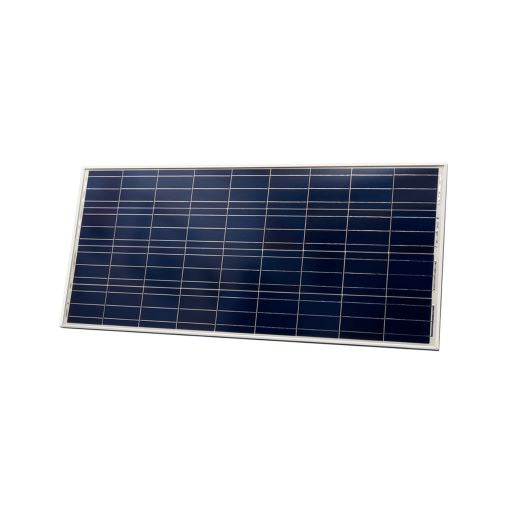

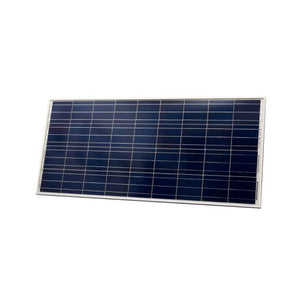

Victron 12V 175W Polycrystalline Solar Panel

Dimensions: 1485mm (L) x 668mm (W) x 30mm (H) • Series: 4A • Frame: Silver aluminium

Features

• Low voltage temperature coefficient for better performance in high temperatures.
• Good low-light sensitivity for efficient energy capture throughout the day.
• 25-year limited warranty on power output and performance.
• 5-year limited warranty on materials and workmanship.
• Sealed waterproof junction box for enhanced safety and durability.
• Bypass diodes reduce power loss caused by shading on cells.
• Encapsulated with advanced EVA and triple-layer back sheet for safe high-voltage operation.
• Anodised aluminium frame suitable for standard roof mounting systems.
• Pre-wired with PV-ST01 quick-connect connectors for easy installation.
• Tempered glass increases panel strength and impact resistance.
• Polycrystalline solar cells with 36 cells in series.
• Nominal power: 175W
• Open circuit voltage: 21.9V
• Maximum power voltage: 18.3V
• Short circuit current: 10.24A
• Maximum power current: 9.56A
• Operating temperature range: -40°C to +85°C
• Cable length and connector: 900mm with MC4 connector
• Power tolerance: ±3%
• Maximum system voltage: 1000V
• Weight: 12kg
