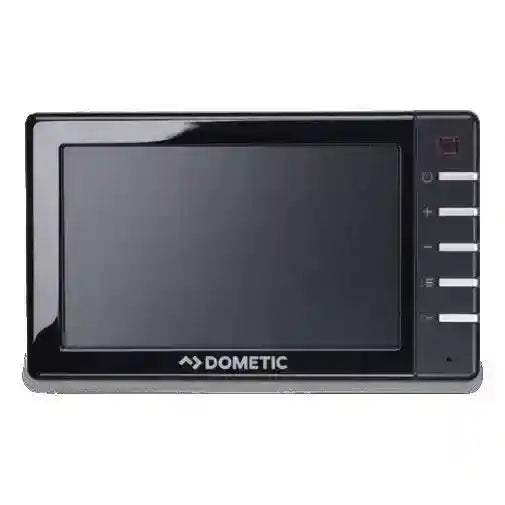

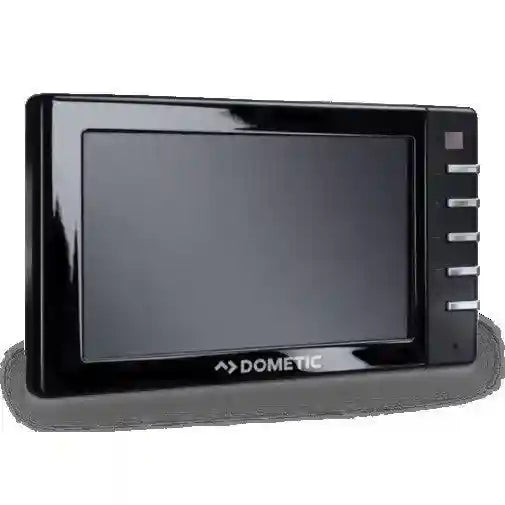

Dometic Perfect View M 55L 5" LCD Monitor for Reversing System

Monitor to replace your existing Dometic unit.

DIGITAL 12.7 CM LCD MONITOR only - includes wiring harness
Digital LCD technology with super-bright, energy-saving LED backlighting for excellent image quality in all light conditions. This flat and compact 12.7 cm monitor gives the perfect view for safe maneuvering. It is the core component of many Dometic reversing systems.

Does not include Camera

Specification:

5” Ahd Lcd Colour Monitor

GENERAL:

• SKU number 9600012882
• Model M55L AHD
• Model on label M55L AHD
• Product Description Digital 12.7 cm LCD monitor

DIMENSIONS:

• Dimensions product depth 26 mm
• Dimensions product height 87 mm
• Dimensions product width 148 mm
• Net weight 0.35 kg

ELECTRICAL:

• Input voltage (DC) 12/24 V
• IP class IP40

PERFORMANCE:

• Camera inputs 3
• Brightness adjustment Automatic via LDR
• Picture brightness 350.00 cd/m²
• Resolution 384000 px
• Video standard PAL/NTSC Auto
• Vibration resistance 6.00 g
• Operating temperature min -20.00 °C
• Operating temperature max 70.00 °C
• Mirrored Picture Function

• EAN-13 7315091408875

See more and drive safer

PerfectView L-series monitors ensure superb image quality during the day and night, even when temperatures are low. The LCD displays with Analog High Definition (AHD) technology and LED backlighting give you an exact view of what is happening around your vehicle. Its bright, high-contrast display is pleasant to the eye, and easy to read in all light conditions. You can connect up to three cameras to have everything in sight.

SAFE CONNECTION
Lockable plug-in connectors are both dust and waterproof

CONVENIENT HANDLING
Precisely adjustable ball mount for optimal positioning of the monitor

ANTI-REFLECTION TECHNOLOGY
Bright, high-contrast display ensures excellent readability in all light conditions

EASY TO USE
With illuminated keys and day-night switching

• Digital LCD technology with LED backlighting achieve top image quality – day and night
• Three cameras can be connected for safe all-around vision
• Image settings can be saved separately for each camera input
• Automatic trailer camera recognition
• Elegant monitor base with concealed cable routing
• Mirror function can be set to give you a familiar rear mirror view

THIS IS DOMETIC TRUCK COMFORT
Tens of thousands of truck drivers rely on Dometic to make their job a little easier. Why? Because we make mobile living easy. They know our solutions are smart and reliable.

EVERYTHING IN SIGHT – DAY AND NIGHT
Maneuvering a bulky vehicle can be tough.

Here is a reliable assistant – the Dometic PerfectView M 55L LCD monitor. It gives drivers a clear view of what's happening behind the vehicle with its bright, high-contrast 12.7 cm display.

The monitor is easy to read in all light conditions, even in low temperatures.

The M 55L has three camera inputs, one of them with signal recognition – enabling a side camera to be activated via the indicator light. The automatic trailer recognition comes in handy when you travel with a trailer in tow.

9600012882
