Witi Motorhome Anti Theft System with intrusion Detection - same as 440 ...

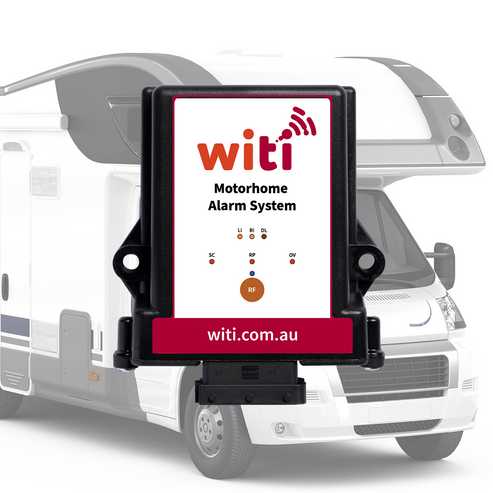

WiTi Motorhome Alarm System

The WiTi Motorhome Alarm System provides theft protection for motorhomes, buses, and trucks. It uses motion detection and wireless sensors to trigger an external alarm and lights. This model has been replaced by the 440 version.

Features

• Anti-theft detection using integrated gyroscope
• 105dB siren and external light flash when movement is detected
• Intrusion detection via wireless PIR Motion Sensor and Magnetic Door Switch
• False alarm prevention ignores side-to-side rocking caused by wind
• Automatic reset alarm resets after 30 seconds if no further movement
• LED status indicator for alarm state and fault detection
• External horn is weatherproof and installable outside the RV
• Vertical installation required inside the RV, facing front or rear
• Power from solar panels, Anderson plug or DCDC charger
• PIR Sensor range: 11m (install North/South)
• Door Switch: activates when door opens, LED indicates sensor status

Installation Instructions

• Install the unit vertically inside the RV, facing the front or rear
• Preferred location is towards the front of the RV
• Horn is weatherproof and can be installed externally
• Connect the Alarm Status LED to the supplied 12V LED as per wiring instructions
• LED indicates system state: lit (armed), off (disarmed), flashing (short circuit or overload)
• Connect to a charging circuit such as solar panels, Anderson plug, or DCDC charger
• Install PIR Motion Sensor inside the RV facing North/South to cover movement along the van
• PIR has an 11m range and signals the system when movement is detected
• Install Magnetic Door Switch on door frame to activate when door is opened
• Blue LED on door switch signals activation to the system

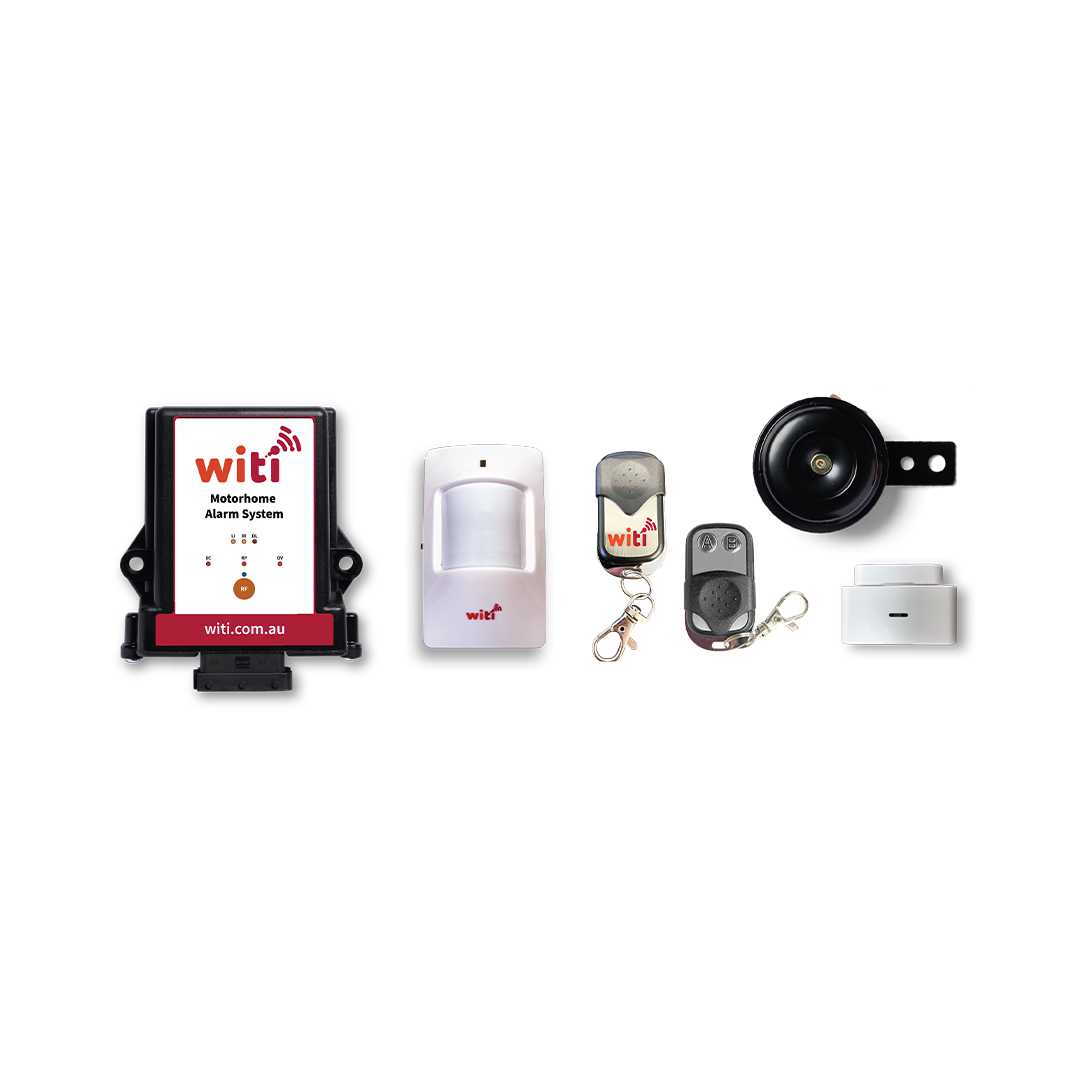

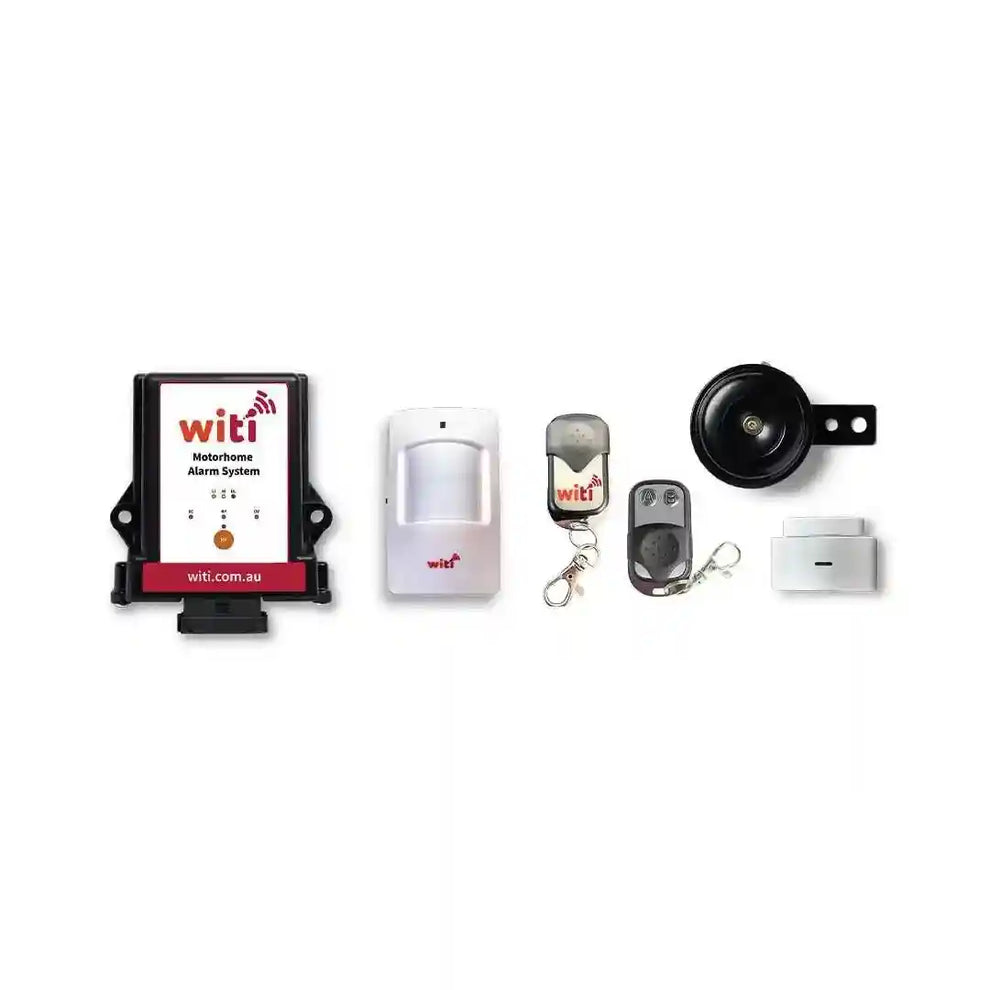

Includes

• WiTi Motorhome Alarm System
• 2 x Remote Controls
• 1 x Wireless PIR Motion Sensor
• 1 x Wireless Magnetic Door Switch
• 1 x External Status LED
• 1 x Horn
• 1 x Wiring Loom
