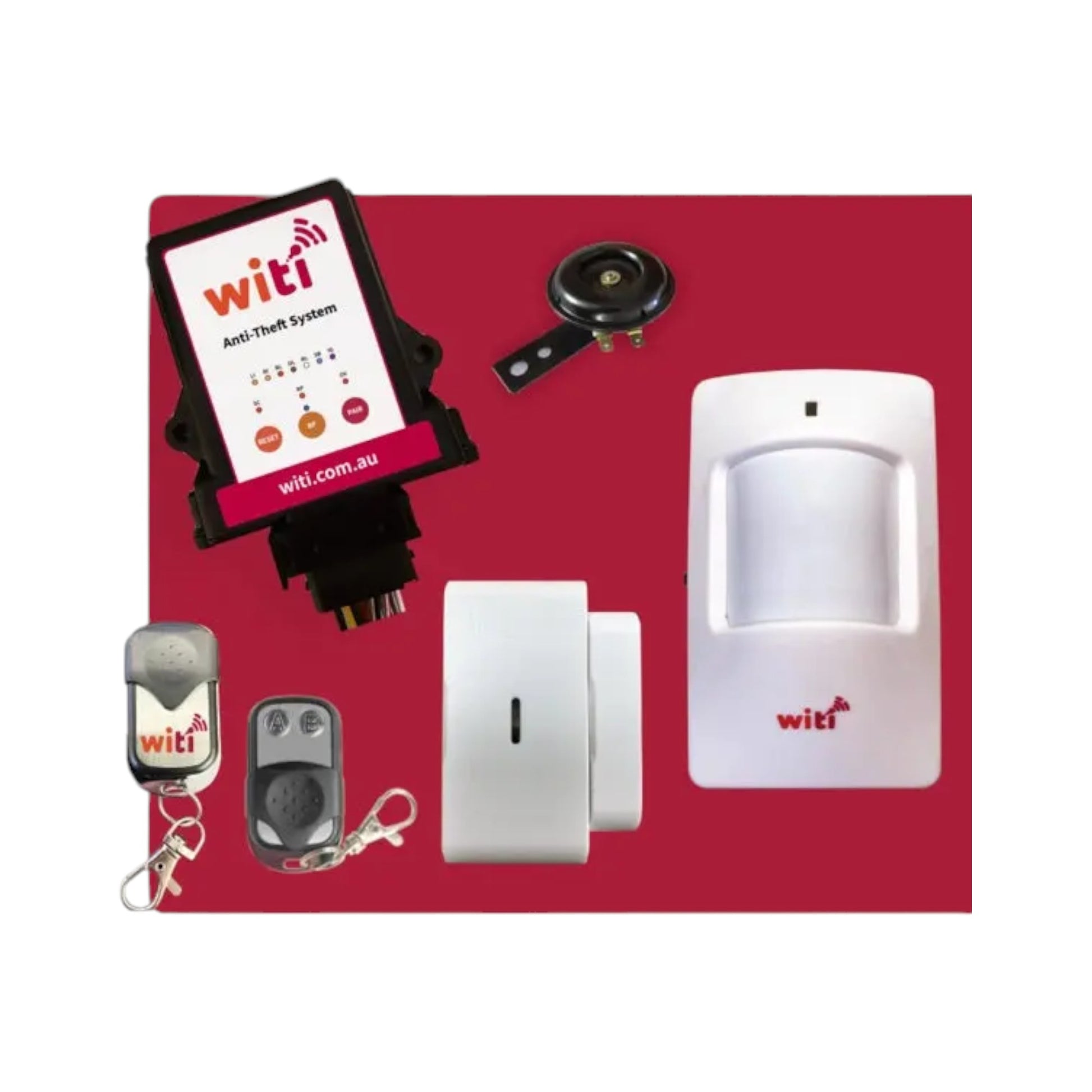

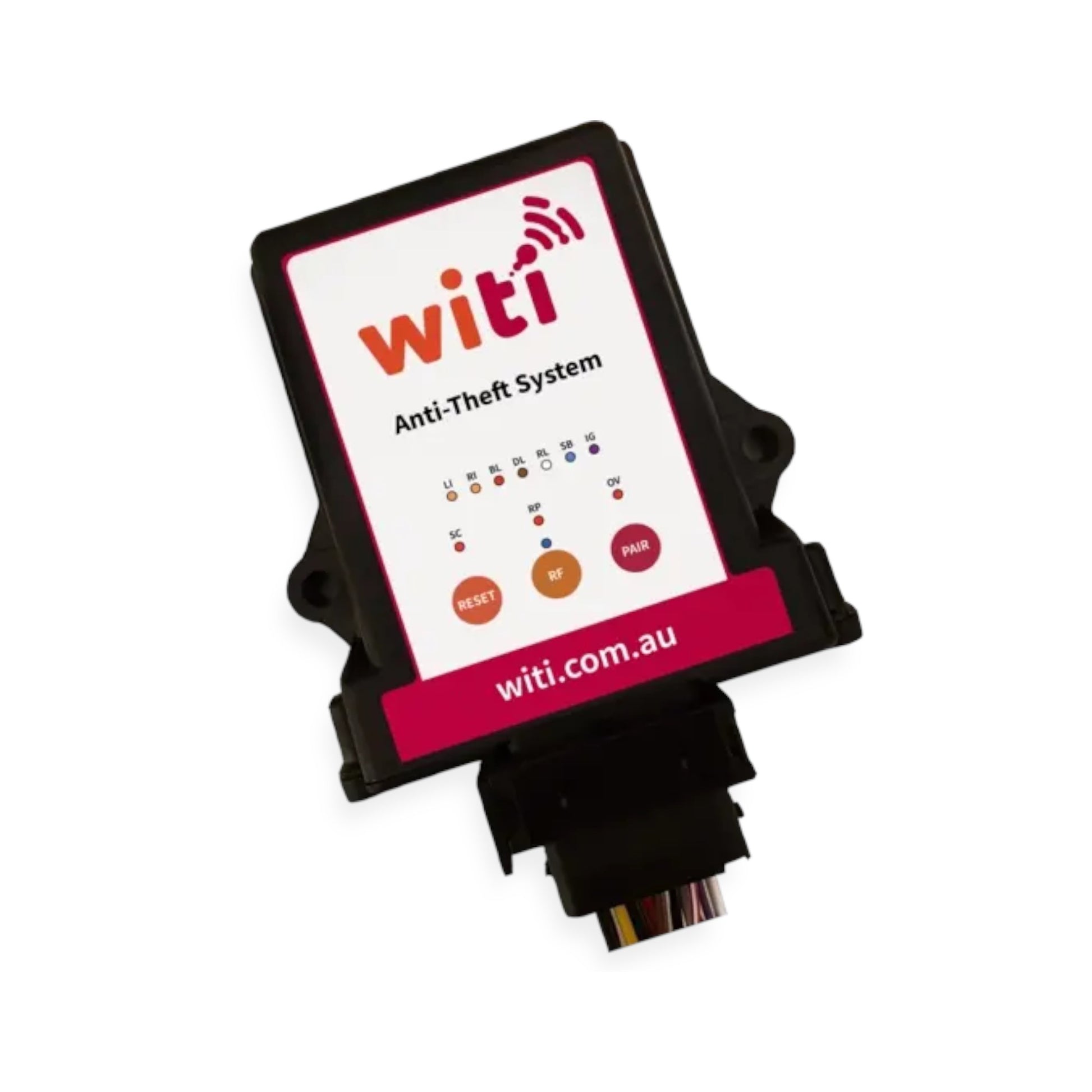

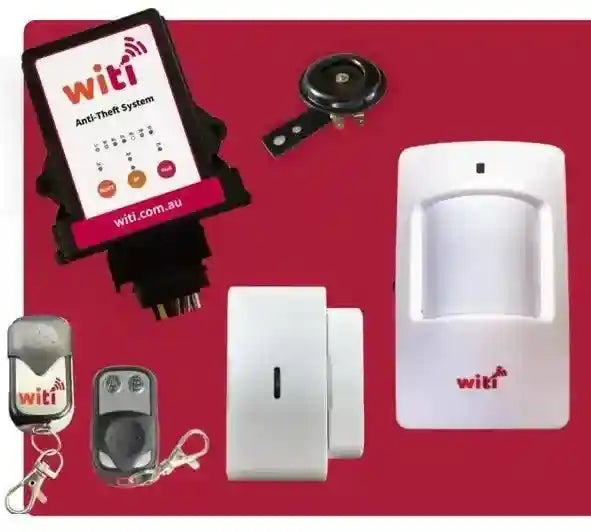

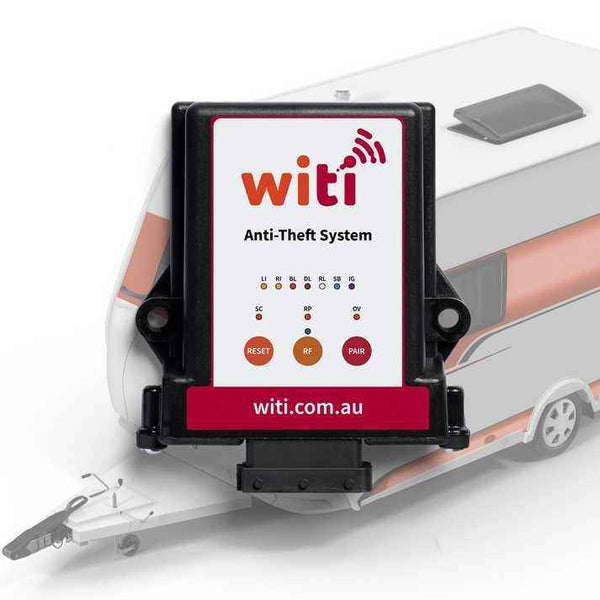

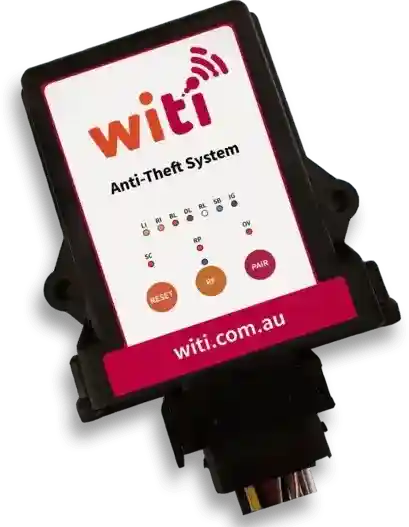

WiTi Anti Theft System with Intrusion Detection

The WiTi Anti Theft System with Intrusion Detection is designed for caravans, camper trailers, and trailers fitted with electric brakes. This system detects movement and helps prevent unauthorised towing by activating the brakes and sounding an alarm.

Features

• Detects movement with an ultra-sensitive gyroscope.
• Applies electric brakes to prevent towing when movement is detected.
• Activates external lights and a 105db alarm to alert nearby people.
• Alarm sounds for 30 seconds, then resets to surveillance mode automatically.
• Intrusion Detection using a Magnetic Door Switch and PIR Motion Sensor to monitor door openings and internal movement.
• Configured to ignore side-to-side movement caused by wind to reduce false alarms.
• Ideal for use inside caravans or trailers; horn is weatherproof for external mounting.

Installation Instructions

• Install the unit vertically facing the front or rear of the caravan or trailer.
• Mount the system inside the caravan or trailer, preferably near the front.
• Wire Alarm Status LED to the supplied 12V LED; it lights when armed, switches off when disarmed, and flashes for faults.
• Connect to a suitable 12V power source such as solar panels, Anderson plug, or DCDC charger.
• Wiring includes inline fuses for power and brake circuits.

PIR Motion Sensor

• Install inside the caravan or trailer facing North/South along the length.
• Covers up to 11 metres of caravan length.
• Signals the system to activate the alarm if movement is detected.

Magnetic Door Switch

• Fit on either side of the door frame so opening separates the switch components, triggering the sensor.
• A blue LED indicates when the switch is activated, signalling the alarm.
