Winch Relay Solenoid Twin Handset

The Winch Relay Solenoid Twin Handset is a 12V wireless remote control designed for easy operation of solenoid-operated winches. This remote control system is an upgrade for your winch, allowing you to control it from a distance with ease.

Features:

• Wireless winch remote control with twin handsets
• Compatible with any 12V solenoid-operated winch
• Heavy-duty long-range model

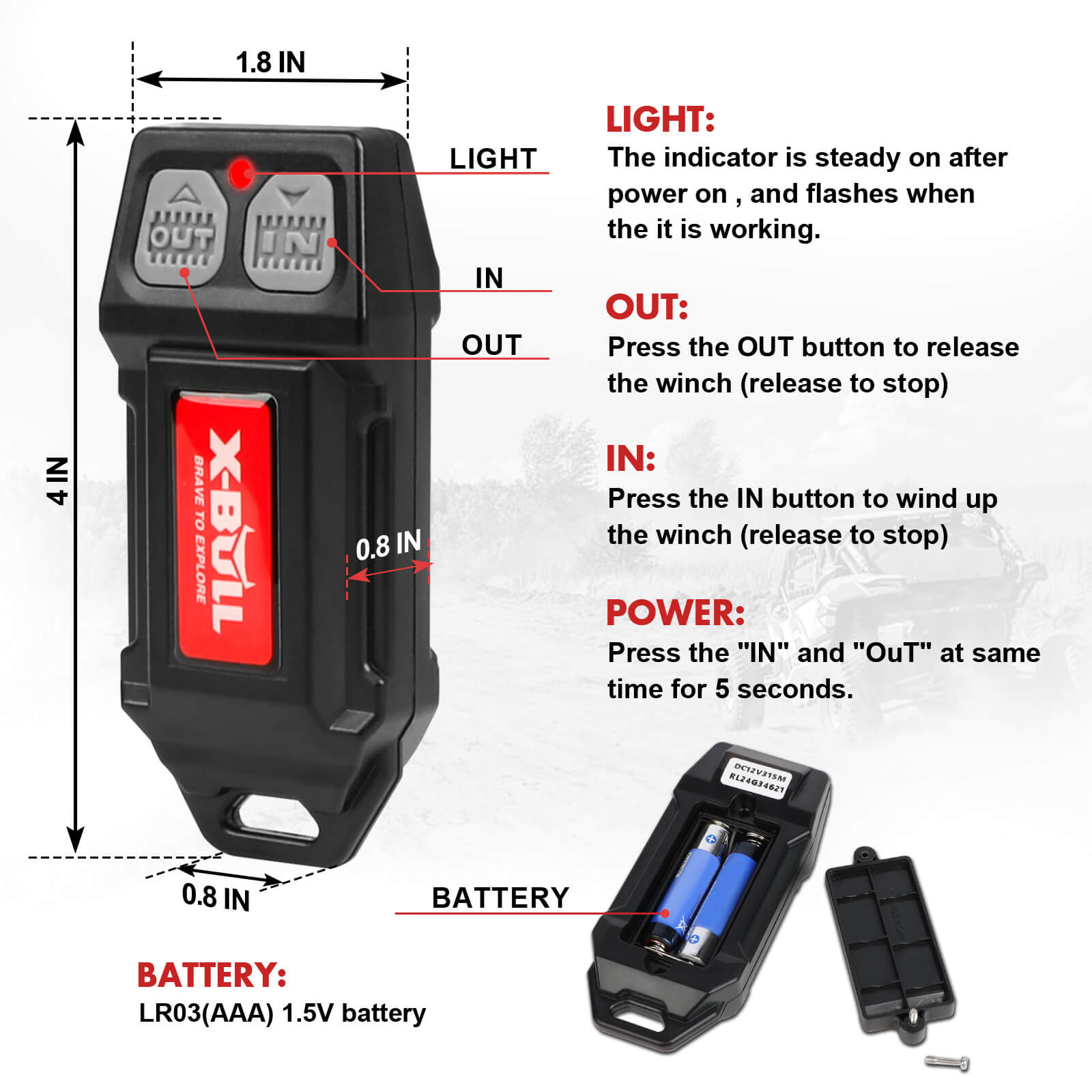

• Visual indicator light shows remote operation status

Specification:

• Distance: About 100ft
• Remote size: About 45 x 105 mm
• Receiver size: About 45 x 60 mm
• Power voltage: 12V

Package Contents:

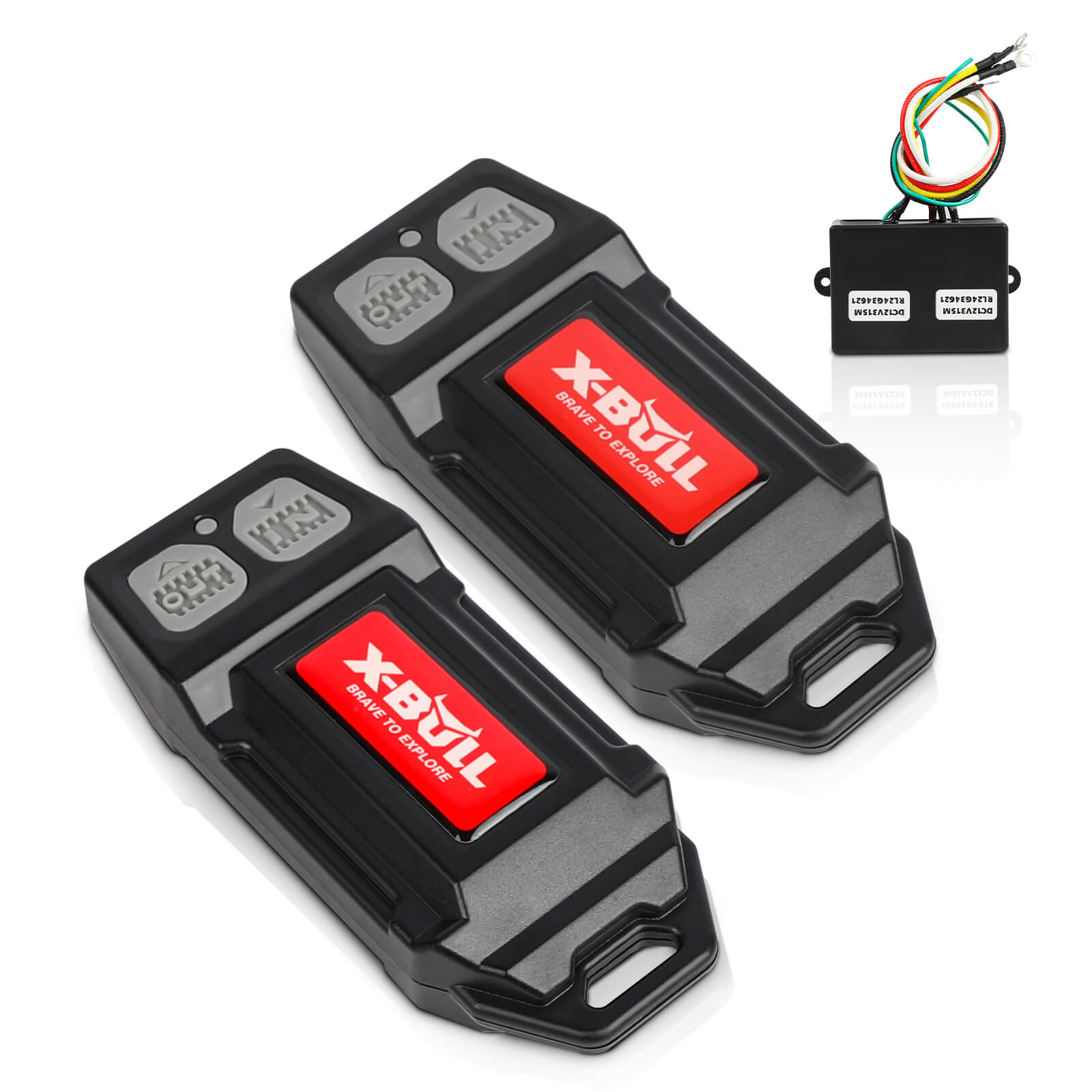

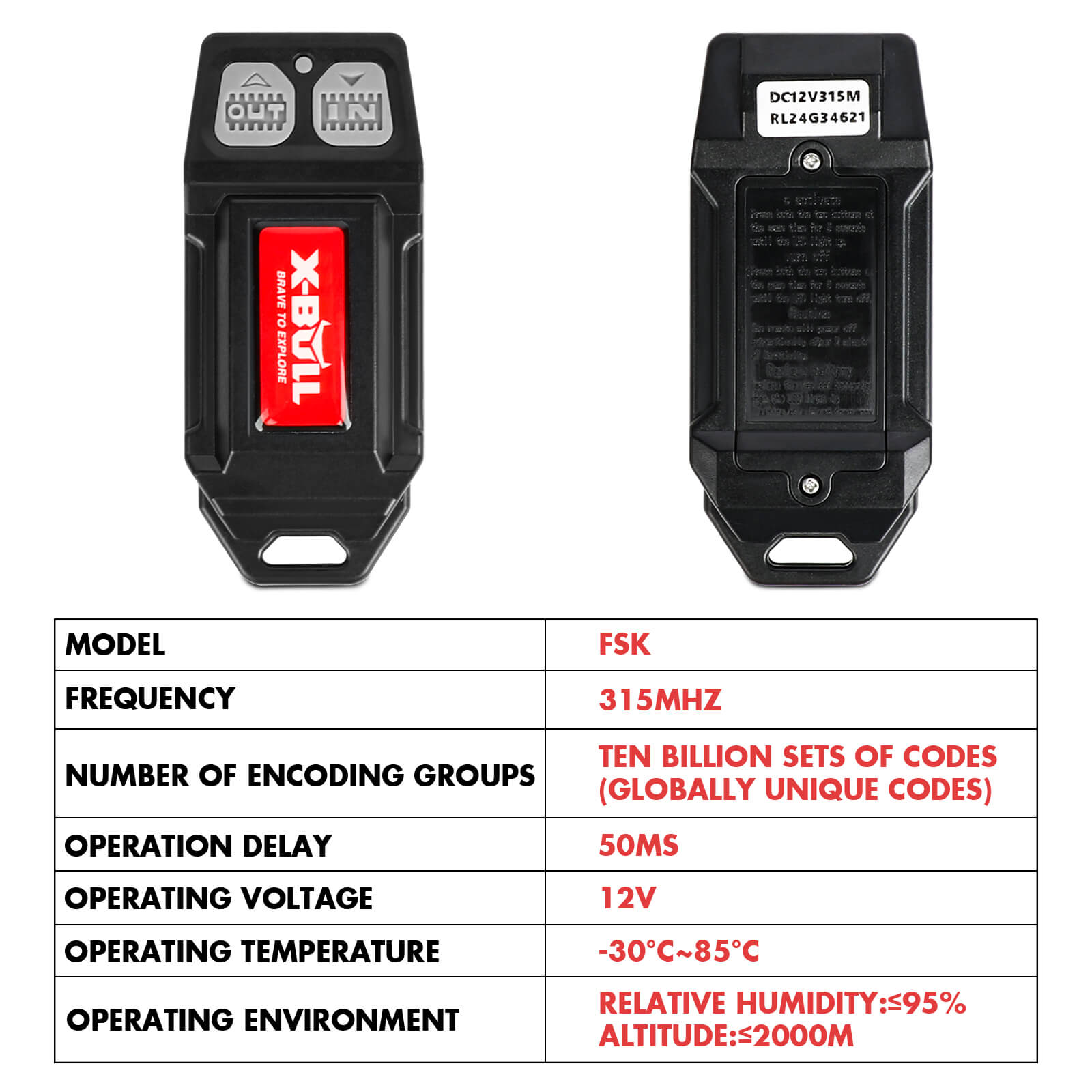

• 2 x Remotes

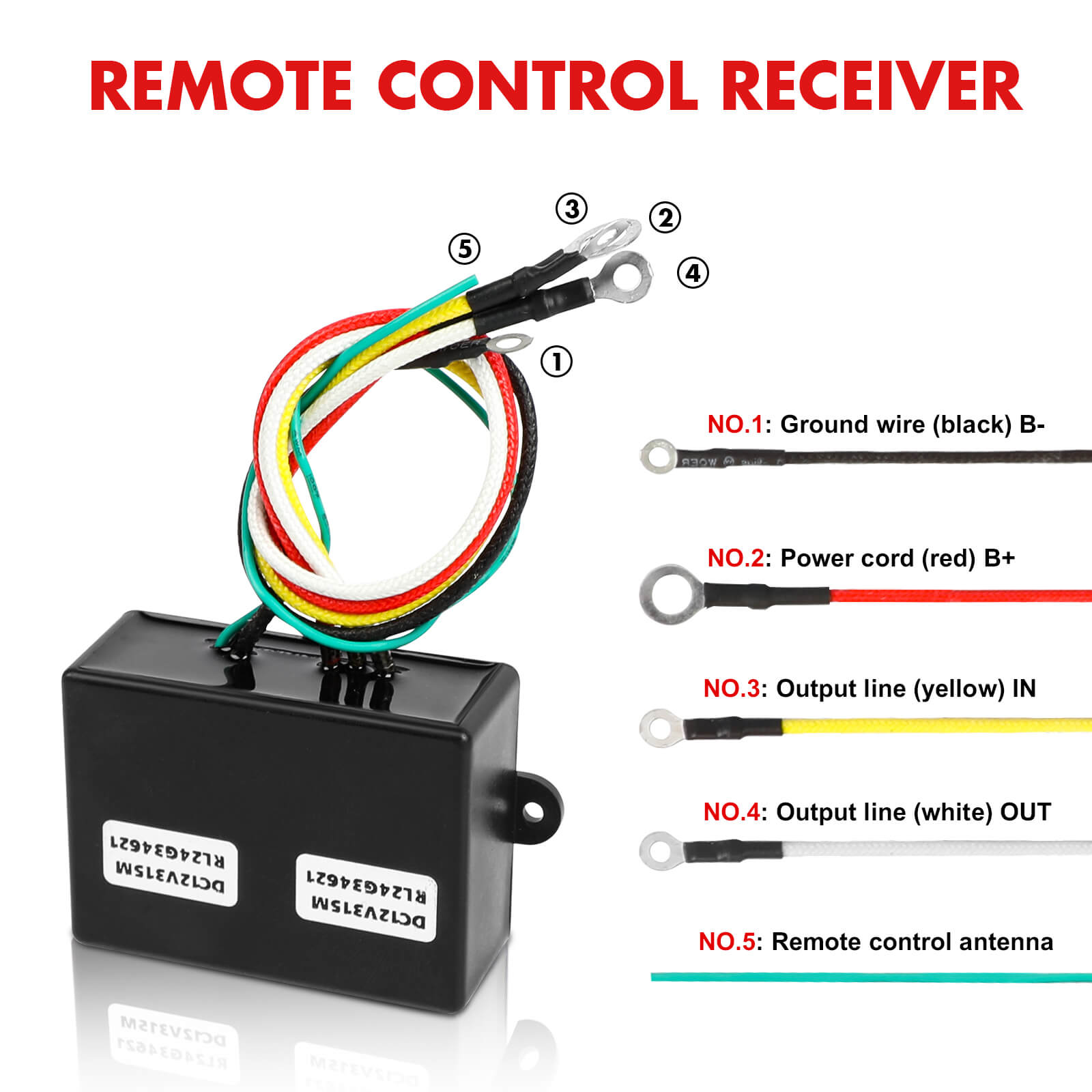

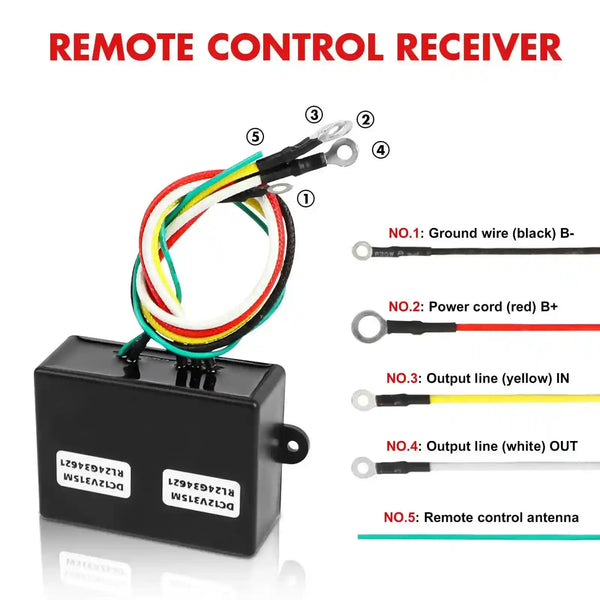

• 1 x Receiver
• 1 x User manual
• Battery included

Winch 12V Solenoid Control 500A Contactor Twin Wireless Remote Cover Suitable 9500lbs-17000lbs

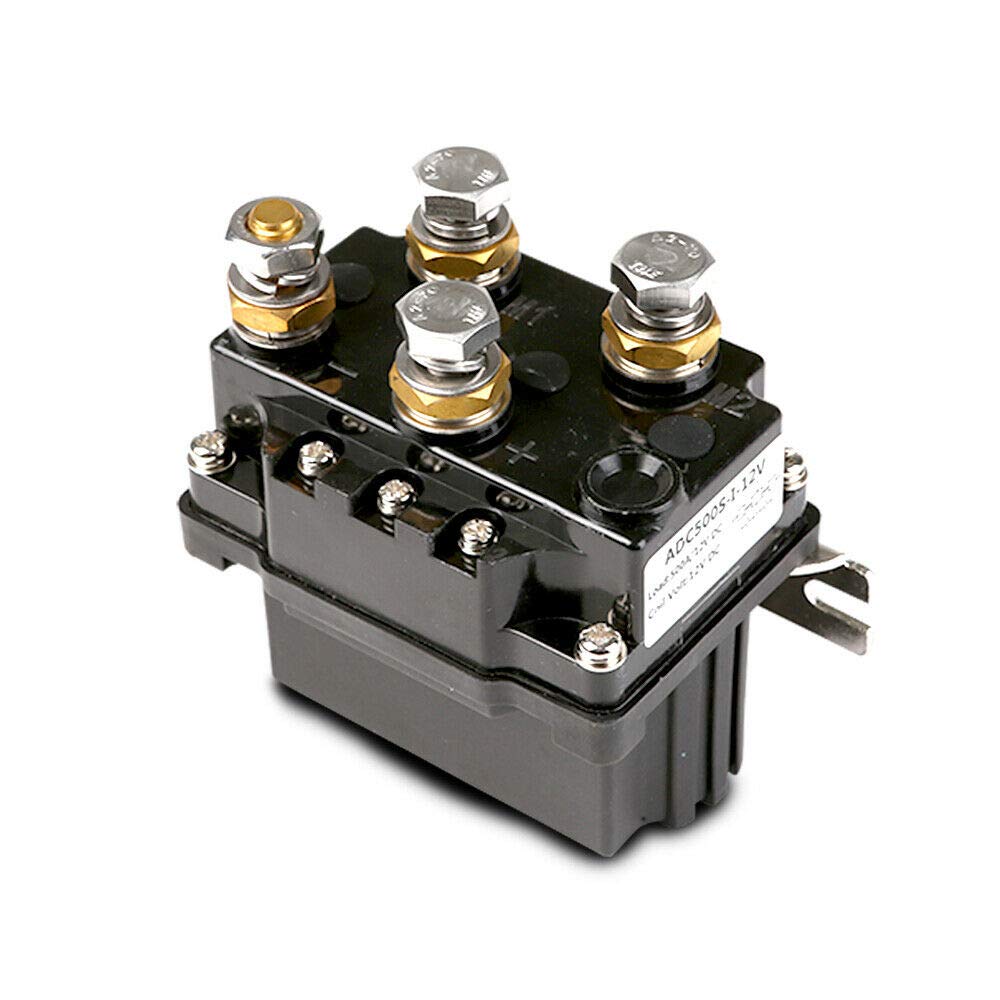

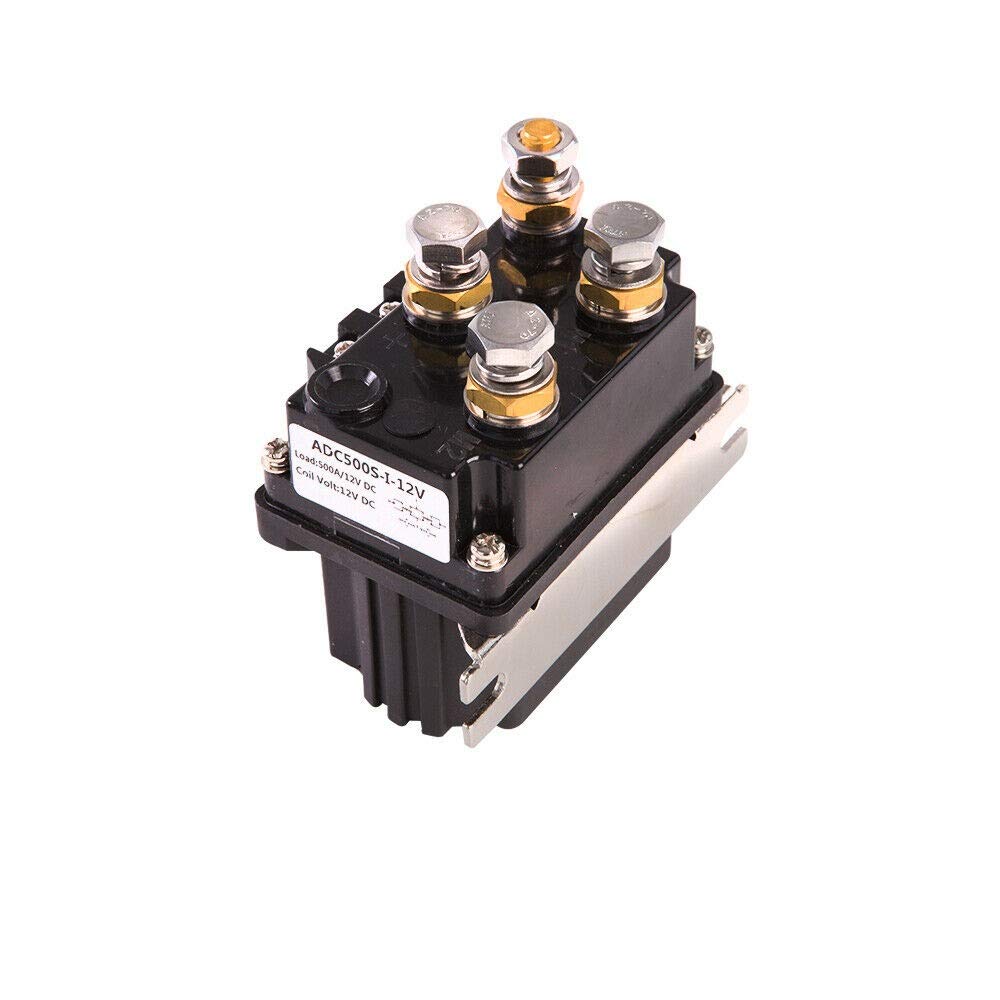

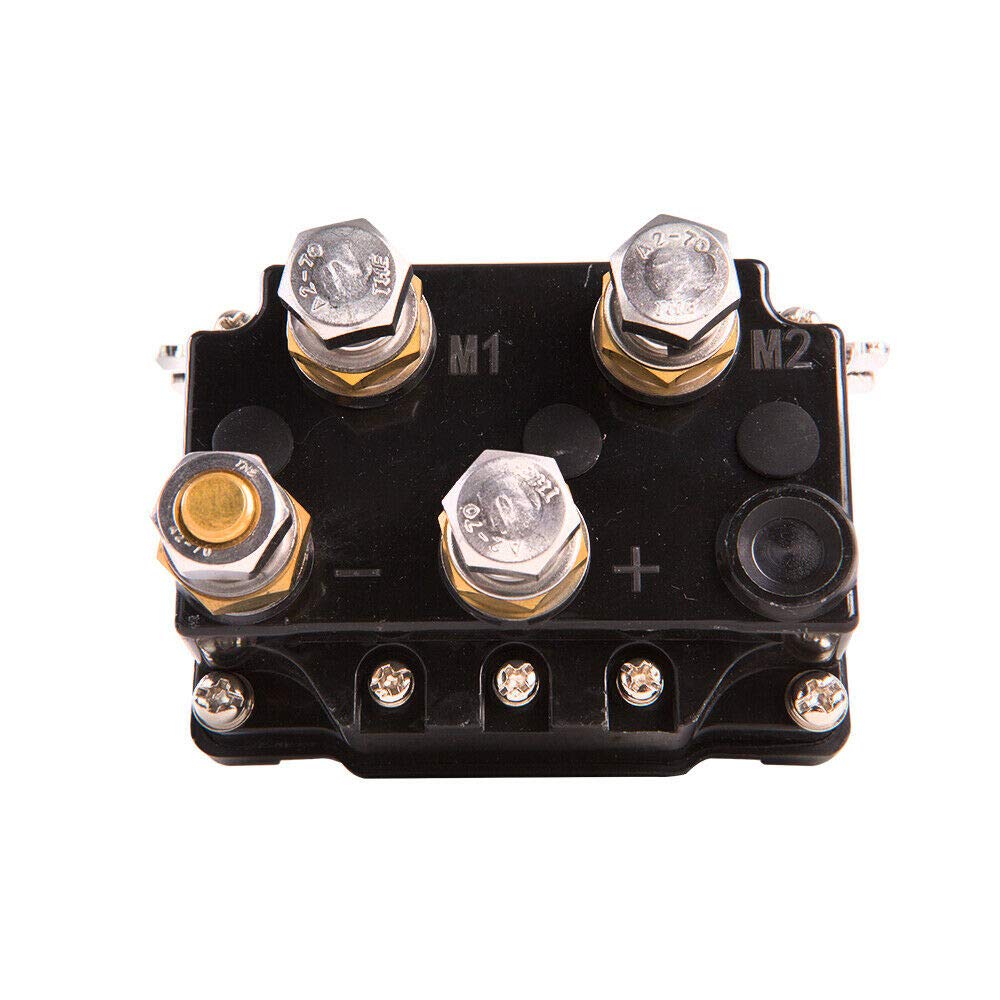

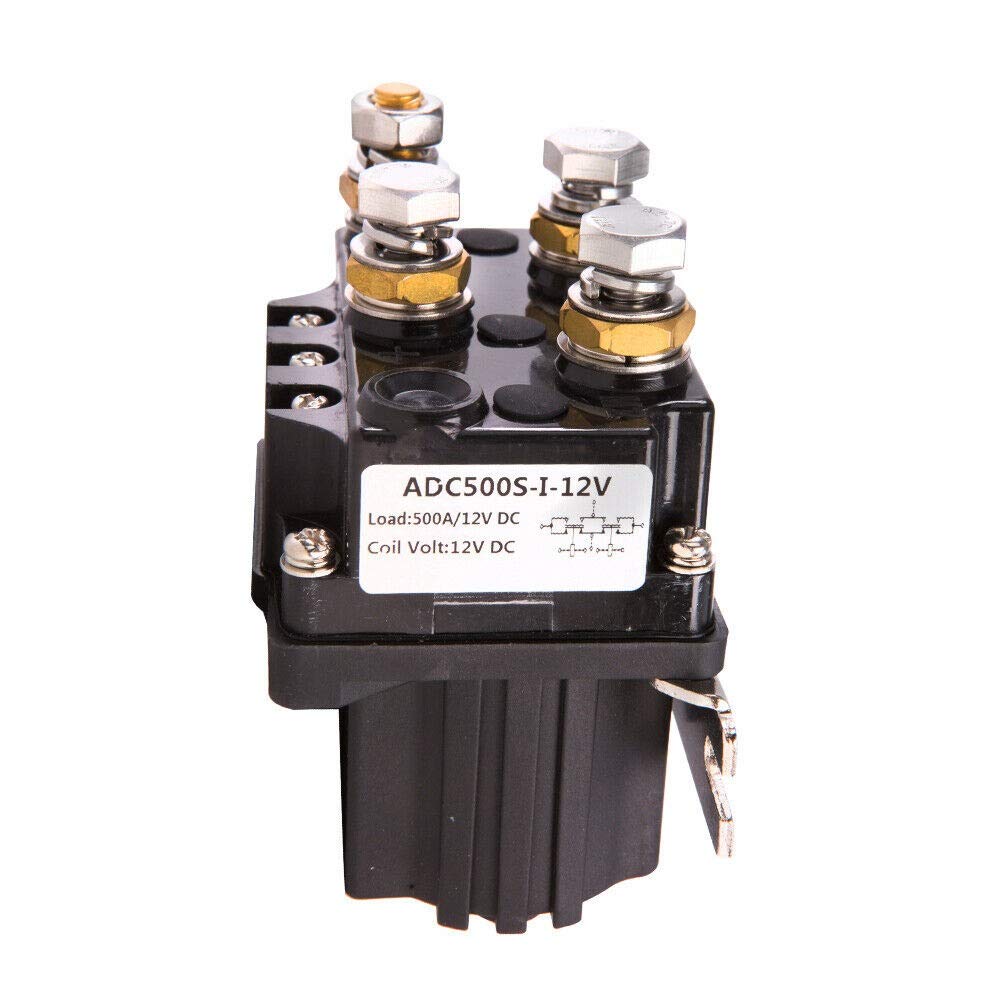

The Winch 12V Solenoid Control 500A Contactor is built for high-performance winch systems. This 500A solenoid is designed to handle winches with capacities ranging from 9500lbs to 17000lbs. It is also compatible with wireless remote controls for added convenience and efficiency.

Features:

• 500A 12V winch solenoid
• Sealed and corrosion-resistant construction
• Heavy-duty, solid build
• Compatible with wireless remote control
• Suitable for 9500lbs-17000lbs winches, both series wound and permanent magnet

Specification:

• Coil rated voltage: 6-110V DC
• Operating power: 15W
• Contact circuit voltage and loading current: 80V DC Max, 250V AC, 500A
• Mechanical life: 100,000 operations
• Electrical life: 50,000 operations
• Environmental temperature: -40°C to 85°C
• Frequency: 10Hz to 200Hz
• Speed: 60-100 operations per minute
• Operation regulation: Continuous
• Installation direction: Random
