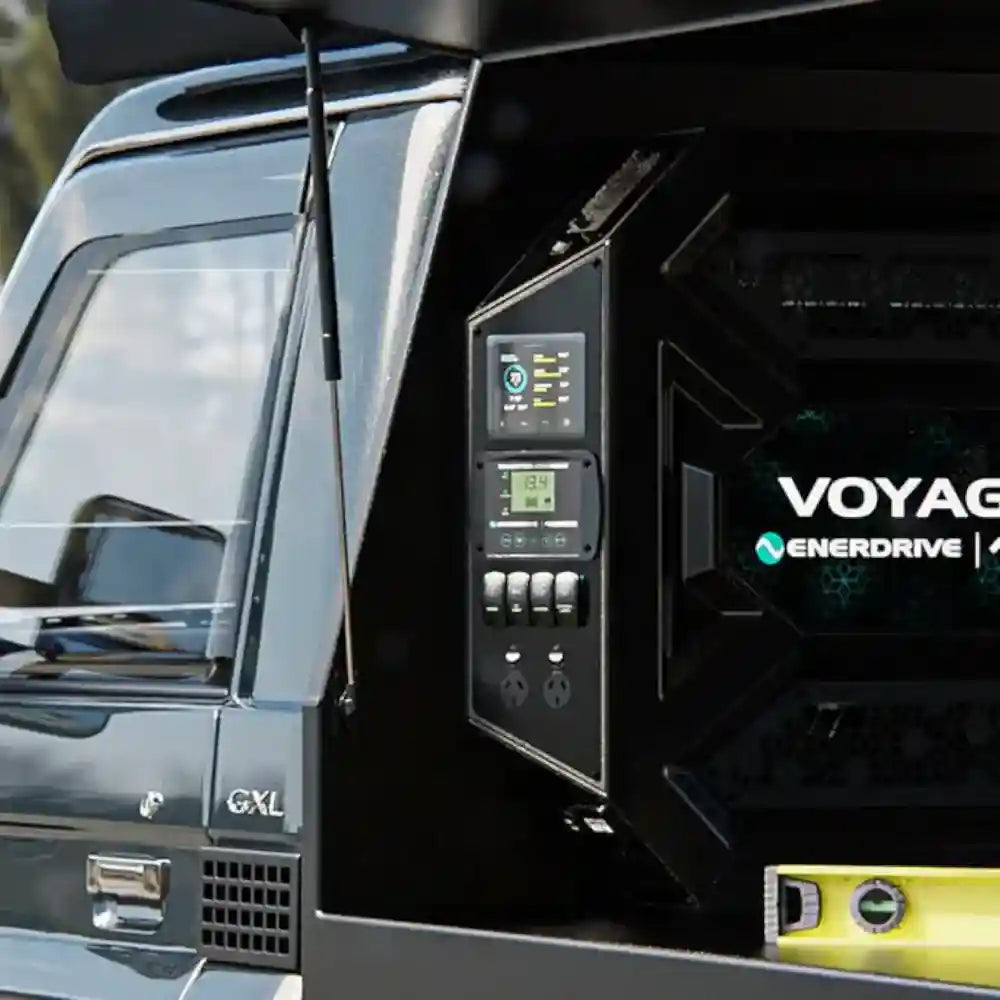

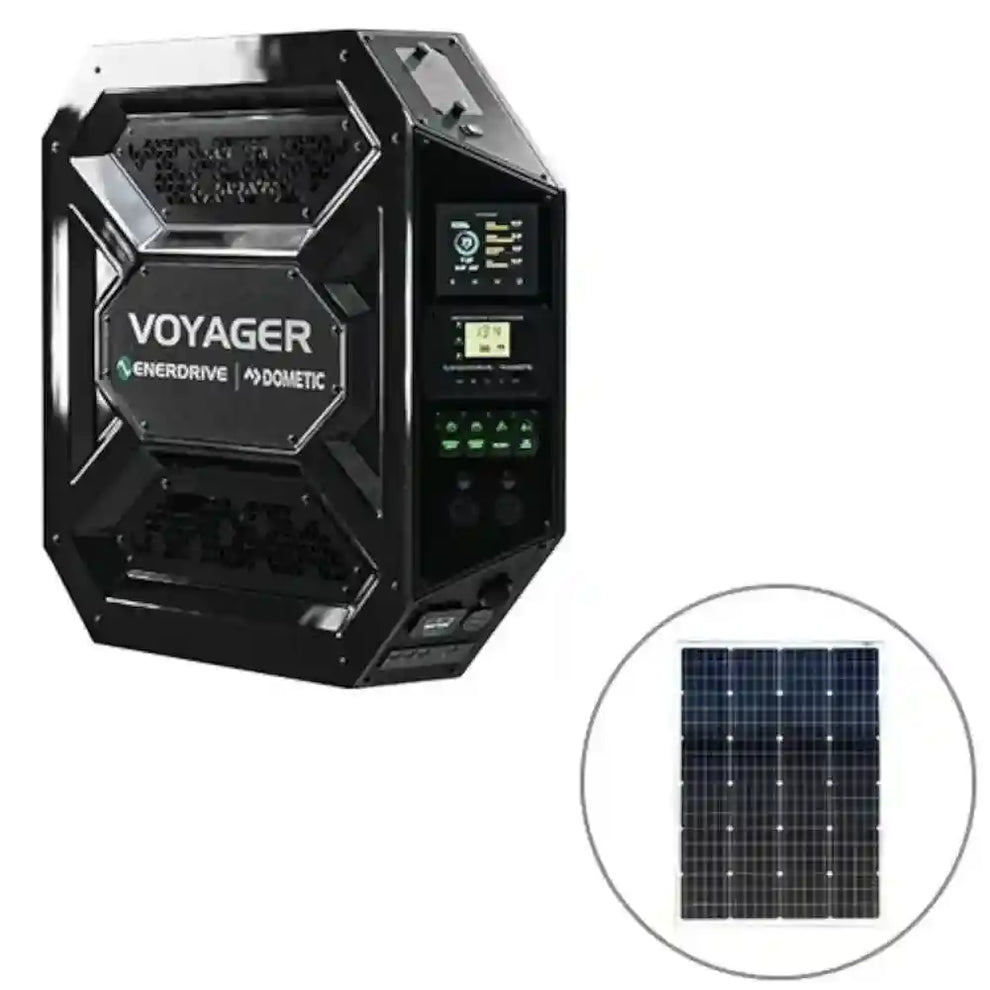

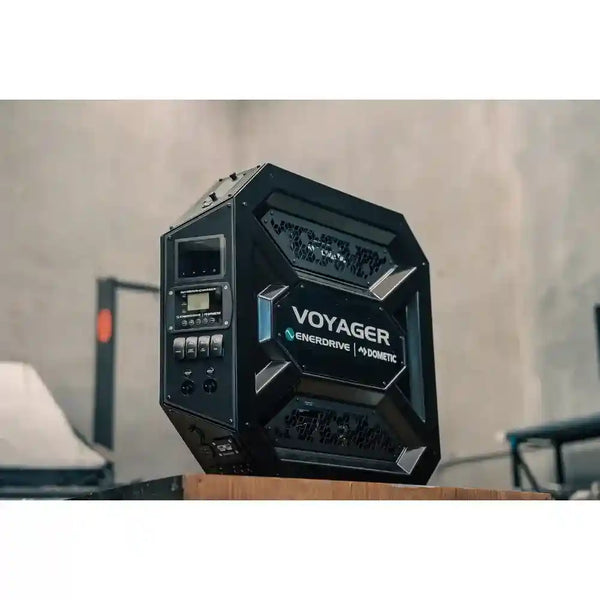

Voyager Power System canopy power system 3000W/100A inverter‑charger K-V3L01

Voyager Power System — canopy power system with 3000W/100A inverter‑charger

The Voyager Power System is a canopy power system with a 3000W/100A inverter‑charger designed to pair with B‑TEC batteries.

Features

• Dimensions: 830 W × 700 H × 155 D mm
• Warranty: 5 years
• Orientations available: Left; Right; Top (ceiling)
• Charging inputs: vehicle 12/24 V (40 A+); solar up to 45 V/800 W (DC‑DC); mains 240 V (100 A charging)
• Inverter‑charger: 3000 W / 100 A; suitable for appliances up to 3000 W
• Battery pairing: B‑TEC range
• Monitoring: Simarine display and mobile device support for battery, loads, charge input, and water/fuel tanks

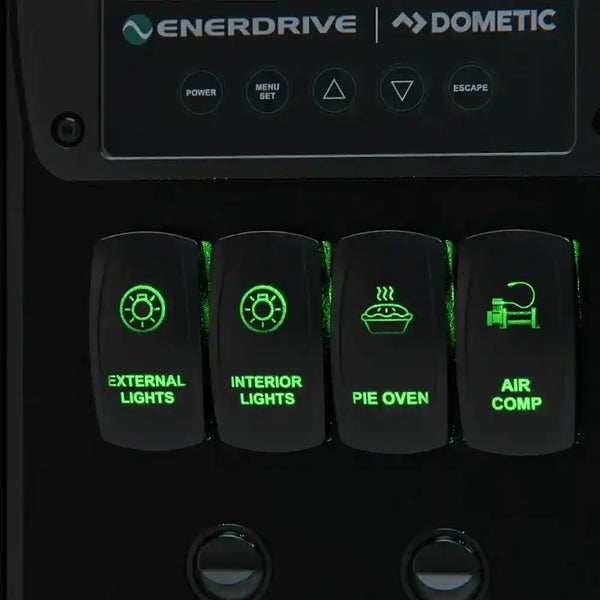

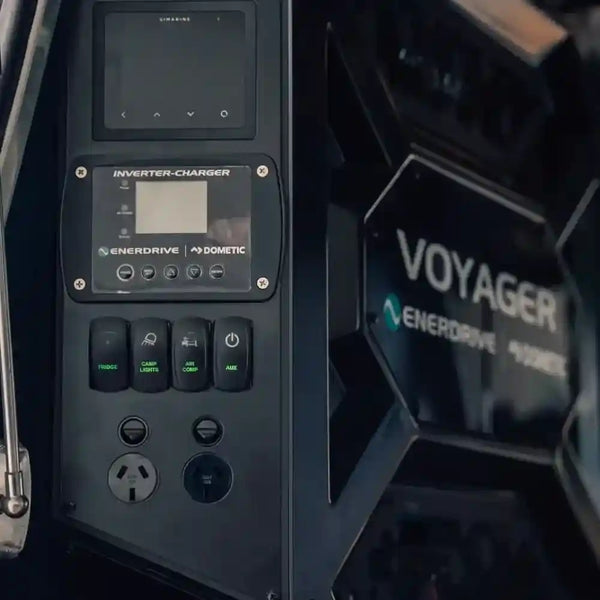

• Front panel: 4 × customisable rocker switches; 1 × 12 V DC cigarette socket; 1 × dual USB‑A/USB‑C (up to 100 W); 1 × Anderson plug; 1 × twin RCD‑protected 240 V powerpoint; optional inclinometer
• Fuse and protection: 1‑in/12‑out flush‑mounted fuse panel; 8 × ATO blade fuses; main breakers at base; front access to RCD reset
• Connections: loads connect at top‑mounted fuse panel
• Design: octagonal housing to maximise canopy space; angled display panel for access
• Assembly: built and wired in Brisbane
