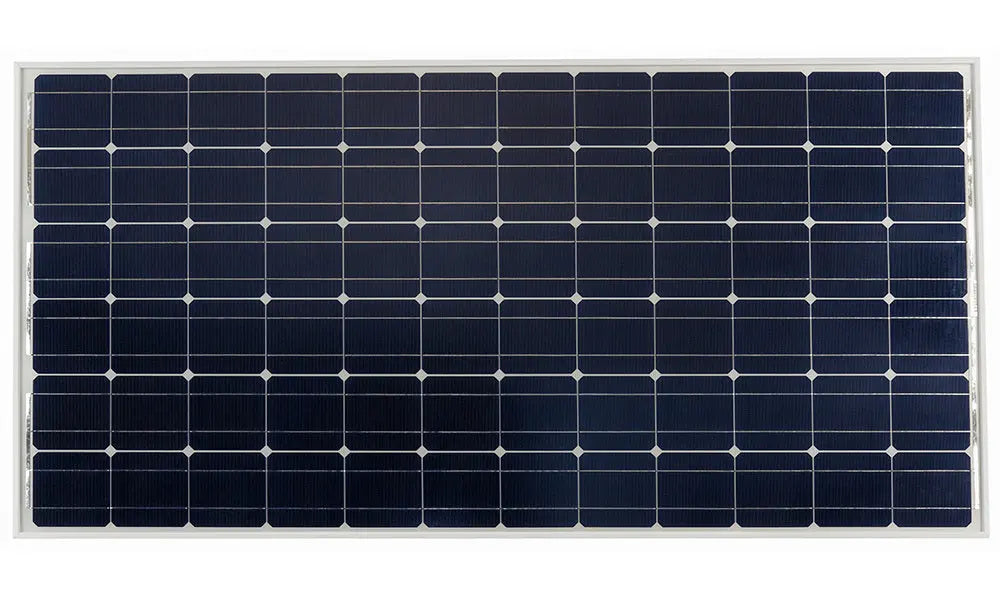

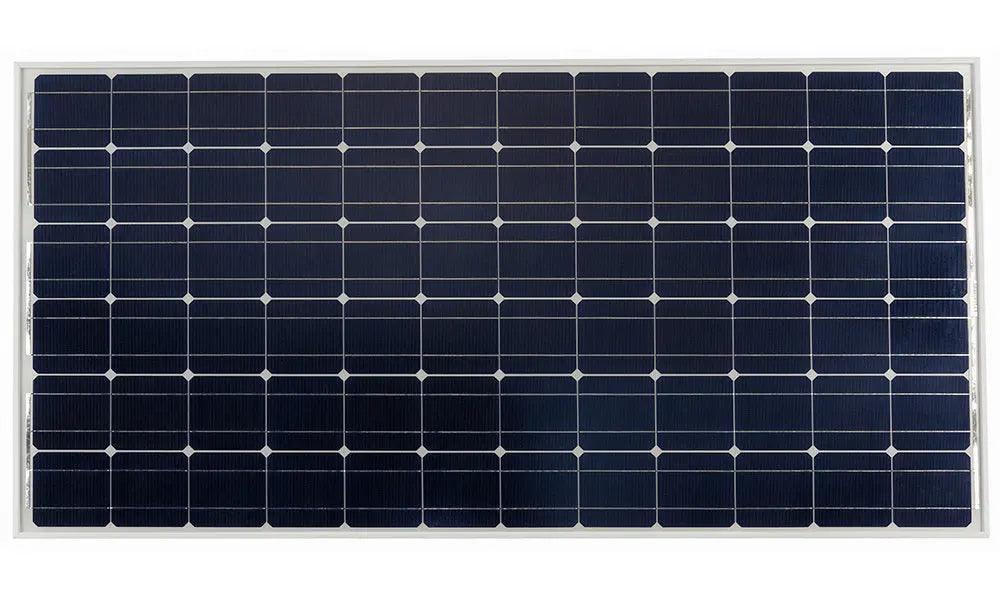

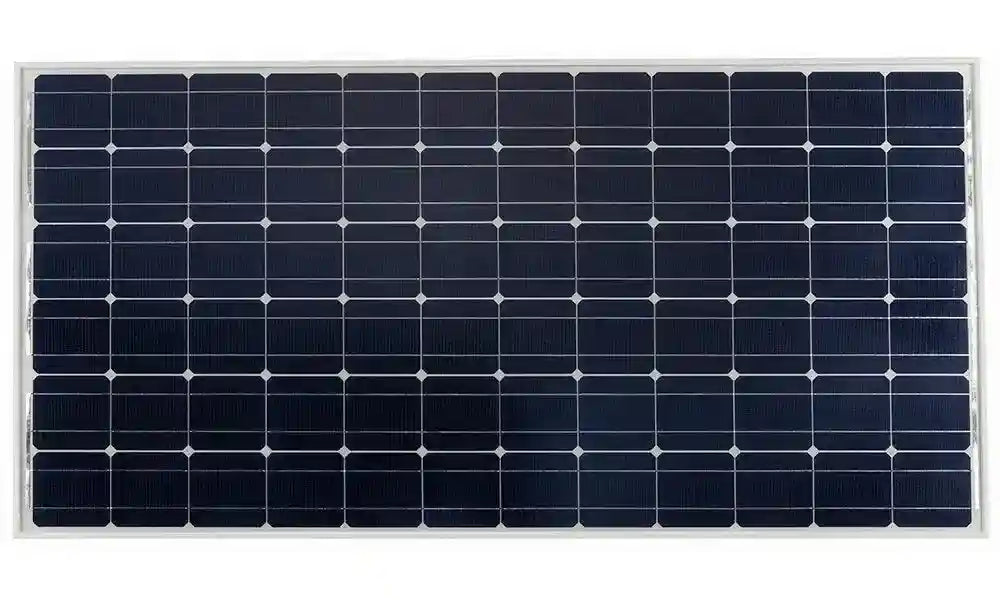

Victron Solar Panel 215W-24V Mono 1580x705x35mm series 4b

Victron Solar Panel 215W 24V Monocrystalline 1580x705x35mm Series 4B

Victron Solar Panels with monocrystalline solar cells deliver reliable power for residential and commercial solar systems. Designed to perform well in varied weather, this 215W solar panel is suitable for rooftop installation with standard mounting systems.

Features:

• Low voltage-temperature coefficient supports performance in high temperatures.
• Good low-light response maximises energy production in overcast conditions.
• Includes a 25-year limited warranty on power output and performance.
• 5-year limited warranty on materials and workmanship.
• Waterproof junction box with safety-rated sealing.
• Bypass diodes reduce power loss caused by shading.
• Triple-layer back sheet and EVA encapsulation for durability and high-voltage safety compliance.
• Aluminium frame for easy mounting on roofs using common mounting hardware.
• Tempered glass resists impact and offers structural stiffness.
• Pre-wired with MC4 connectors for quick and safe installation.

Specifications:

• Nominal Power (Pmpp): 215W
• Maximum Power Voltage (Vmpp): 40.1V
• Maximum Power Current (Impp): 5.36A
• Open Circuit Voltage (Voc): 46.01V
• Short Circuit Current (Isc): 5.65A
• Cell Type: Monocrystalline
• Number of Cells: 72 (in series)
• Maximum System Voltage: 1000V
• Operating Temperature Range: -40°C to +85°C
• Maximum Surface Load Capacity: 200 kg/m²
• Allowable Hail Load: 23 m/s (7.53g)
• Frame Material: Aluminium

This Victron 215W monocrystalline solar panel is suitable for off-grid and grid-connected solar installations where durability and consistent output are required. Ensure compatibility with your solar setup by confirming system voltage and connection standards before installation.
