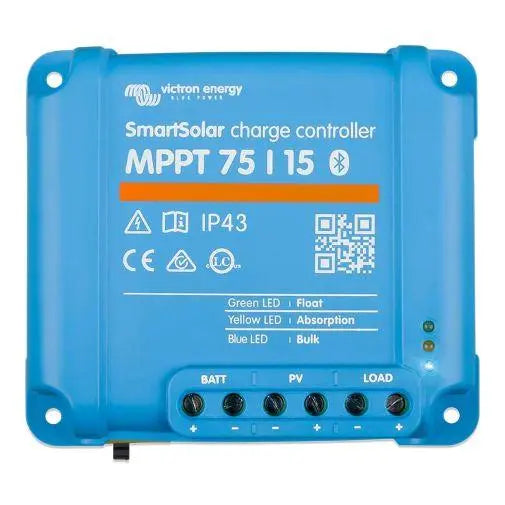

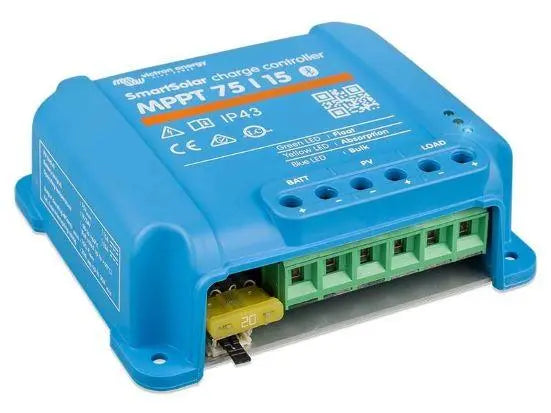

Victron Smartsolar Mppt 75V 15amp Bluetooth Solar Controller

• Battery: 12 or 24V
• Max Volts: 75V
• Charge Current: 15A
• Bluetooth

MPPT controllers operate solar panels at their Maximum Power Point improving efficiency up to 30% by adjusting input voltage to harvest the maximum power from the solar panels.

The MPPT senses when to adjust the output that it is being sent to the battery and will shut down for a few microseconds, calculate and make relevant adjustments. The principle of MPPT is to extract the maximum possible power from a solar panel by setting the most efficient combination of voltage and current - maximum power point.

The SmartSolar charge controller will even recharge a severely depleted battery. It can operate with a battery voltage as low as 0 Volts, provided the cells are not permanently sulphated or otherwise damaged.

Bluetooth along with the VictronConnect App provides easy access to the extensive range of functions available:

• Solar Gauge – Realtime power output
• Battery Voltage
• Battery Current
• Battery State
• Load Output [100/20 and smaller]
• Load current – shows the current being drawn by appliances
• History Analysis
• Various Settings

Colour

• Blue (RAL 5012)

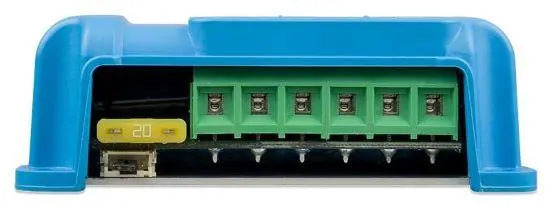

Power terminals

• 6 mm² / AWG10

Protection category

• IP43 (electronic components),
• IP22 (connection area)

Weight

• 0,5 kg

Dimensions (h x w x d)

• 100 x 113 x 40 mm
