We custom order this product - normal shipping time is 7 days.
SHU050130050
This item is showing as available in our suppliers warehouse - we will promptly advise if any issues.

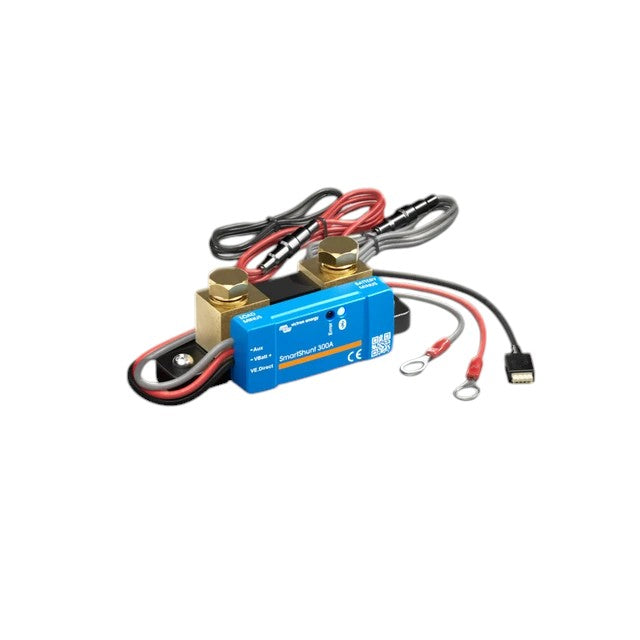

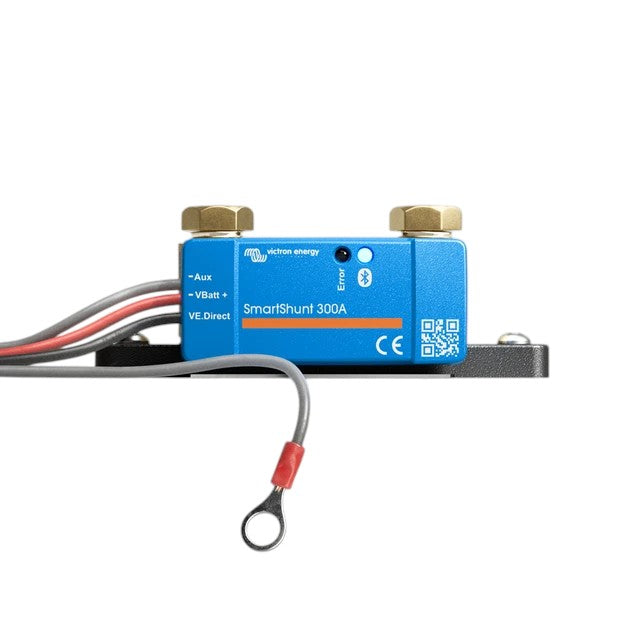

Victron SmartShunt 300A Battery Monitor
The Victron SmartShunt 300A is an intelligent battery monitor that tracks voltage, current, and state of charge with precise accuracy. It connects to the VictronConnect app for real-time battery data and supports all battery types. Available in IP-rated versions, it installs easily with minimal wiring to reduce clutter.
Features
- Measures voltage and current up to 300A to calculate battery state of charge and remaining runtime
- Compatible with all battery types including lithium, AGM, lead acid, and gel batteries
- Works as a DC meter for monitoring inverter input or loads like fridges and pumps
- Instant data display in VictronConnect app with no Bluetooth pairing delay
- Supports VE.Smart Networking for wireless data sharing with other Victron devices to optimise charging
- Connects to Victron communication centres for remote monitoring and control via the VRM portal
- Simple installation with minimal wiring, suitable for both new and retrofitted systems
- Optional AUX cable inputs to monitor starter battery voltage, balance battery banks, or connect a temperature sensor for enhanced charging accuracy
- IP-rated versions available for protection in harsh environments
Specifications
- Current rating: 300 Amps continuous
- Voltage range: 0 - 75V DC
- Communication: Bluetooth, VE.Smart Networking, VE.Direct (via communication centre)
- Battery types supported: Lithium, AGM, lead acid, gel, and others
- App: VictronConnect (iOS and Android compatible)
- Dimensions: 160 x 80 x 26 mm (approx.)
- IP rating options: IP20 (standard), IP65 (weatherproof)
Usage Tips
- Install close to the battery bank for accurate voltage and current measurement
- Use the VictronConnect app to monitor all battery metrics including charge cycles, amp hours used, and deepest discharge levels
- Connect to a communication centre to enable remote monitoring and system integration
- Add a temperature sensor via AUX cable to improve charge control and battery lifespan
-
