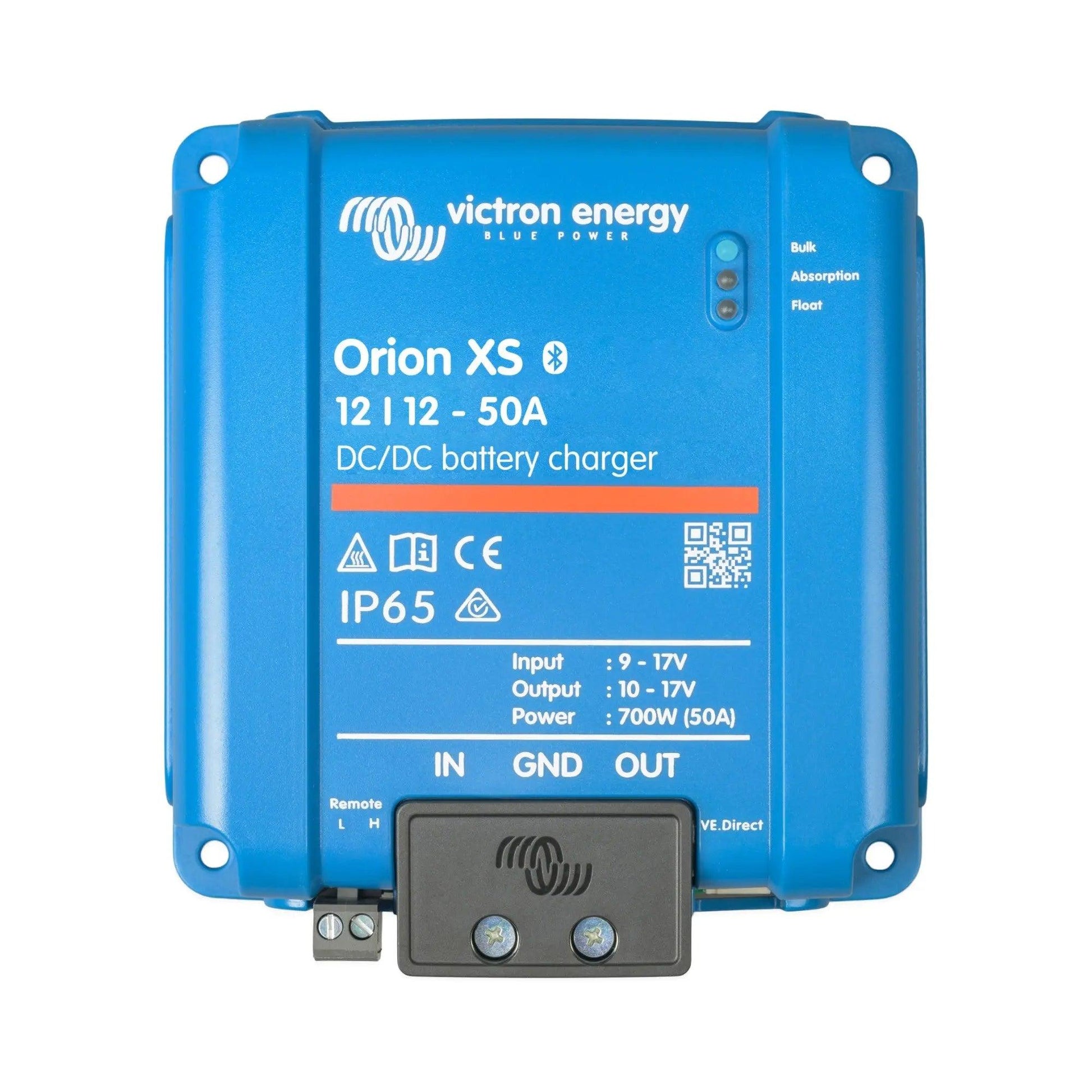

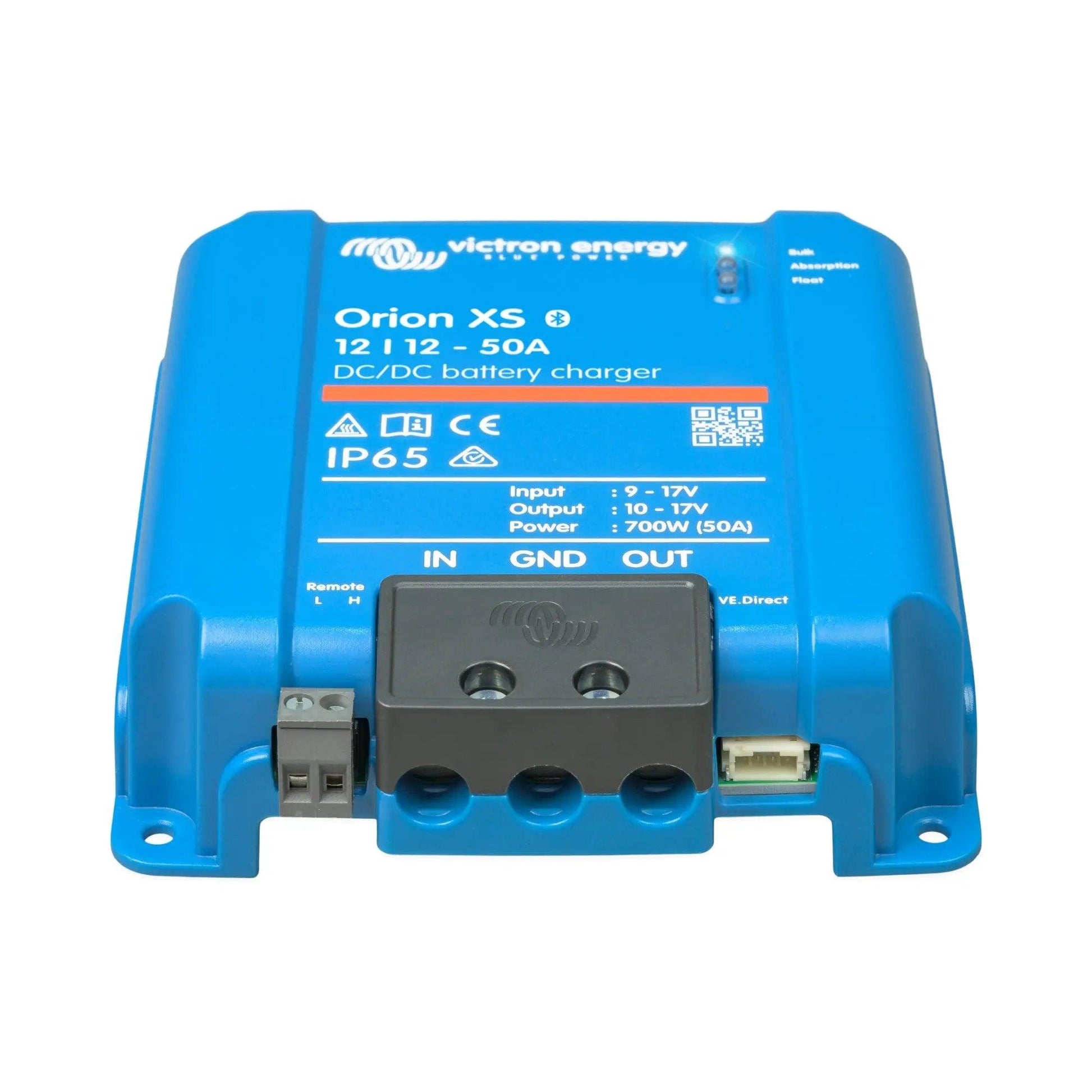

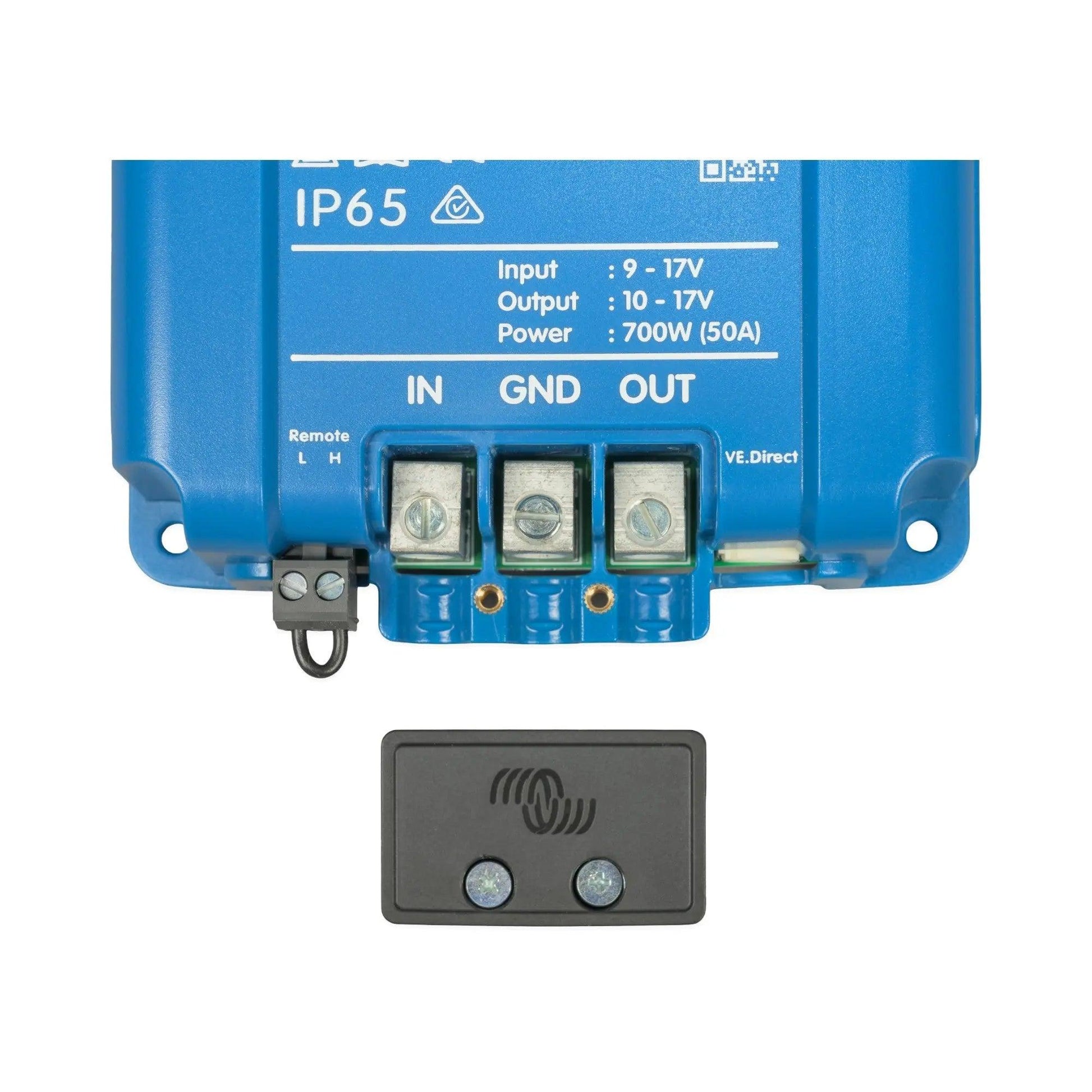

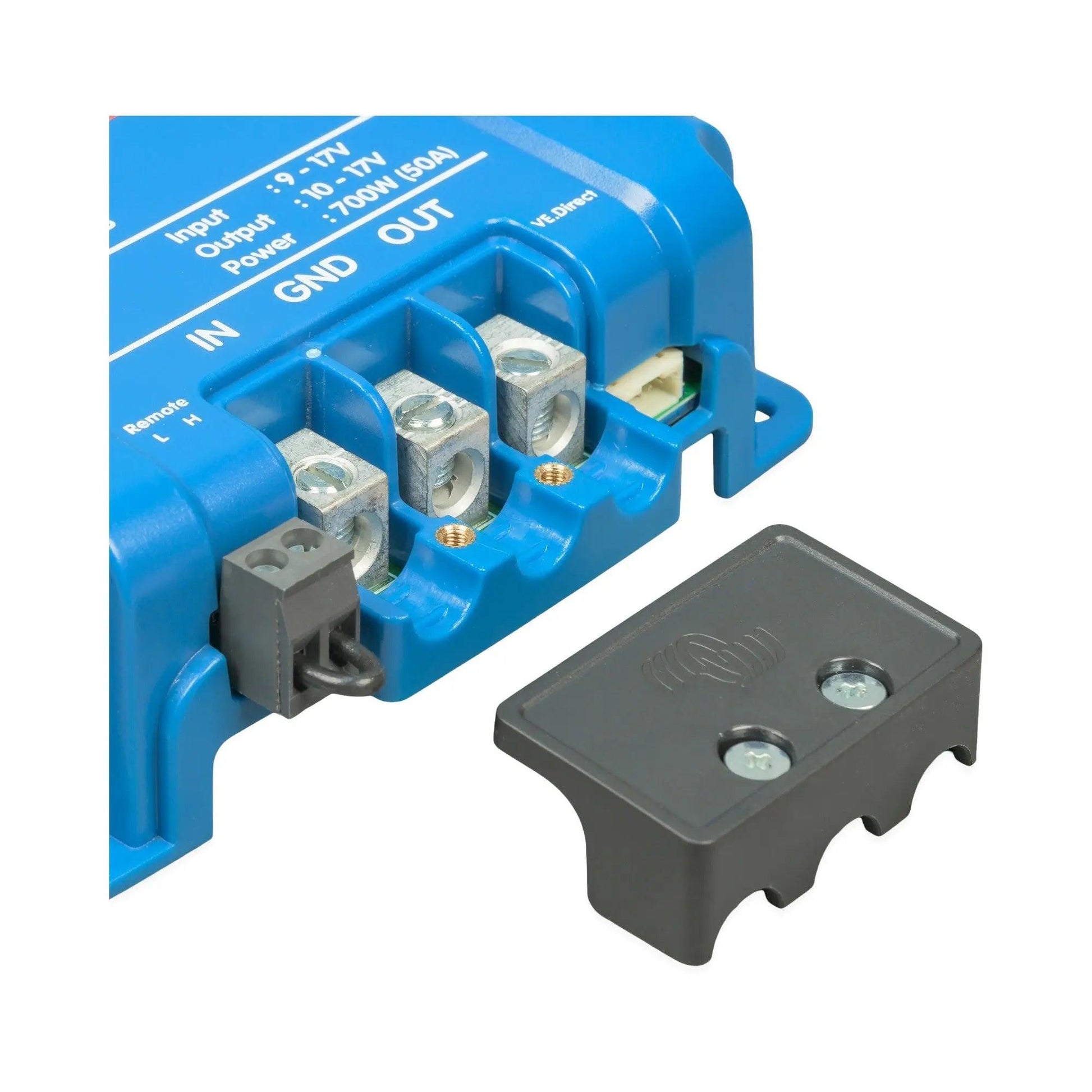

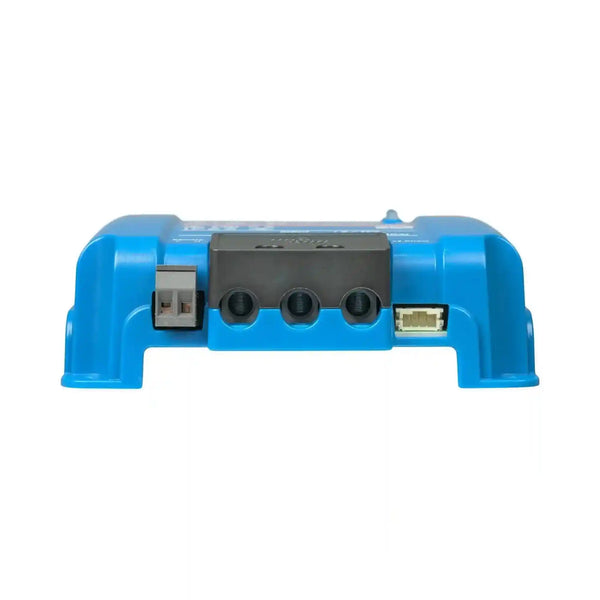

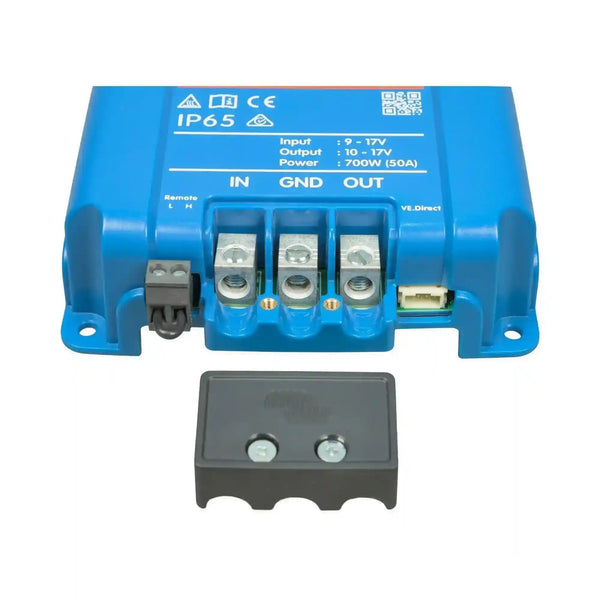

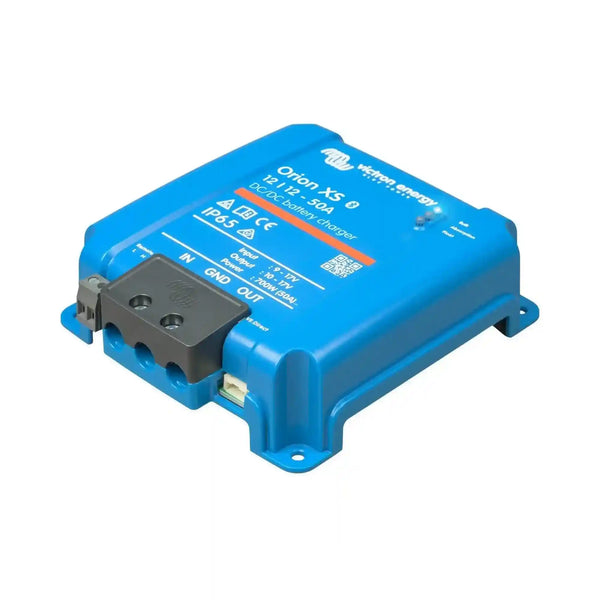

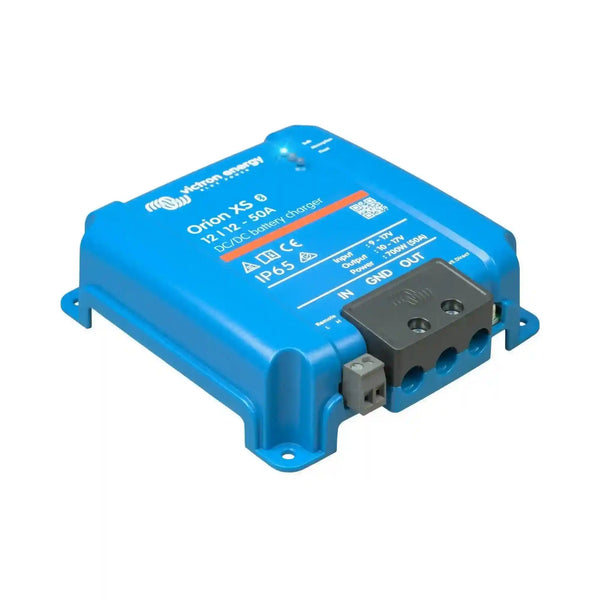

Orion XS 12/12-50A DC-DC Battery Charger

Engineered from the ground up, the Orion XS redefines DC-DC battery-to-battery charging, making it ideal for dual battery systems powered by an intelligent alternator. This device is not only about top-tier performance but also about the safety and efficiency of your charging system.

Features

• Fully Configurable: Input and output currents can be adjusted to suit your needs, ensuring your device runs at full capacity up to 40°C.
• Efficient Cooling: Utilizes 98.5% efficient aluminium circuit board technology for less heat generation, eliminating the need for cooling fans.
• Engine Running Detection: Ensures power is drawn only when the engine is running, compatible with smart alternators found in Euro 5 and Euro 6 engines.
• Intelligent Charge Algorithms: Offers customizable charging for lithium and lead-acid batteries, optimizing for both shallow and deep discharges.
• Remote Monitoring: With optional remote monitoring, gain full control and oversight of your charging system via VictronConnect.

Specifications:

• Input Voltage Range: 9-17 V
• Output Voltage Adjust Range: 10-17 V
• Output Voltage Tolerance: +/- 0.25% (max)
• Input and Output Current Setting Range: 1 – 50 A
• Continuous Output Power up to 40°C: 700 W
• Maximum Efficiency: 98.5%
• Protection Category: IP65
• Dimensions (HxWxD): 137.3 x 123.1 x 40 mm (5.4 x 4.85 x 1.6 inch)
• Weight: 0.330 kg (0.73 lb)

About the Brand: Victron Energy has been a leading name in the field of power electronics for over 45 years, known globally for its high-quality and reliability in solar, battery, and charging technology. The Orion XS embodies this tradition, offering innovative solutions for efficient energy management and battery charging. Trust in Victron Energy for your energy system's performance, durability, and safety.
