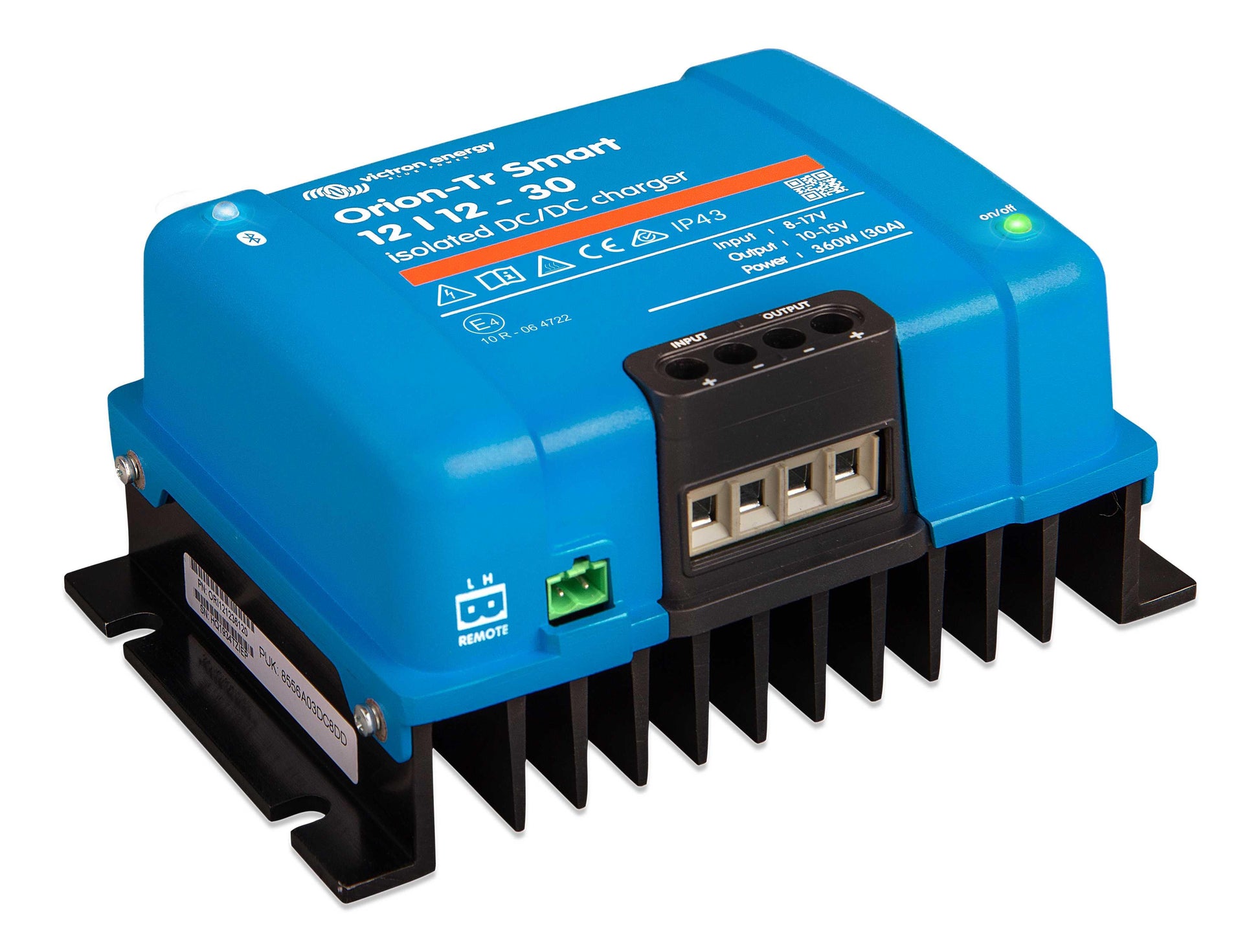

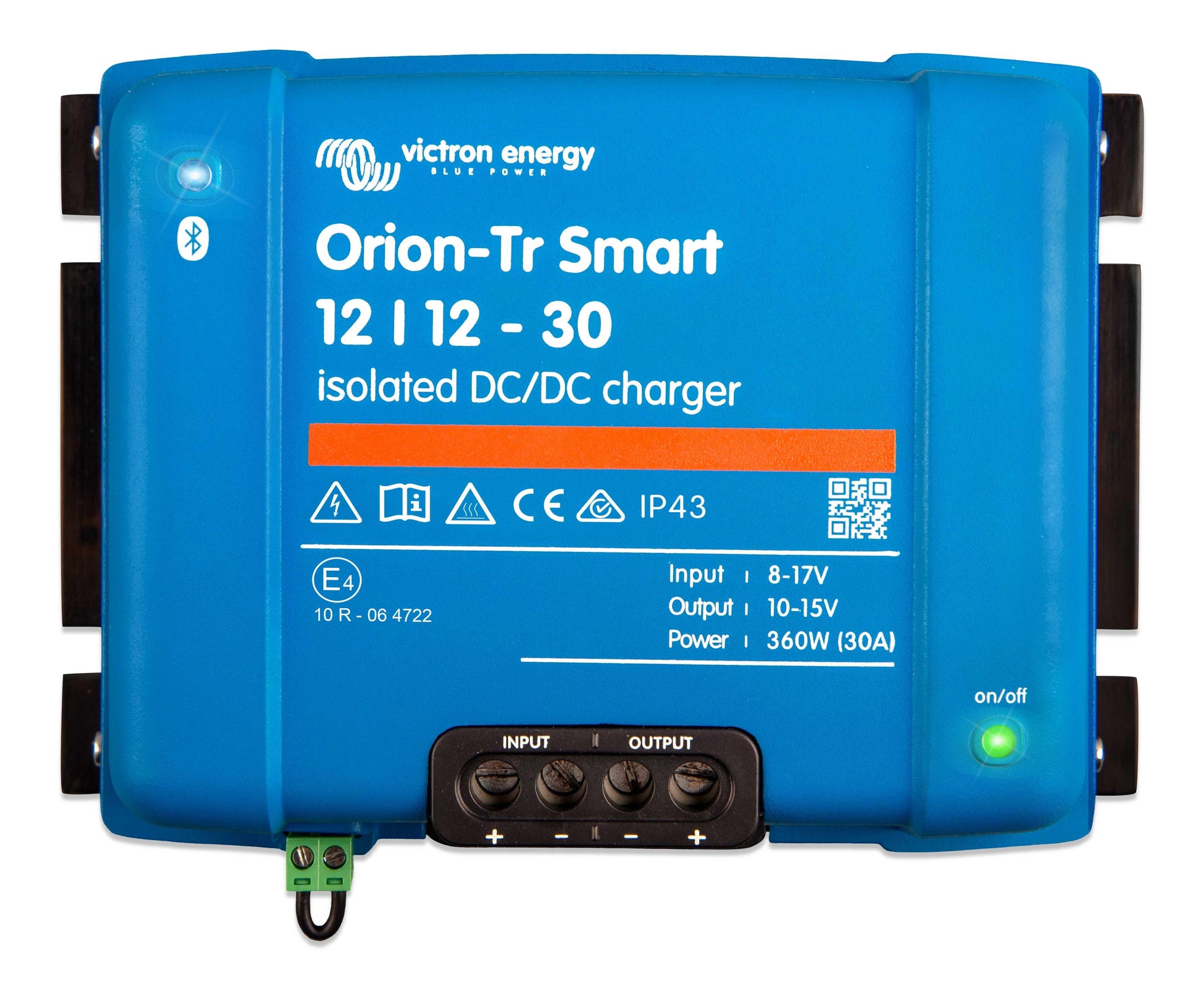

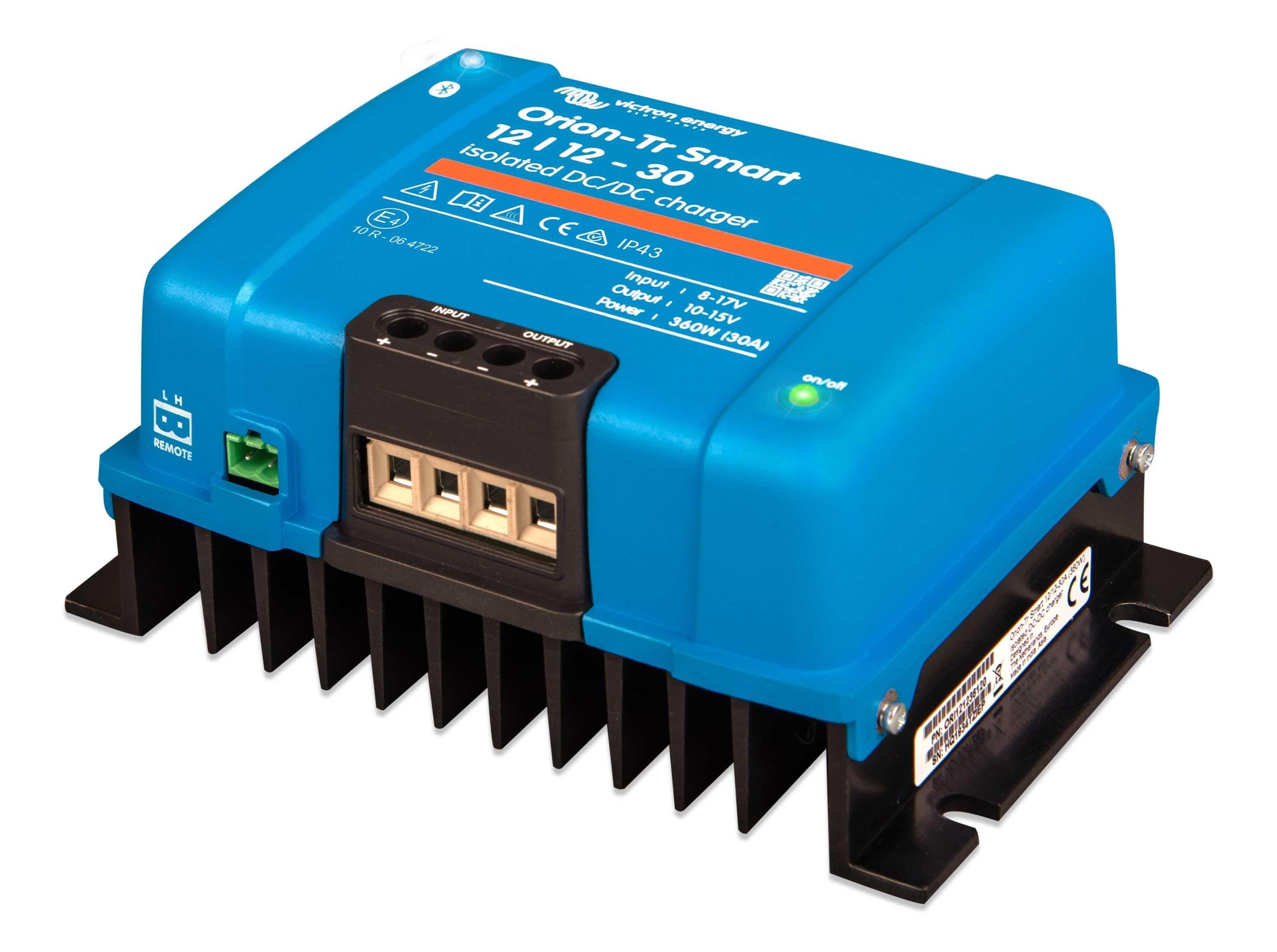

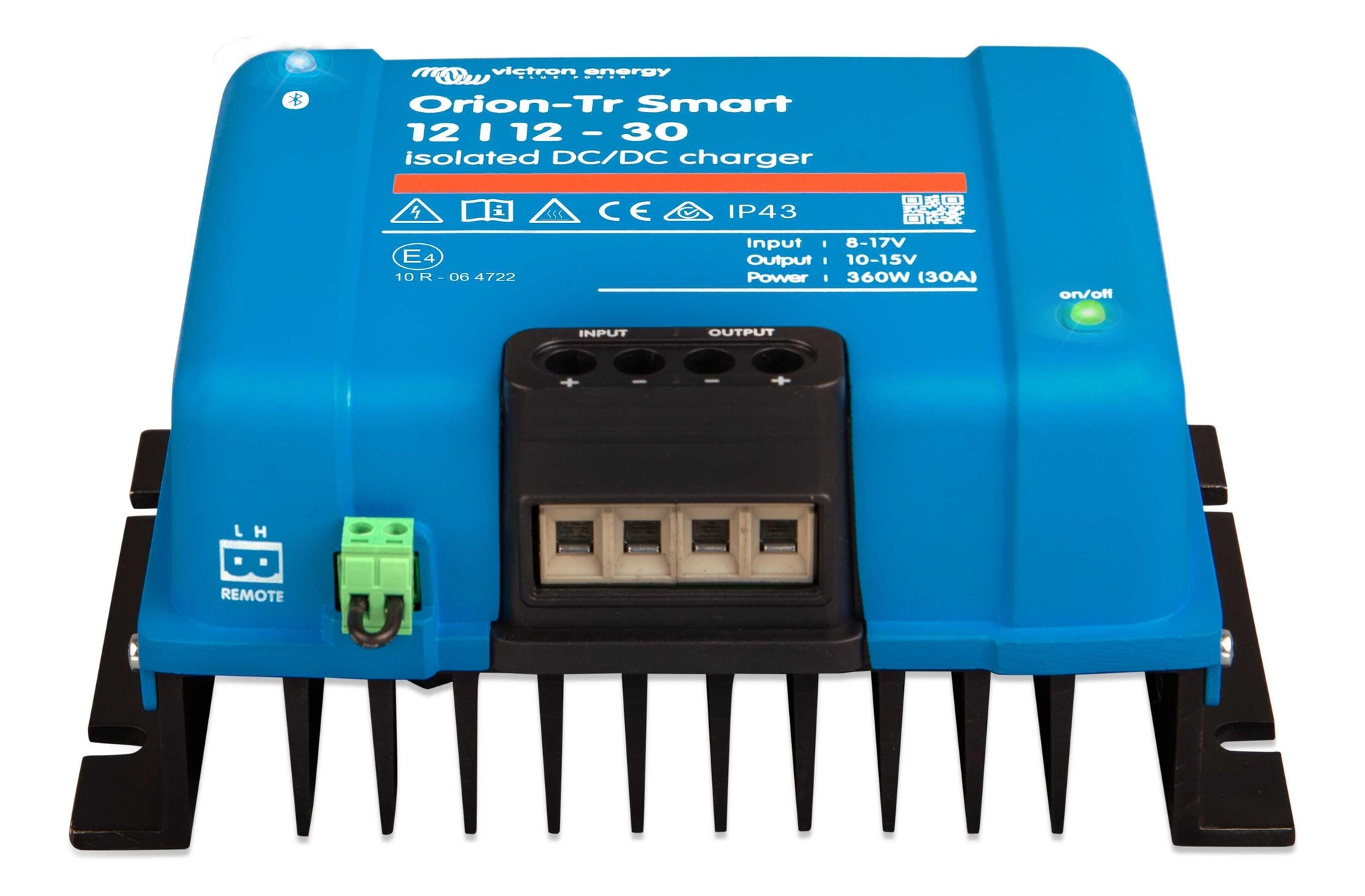

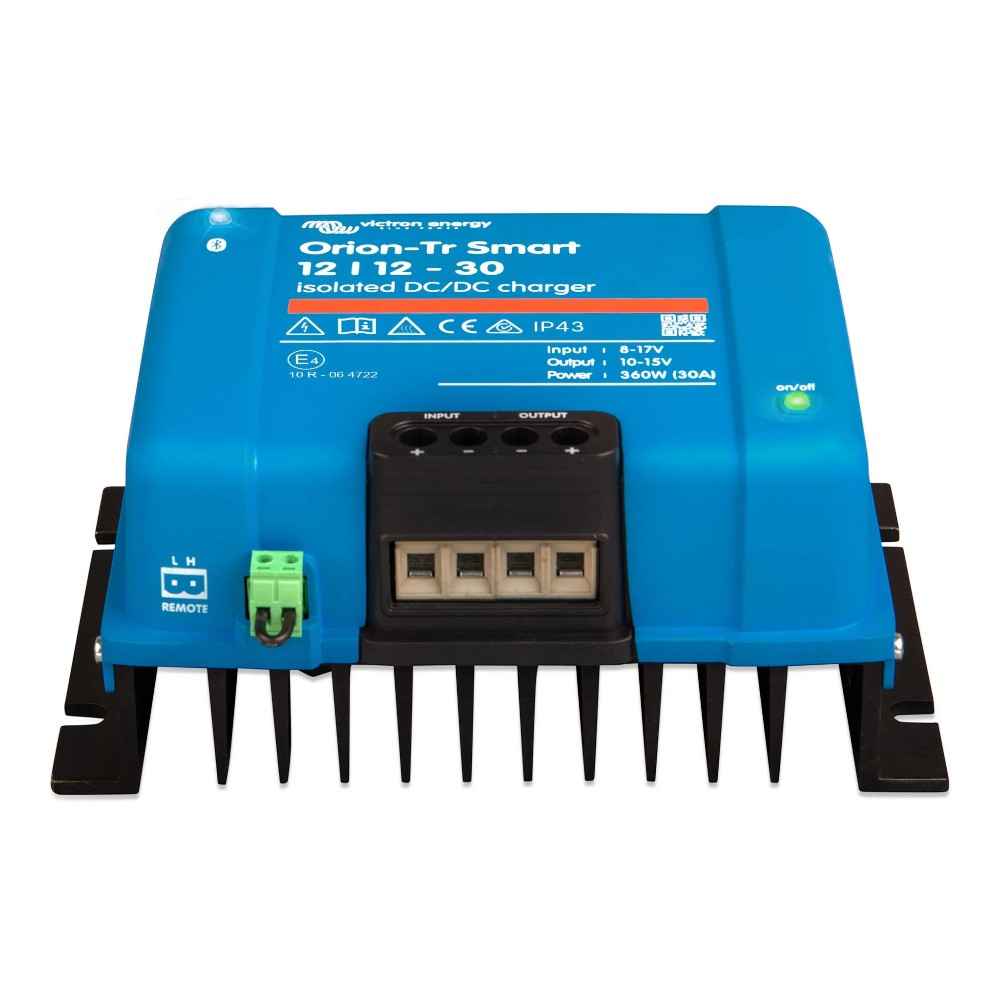

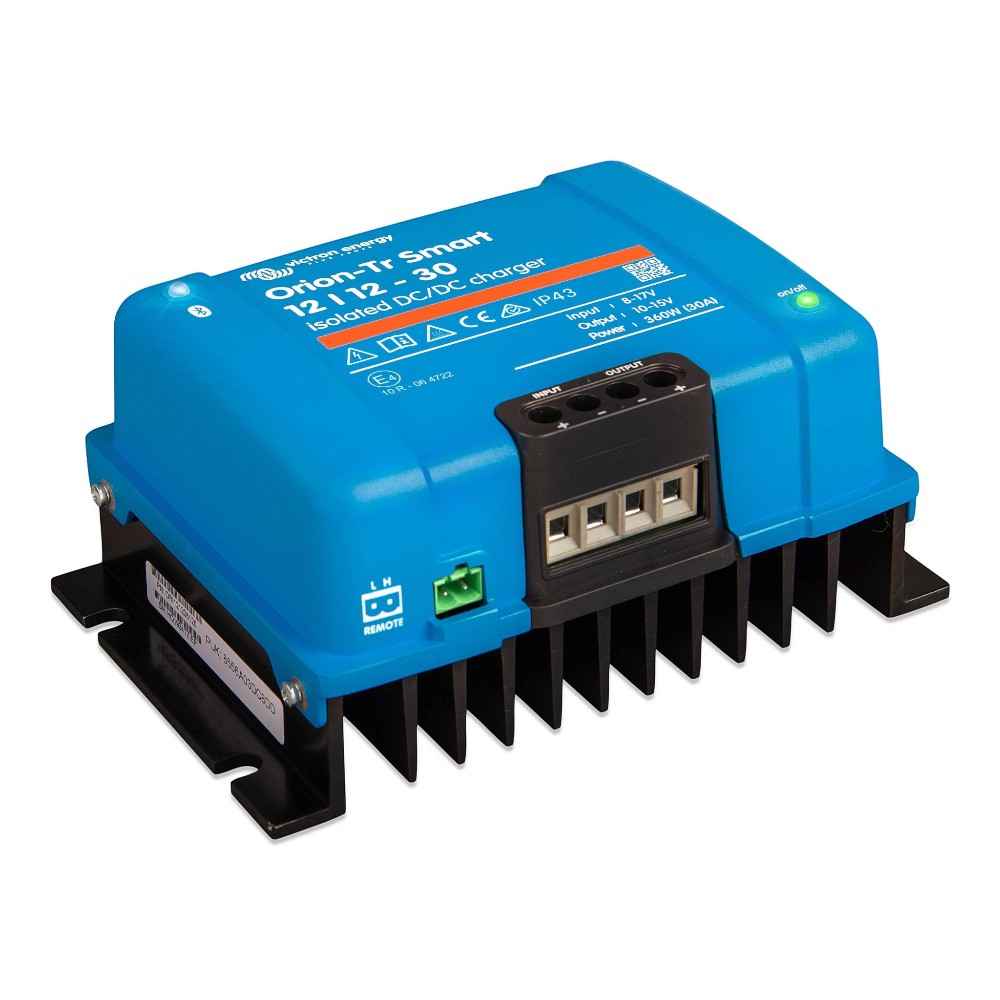

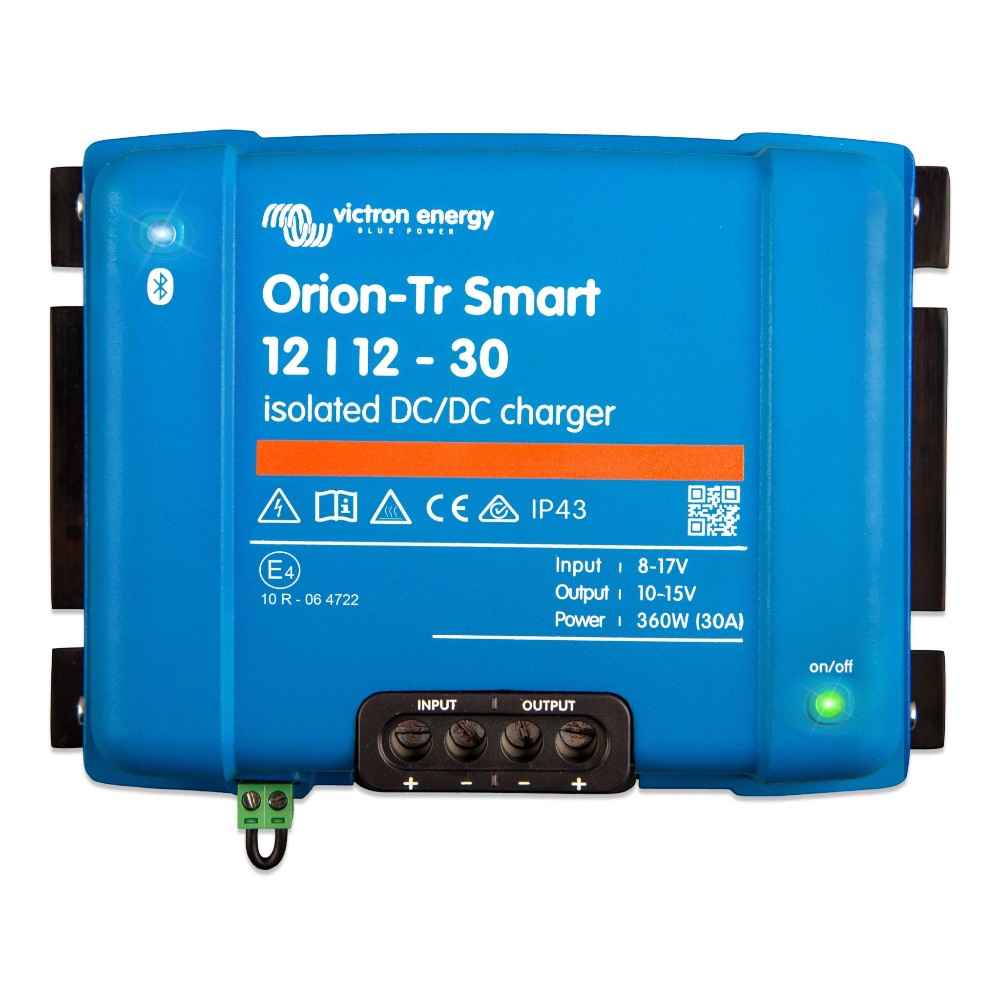

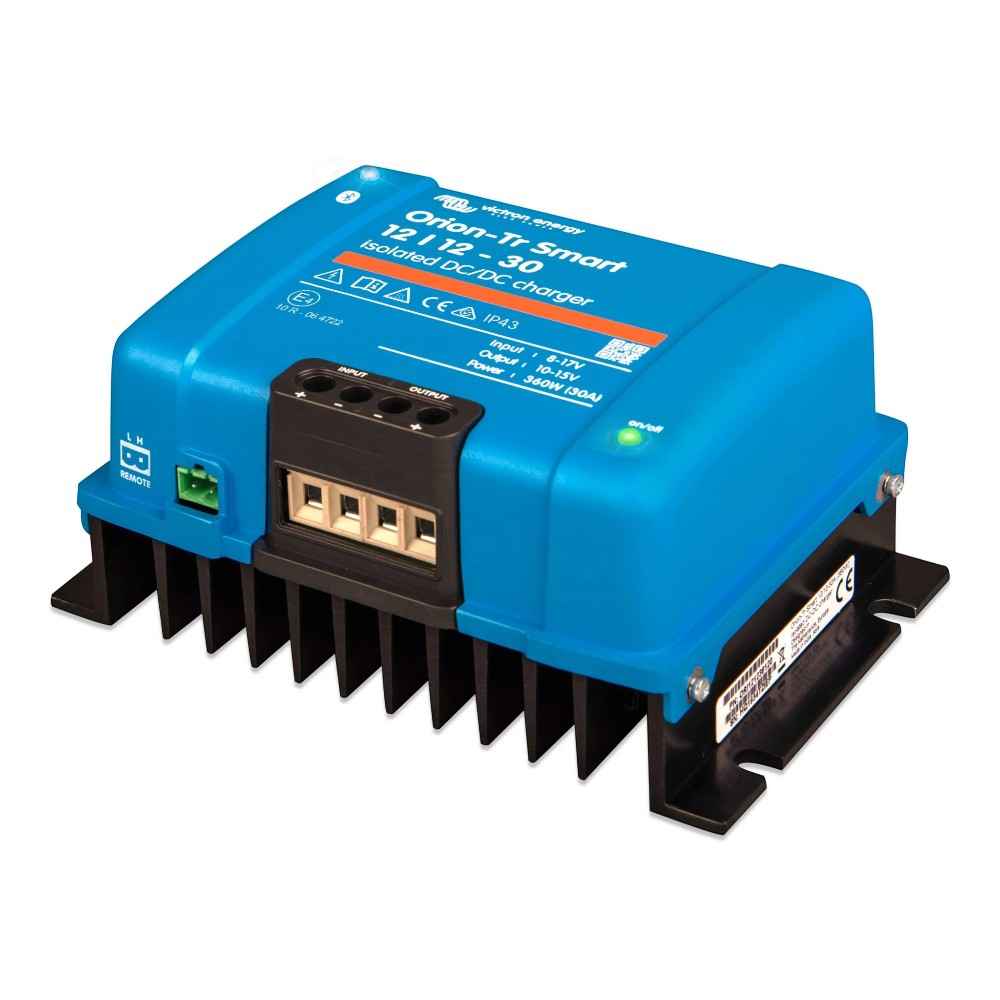

Victron Orion-Tr Smart 12volt 12volt 30A Isolated DC-DC Charger

We currently have 3 in stock.
3 items left
  • The Orion-Tr Smart charger ensures professional DC-DC charging with built-in Bluetooth.
  • Perfect for dual battery systems on vehicles or boats - connecting the smart alternator and start battery to charge the service battery.
  • Monitor and program with Bluetooth, or control remotely with an on/off switch, and enjoy engine running detection.
  • Available in 12V and 24V systems, this charger handles lead acid and lithium batteries. Can be connected in parallel for increased output power.
  • Operates up to 55°C, with full output up to 40°C.

Bluetooth Smart enabled

  • Use a Bluetooth enabled device to monitor, change settings, and upgrade the charger with new features.
  • Receive Key Data Instantly: VictronConnect App displays warnings, alarms, and other data on the Device list page, no connection needed.

Fully Customizable

  • Adjustable battery charge algorithm, fixed output volume, and Smart Alternator

Compatible with engine running detection mechanism.

Adaptive 3-stage charge algorithm:

  • Bulk – Absorption – Float.
  • Lead Acid battery absorption time kept short for shallow discharges, extended for deep discharges.
  • Fixed absorption time for Lithium batteries (default 2 hours). Or, opt for a fixed output voltage.

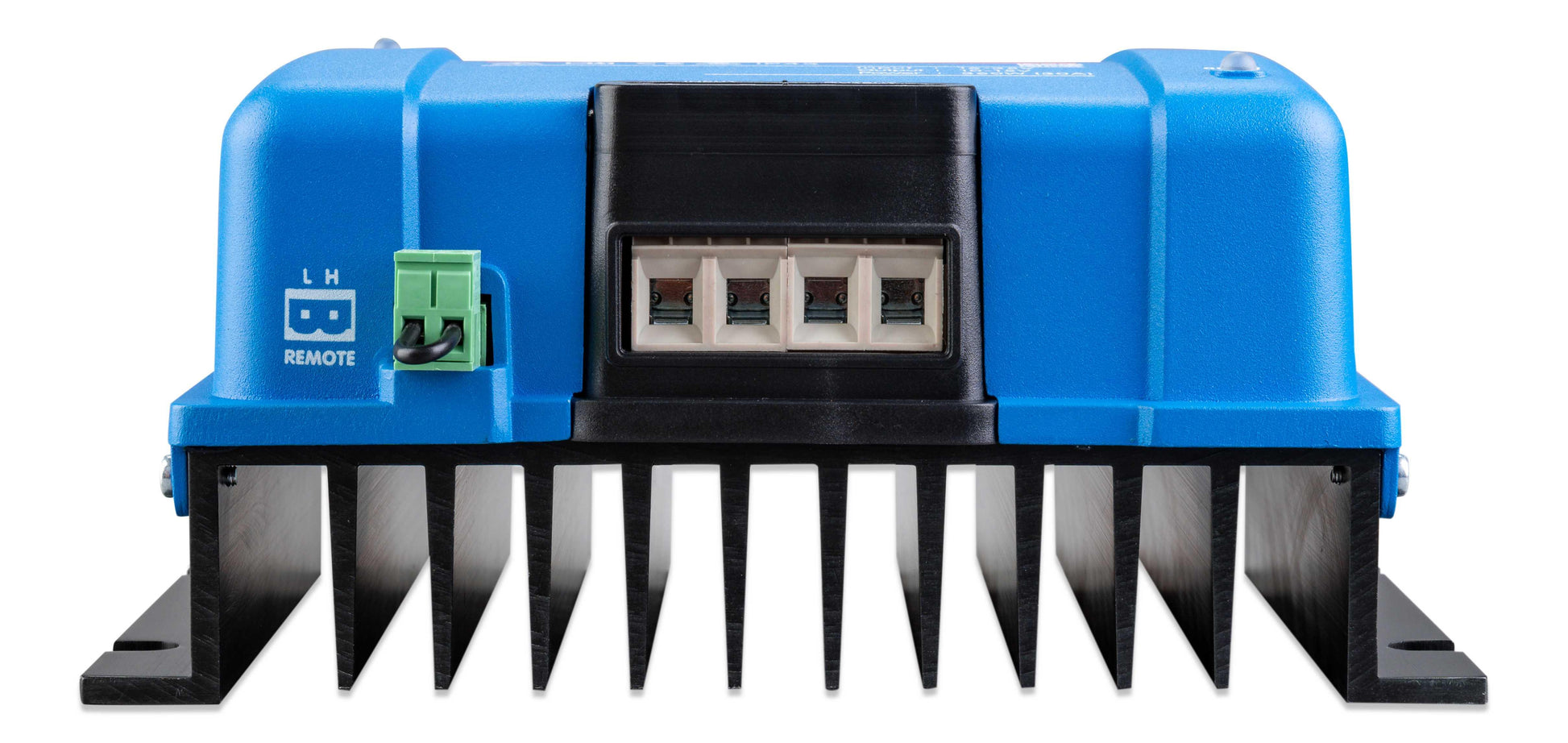

Remote On/Off

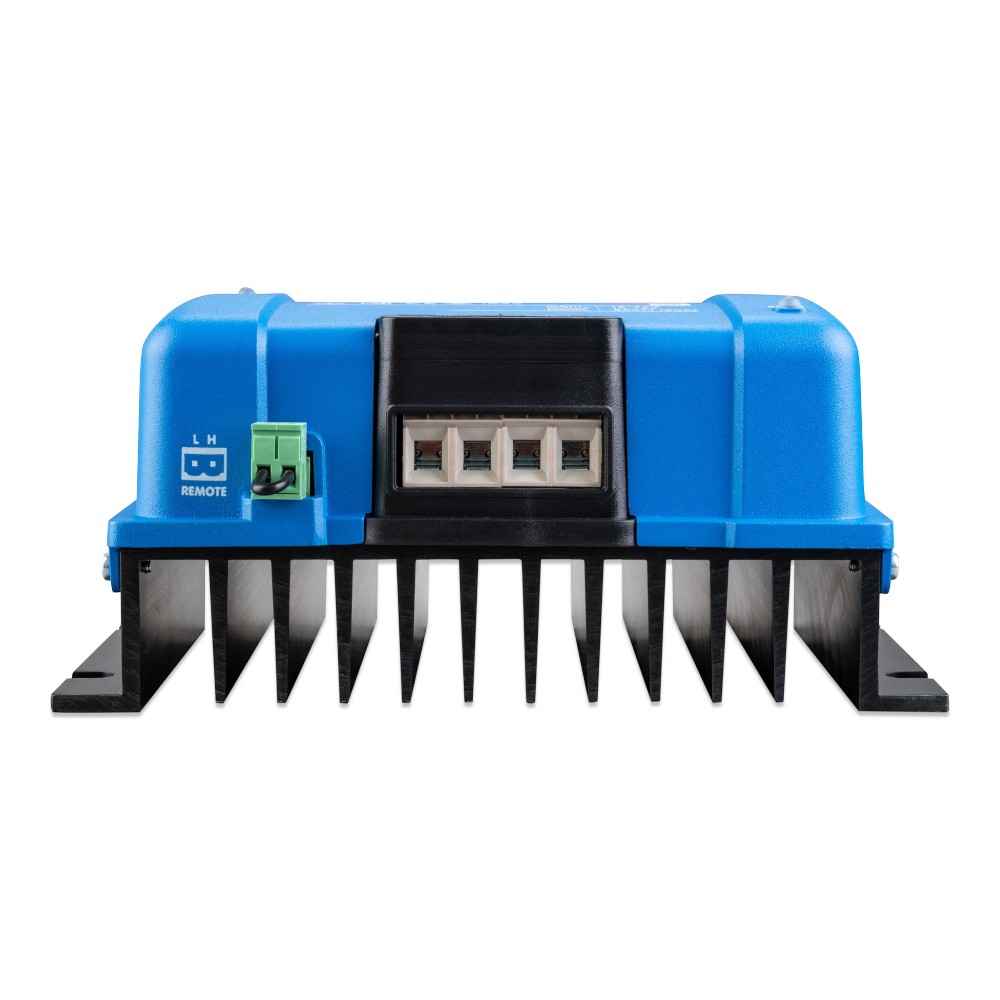

  • Switch or relay contact can be connected to two-pole connector, or switch H terminal to battery plus, or L terminal to battery minus (or vehicle chassis).

Parallel Connection

  • Multiple units can be connected, all short-circuit proof.

High Temp Safety

  • Output current reduced

12/12-30(360 W)
Input voltage range 10-17 V
Under voltage shut down 7 V
Under voltage restart 7,5 V
Nominal output voltage 12,2 V
Output voltage adjust range 10-15 V
Output voltage tolerance +/- 0,2 V
Output noise 2 mV rms
Cont. output current at nominal output
voltage and 40 °C 30 A
Maximum output current (10 s) at
nominal output voltage minus 20 % 40 A
Short circuit output current 60 A
Cont. output power at 25 °C 430 W
Cont. output power at 40 °C 360 W
Efficiency 87 %
No load input current < 80 mA
Standby current Less than 1 mA
Galvanic isolation 200 VDC between input, output and case
Operating temperature range -20 to +55 °C (derate 3 % per °C above 40 °C)
Humidity Max. 95 % non-condensing
DC connection Screw terminals
Maximum cable cross-section 16 mm² (AWG6)
Weight 12 V input and/or 12 V output models: 1,8 kg (3 lb)
Dimensions hxwxd 130 x 186 x 80 mm (5.1 x 7.3 x 3.2 inch)
Protection category IP43 (electronic components), IP22 (connection area)
Standards: Safety Emission / Immunity Automotive Directive
EN 60950 EN 61000-6-3, EN 55014-1 / EN 61000-6-2, EN 61000-6-1, EN 55014-2
ECE R10-5
