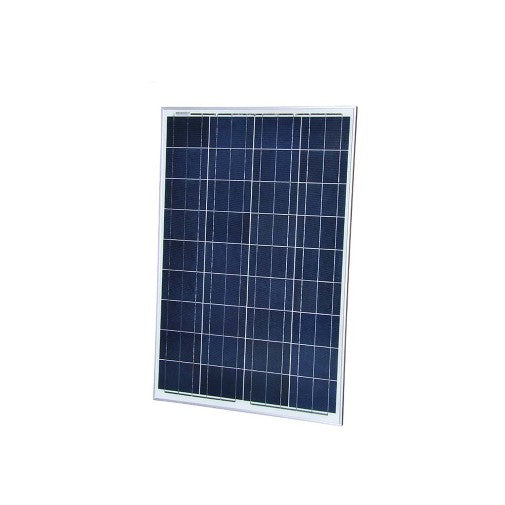

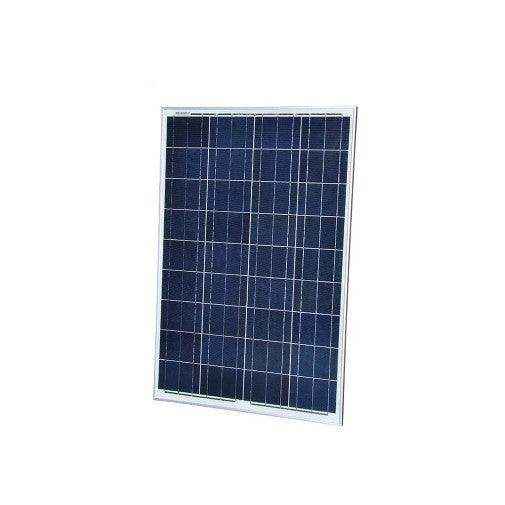

Victron 12v 115w Poly Solar Panel 1015mm x 668mm x 30mm

Victron 12V 115W Poly Solar Panel

we consider victron panels to be our premium panels, super high quality with very reliable outputs.

1015MM x 668MM x 30MM (LxWxH) • SERIES 4A • POLYCRYSTALLINE WITH SILVER FRAME

*Note the Victron 12V range of solar panels are suitable for charging 12V battery systems when using a PWM or MPPT controller. The Victron range of SmartSolar regulators would be best suited based on price and quality.

Features:

• Low voltage-temperature coefficient enhances high-temperature operation.
• Exceptional low-light performance and high sensitivity to light across the entire solar spectrum.
• 25-Year limited warranty on power output and performance.
• 5-Year Limited warranty on materials and workmanship.
• Sealed, waterproof, multifunctional junction box gives high level of safety.
• High performance bypass diodes minimize the power drop caused by shade.
• Advanced EVA (Ethylene Vinyl Acetate) encapsulation system with triple-layer back sheet meets the most stringent safety requirements for high-voltage operation.
• A sturdy, anodized aluminium frame allows modules to be easily roof-mounted with a variety of standard mounting systems.
• Highest quality, high-transmission tempered glass provides enhanced stiffness and impact resistance.
• Pre wired quick-connect system with PV-ST01 connectors.
• Cell type Polycrystalline
• Number of cells in series 36
• Nominal power (Watts) 115W
• Open Circuit Voltage (Volts) 22.73V
• Maximum Power Voltage (Volts) 18.94V
• Short Circuit Current (Amps) 6.56A
• Maximum Power Current (Amps) 6.08A
• Power (Max.) 115W
• Temp Range -40 to +85°C
• Length of cable / connector 900mm / MC4
• Power Tolerance ±3%
• Maximum system voltage 1000V
• Size (LxWxH) 1015mm x 668mm x 30mm
• Weight 8kg
• Warranty - Electrical performance
