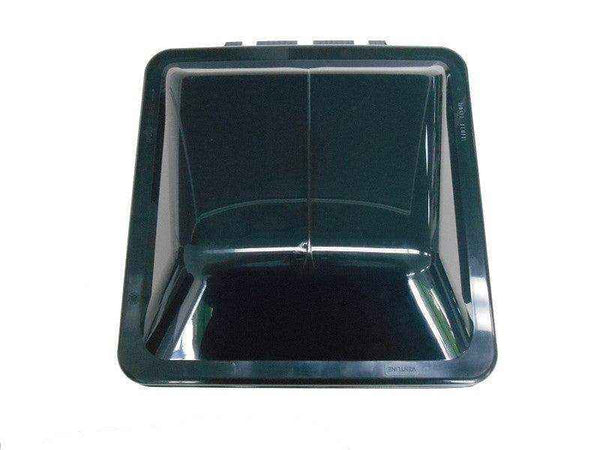

Ventline Vent Replacement Smoke Lid. 0209948

Ventline Vent Replacement Smoke Lid 0209948

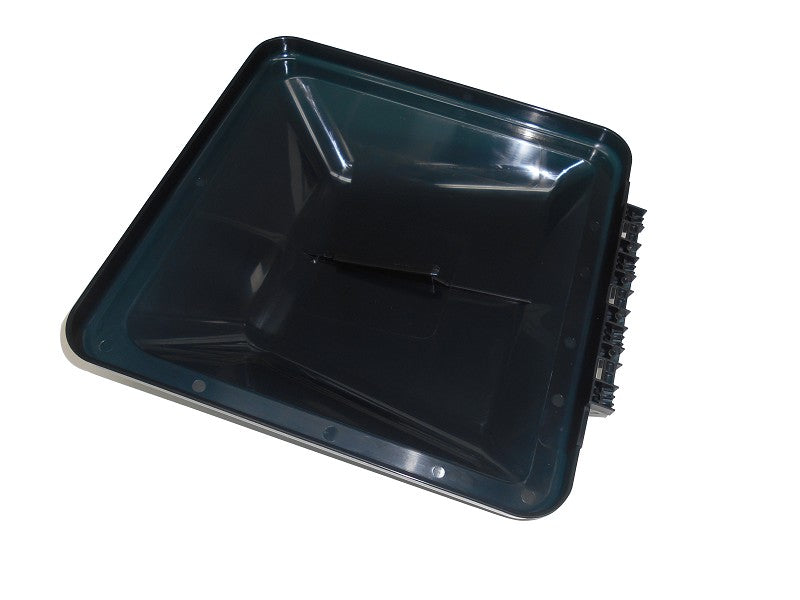

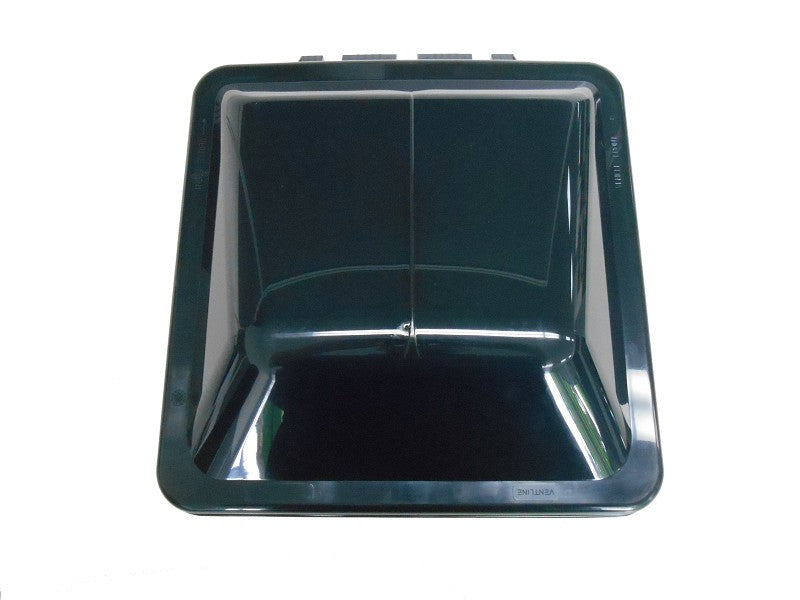

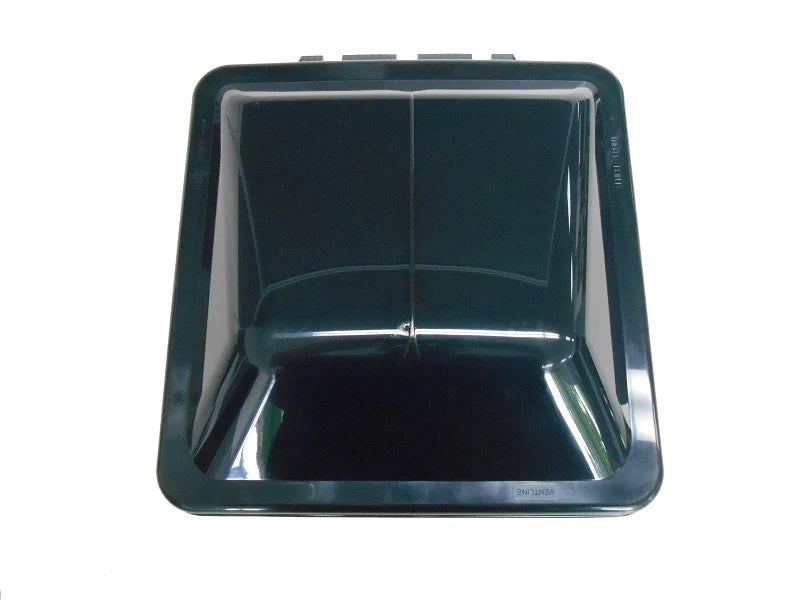

Replacement smoke lid designed for the Ventline 14 inch roof vent, new style model.

Features

• Fits new style Ventline 14 inch roof vent with wedge connection

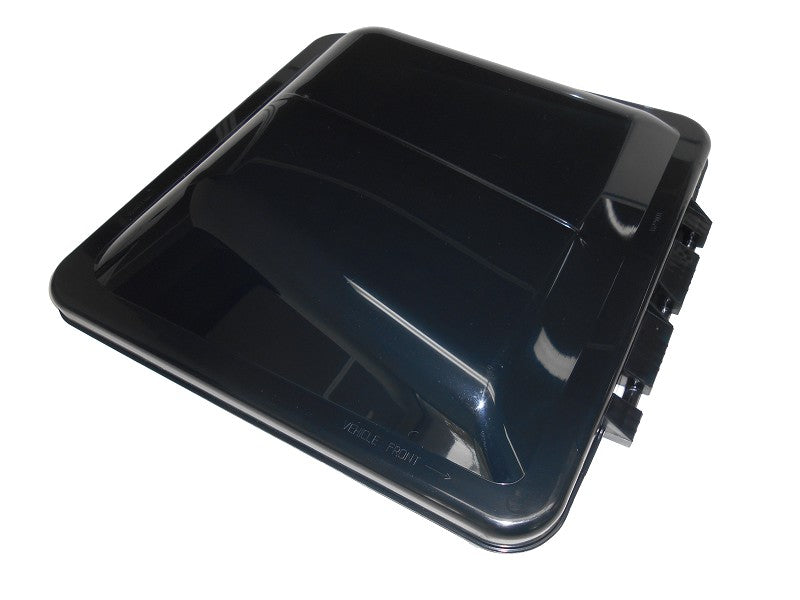

• Sloped top design for effective smoke ventilation

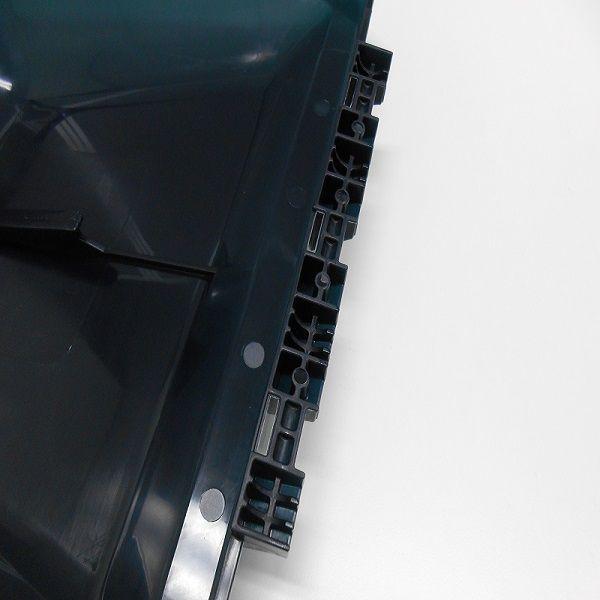

• Hinge section made from moulded plastic with no metal parts
• Includes smoke lid only, no additional components

Installation Instructions

1. Remove garnish trim, operator handle, and screen to access operator mounting screws
2. Unscrew and retain the two screws holding the operator to the centre bar; remove the operator from the centre and lid
3. Remove lid retainer clip from the hinge using a small flat blade screwdriver or pliers
4. Take off the old lid and fit the replacement lid onto the hinge
5. Slide operator into the slot in the centre bar and attach the plastic slider clip onto the lid slide bar; reinstall the retainer clip on the hinge
6. Replace the two screws through the operator assembly into the centre bar; refit screen and operator handle, then check operation
