Ventline

650-00240

VENTLINE HATCH 14"x14" WHITE LID ONLY T/S OLD METAL CLIP CONNECTION. 40155

We currently have 2 in stock.

Please MAKE SURE IT IS THE CORRECT MODEL BEFORE ODERING

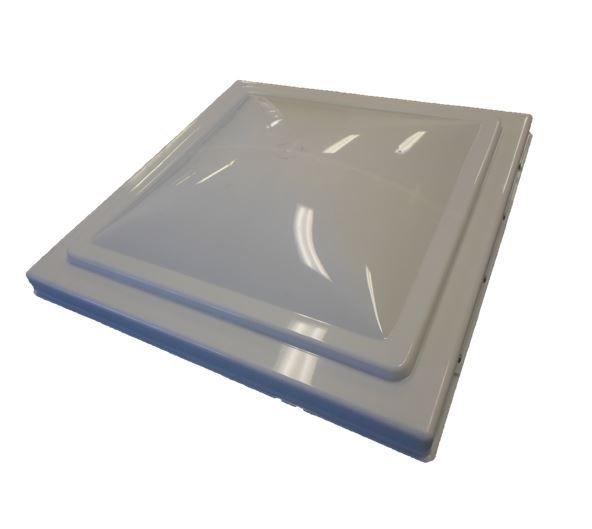

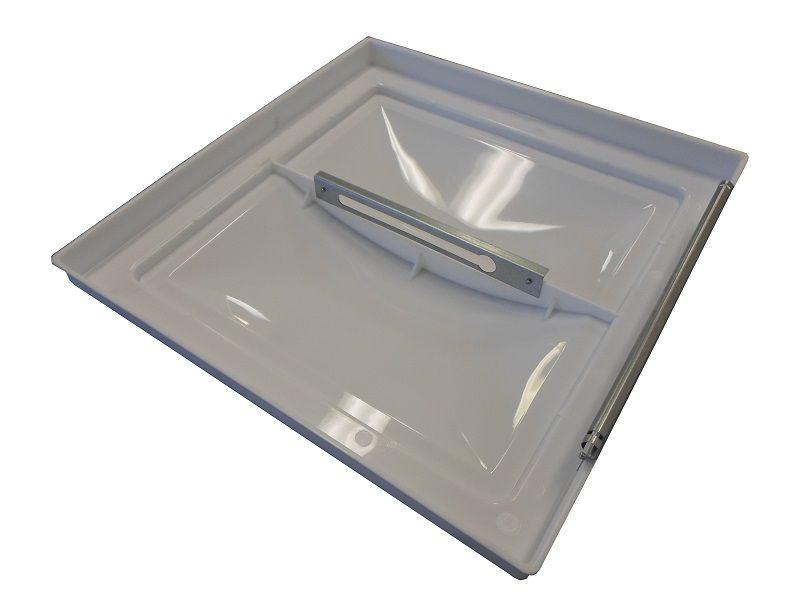

Replacement plastic lid for Ventline 14" x 14" vent features:

    • UV Stabilized
    • Pre- assembled
    • Quick and easy to install
    • Rust-resistant, galvanized mounting hardware
    • Reinforced centre bar for added strength and stability

Ventline Lid Removal/Install

1. Open existing lid by turning crank handle.

2. Remove crank handle.

3. Remove trim (4 screws) and screen (2 screws)

4. Remove crank (2 screws) and slide out of hardware in lid.

5. From roof of RV, straighten hinge curled one end (with pliers) and slide off cover.

To install new lid, reverse steps 1-5, closing curl at each end.

So how do you tell which replacement lid you need?

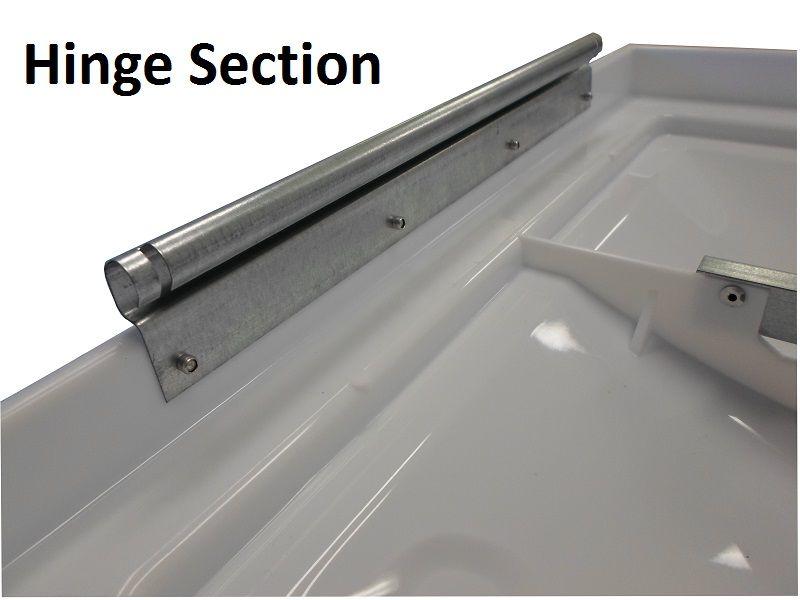

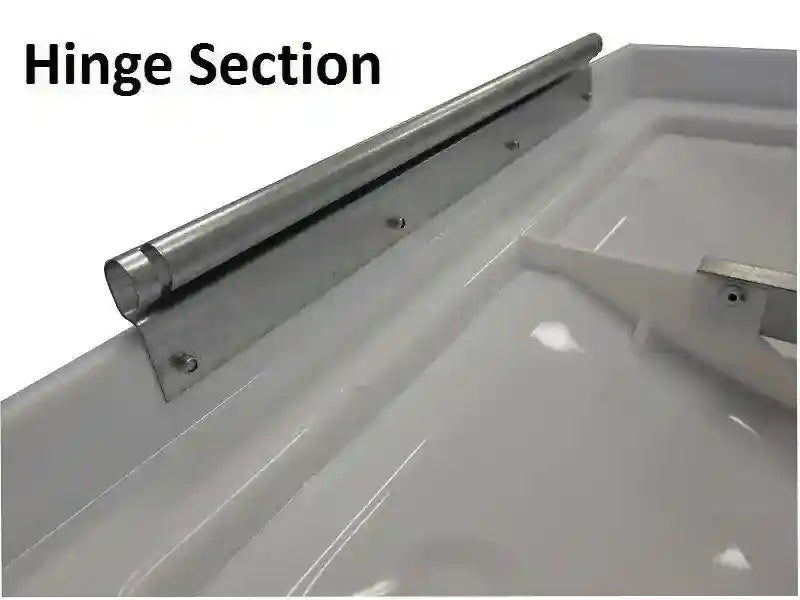

Most 14" x 14" roof hatches look the same and don't have brand names on them, the easiest way to identify your hatch is by the hinge section. See images attached.
