Twin Core Wire Electrical Automotive Cable 2 Sheath 450V 4mm 30M

Ships from outside warehouse - not available for pick up - will ship separately from other items.

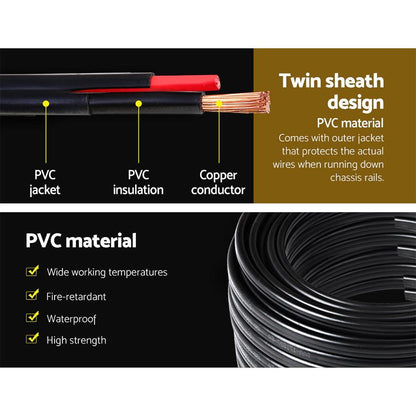

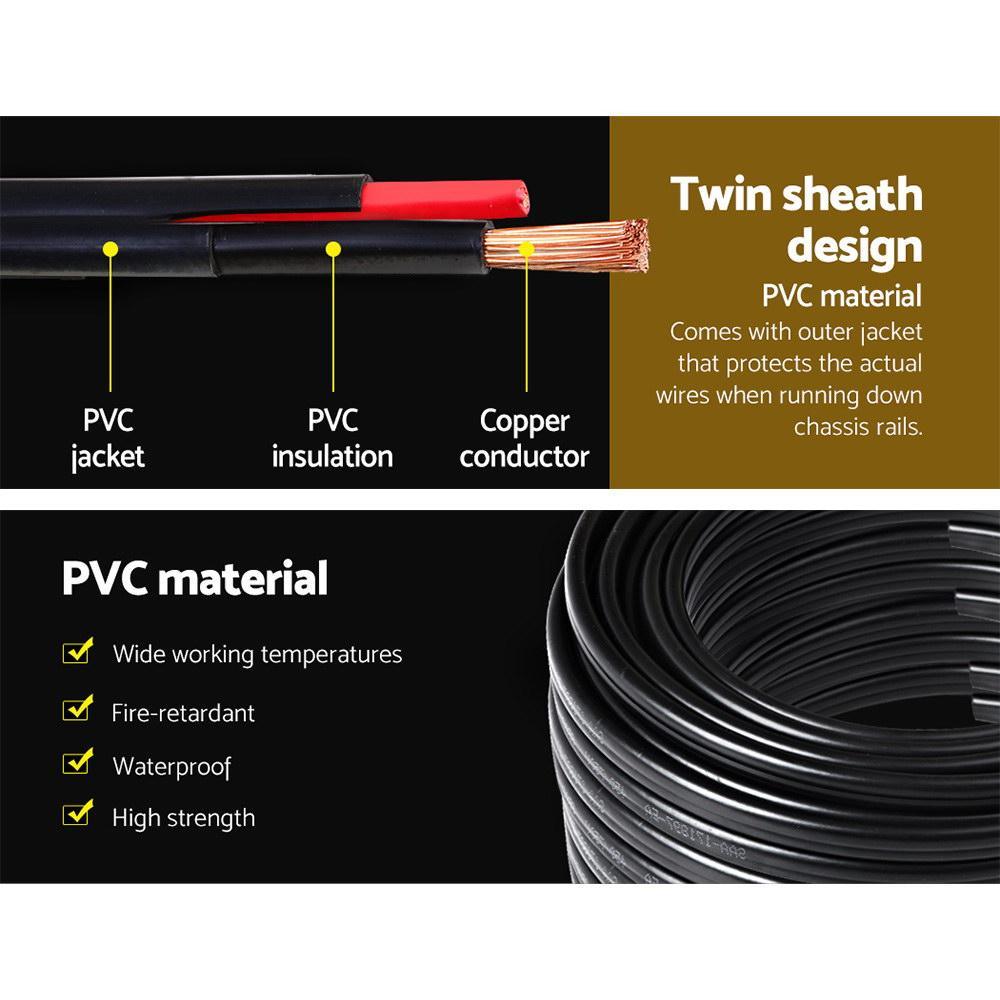

Cable Sheath Automotive Wire - 4MM

Our 4MM twin sheath automotive cable pure features a oxygen-free copper wire and reinforced PVC cover with black sheathing. The wire is waterproof, fire-retardant and can withstand extreme temperature changes without losing conductivity. It is designed to meet Australian standards and is SAA-certified.

Features:
* 4MM twin sheath automotive cable

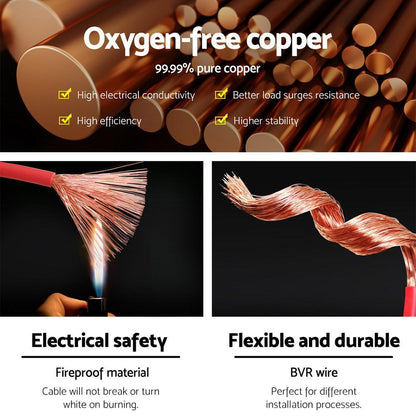

* Oxygen-free copper core conductor
* Low eccentricity
* Reinforced PVC material
* SAA-certified
* RoHS
* Can normally work up to 450V AC/DC

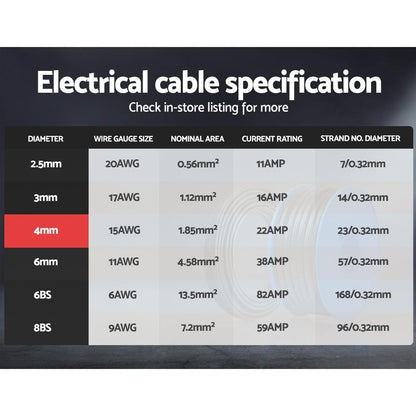

Specifications:
* Conductor: Oxygen-free plain copper wire to AS/NZ 1125
* Insulation: V90 PVC to AS/NZ 3808
* Sheath: 5V90 PVC to AS/NZ 3808
* Amp rating: 22
* No. of cores: 2
* Cable Length: 30m
* Cable diameter: 4mm
* Strand no. diameter: 23/0.32mm
* Nominal area: 1.84mm2
* Nominal O.D.: 3.8mm x 6.3mm
* Colour: Black sheathing
* Conductor resistance 10.1O/Km(20?)
* Dielectric strength(kV/sec AC):2.5/60
* Unaged acceptable tensile strength = 12.5Mpa
* Unaged acceptable ultimate elongation =130%

Package Content:
1 x Twin Core Cable

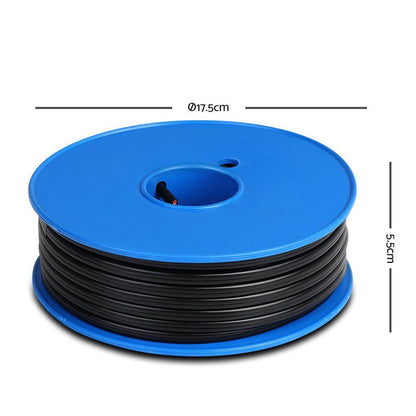

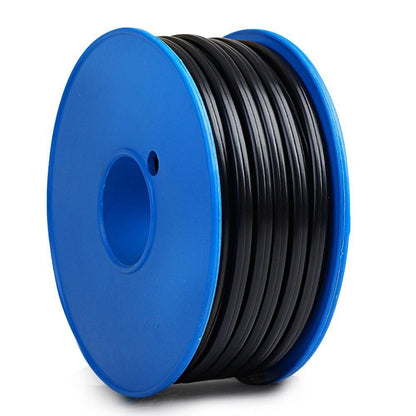

1 x Cable Spool
