SMF175M-4X09U
Couldn't load pickup availability

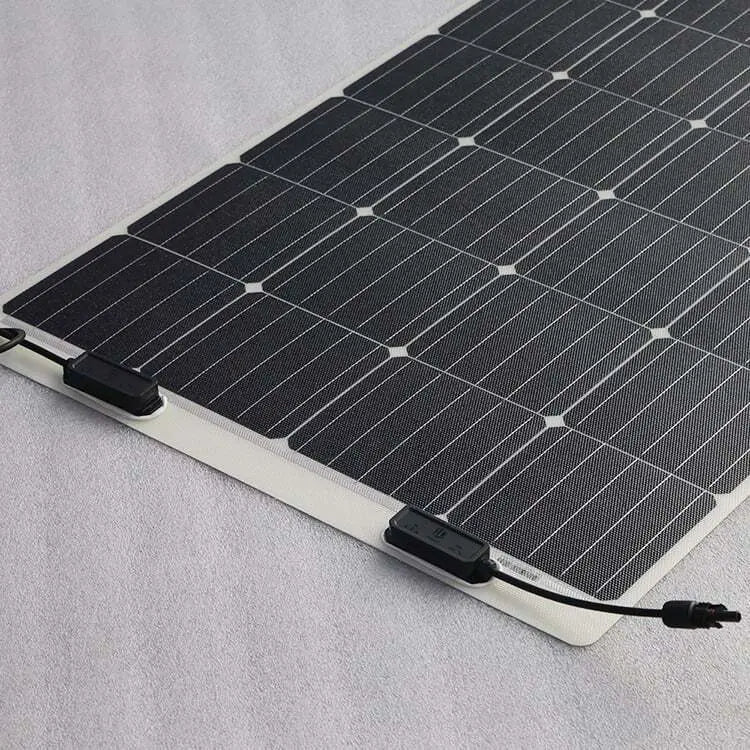

Sunman eArc Monocrystalline Flexible Solar Panel 175W Frameless
- Ultra-light - eArc weighs around 75% less than conventional PV panels. Panels measure just 2mm with a 100-watt panel weighing just 1.9kgs.
- Flexible - eArc combines a unique, patented material to produce a superior flexible crystalline-silicon/panel which can be installed on curved surfaces.
- Easy Installation - eArc can reduce installation costs through ease of handling and faster installation, without the added cost of mounting hardware.
- Durability - eArc panels are certified to withstand maximum test load (2400 Pascal) and hail tested with 200g/35mm diameter ice stones at 39.5m per second.
| STC | SMF185M-4X09U |
| Maximum Power (Pmax) | 185 |
| Maximum Power Voltage (Vmp) | 19.9 |
| Maximum Power Current (Imp) | 9.30 |
| Open-circuit Voltage (Voc) | 24.1 |
| Short-circuit Current (Isc) | 9.78 |
| Module Efficiency (%) | 17.9 |
| Operating Temperature (℃) | -40 ℃ to 85 ℃ |
| Maximum System Voltage | 600 V DC (IEC) |
| Maximum Series Fuse Rating | 20 A |
| Application Class | Class A |
| Power Tolerance | 0/+5 W |
| Solar Cell | Mono (6 inches) |
| No. of Cells | 36 (4×09) |
| Module Dimensions | 1520×680×2 mm |
| Weight | 3.3 kg |
| Backsheet | White |
| J-box | IP 68 rated (each j-box have one bypass diodes) |
| Output Cables | Photovoltaic technology cable 4.0 mm2, (+)150 / (-)450 mm |
| Connector | MC4 compatible |
| SKU | SNM.SMF175M-4X09U |
| Model # | SMF175M-4X09U |
| Brand | Sunman |
| Shipping Weight | 5.0000kg |
| Shipping Width | 1.600m |
| Shipping Height | 0.100m |
| Shipping Length | 0.700m |
| Shipping Cubic | 0.112000000m3 |
| Unit Of Measure | ea |
-
