Suburban Nautilus on Demand HWS Complete White Control Panel and Vent Black Door with Vent ...

$1,528.95

  • Suburban Nautilus on Demand HWS Complete White Control Panel and Vent Black Door with Vent ... - Everything Caravans
  • Suburban Nautilus on Demand HWS Complete White Control Panel and Vent Black Door with Vent ... - Everything Caravans
Out of stock
$1,528.95
$1,528.95 $1,699.00

950-03512a
Share this product.
Up to $170.05 off

With no storage Hot Water Tank, the NAUTILUS On Demand Hot Water Heater reduces weight and increases efficiency by only operating when you need hot water.

The heater uses an exclusive 60,000 BTU 2-Stage Modulating Combustion System which instantly adjusts the LP gas input to provide consistent and endless hot water.

Suburban’s NAUTILUS On Demand Water Heater:

  • Exclusive 60,000 BTU Two-Stage Self Modulating Combustion System
  • Built-In Freeze Protection
  • Only 16.3kg Installed (including optional accessories)
  • Two-Year Warranty
  • Unmatched installation flexibility
  • Small vent cap only to minimize penetration through the side of the RV

The 2-Stage Modulating Combustion System and microprocessor Monitors:

  • Inlet water temperature
  • Inlet water flow
  • Output water temperature
  • Combustion air fan speed
  • Heat exchanger and burner operation

Note: To fully install you need to purchase the side access vent to suit the wall thickness of your installation

PERFORMANCE SPECS

SUBURBAN NAUTILUS

MODEL

Nautilus IW60A, 5187A

MAXIMUM MJ/hr

64 (5) burners

TWO-STAGE

Self Modulating Combustion System

YES

Stage 1 Operation: 2 Burners

Stage 2 Operation: 5 Burners

Fuel Source

Universal LP Gas

Dry Weight

15 kg with vent assembly

Optional access panel 2.3 Kg shipping weight

12 VDC = AMPS

2.1 AMPS

Operational Voltage Range

10.2 - 14.5 VDC

MAXIMUM Output Water Temperature

50°C

Output Water Temperature - Factory Setting

50°C

Digital Control Center Temperature Range

35° - 50° (C)

Liters Per Minute (LPM) Required Flow

1.9 LPM

Freeze Protection

Standard

Warranty

2 - Year

Product Dimensions

316.6 mm W x 317.8 mm H x 464.9 mm D

(includes inlet and discharge water lines)

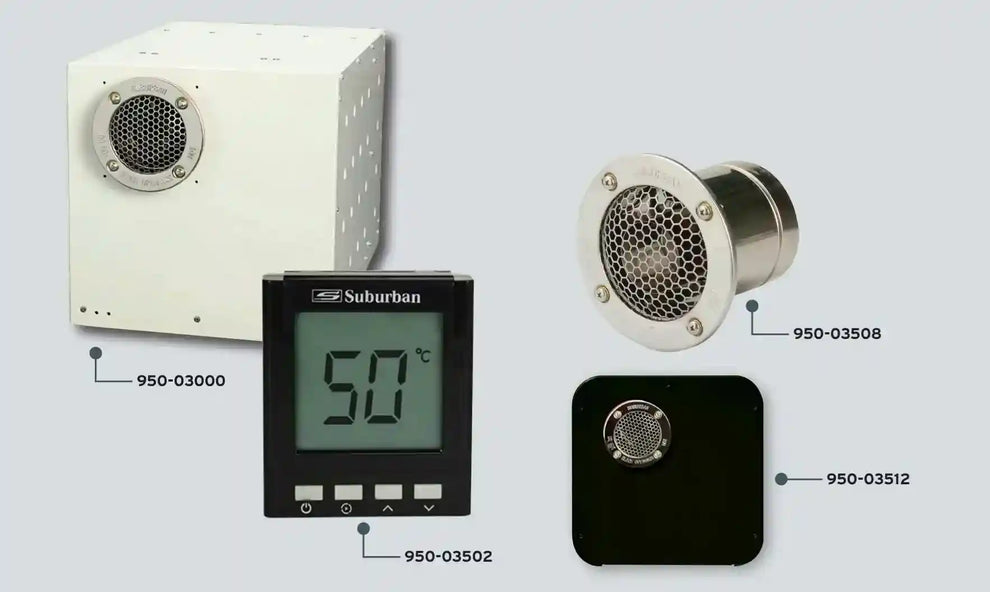

950-03000/950-03500
