BS-5032B

St Blade Split Bus Fuse Block 12 Circuit

We currently have 2 in stock.
2 items left

Fuse Block ST Blade Dual 12 Circuit including Negative

ST Blade Split Bus Fuse Block
Circuits 12
Maximum Amperage 30A per circuit
100A total
Maximum Voltage 32V DC
Mounting 8″ Screw [M4]
Negative Bus #10-32 Stud
Recommended Torque 24 in-lb (2.71 N.m)
Screw Terminal Type #8-32 with Captive Start Lockwasher

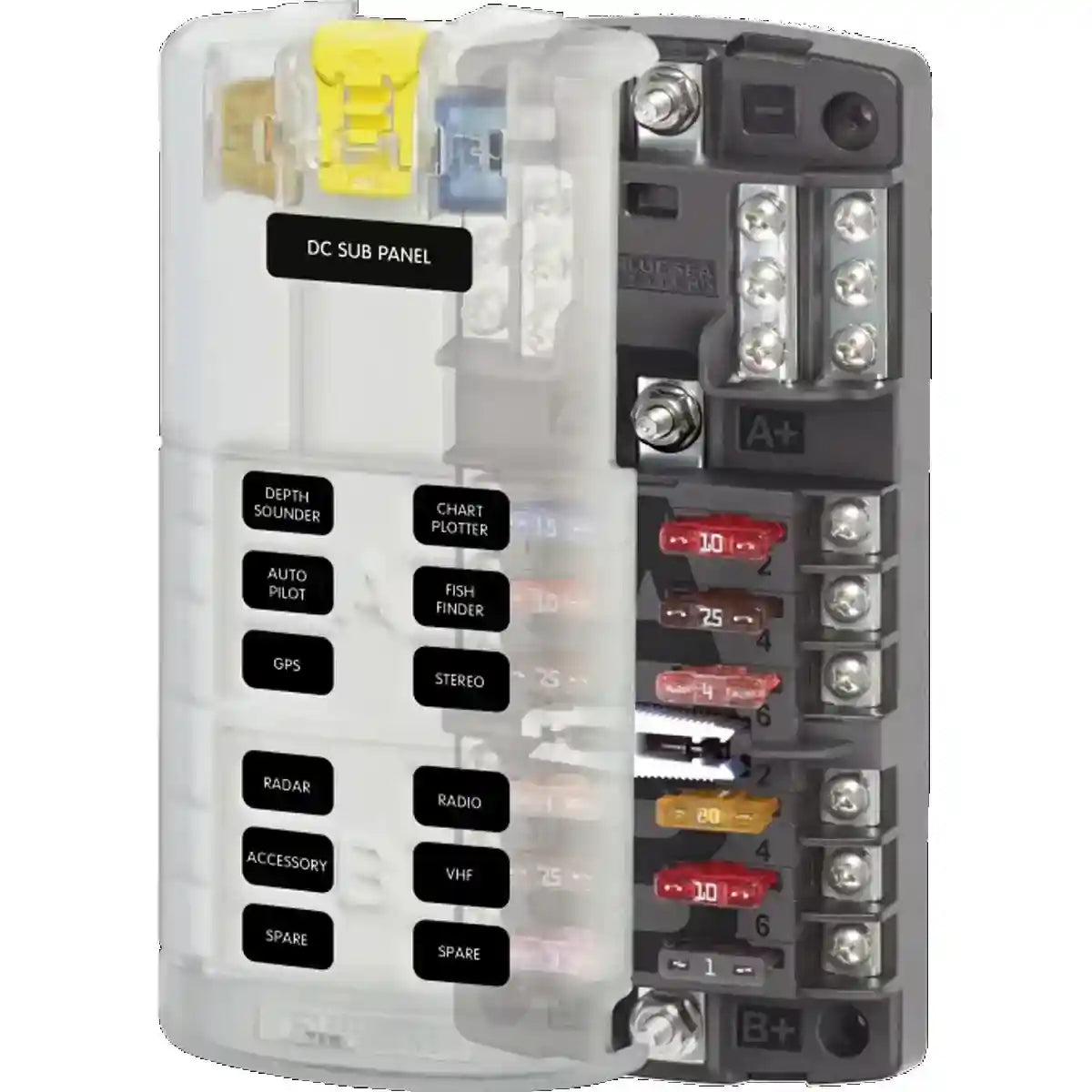

ST Blade Split Bus Fuse Block

  • Provides two isolated groups of six ATO®/ATC® circuits
  • For use with either two isolated batteries or with a single battery providing a mix of 24 hour and switched circuits
  • Screw terminals for securing wires accept ring terminals
  • One-piece stainless flange nuts ensure safe and secure connections
  • Clear insulating cover with label recesses and storage for two fuses, satisfies ABYC/USCG insulation requirements
  • Easy to open, push button latch for easy access to fuses
  • Tin-plated copper buses and fuse clips
  • Fuses sold separately
