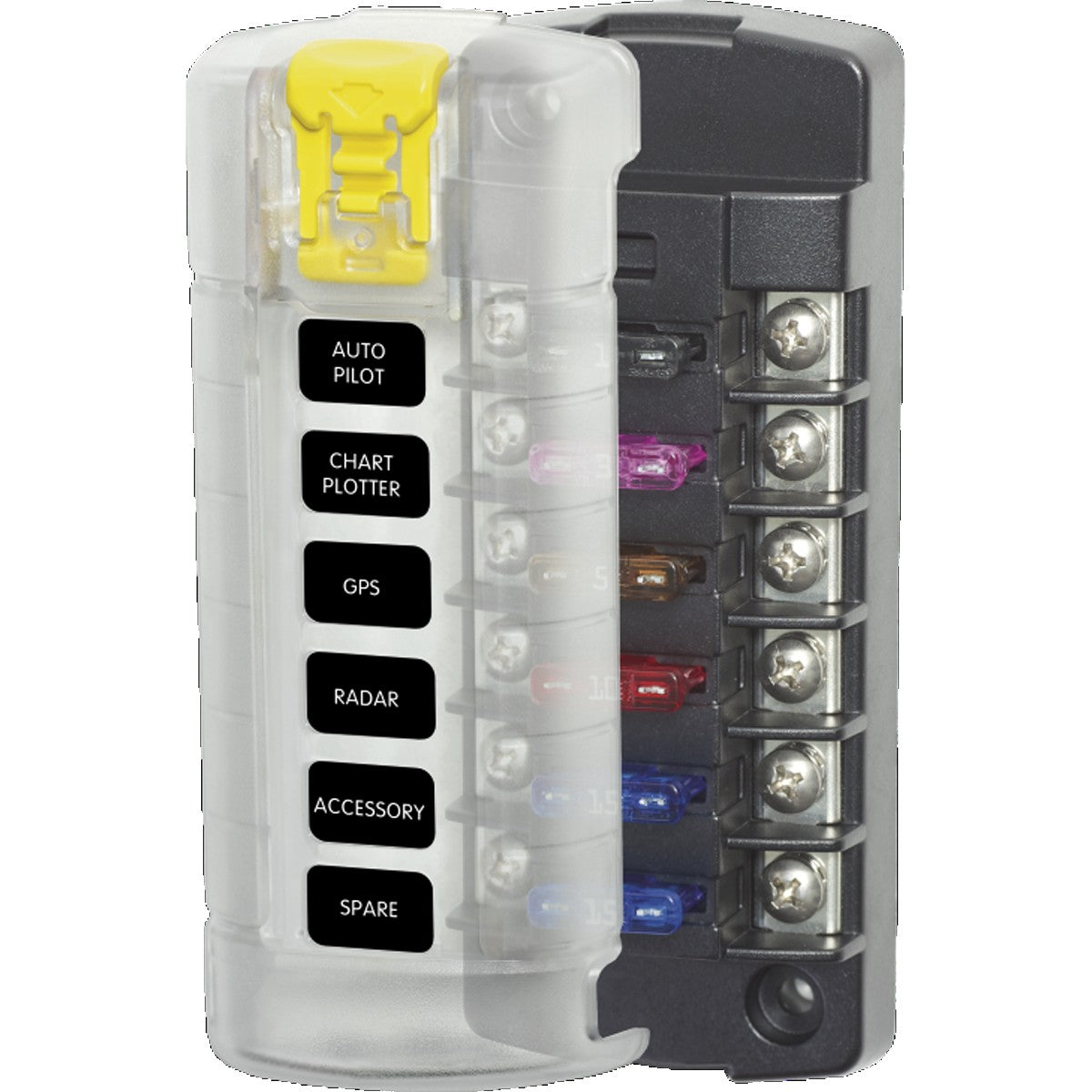

Blue Sea St Blade Fuse Block – 6 independent Circuits with Cover

Blue Sea ST Blade Fuse Block – 6 Circuit Independent

The Blue Sea ST Blade Fuse Block is a reliable and efficient fused power distribution solution, designed for managing multiple DC circuits in automotive, marine, caravan, and off-grid systems. With 6 independent circuits, it allows clean and organised wiring while ensuring each circuit is properly protected.

Built with tin-plated copper fuse clips and a durable insulating cover, this fuse block delivers excellent conductivity, reduced heat build-up, and long-lasting performance in demanding environments.

Key Features

• 6 independent fused circuits for organised power distribution
• Corrosion-resistant tin-plated copper fuse clips
• Clear insulating cover with label recess for easy identification
• Spare fuse storage built into the cover
• Accepts ring terminals for secure connections
• Includes two terminal block jumpers for flexible circuit grouping
• Compact and durable design for DC systems

Specifications

• Circuits: 6
• Maximum Current: 30 A per circuit
• Maximum Current (Jumped Group): 40 A
• Maximum Voltage: 32 V DC
• Mounting: #8 screw (M4)
• Terminal Type: #8-32 with captive star lock washer
• Weight: 0.16 kg

Additional Notes

• Designed for use in marine, automotive, caravan, and off-grid systems
• Supports safe and organised circuit protection
• Ideal for distributing power to multiple accessories

The Blue Sea ST Blade Fuse Block – 6 Circuit is a dependable choice for clean, safe, and efficient electrical system management.
