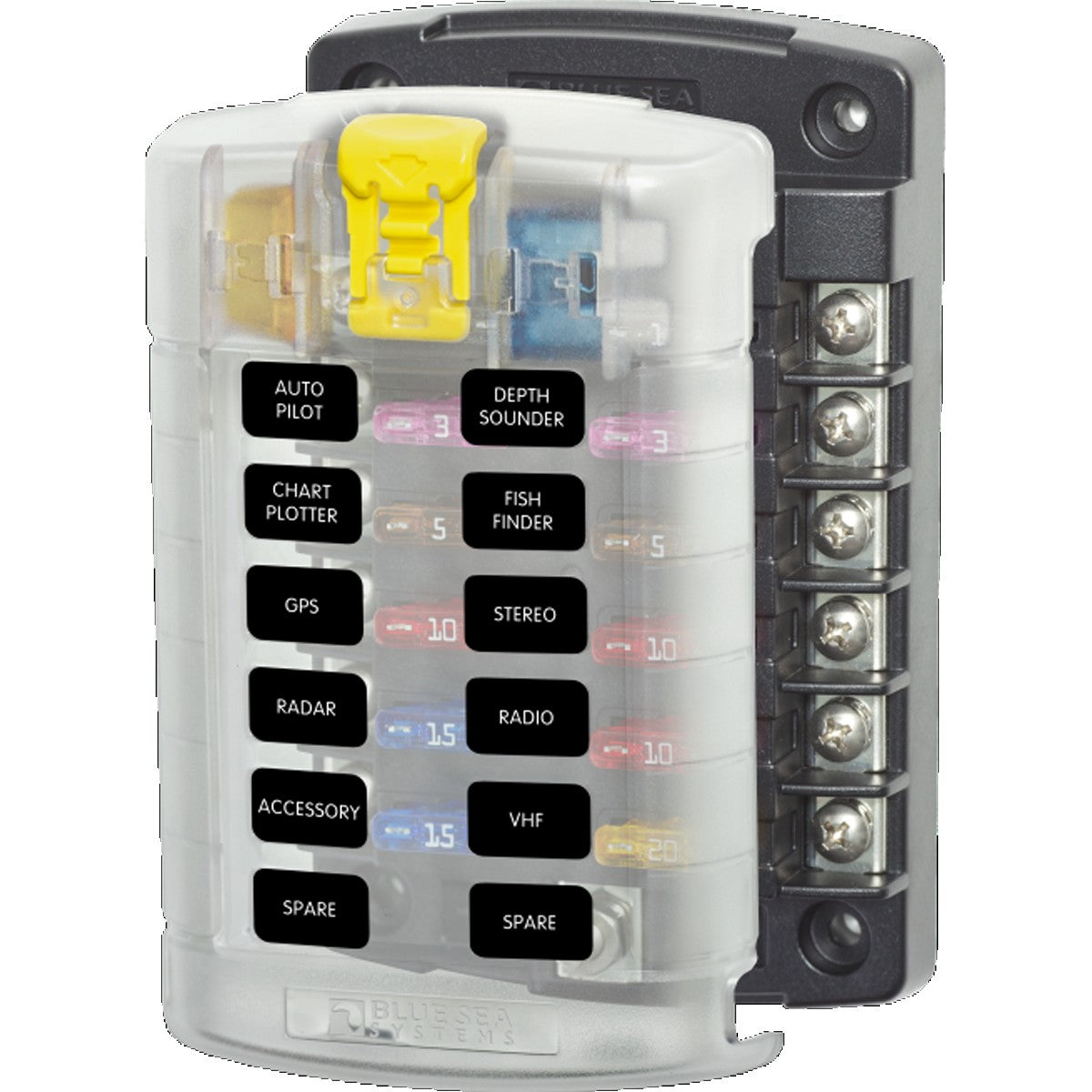

Bluesea Blade Fuse Block – 12 Circuits with Cover

Blue Sea ST Blade Fuse Block – 12 Circuits with Cover

The Blue Sea ST Blade Fuse Block – 12 Circuits with Cover is a reliable and organised solution for consolidating branch circuits and in-line fuses in DC electrical systems. Ideal for automotive, marine, caravan, and off-grid applications, it helps streamline wiring while ensuring safe and efficient circuit protection.

Designed with a positive distribution bus and durable insulating cover, this fuse block offers excellent performance, easy access, and long-term reliability in demanding environments.

Key Features

• 12 independent fused circuits for organised power distribution
• Positive bus with #10-32 stud for efficient power connection
• Clear insulating cover with push-button latch for easy fuse access
• Cover meets ABYC/USCG insulation requirements
• Storage for two spare fuses built into the cover
• Label recess compatible with small format circuit labels
• Includes 20 write-on circuit labels
• Tin-plated copper buses and fuse clips for corrosion resistance
• Accepts ring or spade terminals
• Compatible with ATO® and ATC® blade fuses

Specifications

• Circuits: 12
• Maximum Current: 30 A per circuit
• Maximum Current (Block): 100 A
• Maximum Voltage: 32 V DC
• Mounting: #8 screw (M4)
• Positive Bus: #10-32 stud
• Recommended Torque: 2.71 Nm
• Terminal Type: #8-32 with captive star lock washer
• Weight: 0.31 kg

Additional Notes

• Fuses sold separately
• Designed for use with ATO® and ATC® fast-acting blade fuses
• Suitable for 24-hour circuits and continuous power applications

The Blue Sea 12 Circuit Fuse Block with Cover is a dependable choice for clean, safe, and efficient power distribution across multiple circuits.
