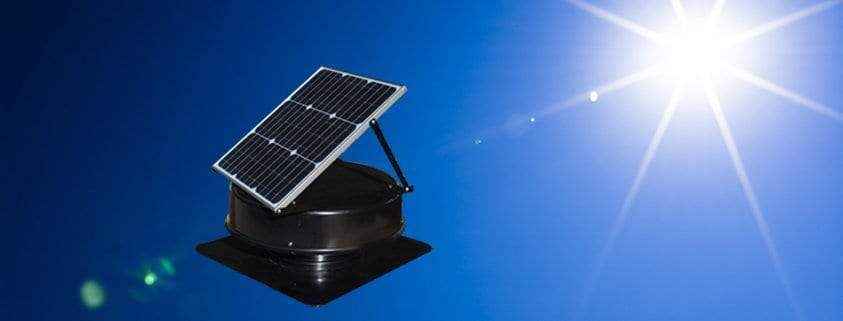

SolarKing Solar Roof Ventilation Exhaust Fan

Australian summers continue to get hotter and so do our homes and workplaces. A great solution to tackle this is Solar Roof Ventilation.

By replacing the hot air in your roof space in summer with the cooler outside air, Solar Roof Ventilation make your home much cooler and a big difference to your indoor comfort level.

• Reduced air conditioning use means lower energy bills
• Keep your home cooler in summer
• Extracts 20x more air than a Whirly Bird
• Reduces roof temperature by up to 30°
• Solar power = no running costs ever

• Thermostatic control prevents heat loss during cooler months
• Brushless DC motor for quiet operation and long life
• Corrosion resistant, suitable for coastal regions
• Easy Installation, no electrician required
• Reduces condensation build up in your roof
• Suits tile, Colorbond and flat roofs

• • Capacity, 2100 CBM Per Hour
  • Motor 35 Watts, 6-19VDC, 1600rpm Max, Brushless Motor with Double Shielded Ball Bearings
  • Solar Panel Type, Monocrystalline PV, Heavy Duty Frame, 3mm Tempered Glass
  • Solar Panel Output, 35 Watts, 18VDC
  • Fan, 300mm Balanced 5 Blade With Low Resistance
  • Noise, 45dBA Automatic
  • Automatic Shut Off, 25° Celsius +/- 5%
  • Product Dimensions, 565x565x260mm
  • Flashing Dimensions, 565x565x1mm
  • Product Weight, 7.8Kgs
  • Construction, Aluminium Top Cover, Aluminium Body, Steel Brackets and Stainless Steel Fasteners
  • Colour, Black Powder Coated
  • Packing Dimensions, 580x570x282mm
  • Packing Weight, 9.6Kgs
  • Warranty, 2 Year Warranty (10 Years on Solar Panel)

How does the Solar Fan Work?

In summer, the temperature in an attic can easily reach uncomfortable levels. Building codes require homes to have a passive vent system; however, even well-insulated roofs can become too hot. SolarKing Solar Roof Ventilation Exhaust Fans can combat this. Installed on the roof, these fans draw in cool air from the outside and force it through the roof's entire interior. This can reduce temperatures by up to 30%, making for a comfortable roof space. Keep Your Home Comfortable

In Australia, the SolarKing Exhaust Fan can remove 20x more air than a wind-driven Whirly Bird in the hot summer months, helping to reduce roof temperatures by up to 30°. Additionally, the thermostatic control of the SolarKing Exhaust Fan keeps heat in the roof during the cooler months, as opposed to Whirly Birds which remain active regardless.

Save Your Energy

The SolarKing Exhaust Fan consumes free solar energy, which means no running cost ever.

Also by reducing your roof temperature, your reliance on air conditioning will reduce and lower your energy bills.

Easy Installation and Superior Performance

The SolarKing Exhaust Fan can be self-installed or you can use one of our approved installers to do the job for you. The unit just required 1 roof tile to be removed for installation or for metal roof’s just a 300mm opening.

The brushless DC motor makes the operation quiet and assures the motor will have long life. Being brushless it is also far more efficient compared to other motors so the performance is better.

Description

Australian summers are getting hotter, resulting in higher temperatures in our homes and workplaces. SolarKing Solar Roof Ventilation fans can help control this heat. By blocking heat from the upper level, the lower level of a two-storey building can remain cooler. Similarly, the SolarKing Solar Roof Fan draws hot air from the roof space and replaces it with cooler outside air. Inside your roof, temperatures can reach from 50°C to 70°C - over 20x more than the air movement achieved with wind-driven 'Whirly Birds'. Installing a SolarKing 320MM Solar Fan ensures maximum air circulation, making it easier to keep homes and businesses comfortable. The fan can be mounted on tile, Colorbond or flat roofs, and the solar panel can be adjusted for non-north facing roofs or flat roofs.
