150amp Solarking Lithium Battery 12.8 volt with Bms Direct Replacement for Agm

150amp Solarking Lithium Battery 12.8 Volt with BMS Direct Replacement for AGM

SolarKing 12volt lithium batteries are commonly used in solar installations for energy storage. These batteries weigh significantly less than lead acid types and provide a longer cycle life with an expected lifespan of around 10 years. Each unit includes a sealed, integrated BMS (Battery Management System) for safety and compatibility with existing lead acid charging systems. For optimal use, a DC/DC charger compatible with lithium batteries and a battery monitor are recommended. Lithium batteries support fast charging from vehicles or solar sources. The battery uses LiFePO4 chemistry, known for safe operation.

Features

• 150AH lithium battery
• Integrated advanced BMS with active cell balancing
• Approximately 2000 cycles at 100% Depth of Discharge (DoD)
• Lightweight design
• Can be connected in series or parallel
• Equivalent to over twice the capacity of 100AH deep cycle lead acid batteries
• Not suitable for motor vehicle starting

Specifications

• Chemistry: Lithium Iron Phosphate (LiFePO4)
• Voltage: 12.8 VDC nominal
• Capacity: 150 AH
• Maximum continuous current: 100A
• Maximum 10-second pulse current: 150A
• Minimum charge current: 2A
• Nominal charge current: 30A
• Maximum charge current: 100A
• Maximum charge voltage: 14.8V
• Active cell balancing: 5AH nominal (8AH peak) during charge and discharge
• Cycle life:
  • 2000 cycles at 100% DoD
  • 3000 cycles at 80% DoD
  • 3500 cycles at 50% DoD
  • 8000 cycles at 30% DoD
• Low voltage cut-off: 10VDC
• Maximum in-series voltage: 30.4V

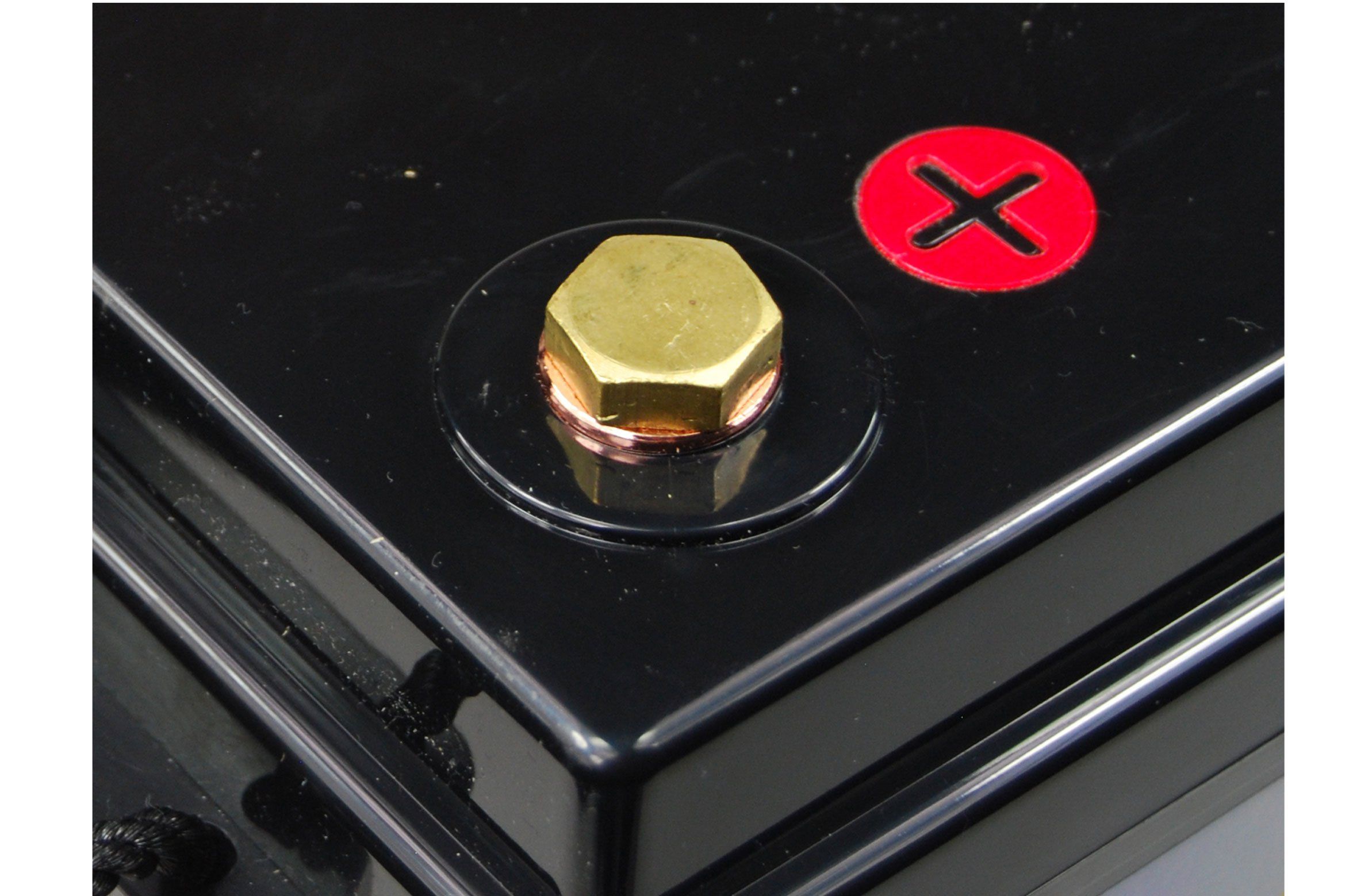

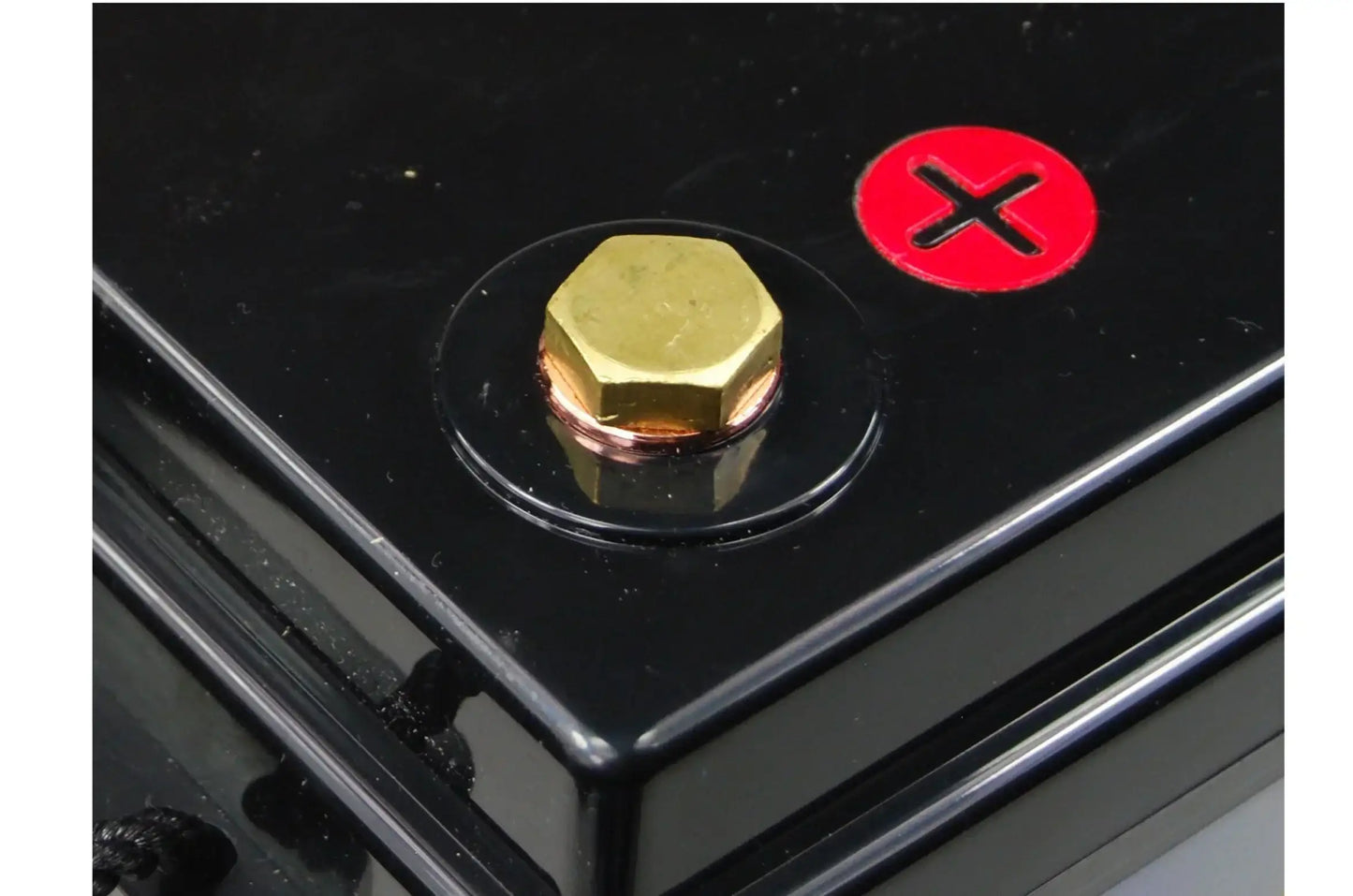

• Terminal type: T10
• Dimensions (L x W x H): 365mm x 185mm x 245mm
• Weight: 13.02 kg
• Operating temperature range: -20°C to +60°C

Designed as a direct replacement for lead acid AGM batteries, this battery is plug-and-play with existing chargers.
