Solar Panel Connector 1 To 5 branch Waterproof Cable Connectors - 1 pair

FREE SHIPPING (AU Only) - Ships from outside warehouse - not available for pick up - will ship separately from other items.

Solar Panel Connector 1 To 5 Branch Waterproof Cable Connectors - 1 Pair

The Solar Panel Connector 1 To 5 Branch Waterproof Cable Connectors are designed for use with solar panels, allowing for easy paralleling of multiple solar panels. The connectors come in two configurations: 1 male to 5 female (M/FFFFF) and 1 female to 5 male (F/MMMMM). They are compatible with solar cables or connectors ranging from 14AWG to 10AWG, providing flexibility for various setups.

Features

• Waterproof: IP67 waterproof rating with a sealing ring on the male connector, ensuring protection from water and dust.
• Durable: Made from PPO material and silver-plated copper contacts, offering stability and resistance to corrosion in outdoor environments.
• High Security: Operates in temperatures from -40°C to +90°C, ensuring reliable performance in a wide range of conditions.
• Easy Installation: Plug and play design with a built-in lock for quick connection and disconnection without the need for additional tools.
• Wide Compatibility: Compatible with 14AWG to 10AWG solar connectors and suitable for most PV products on the market.
• CE and TUV Certified: Certified for safety and quality with corrosion-resistant connectors for long-term usage.

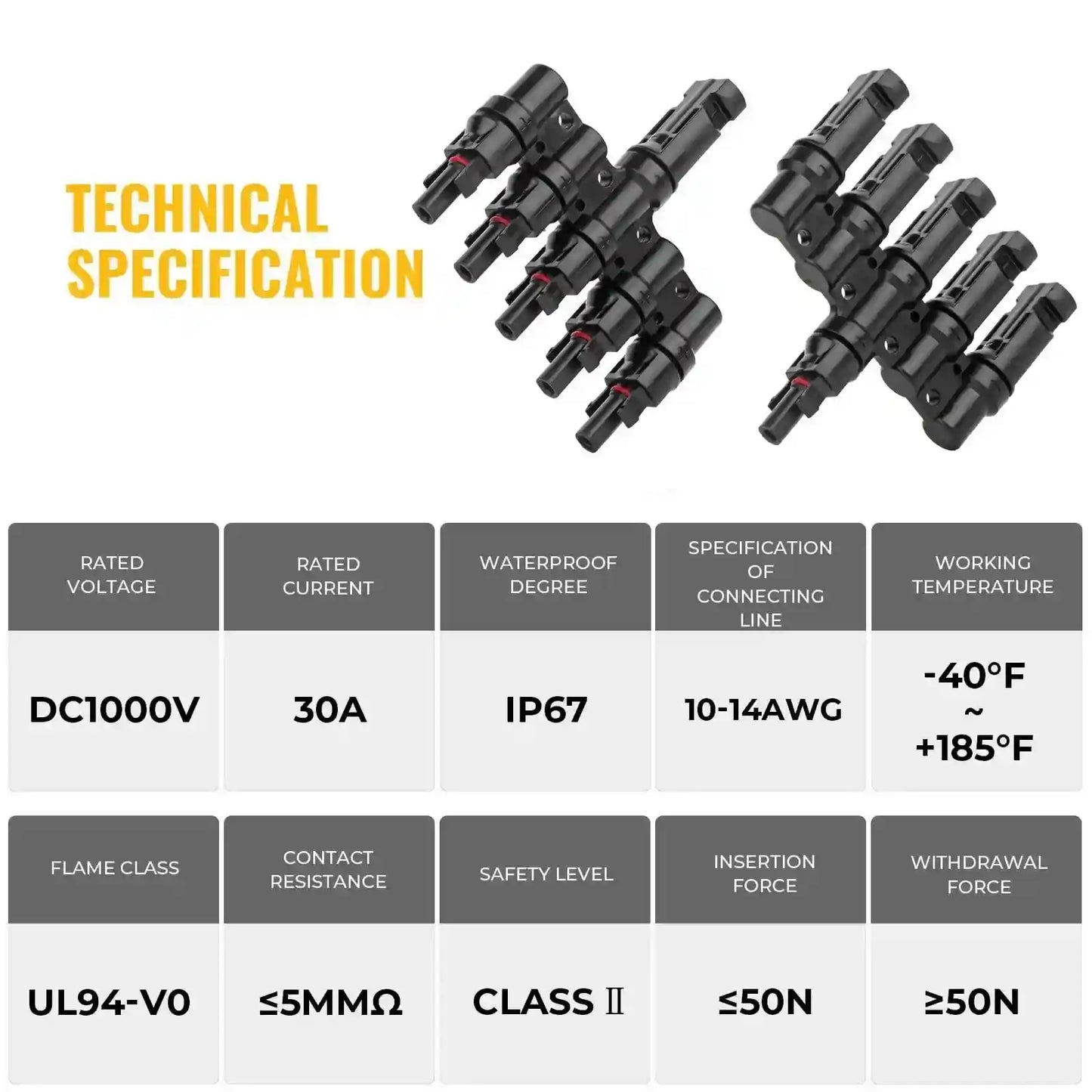

Specifications

• Withstanding Voltage: 1000V DC (TUV), 600V (UL)
• Contact Resistance: 1m
• Protection Class: Class II
• Temperature Range: -40°C to +90°C
• Flame Class: UL94-V0 or UL94-5VA
• Connector Weight: 117g each

Package Includes

• 1 Pair of 5 Branch Connectors (1 x MMMMMF Solar Branch Connector, 1 x FFFFFM Solar Branch Connector)
