KT70728

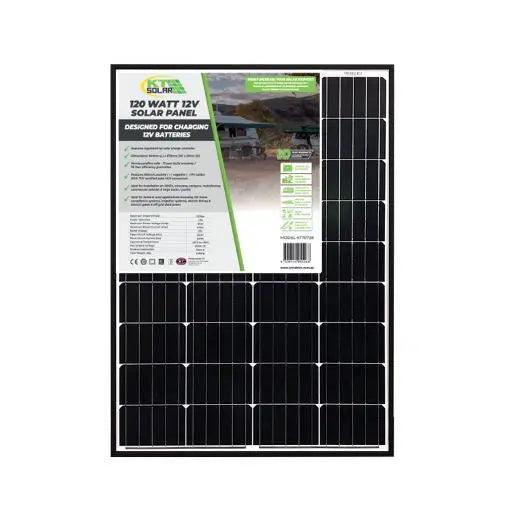

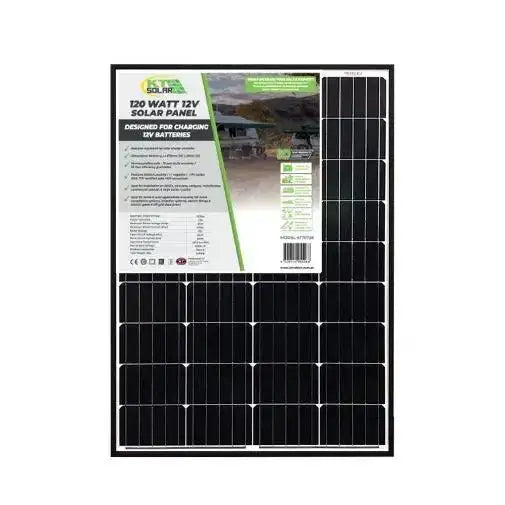

Solar Panel 120 Watt Mono 12v

We currently have 3 in stock.
3 items left

Solar Panel 120 Watt Mono 12V

  • Dimensions (Height): 945mm
  • Dimensions (Length): 670mm
  • Dimensions (Depth): 35mm
  • Panel Weight: 6.90Kg

Features:

  • Ideal for installation on 4WD’s, caravans, campers, motorhomes, commercial vehicles, boats and yachts
  • Ideal for home and rural applications including 12V home surveillance systems, irrigation systems, electric fences/gates and off-grid shed power
  • Requires regulation by solar charge controller
  • Direct connection to batteries with 90mm PV cables with positive (+) and negative (-) TUV certified connectors
Power Tolerance +3%
Maximum Power (Pmax) 120Wp
Maximum Power Voltage (Vmp) 19.0V
Maximum Power Current (Imp) 6.32A
Rated Voltage 12V
Open Circuit Voltage (Voc) 22.5V
Short Circuit Current (Isc) 6.97A
Operating Temperature -40°C to +85°C
Product Application Class A
Max System Voltage 1000V DC

KT70728
