Solar Panel 200W 12v Pv Monocrystalline Solar Panel

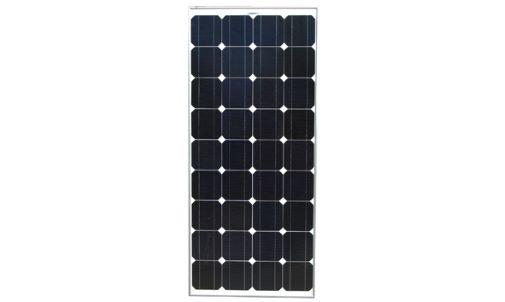

Solar Panel 200W 12V PV Monocrystalline Solar Panel

Features

• Monocrystalline solar cells for efficient energy conversion
• Shade tolerant design to maintain power output in low-light conditions
• 3mm tempered glass for durability and weather resistance
• Heavy duty aluminium frame for long-term stability
• Junction box with short cable included for easy installation
• Can be connected in series or parallel to suit system requirements

Specifications

• Maximum Power (Pmax): 200W
• Voltage at Maximum Power (Vmp): 18.1V
• Current at Maximum Power (Imp): 11.1A
• Open Circuit Voltage (Voc): 22.4V
• Short Circuit Current (Isc): 12.1A
• Maximum System Voltage: 1000V DC
• Maximum Series Fuse Rating: 15A
• Operating Temperature Range: -40°C to +85°C
• Application Class: A-Class
• Weight: 14.5kg
• Dimensions (L x W x H): 1480 x 670 x 30 mm

Use and Installation Tips

• Mount panel where it receives maximum direct sunlight for best performance
• Use the junction box and cable for straightforward connection to your system
• Panels can be wired in series to increase voltage or parallel to increase current
• Check system fuse rating to match or exceed the maximum series fuse rating
• Maintain panel surface clean for optimal energy output
