Double Manual Bolt on Caravan Step

Double Manual Bolt-On Caravan Step

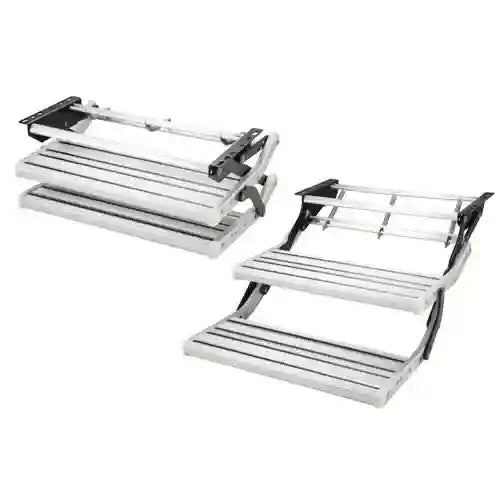

The Double Manual Bolt-On Caravan Step is a two-step bolt-on unit for caravans, motorhomes, trailers and off-road vehicles, designed to provide stable access using a steel and aluminium frame, spring-loaded hinges and illuminating step ends.

Features

• Steel and aluminium construction
• Spring-loaded hinges for manual operation
• Illuminating step ends for visibility in low light
• Ribbed anti-slip tread on both steps
• Suitable for caravans, motorhomes, trailers and off-road vehicles
• Load rating: 200kg
• 1-year manufacturing defect warranty

Specifications

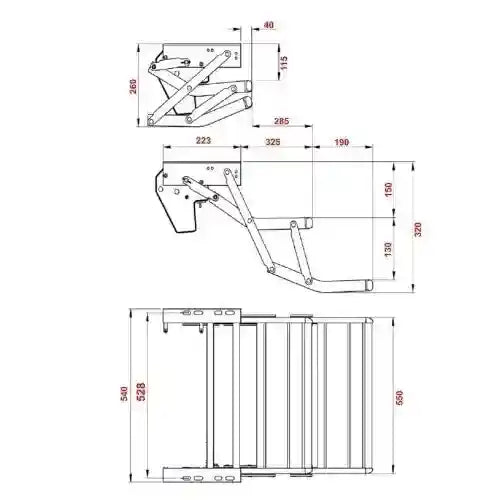

• Product: Double Manual Bolt-On Caravan Step
• Step weight: 8.5kg
• Drop height to first tread: 150mm
• Drop height to second tread: 280mm
• Overall drop height: 320mm
• Overall height when closed: 260mm
• Step width: 540mm
• Step depth: 200mm

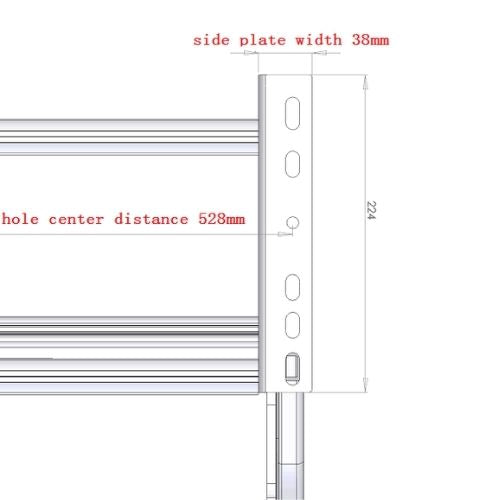

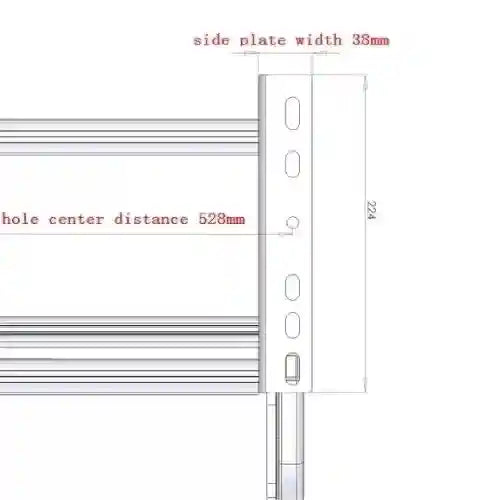

• Mounting hole centres: 528mm
• Mount bracket width: 555mm
• Load rating: 200kg
