SatKing Orbit 85cm High Gain Dish V3 – VAST & Foxtel Compatible Fully Automatic Self Aligning System
The SatKing Orbit 85cm High Gain Dish is VAST & Foxtel Compatible and Fully Automatic Self Aligning, providing Australia-Wide Coverage for satellite TV on caravans and motorhomes when installed to specification.
Features
- 85cm high gain dish for satellite TV reception
- VAST & Foxtel compatible for Australian satellite services
- Fully automatic self aligning operation with one-button start
- Built-in 24-channel GPS to locate satellites quickly

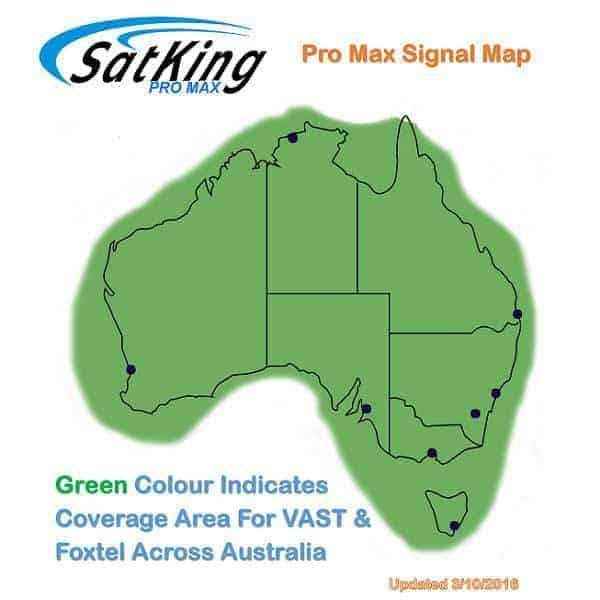

- Australia-wide coverage when used with supported services
- Dual output LNB as standard to suit twin tuner set-top boxes
- Automatic LNB skew adjustment
- Suits both caravans and motorhomes
- New large mounting plate for stable roof installation
- On-roof cable junction box for servicing access
- Powerful DC motors with metal gearing
- Weatherproof construction, made for harsh Australian conditions
- MPEG4 HD compatible
- Easy operation with “OK” start for satellite search
- Operating temperature range: -20°C to +60°C
- 2 year warranty
- 1300 number help line for product support
- Designed in Australia, made in China
Physical Specifications
- Dish dimensions: 86.0 (W) x 91.0 (L) cm
- Overall physical dimensions (unit): 110.6 (L) x 86.0 (W) x 18.4 (H) cm
- Product weight: 13.8 kg
- Gift box weight: 15.1 kg
- Controller dimensions: 199.0 (W) x 154.0 (D) x 31.0 (H) mm
- Mounting plate dimensions: 770 (L) x 302 (W) mm
- Operating temperature range: -20°C to +60°C
LNB Specifications
- Polarisation: Horizontal / vertical
- Type: Dual output wideband LNB
- LNB input frequency: 11.75–12.75 GHz
- LNB output frequency: 1000–2050 MHz
Antenna Adjustment Range
- Elevation: 0° to 145°
- Azimuth: 390°
- Skew: -60° to +60°
Satellite Searching
- Average satellite searching time: 80 seconds
Power
- Input voltage: DC 12 V (12–19 V range)
- Power consumption: 60 W in search mode, 4 W in standby mode
-
