Satking orbit Fully Automatic Satellite Dish Antenna V3 - Full Au Coverage

SatKing Orbit 85cm High Gain Dish V3 – VAST & Foxtel Compatible Fully Automatic Self Aligning System

The SatKing Orbit 85cm High Gain Dish is VAST & Foxtel Compatible and Fully Automatic Self Aligning, providing Australia-Wide Coverage for satellite TV on caravans and motorhomes when installed to specification.

Features

• 85cm high gain dish for satellite TV reception
• VAST & Foxtel compatible for Australian satellite services
• Fully automatic self aligning operation with one-button start
• Built-in 24-channel GPS to locate satellites quickly

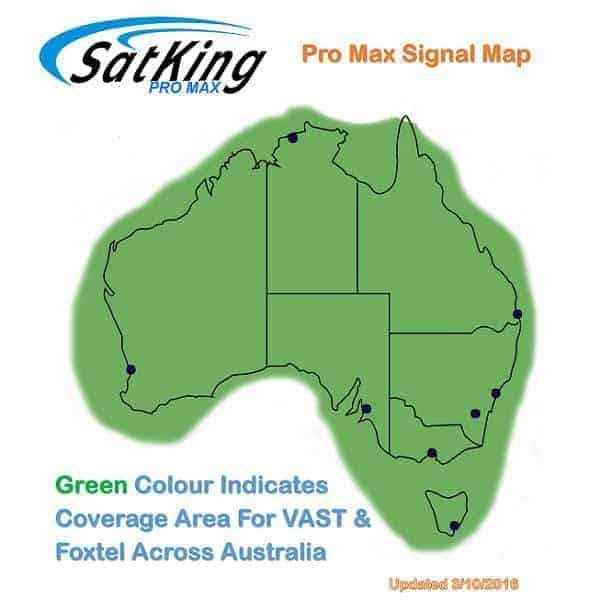

• Australia-wide coverage when used with supported services
• Dual output LNB as standard to suit twin tuner set-top boxes
• Automatic LNB skew adjustment
• Suits both caravans and motorhomes
• New large mounting plate for stable roof installation
• On-roof cable junction box for servicing access
• Powerful DC motors with metal gearing
• Weatherproof construction, made for harsh Australian conditions
• MPEG4 HD compatible
• Easy operation with “OK” start for satellite search
• Operating temperature range: -20°C to +60°C
• 2 year warranty
• 1300 number help line for product support
• Designed in Australia, made in China

Physical Specifications

• Dish dimensions: 86.0 (W) x 91.0 (L) cm
• Overall physical dimensions (unit): 110.6 (L) x 86.0 (W) x 18.4 (H) cm
• Product weight: 13.8 kg
• Gift box weight: 15.1 kg
• Controller dimensions: 199.0 (W) x 154.0 (D) x 31.0 (H) mm
• Mounting plate dimensions: 770 (L) x 302 (W) mm
• Operating temperature range: -20°C to +60°C

LNB Specifications

• Polarisation: Horizontal / vertical
• Type: Dual output wideband LNB
• LNB input frequency: 11.75–12.75 GHz
• LNB output frequency: 1000–2050 MHz

Antenna Adjustment Range

• Elevation: 0° to 145°
• Azimuth: 390°
• Skew: -60° to +60°

Satellite Searching

• Average satellite searching time: 80 seconds

Power

• Input voltage: DC 12 V (12–19 V range)
• Power consumption: 60 W in search mode, 4 W in standby mode
