Truma Saphir Comfort Underbunk Air Conditioning System

Truma Saphir Comfort Underbunk Air Conditioning System

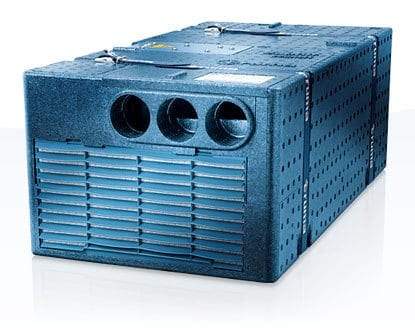

The Truma Saphir Comfort Underbunk Air Conditioning System is a floor-mounted reverse-cycle unit designed for caravans, campervans, and motorhomes up to 6.5–7 metres. It provides 2.4 kW cooling capacity and 1.7 kW heating capacity via its heat pump function. This system operates quietly and efficiently with a low-profile design to save space and help vehicle balance, ideal in off-road hybrid caravans.

Designed and made in Germany.

Features:

• Cooling capacity: 2.4 kW (8200 BTU)
• Heating capacity: 1.7 kW (heat pump)
• Power supply: 230–240 V single phase, 4.2A cooling current, 3.7A heating current, 20A start-up current
• Airflow: Up to 380 m³/h with 3 blower speeds plus quiet sleep mode
• Weight: 23.5 kg
• Dimensions: 628 mm (L) × 400 mm (W) × 290 mm (H)

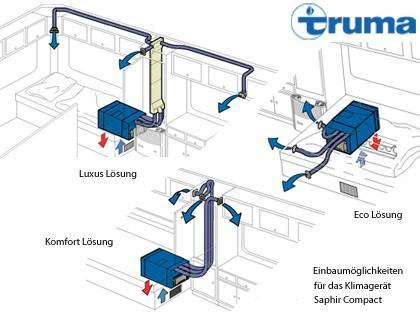

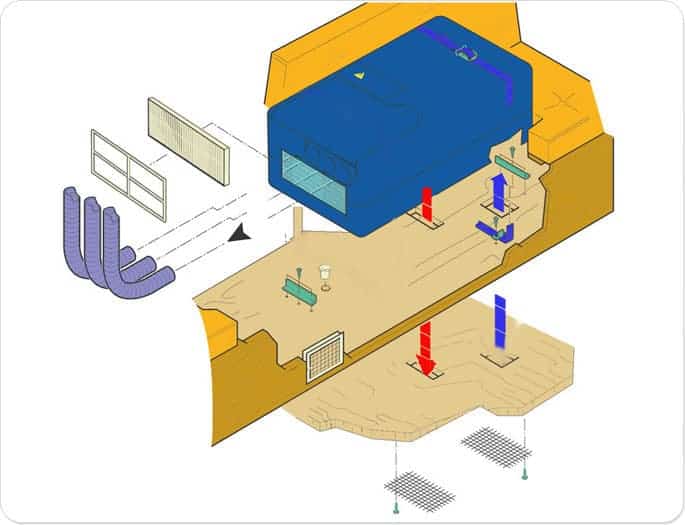

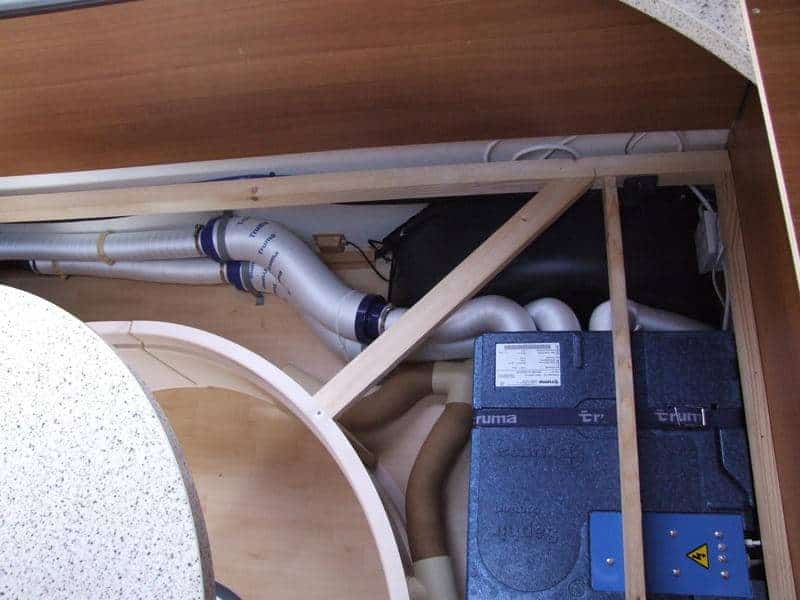

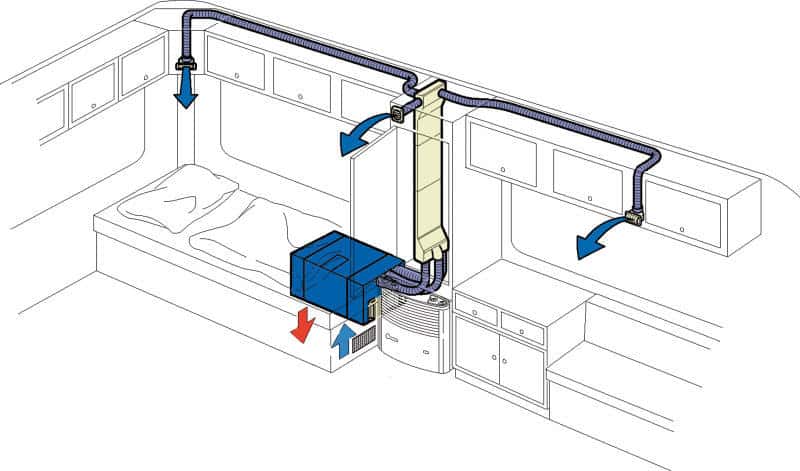

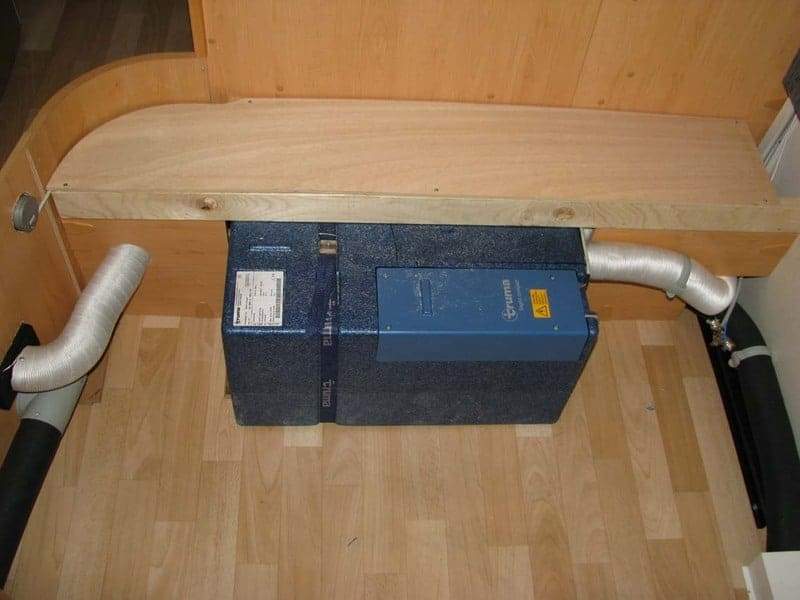

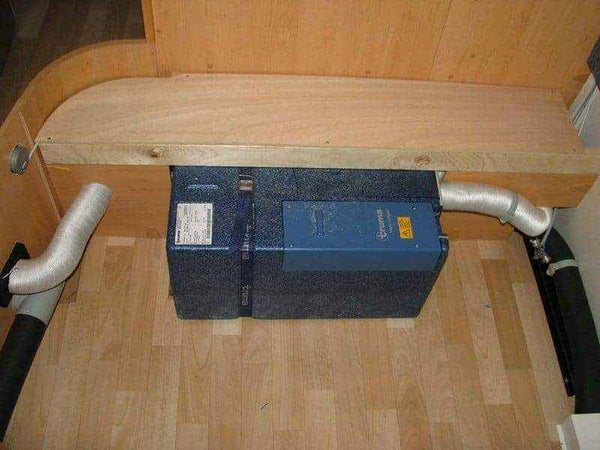

• Underbunk installation: Floor-mounted design improves weight distribution and frees up interior space

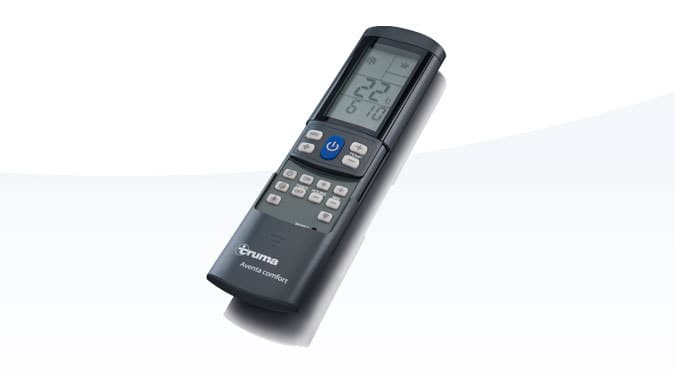

• Control options: Standard remote control included; optional digital Truma CP Plus panel also available
• Air treatment: Integrated fluff and particle filters clean and dehumidify air, suitable for allergy sufferers
• Maintenance: Sealed R 407c refrigerant circuit requires no service
• Programmable timer: Allows pre-setting operation up to 15 hours in advance

Use and Installation:

• Recommended for caravans, campervans, motorhomes up to 7 metres
• Designed for Australian climate and off-grid travel
• Installation kit supplied (ducting sold separately by metre)
• Suitable for permanent installations, extended travel or weekend use

Purchase from a certified Truma Service Agent. We have fitted these into places and builds where others have failed.
