RV Electronics Water Tank SSC- Smart Signal Converter 4 Tanks Standard Senders

RV Electronics Water Tank SSC - Smart Signal Converter for 4 Tanks with Standard Senders

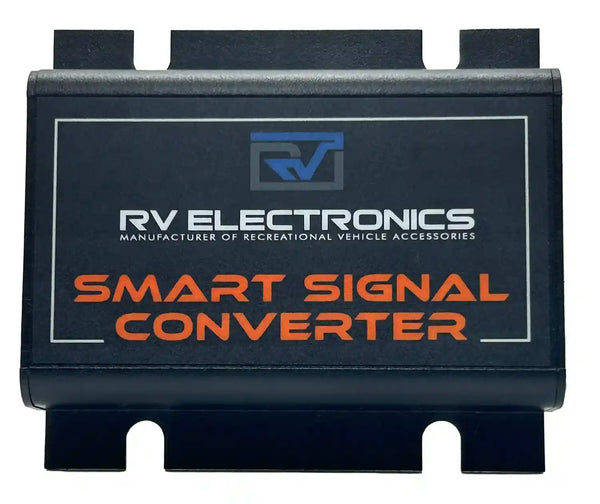

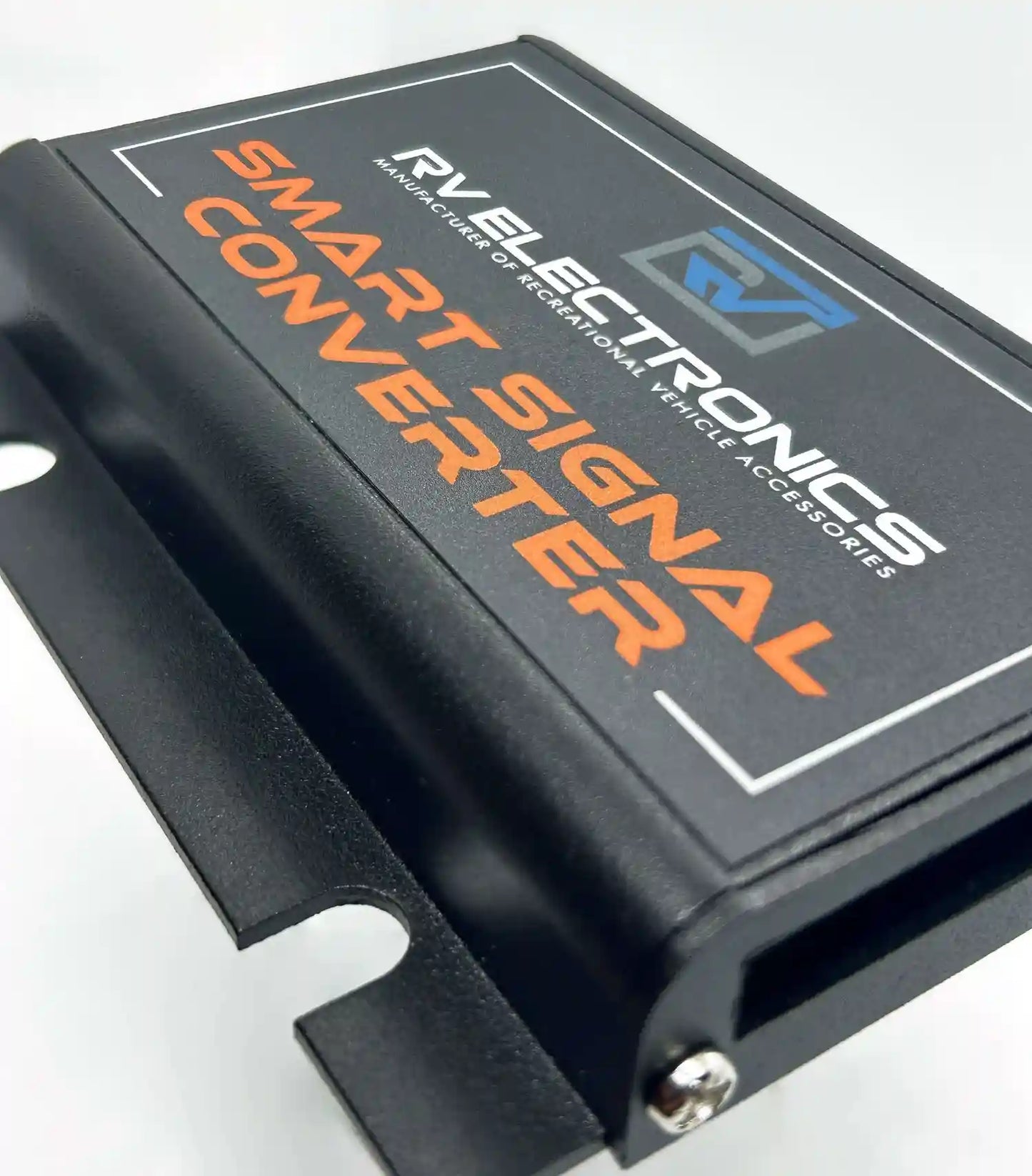

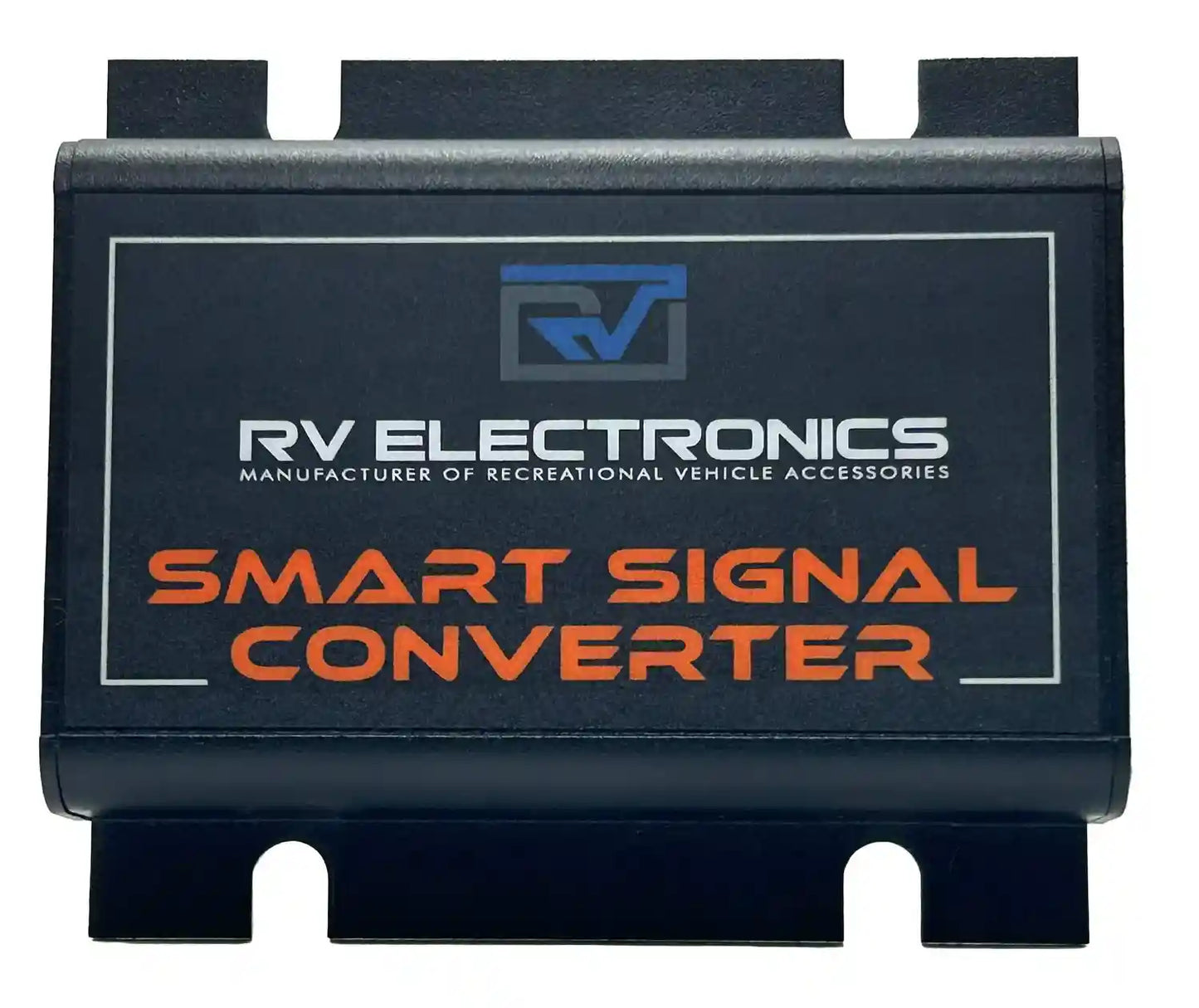

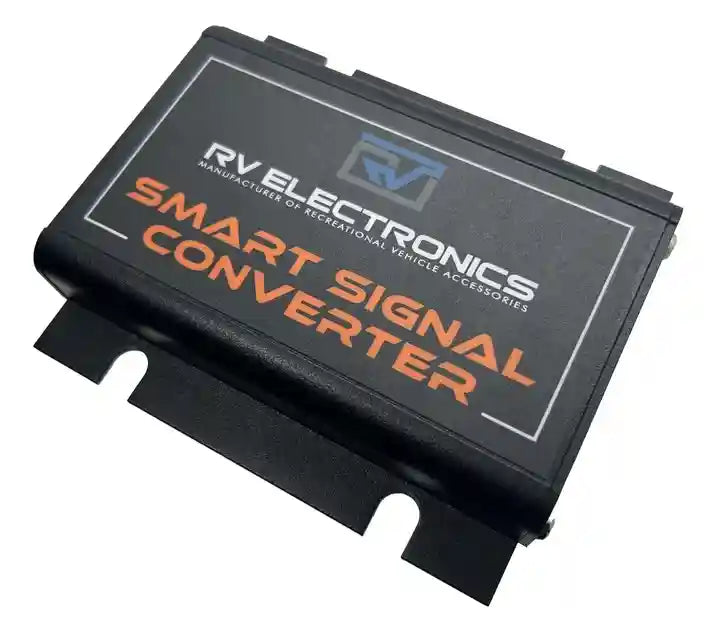

The RV Electronics Smart Signal Converter (SSC) enables seamless integration of RV Electronic standard water tank senders with all-in-one power monitoring systems from brands like REDARC, Victron, Enerdrive, and Simarine. It acts as an interface between your senders and the display unit for straightforward installation and accurate tank level monitoring.

Features

• Supports up to 4 water tanks using standard or programmable senders (4 standard OR 3 standard + 1 programmable)
• Plug and play setup with auto-detection of sender type
• Selectable output options: EU style 0-180 Ω or US style 240-33 Ω

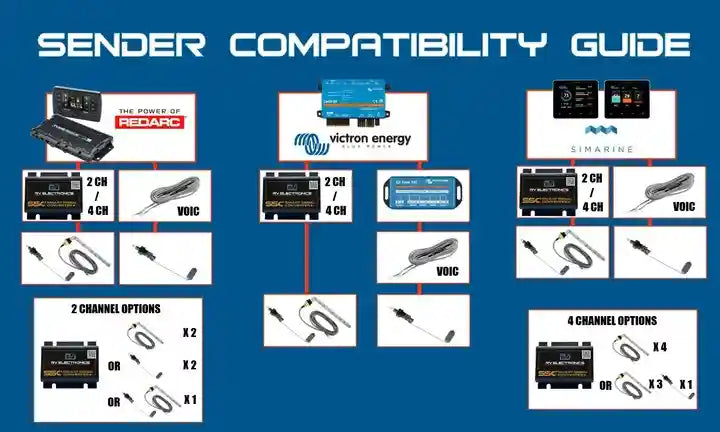

• Compatible with multiple display brands including REDARC, Victron, Enerdrive, and Simarine
• Compact size: 90 x 103 mm for easy mounting
• Resolves tank levels up to 2% precision using programmable senders
• Includes wiring harness and connection loom

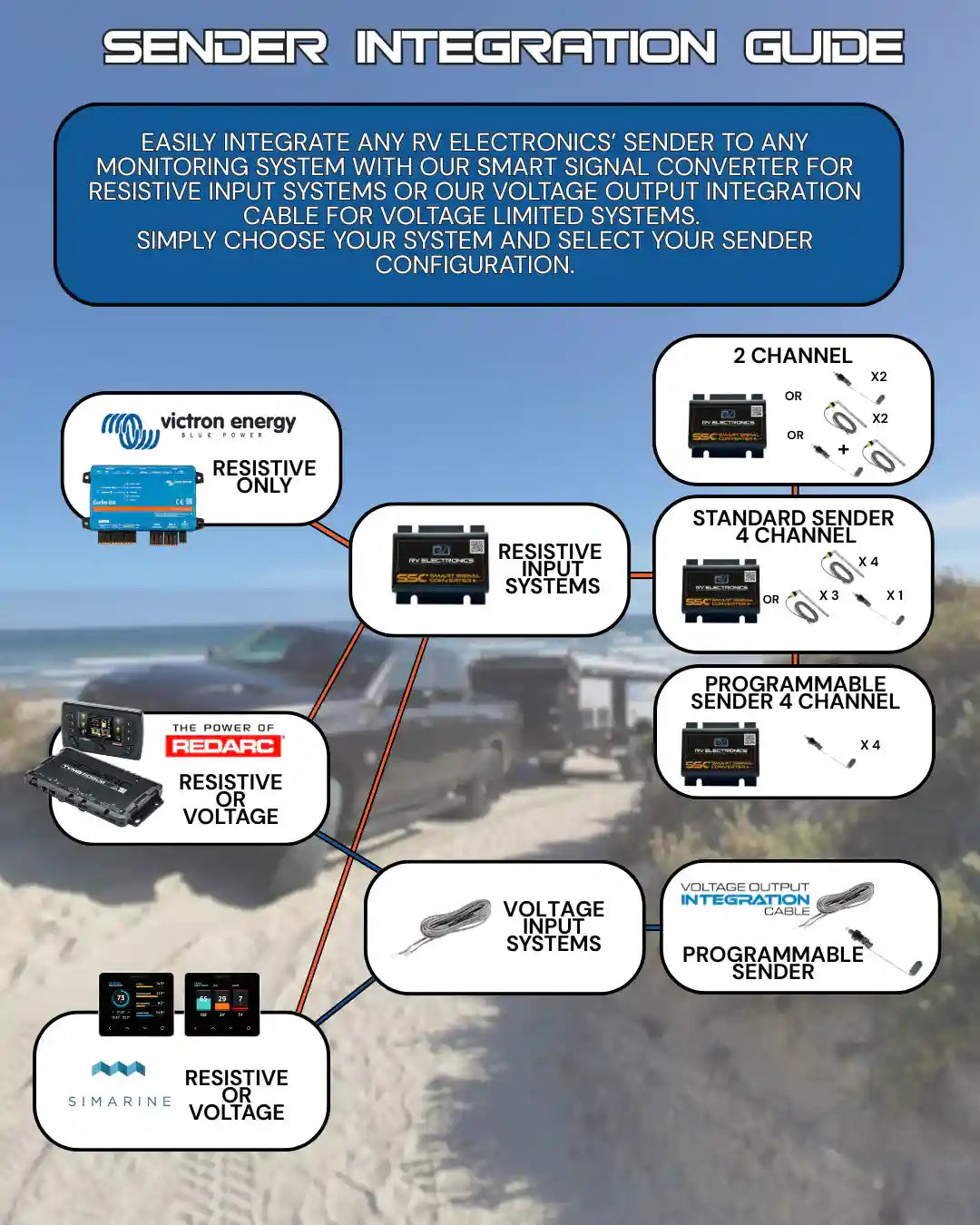

Usage Tips: Connect sender cables directly to the SSC, then connect the SSC loom to your tank monitoring display. Power up the unit to begin automatic sender detection. Ensure your senders are standard or programmable to match your setup.
