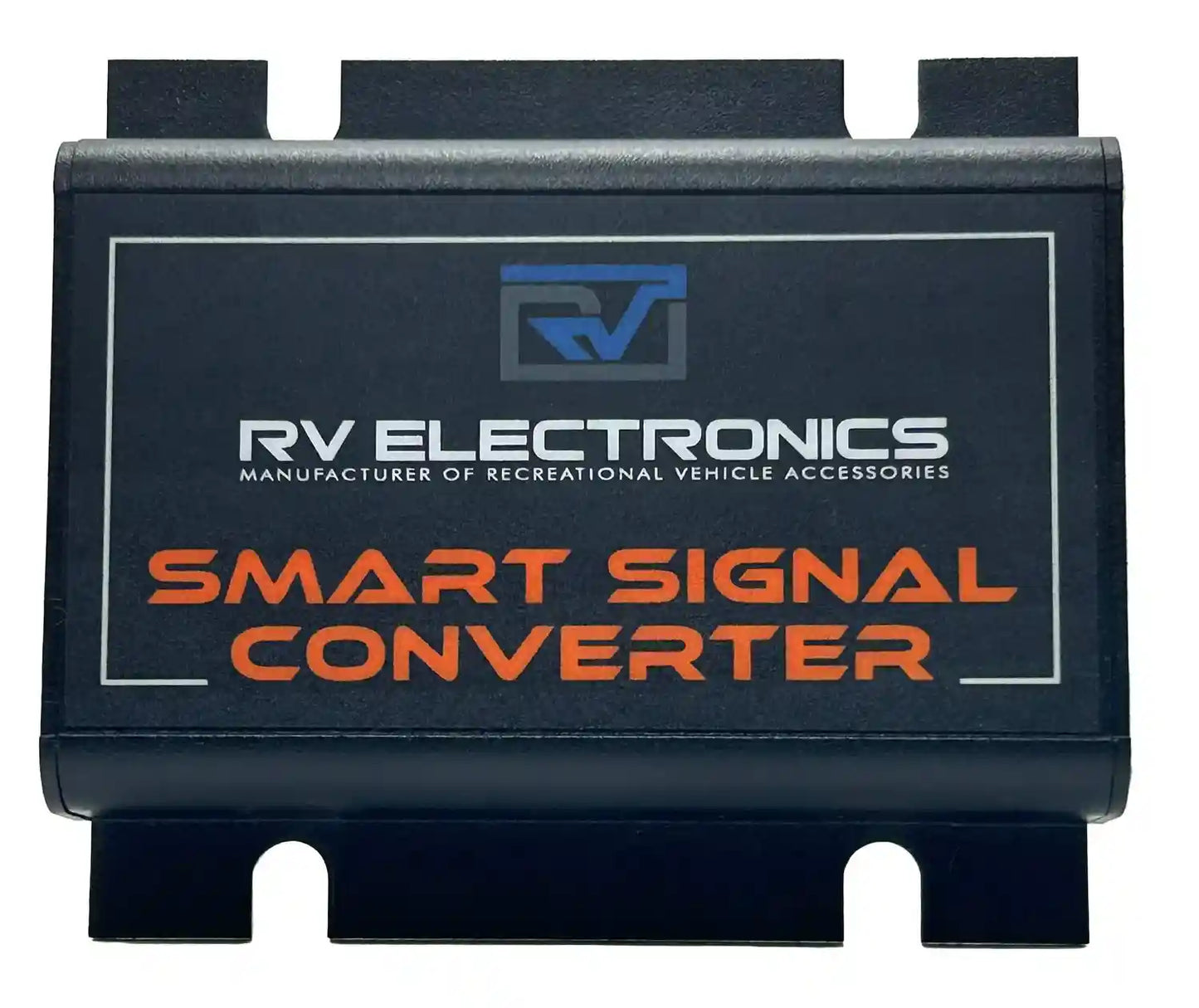

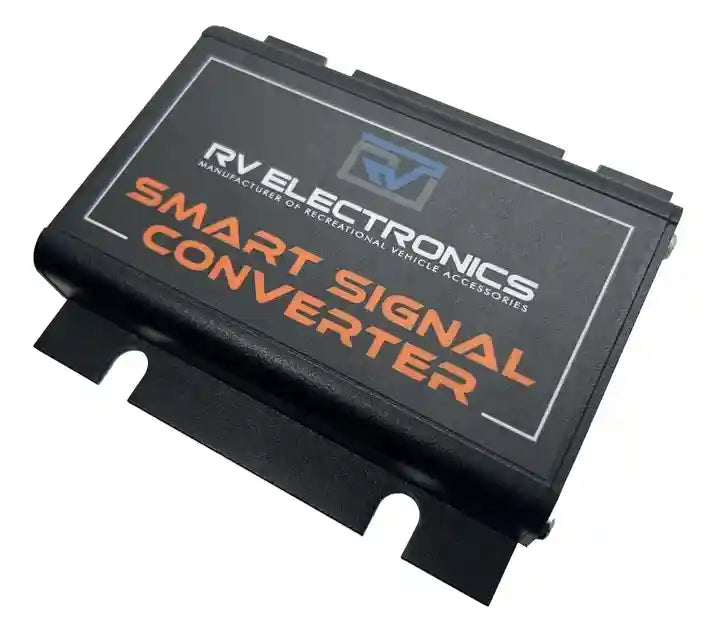

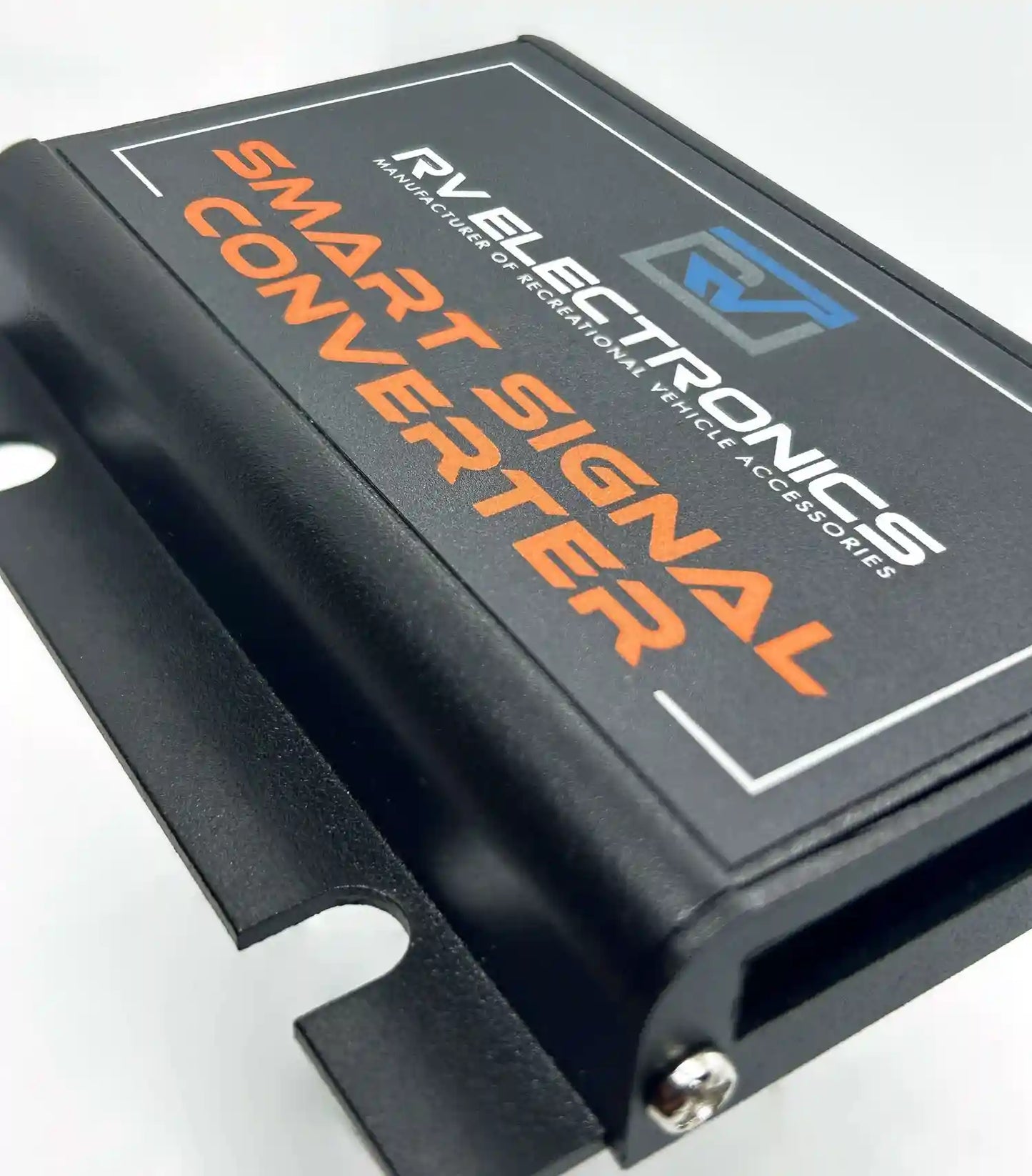

RV Electronics Water Tank SSC- Smart Signal Converter - 2 Tanks

RV Electronics Water Tank Smart Signal Converter (SSC) - 2 Tanks

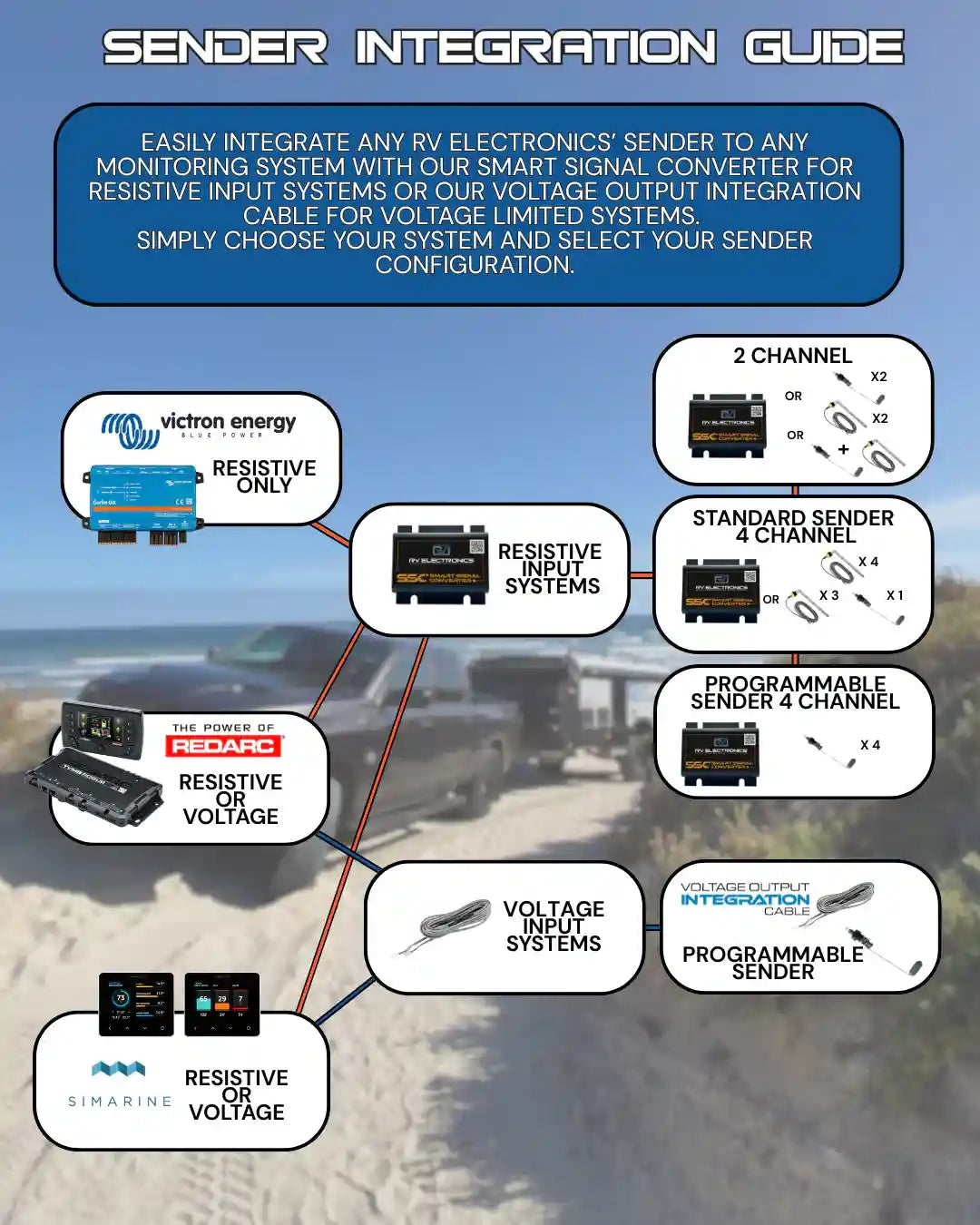

The RV Electronics Smart Signal Converter (SSC) enables connection of RV Electronics standard or programmable water tank senders to all-in-one power monitoring systems like REDARC, Victron, and Simarine. It acts as an interface between float senders and display units for accurate water level monitoring. The SSC supports up to two tanks and auto-detects sender type for easy setup.

Features

• Supports connection of 2 standard, 2 programmable or 1 standard + 1 programmable senders
• Auto-detects sender type on power-up
• Selectable output options: EU style 0–180Ω or US style 240–33Ω
• Up to 2% resolution using programmable sensor range
• Compact size: 90 x 103 mm
• Includes wiring harness for quick plug-and-play installation

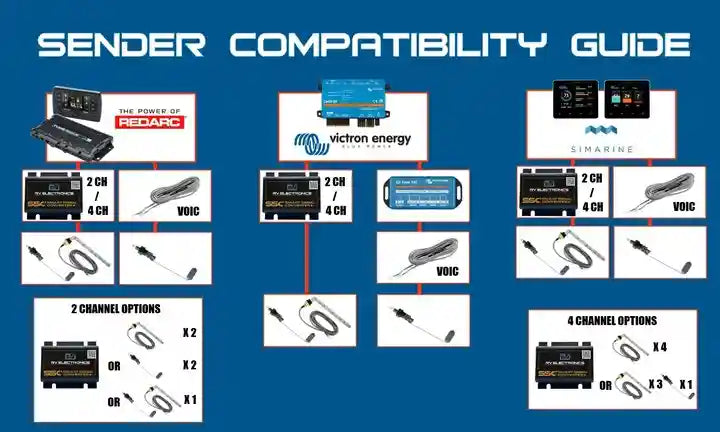

• Compatible with RV water tank senders and major display brands including REDARC, Victron, and Simarine

Designed to integrate with multi-function power monitoring systems for water tank level management.
