RENOGY REGO 12V 60A DC-DC Battery Charger 500-11014 RBC1260DO-12B-G1-AU

RENOGY REGO | REGO 12V 60A DC-DC Battery Charger. RBC1260DO-12B-G1-AU

The RENOGY REGO 12V 60A DC-DC Battery Charger (RBC1260DO-12B-G1-AU) is a 12 V, 60 A bidirectional DC‑DC charger for off‑grid power management (SKU: 500‑11014).

Features

• System voltage: 12 V
• Rated max charge current: 60 A
• Rated max charge power: 800 W
• Charging algorithm: 4‑stage
• Bidirectional function: charges house batteries from starter while driving; recharges and maintains starter battery when house batteries are full
• Battery types: SLD/AGM, FLD, GEL, Lithium, User
• Alternator compatibility: traditional and smart alternators
• Alternator input voltage: 13.5–16 V DC (max input voltage 16 V)
• Max alternator input current: 70 A
• Max alternator input power: 800 W
• Battery operating range: 10–16 V
• Charge efficiency: up to 94%
• Self‑consumption: ≤ 50 mA
• Power limiting protection: up to 800 W at 12 V

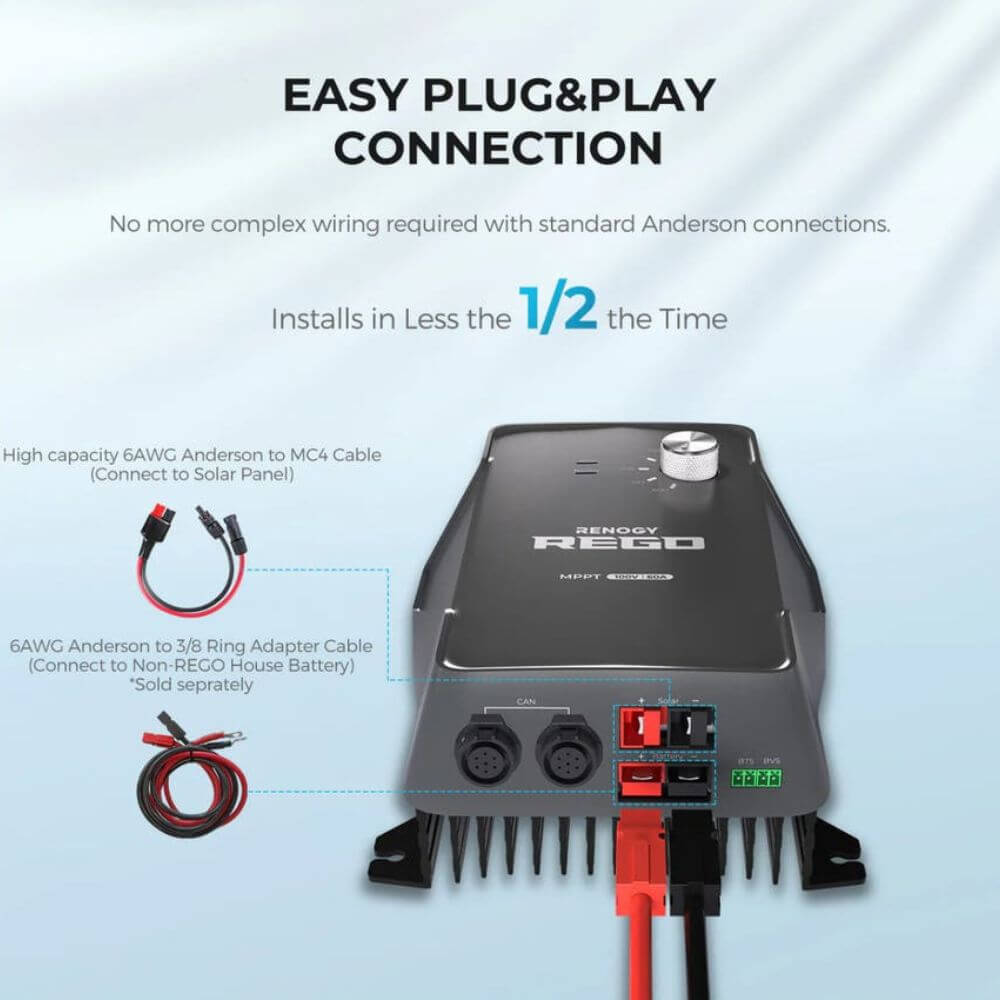

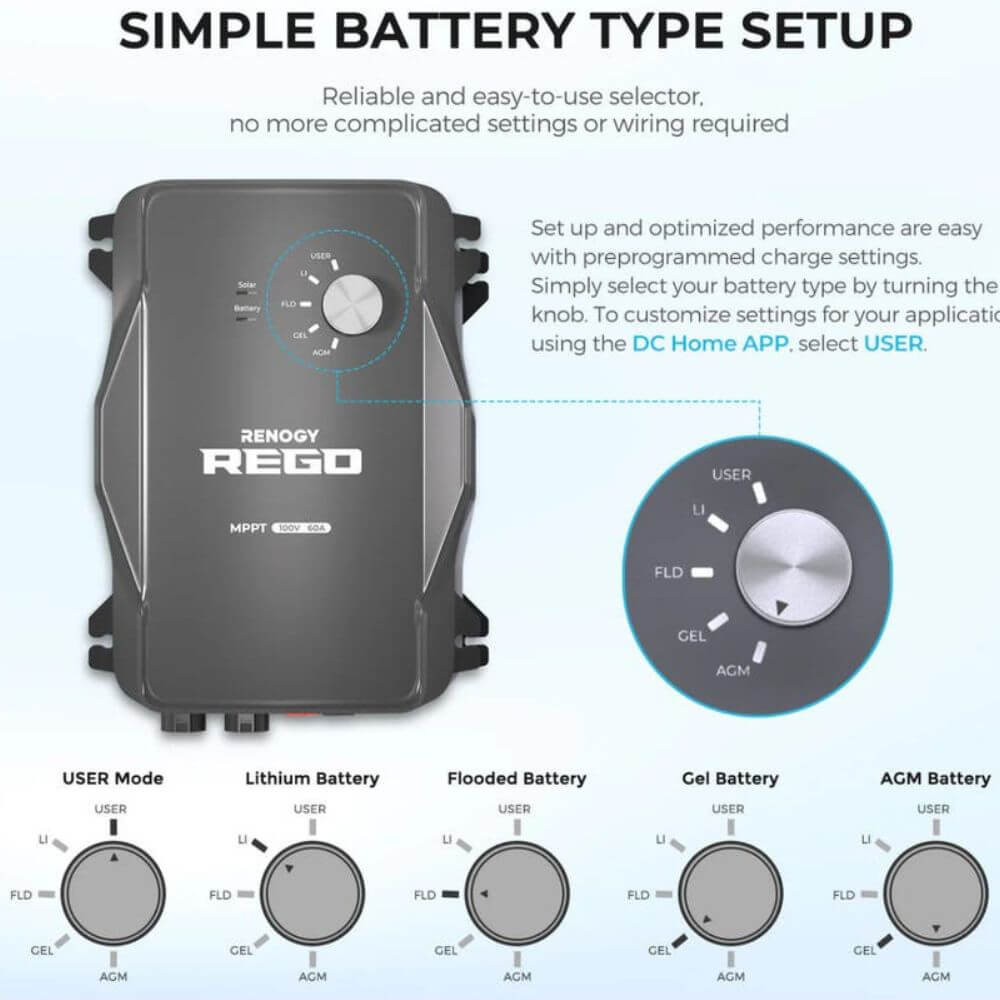

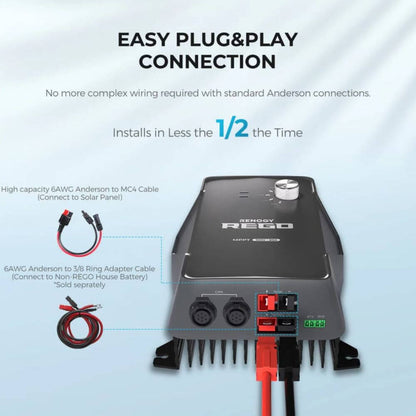

• Connections: Anderson terminals; rotary selector for battery type

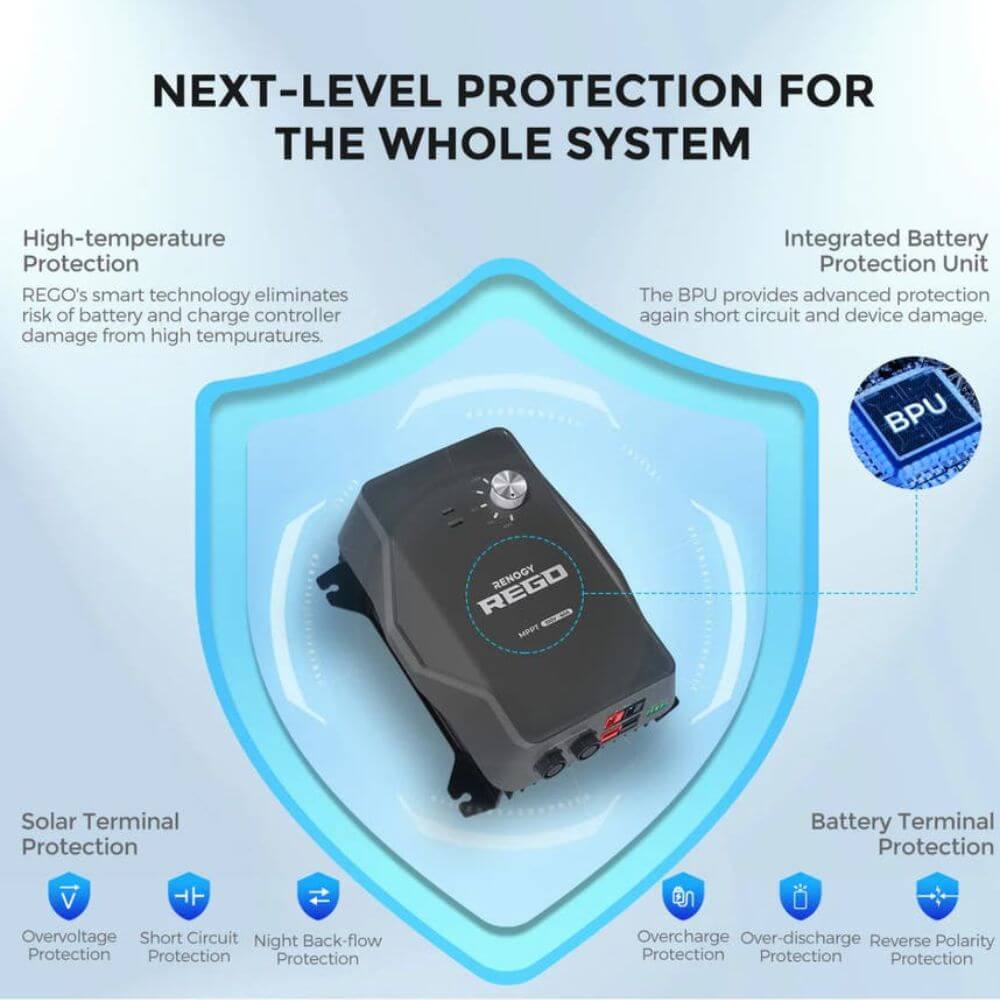

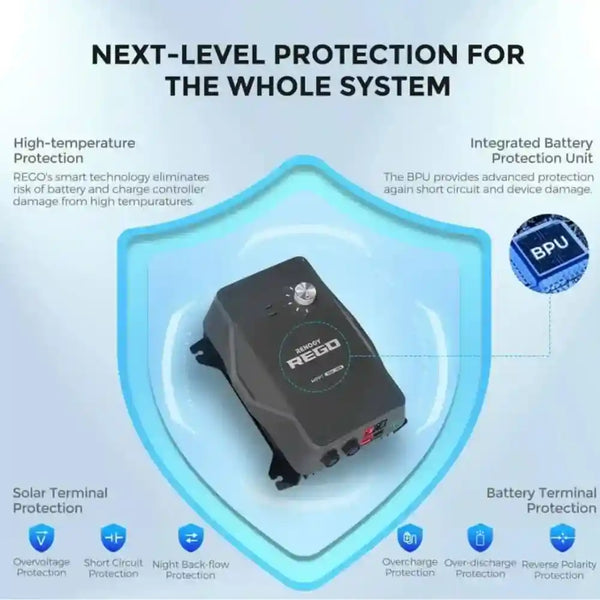

• Protections: over‑voltage, over‑temperature, reverse polarity on inputs and outputs; short‑circuit protection

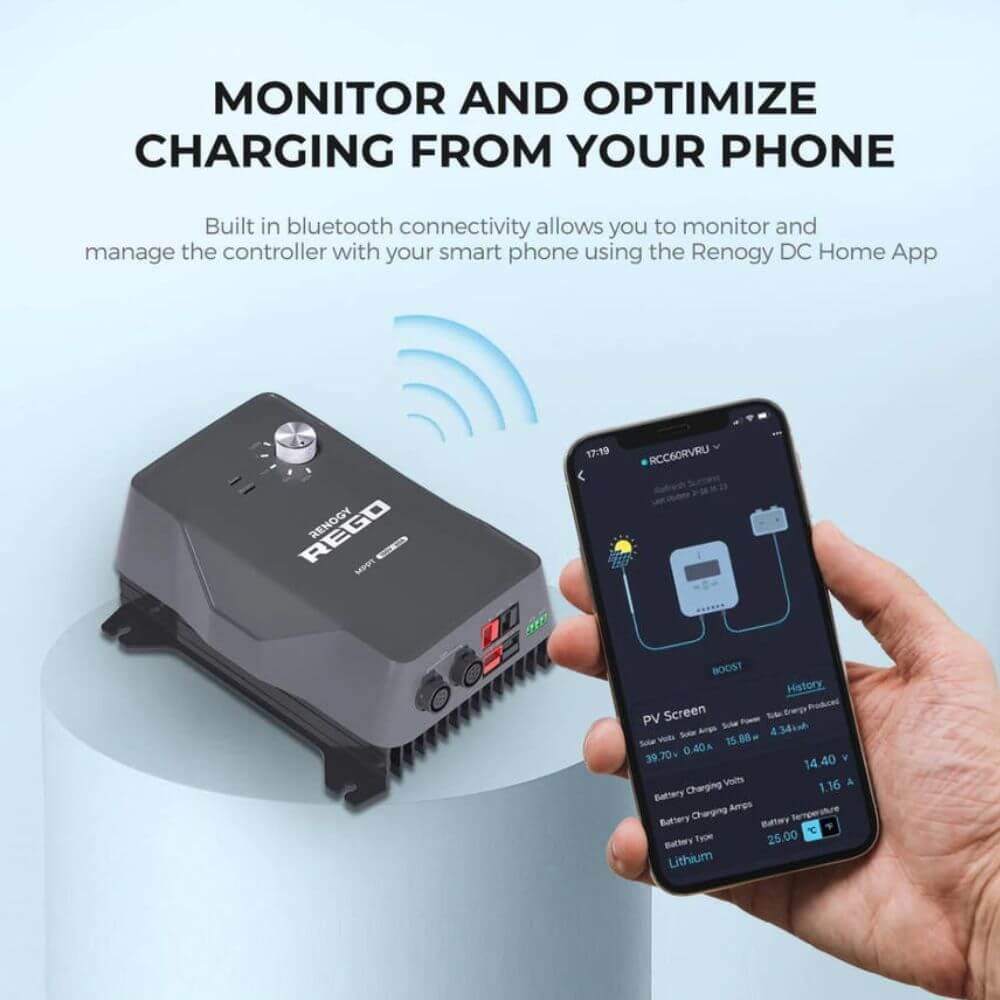

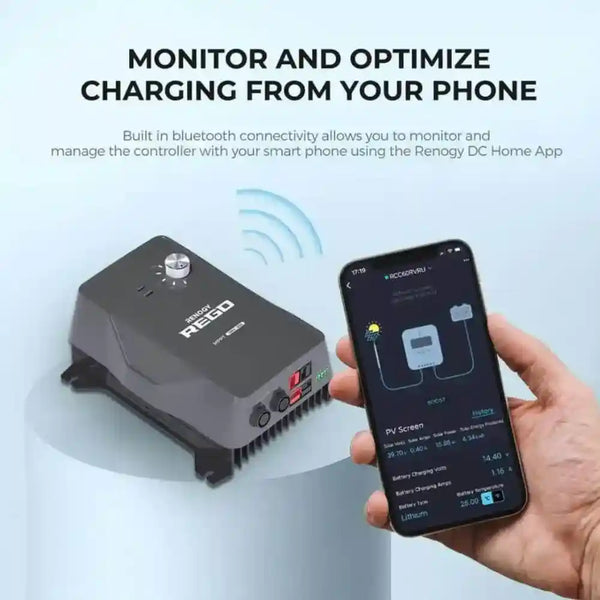

• Integration: compatible with Renogy ONE M1 & Core
• Storage temperature: −35 °C to 65 °C
• Dimensions (L x W x D): 353.53 x 212.75 x 102.21 mm (13.91 x 8.37 x 4.02 in)
• Model: RBC1260DO-12B-G1-AU
• SKU: 500‑11014
