RENOGY PRO 500-11018 IP67 50A DCDC Battery Charger With MPPT RBC2125DS-21W-G2-AU

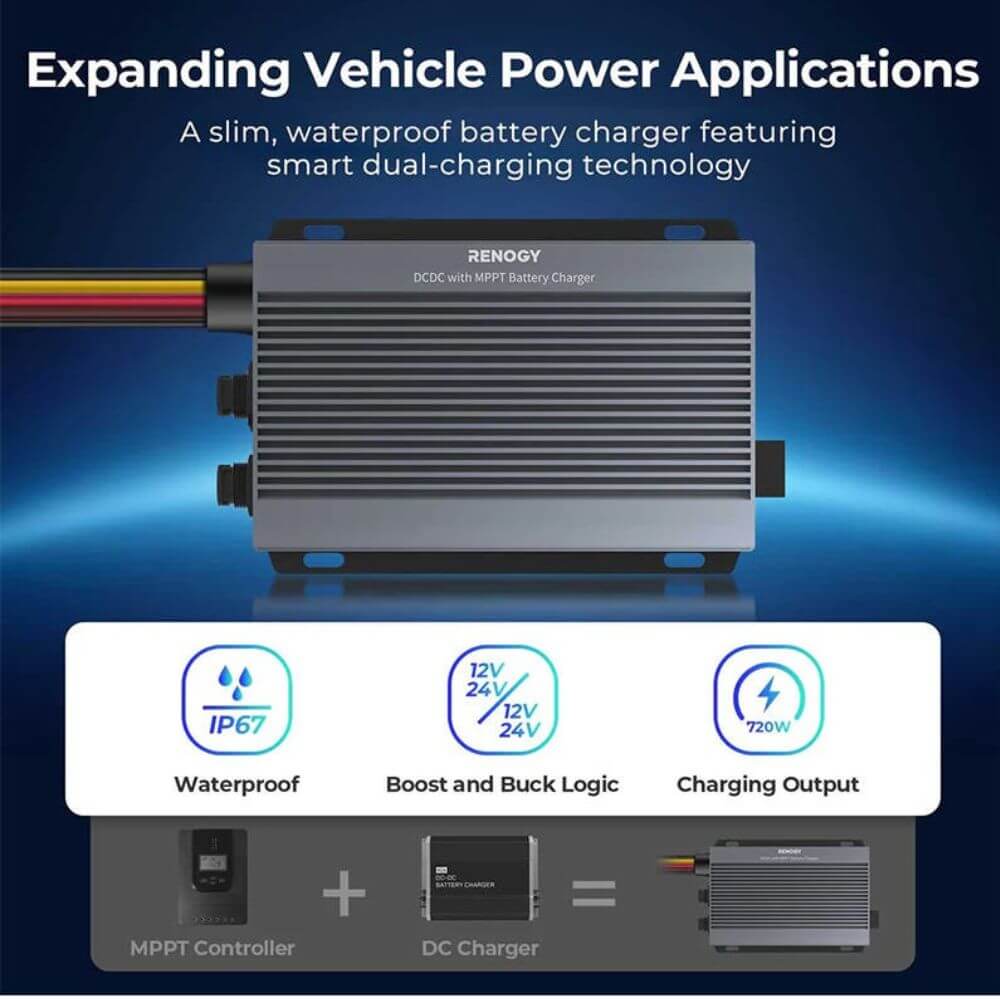

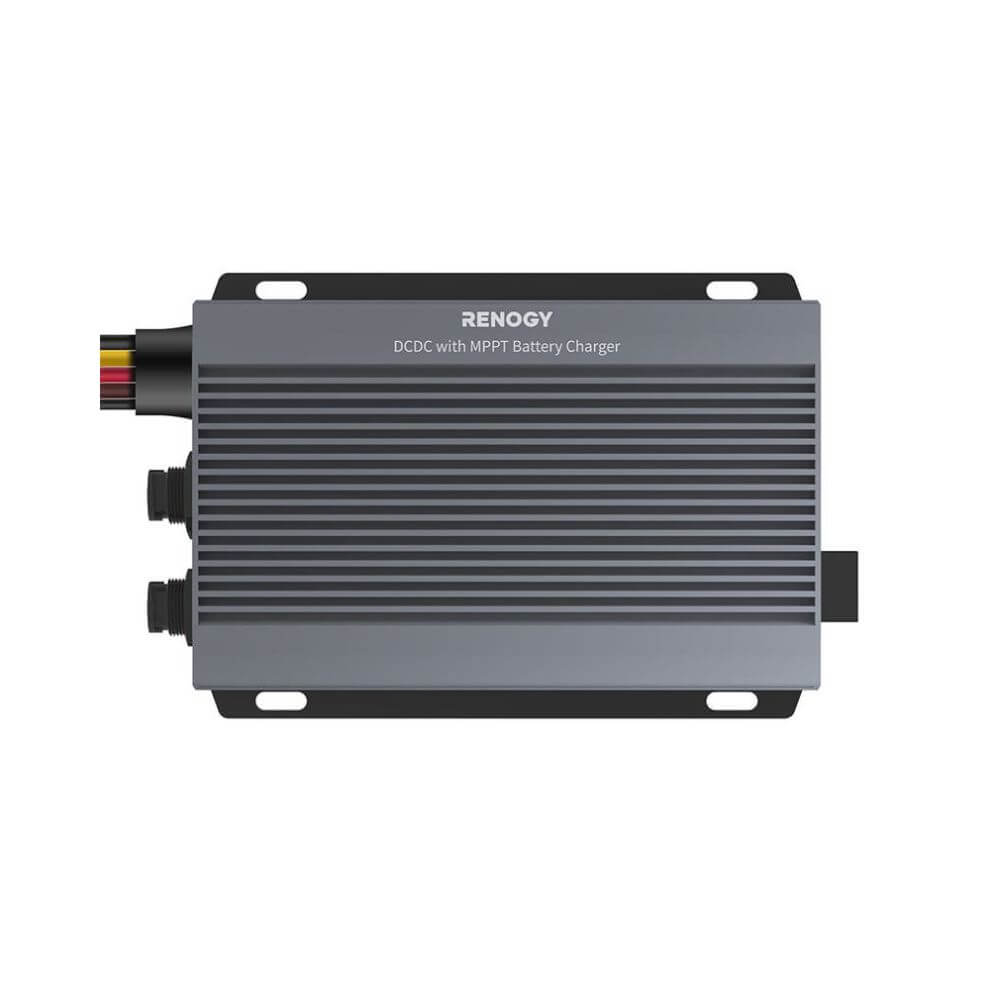

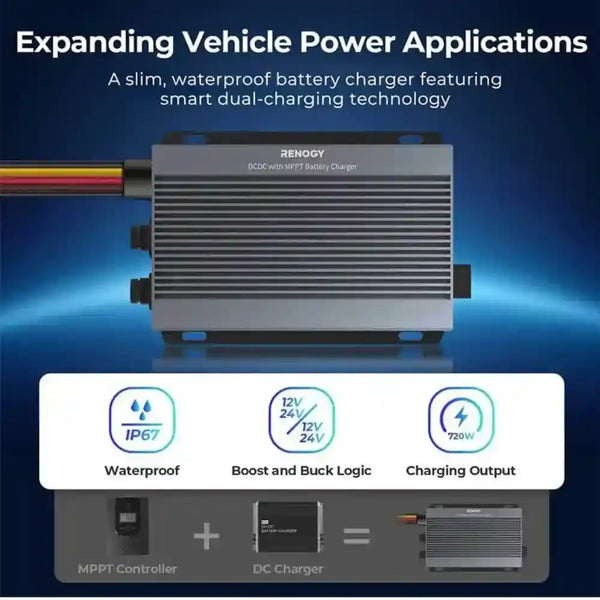

RENOGY PRO IP67 50A DCDC Battery Charger With MPPT — RBC2125DS-21W-G2-AU

The RENOGY PRO IP67 50A DCDC Battery Charger With MPPT (RBC2125DS-21W-G2-AU) is a DC‑DC charger with MPPT for 12 V and 24 V systems.

Features

• System voltage: 12 V/24 V input and output
• Maximum output current: 50 A at 12 V; 25 A at 24 V
• Output power: 720 W
• Solar input voltage (Voc): 50 V DC
• Alternator input: 9–32 V DC
• Output voltage: 9–32 V DC
• Charging efficiency: 0.97
• Idle power consumption: < 100 mA

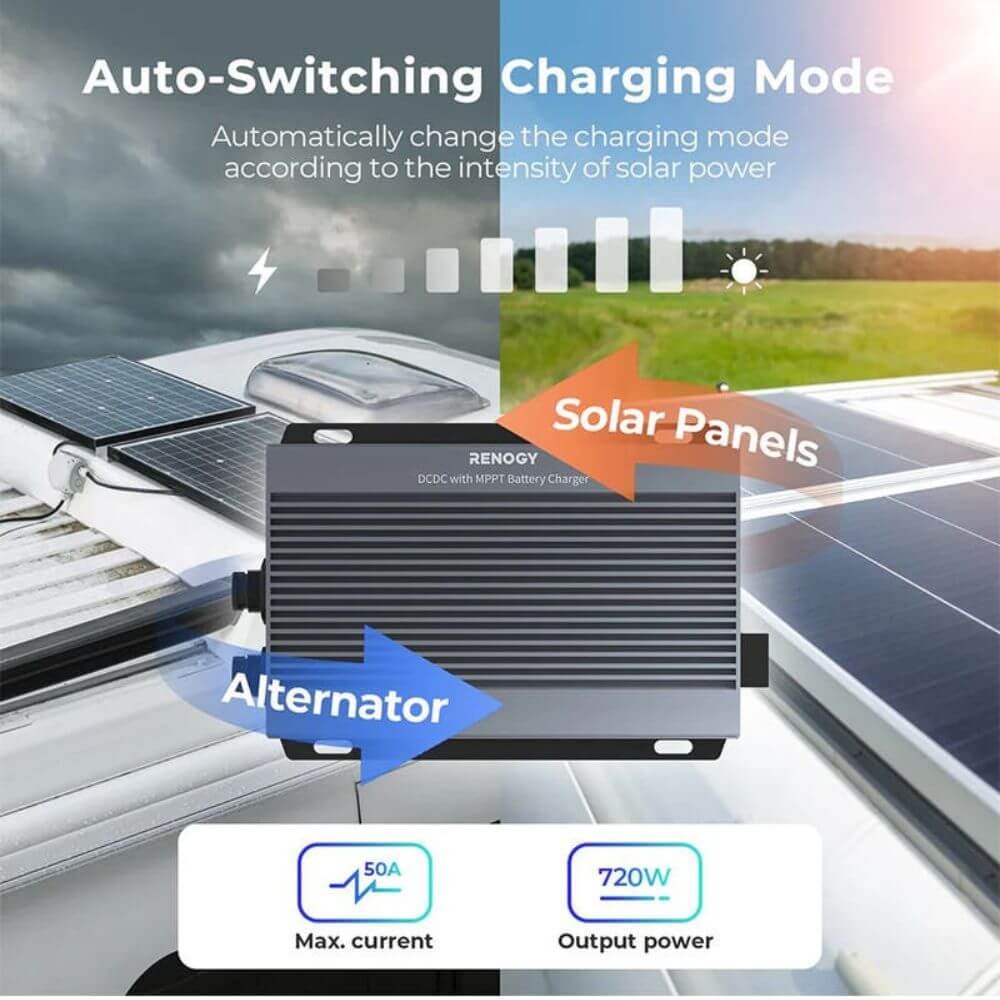

• Intelligent dual charging: automatically uses vehicle and solar inputs; switches based on sunlight intensity
• Starter battery maintenance: supports trickle charging of the starter battery when configured
• Protection: over‑voltage, over‑current, reverse current, reverse connection, overheat, battery isolation

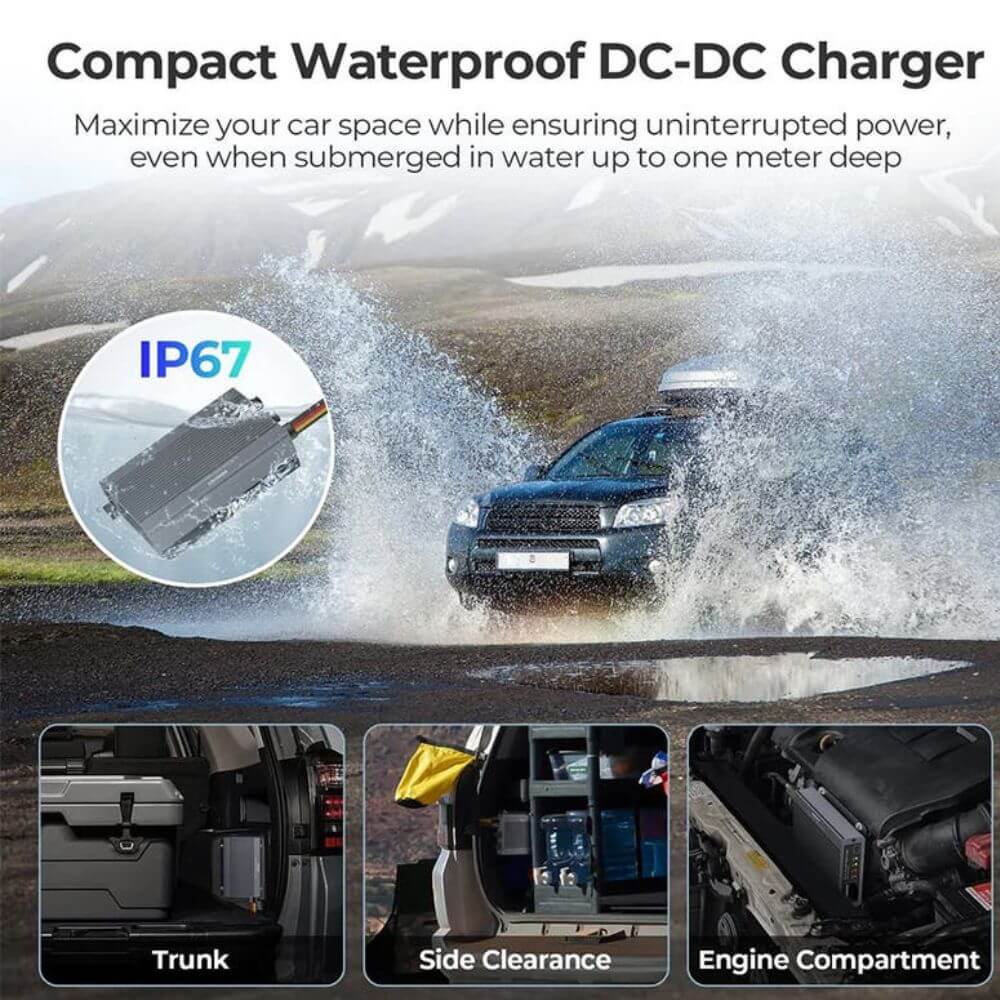

• Ingress protection: IP67 (dust proof; water proof to 1 m for up to 30 minutes)
• Operating temperature range: −35 °C to 80 °C (full load up to 55 °C)
• Temperature compensation: −3 mV/°C/2 V (non‑lithium); 0 mV/°C/2 V (lithium)
• Battery types: AGM/SLD, GEL, Flooded, Lithium
• Terminals: 8 AWG–4 AWG
• Input fuse rating: 75–100 A; Output fuse rating: 75–100 A
• Construction: sheet‑metal casing; drop resistant
• Dimensions: 178.2 x 121.5 x 37.5 mm
• Weight: 1.86 kg
• Certifications: CE; RoHS; FCC Part 15 Class B
• Warranty: 3‑year material warranty
• Model: RBC2125DS‑21W‑G2‑AU (RBC2125DS)
• SKU: 500‑11018
