RENOGY CORE 500-11100 Rover Li 60 Amp MPPT Solar Charger RNG-CTRL-RVR60-G1-AU

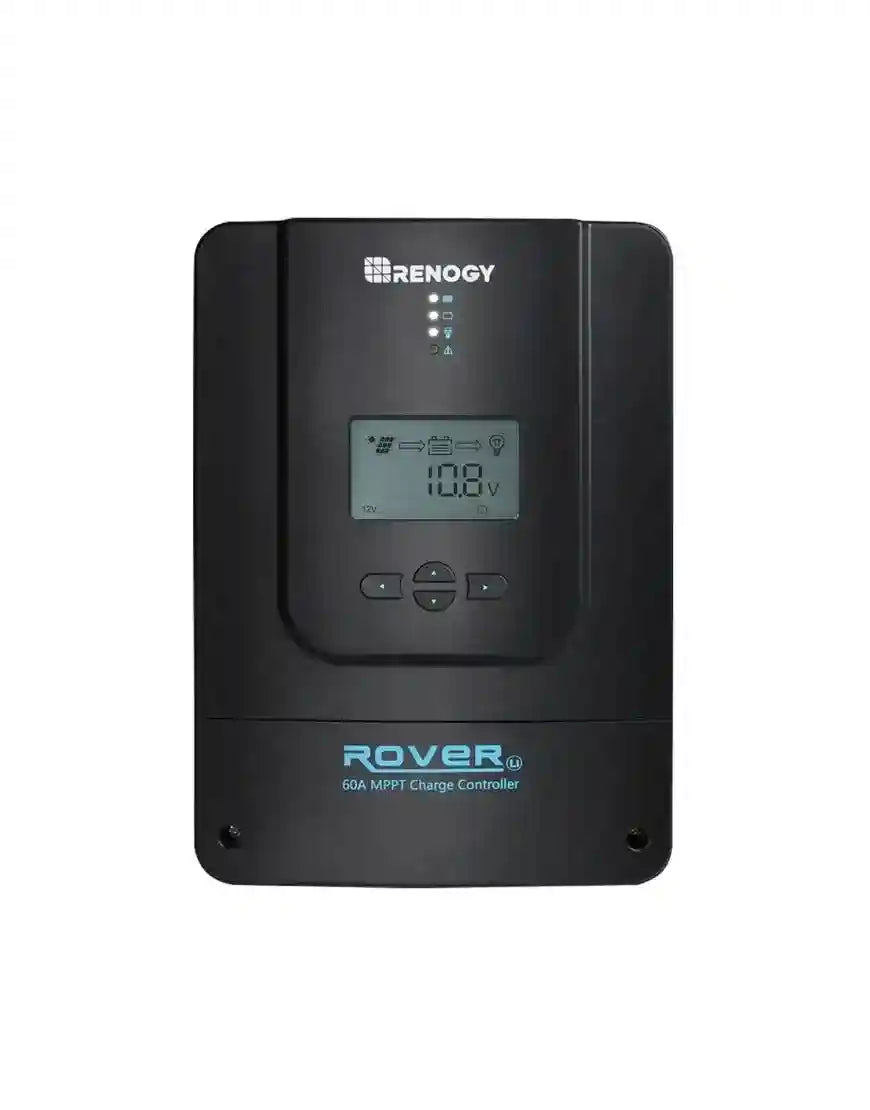

RENOGY CORE | Rover Li 60 Amp MPPT Solar Charger — RNG-CTRL-RVR60-G1-AU

The RENOGY CORE | Rover Li 60 Amp MPPT Solar Charger (RNG-CTRL-RVR60-G1-AU) is an MPPT solar charge controller for 12 V, 24 V, 36 V, and 48 V systems.

Features

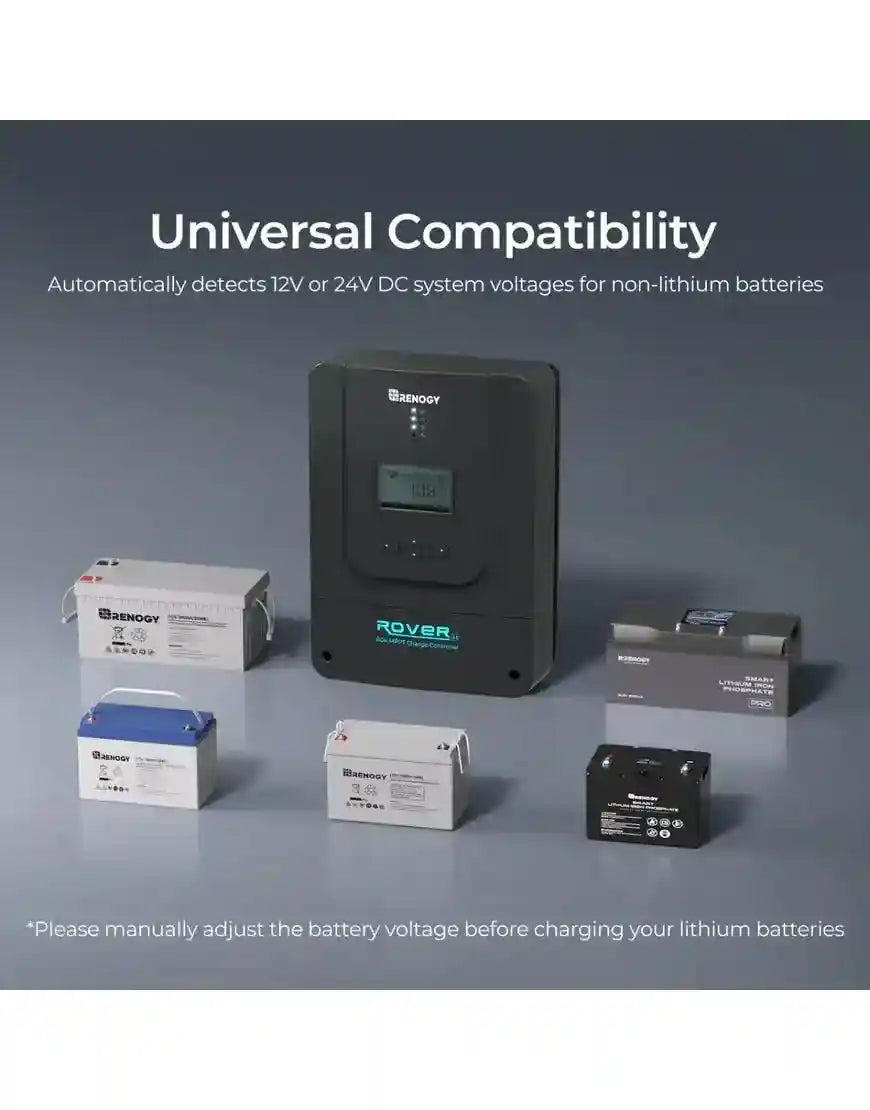

• System voltage: 12/24/36/48 V auto recognition (non‑lithium)
• Rated charge current: 60 A
• Rated load current: 20 A
• Max PV input power: 800 W (12 V); 1600 W (24 V); 2400 W (36 V); 3200 W (48 V)
• Max PV input voltage: 140 V DC

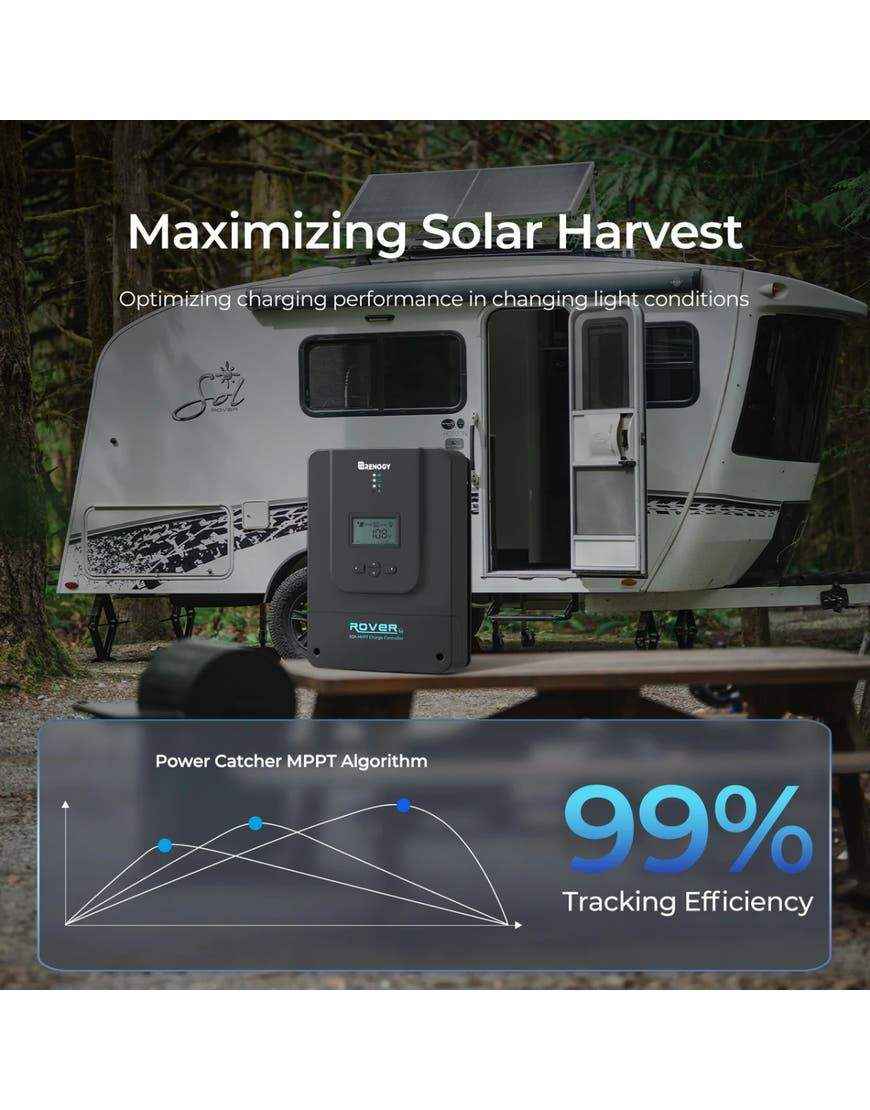

• MPPT tracking efficiency: up to 99%; peak conversion efficiency: 98%
• Charging: 4‑stage; customisable charging voltages
• Battery types: sealed (AGM), gel, flooded, lithium (LiFePO₄)
• Low‑voltage disconnect (LVD)
• Protections: over‑charge, over‑discharge, overload, short‑circuit; reverse connection protection
• Charges over‑discharged lithium batteries

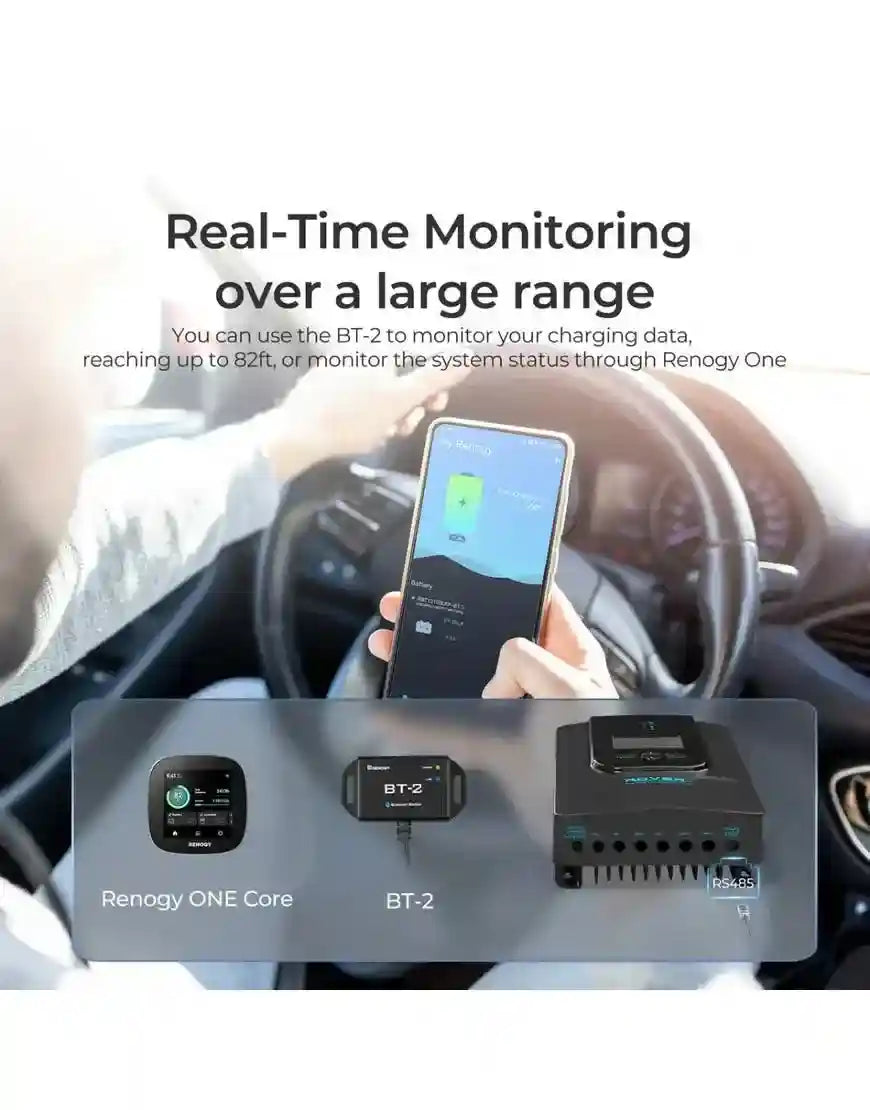

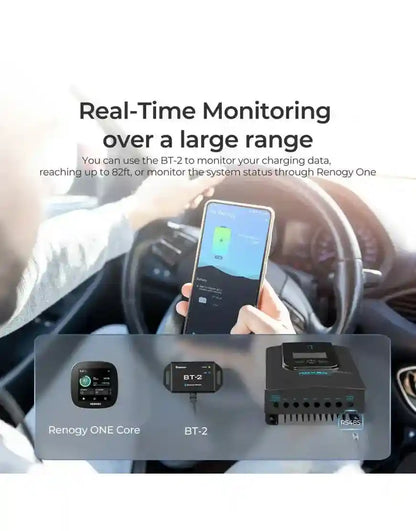

• Communication: RS232; compatible with Renogy BT‑1 Bluetooth module and DM‑1 4G module
• Self‑consumption: 0.7–1.2 W

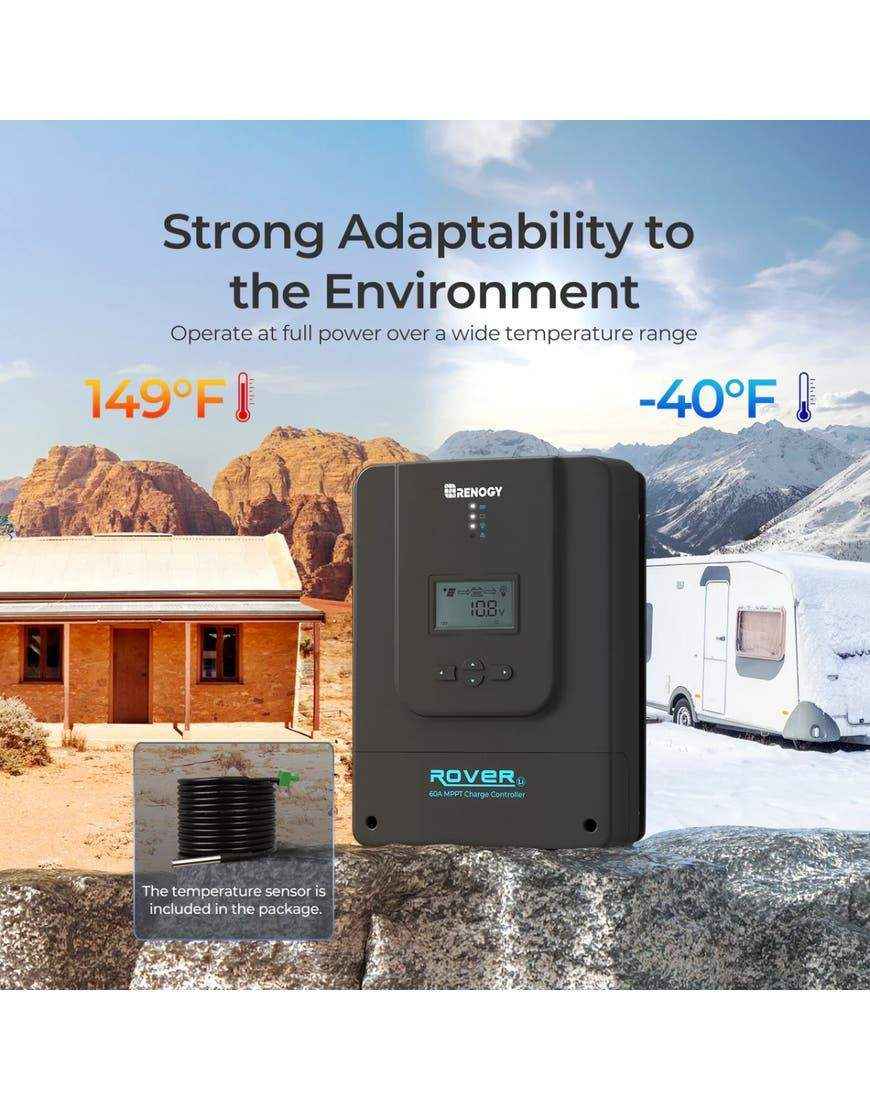

• Operating temperature: −35 °C to 45 °C
• Enclosure: IP32; terminals: 25 mm² (4 AWG)
• Dimensions (L × W × H): 285 × 205 × 102 mm
• Weight: 7.9 lb
• Certifications: CE; RoHS; ETL listed to UL1741; CSA C22.2
• Warranty: 2 years
• SKU: 500‑11100
