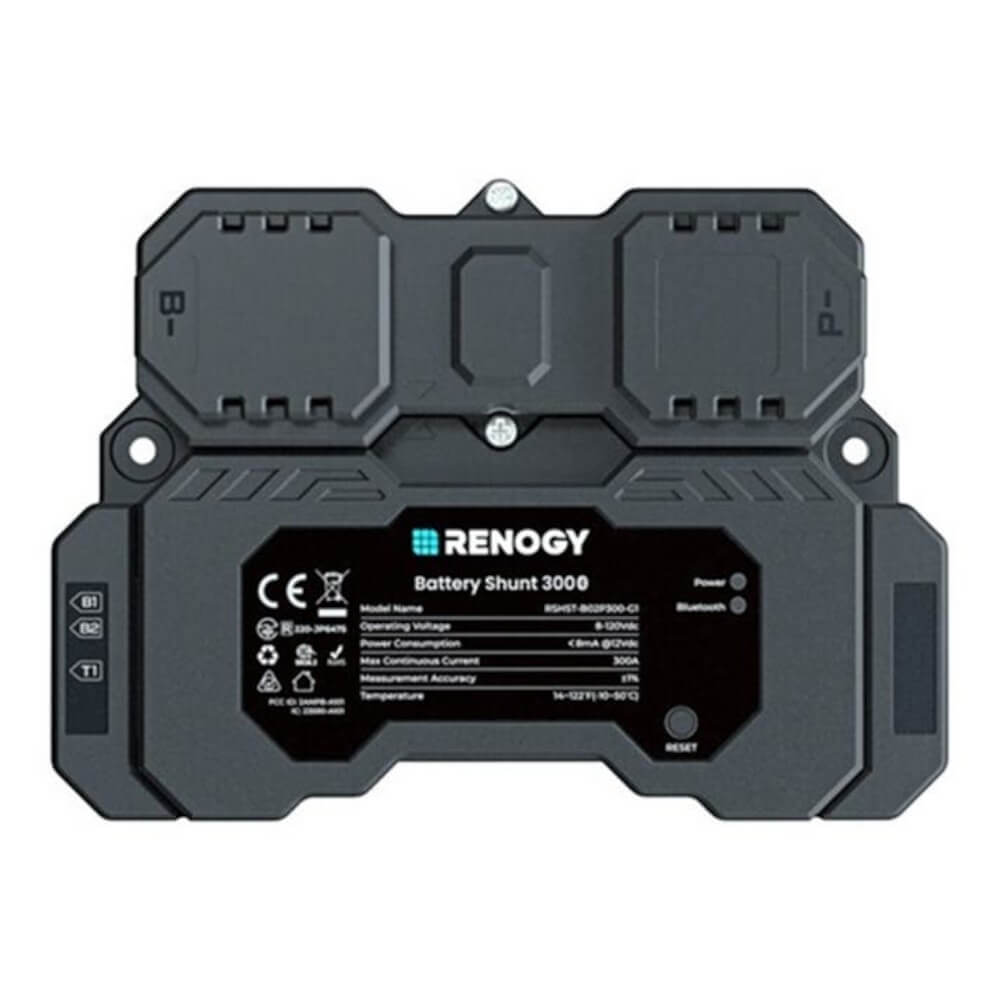

RENOGY CORE 500-11044 Battery Shunt 300 (AU MODEL) — RSHST-B02P300-G1-AU

RENOGY CORE | Battery Shunt 300 (AU MODEL). RSHST-B02P300-G1-AU

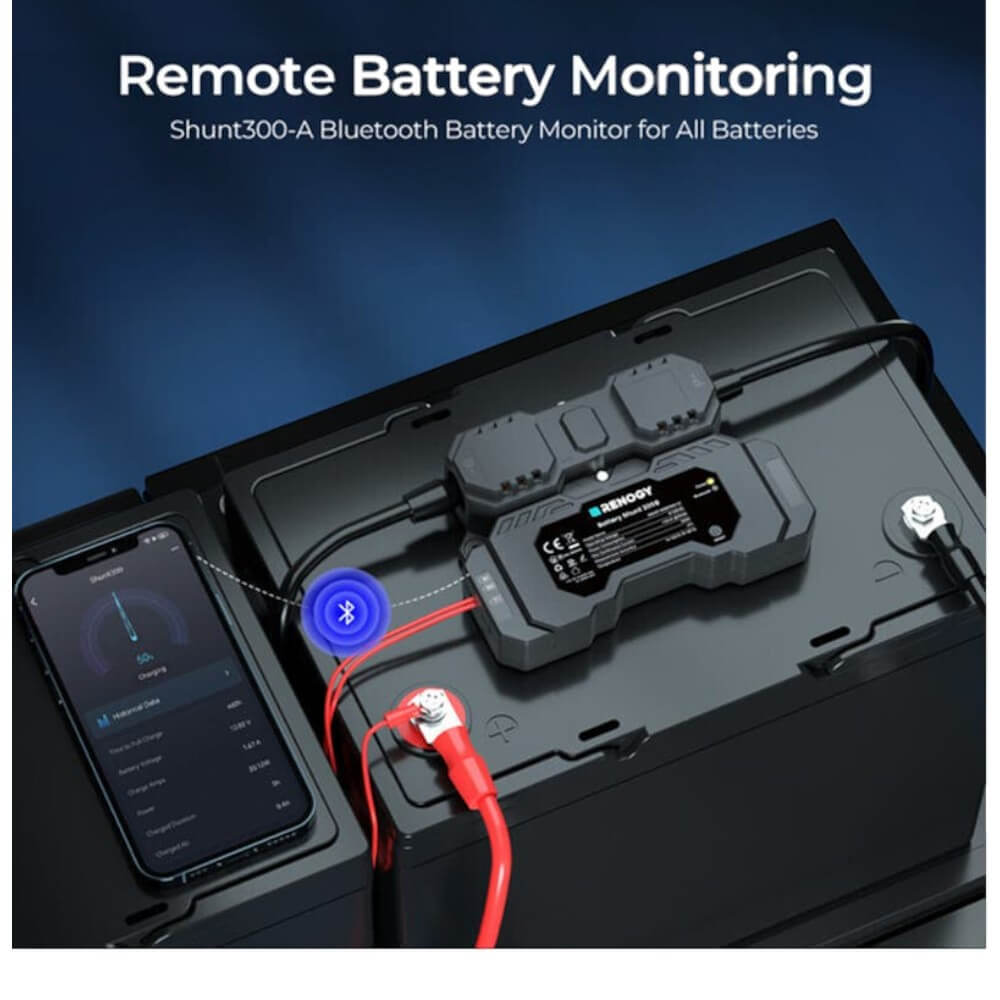

The RENOGY CORE Battery Shunt 300 (AU MODEL) (RSHST-B02P300-G1-AU) is a 300 A smart shunt for current, voltage, and power monitoring with Bluetooth connectivity.

Features

• Current rating: 300 A continuous; 500 A peak (< 10 s)
• Current accuracy: ±1%; resolution: 0.01 A
• Voltage input range (measurement): 8–60 V; resolution: 10 mV
• Power supply: 8–120 V DC
• Power consumption: < 0.1 W
• Battery capacity range: 1–6500 Ah
• Communication: Bluetooth LE and BLE Mesh
• Temperature sensor: range −20 °C to 80 °C; accuracy ±1 °C
• Operating temperature: −20 °C to 50 °C
• Operating humidity: 0% to 95% RH
• Operating altitude: < 2000 m
• Installation: wall mount
• Battery connection: M10 bolts

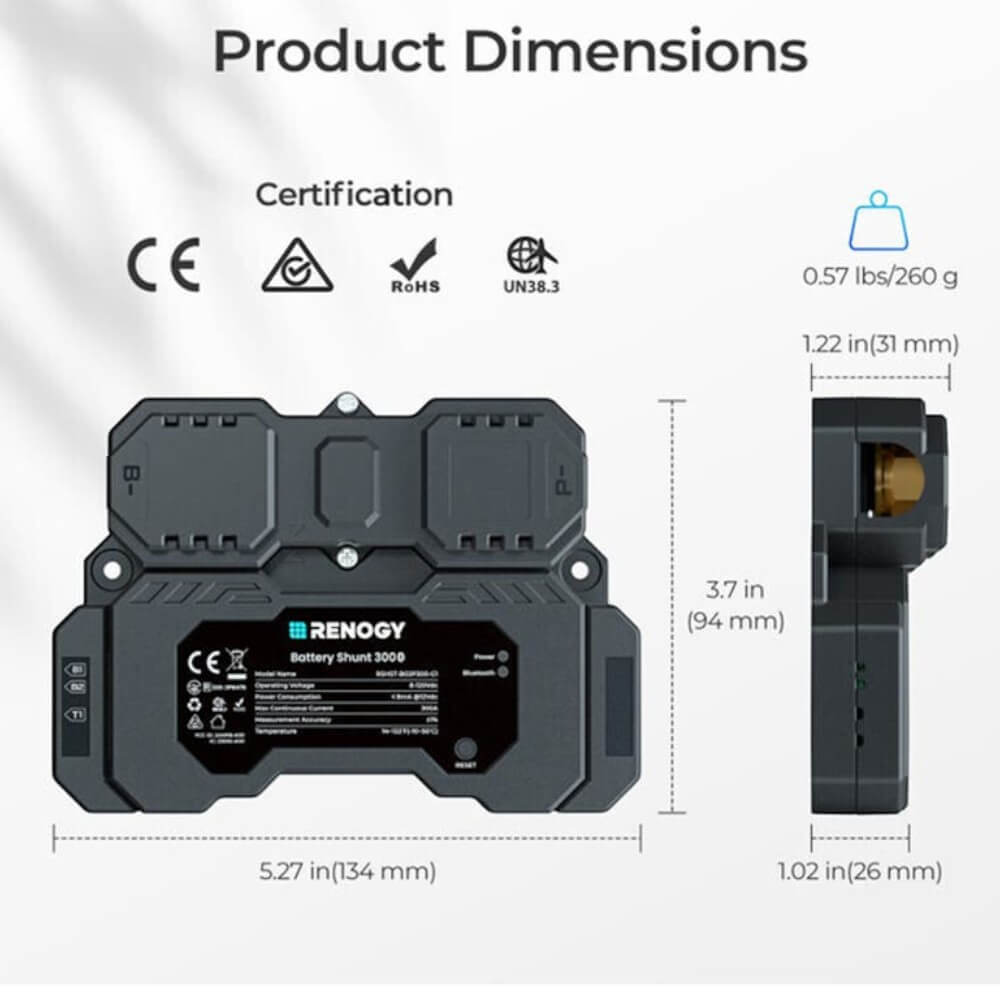

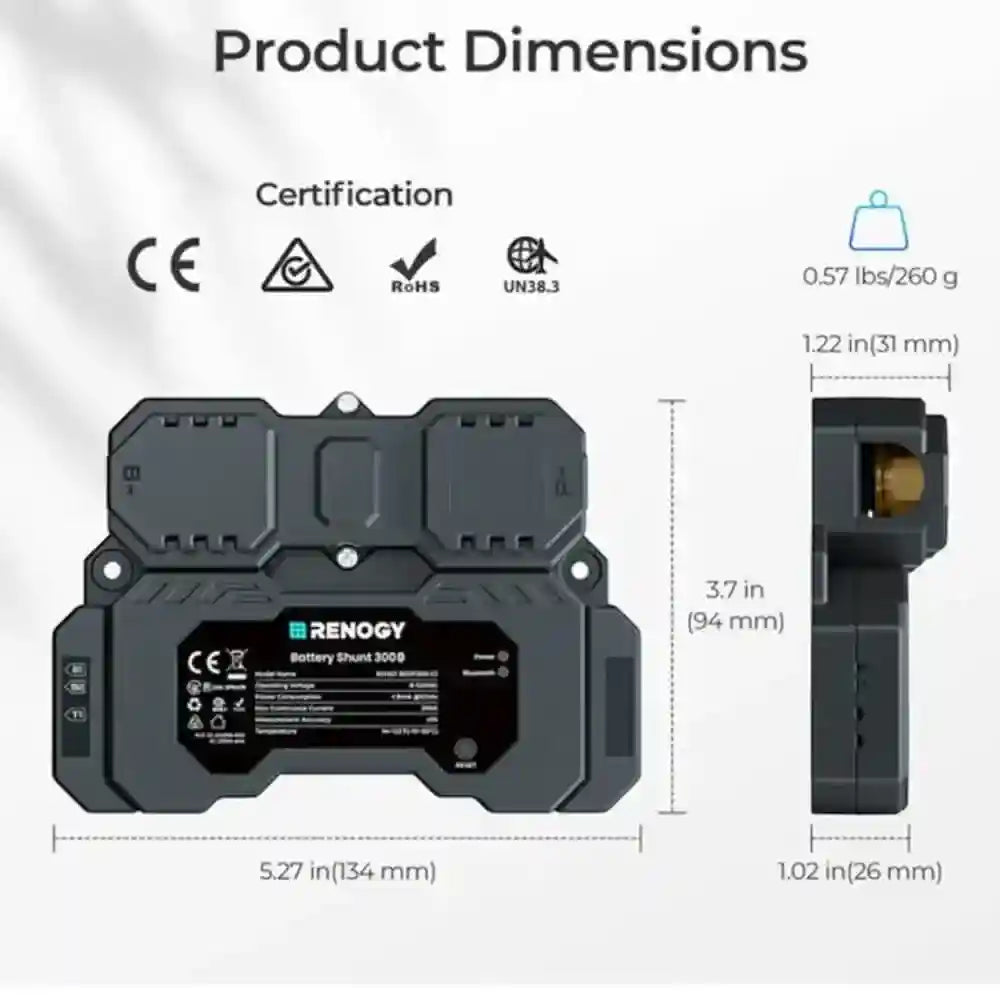

• Dimensions: 134 x 97 x 31 mm
• Weight: 260 g
• Certifications: CE, FCC ID, IC ID, RCM, TSCA, RoHS, UN38.3, TELEC
• Warranty: 1 year

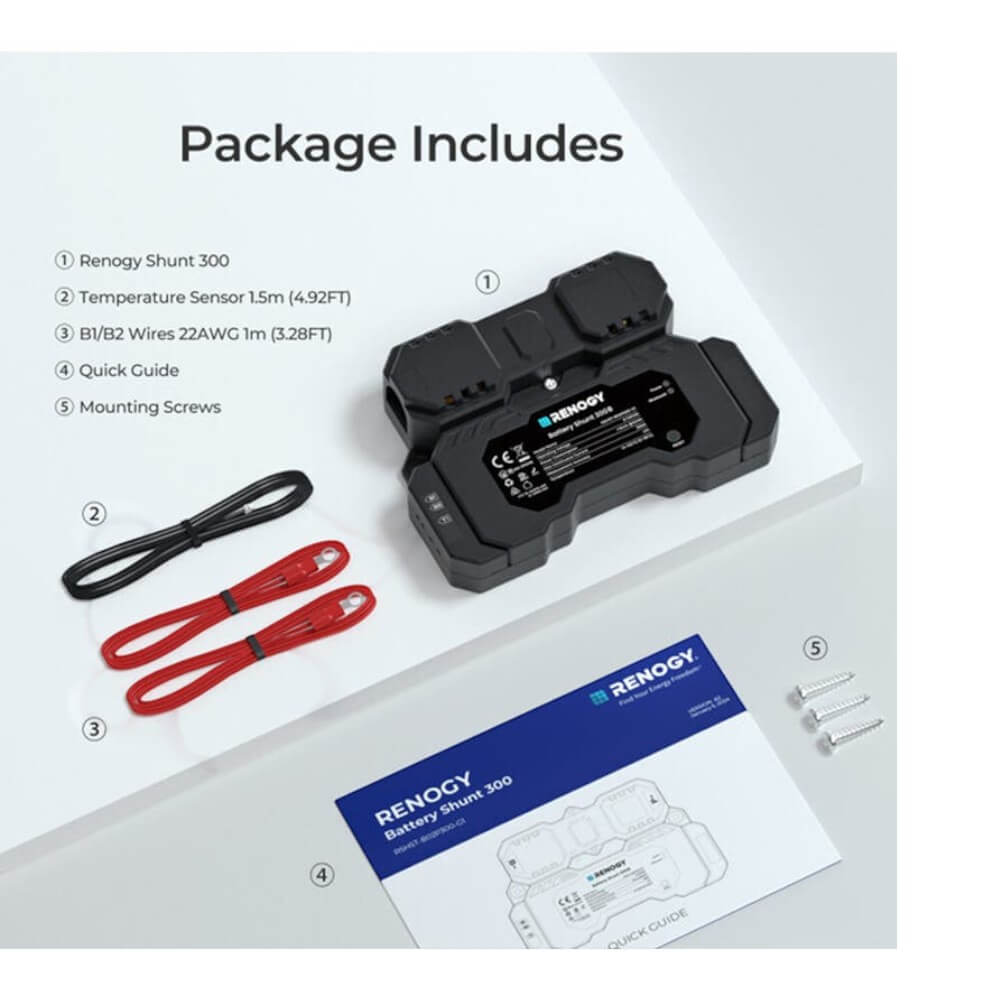

• Includes: Battery Shunt 300 (1x); Quick Guide (1x); Mounting Screws (3x); B+ Wires 1 m 22 AWG (2x); Temperature Sensor 1.5 m (1x)
• Model: RSHST-B02P300-G1-AU
• SKU: 500‑11044
