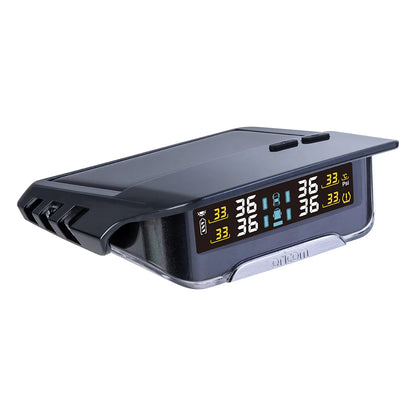

Oricom NEW DIY TPMS Tyre Pressure Monitoring System Multicolour Display - 6 External Sensor

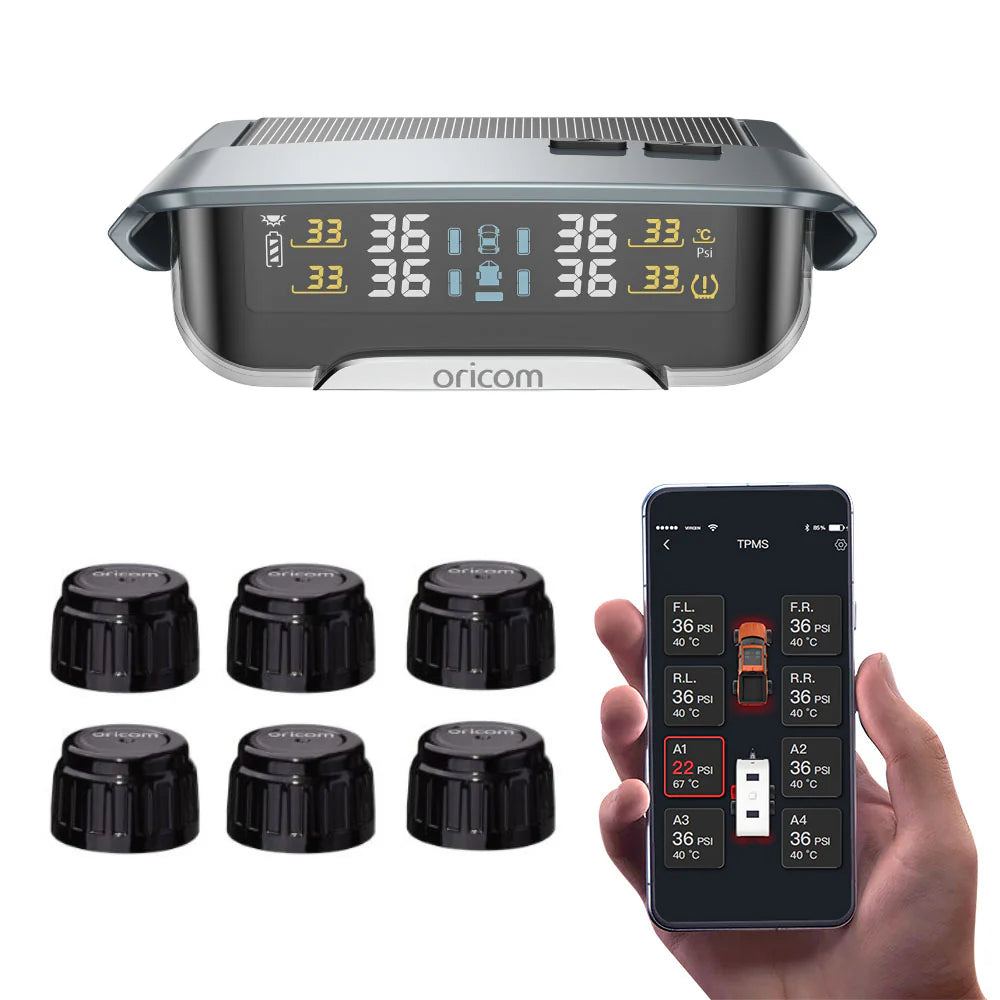

TPMS10-6E Tyre Pressure Monitoring System Incl. 6 External Sensors & APP Functionality

The TPMS10-6E Tyre Pressure Monitoring System with 6 external sensors offers APP functionality that supports up to 10 tyre sensors with straightforward setup through the included free app.

Features

• Compatible with up to 10 tyre sensors
• Easy setup with the free app
• Switch between Offroad and Normal modes to save tyre pressure settings

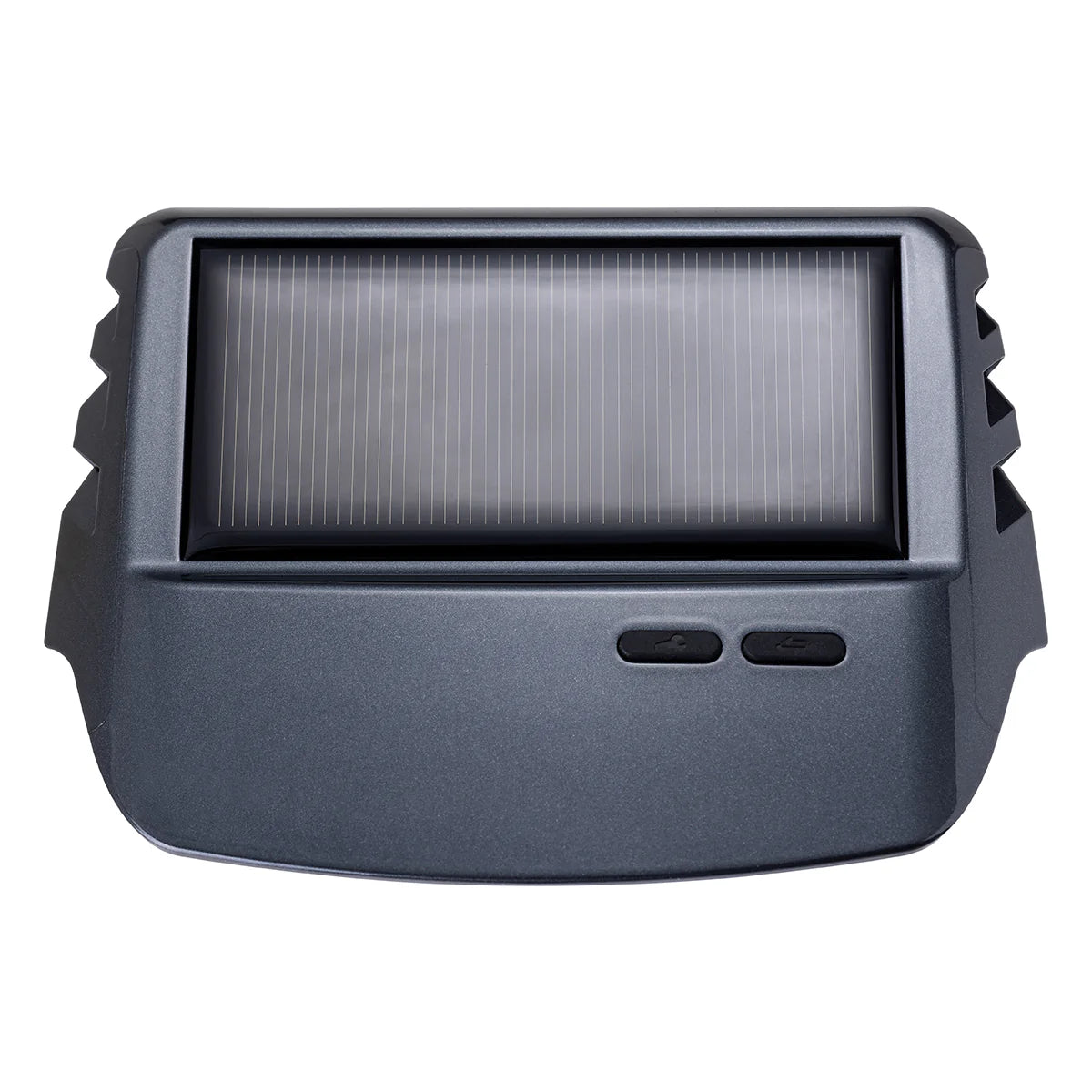

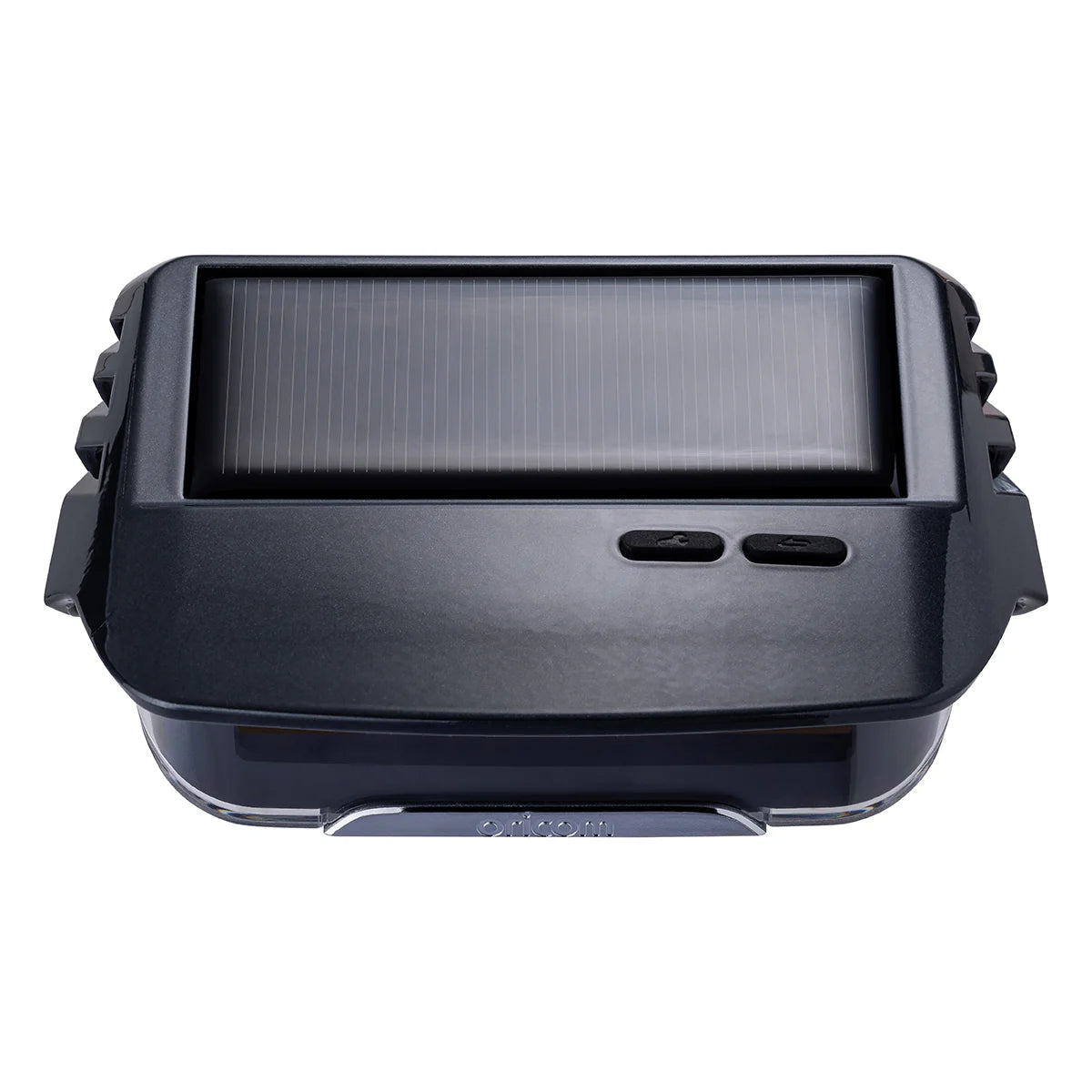

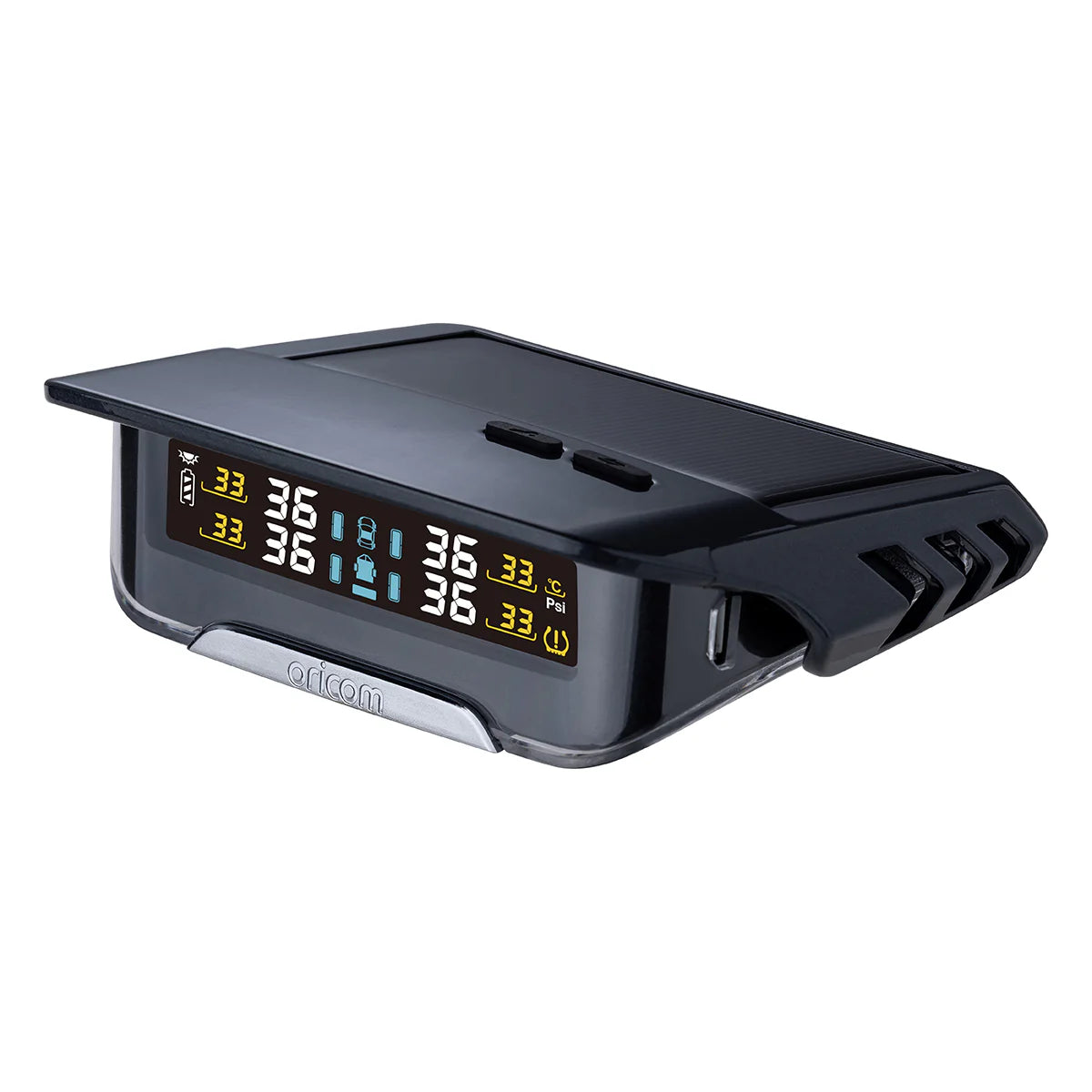

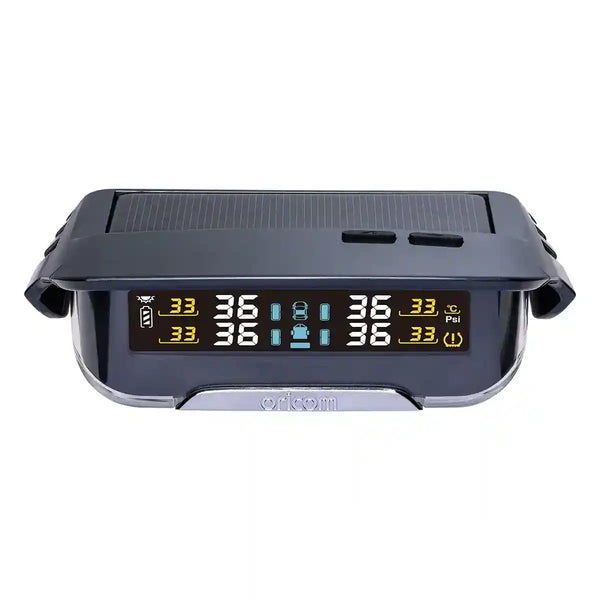

• Compact solar powered display unit
• Long lasting display unit battery life
• Wireless transmission between sensor and display unit
• Adjustable threshold value
• Auto brightness on display
• Monitors pressure and temperature
• Visual and audio alarm

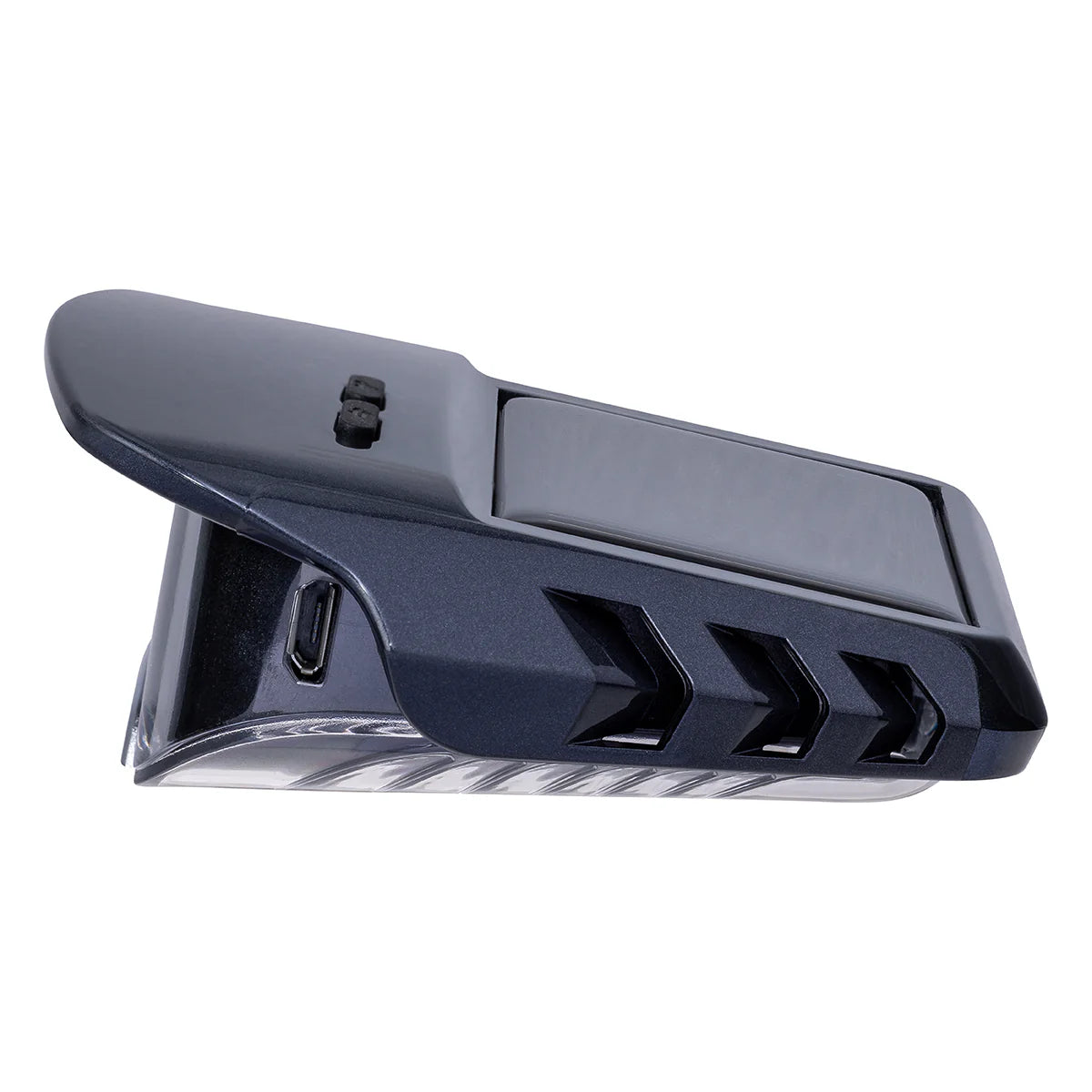

• Optional micro USB input
• Intelligent sleeping mode for power saving
• High/low pressure warning
• Sensor failure warning
• 12 Month warranty

Technical Specifications

Sensor

• Operating frequency: 433.92MHz ± 0.05MHz
• Operating voltage: 2.3 ~ 3.3V
• Operating current: ≤12mA
• Static current: ≤0.5uA
• Operating temperature: -20˚C ~ +80˚C
• Storage temperature: -40˚C ~ +80˚C
• Battery model: CR1632

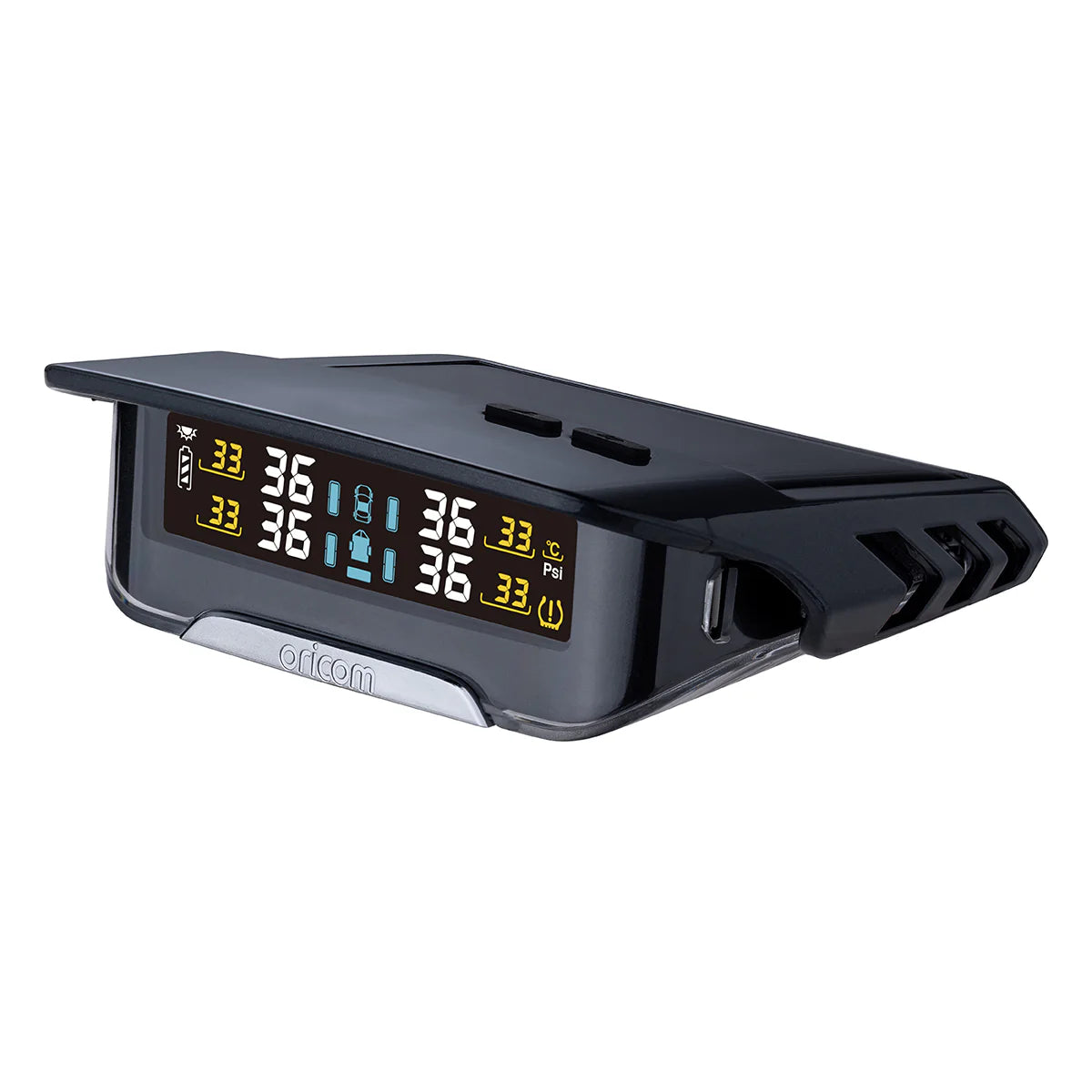

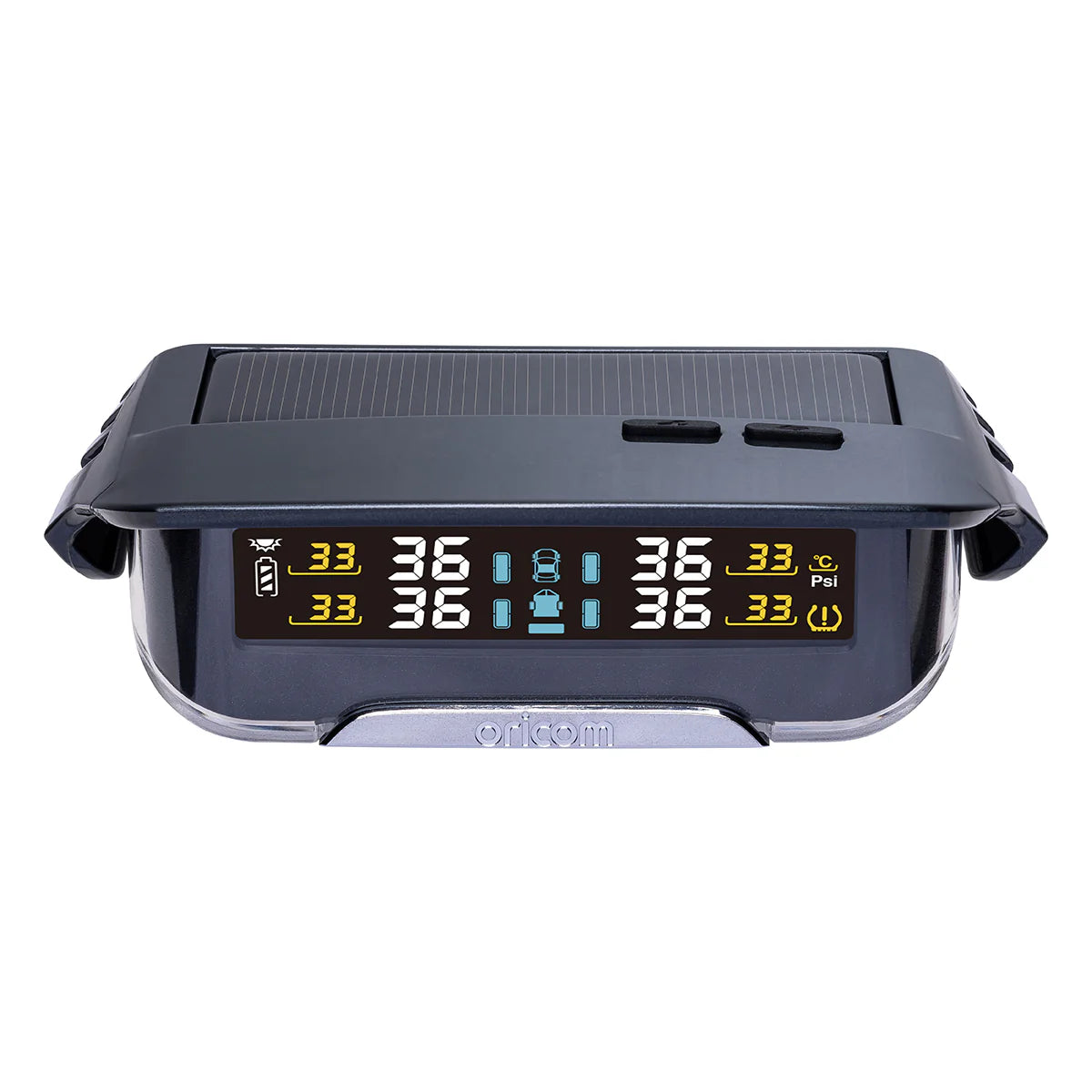

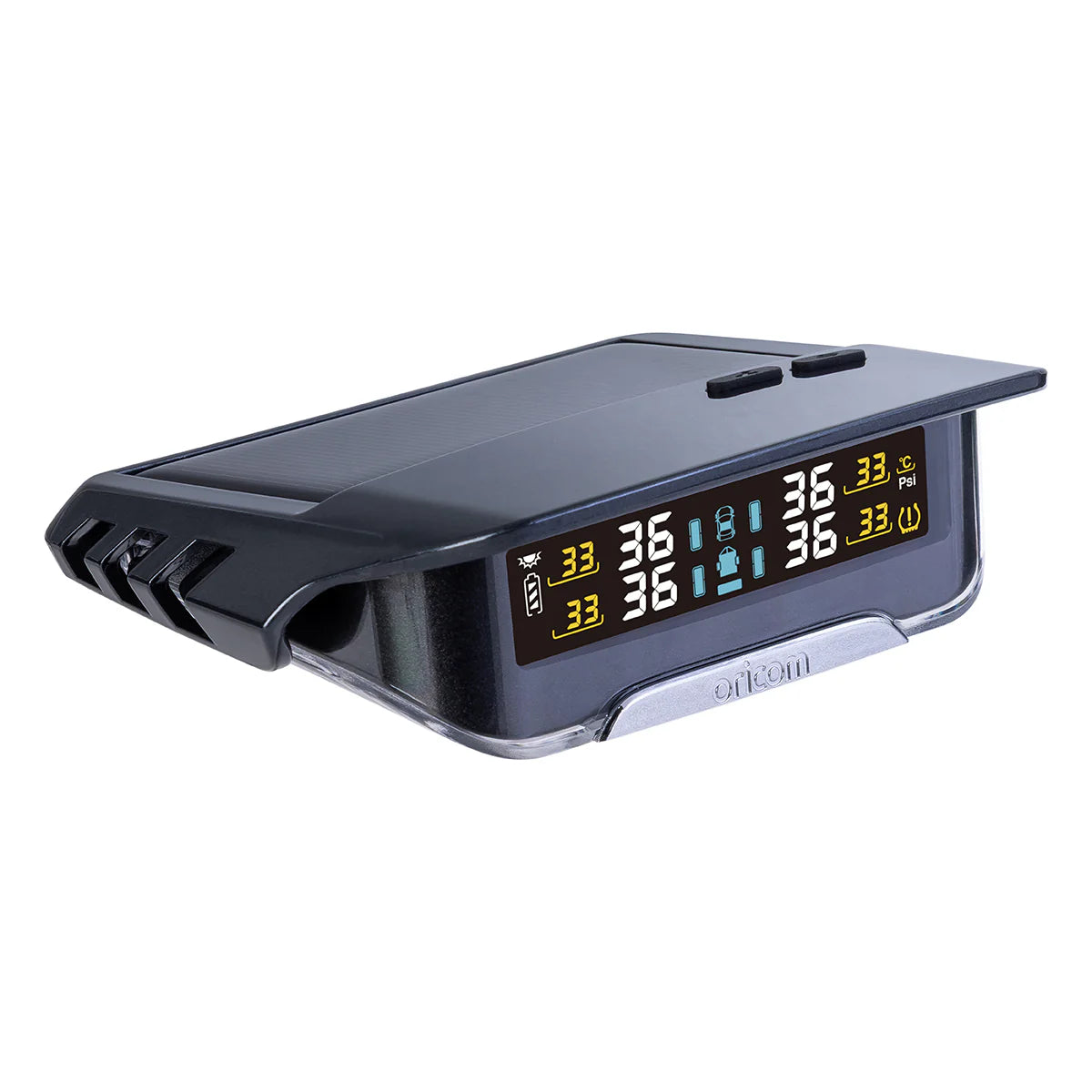

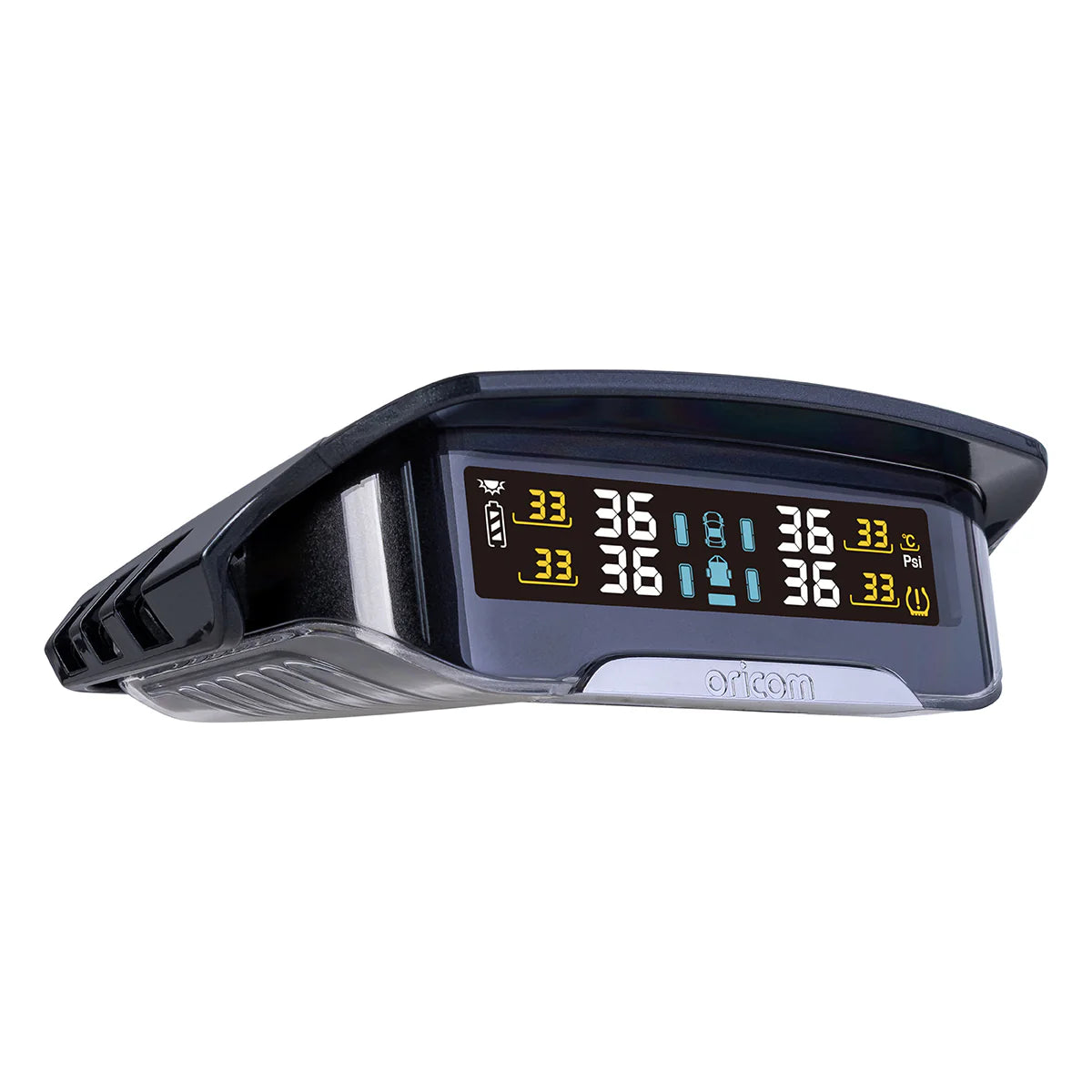

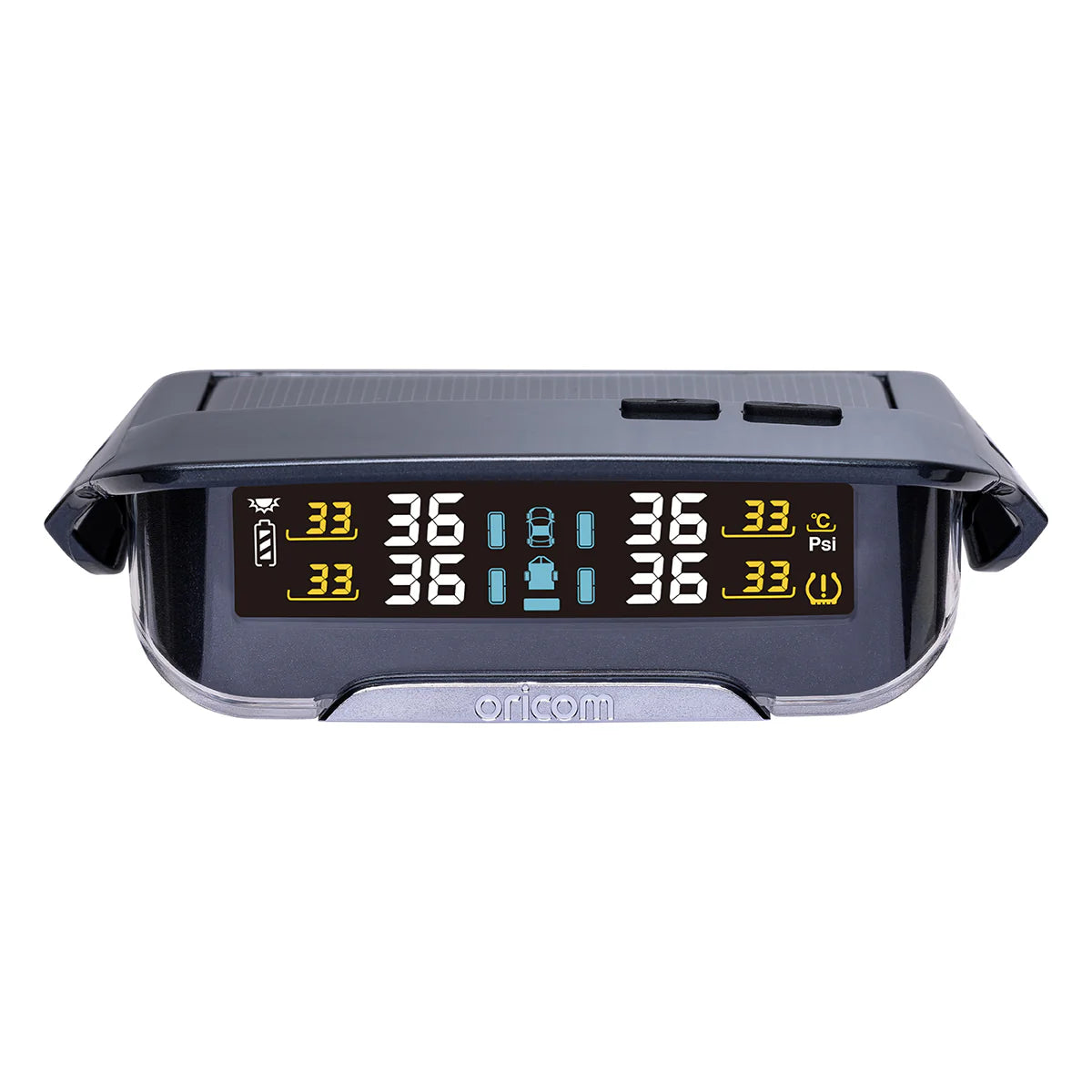

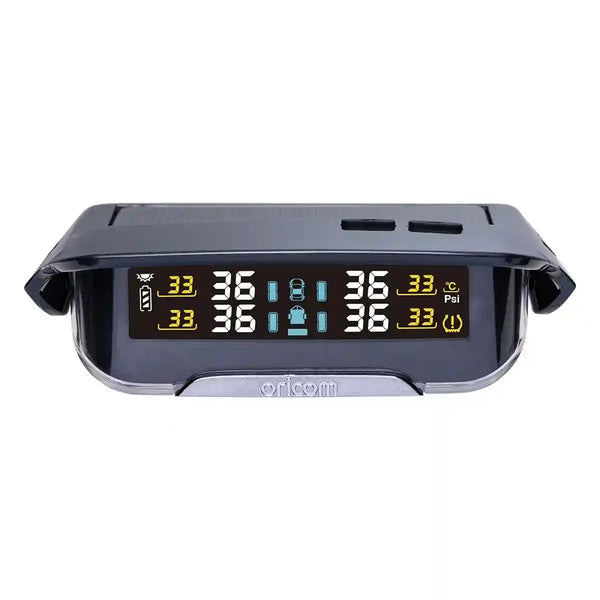

Display

• Operating frequency: 433.92MHz ±0.05MHz, 2.4GHz BLE
• Operating current: ≤32mA
• Static current: ≤45μA
• Operating voltage: 2.6 ~ 3.6V
• Operating temperature: -20˚C ~ +70˚C
• Storage temperature: -40˚C ~ +95˚C
• Built-in battery capacity: 500mAh
• Charging temperature: -10˚C ~ 65˚C
• Solar charging current: ≥15mA (at 5500LX 25˚C)
• USB Charging current: ≤70mA
