Nuova MAPA Black Adjustable Height Square Table Leg with Turntable and Slide

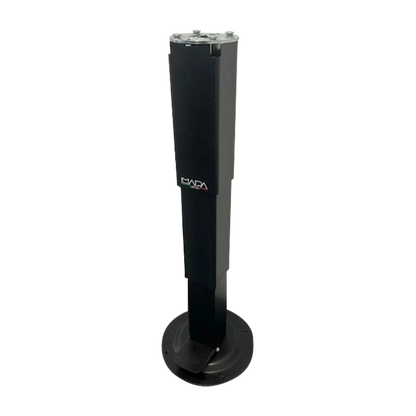

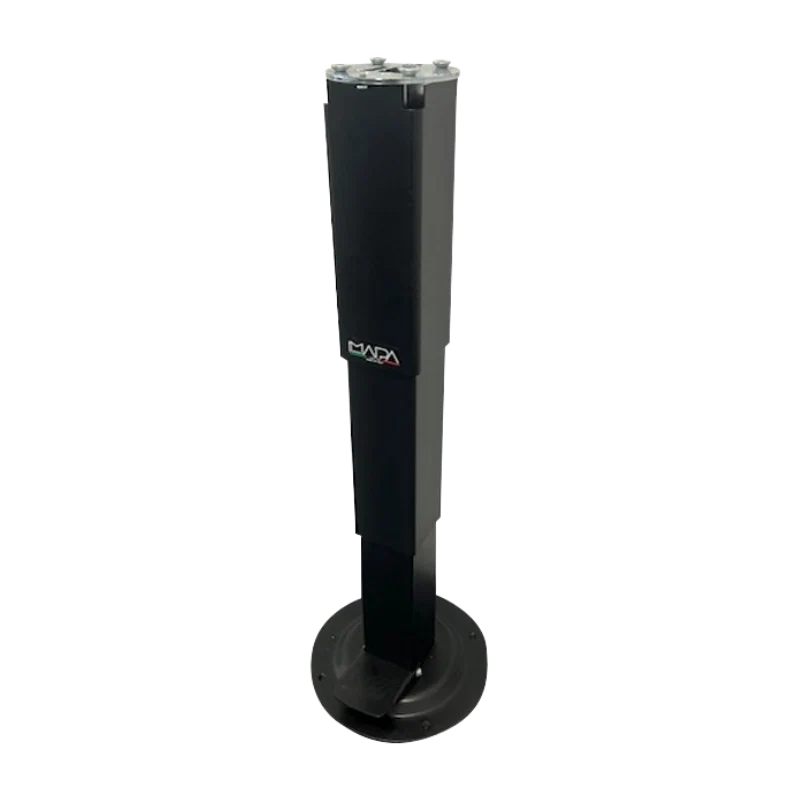

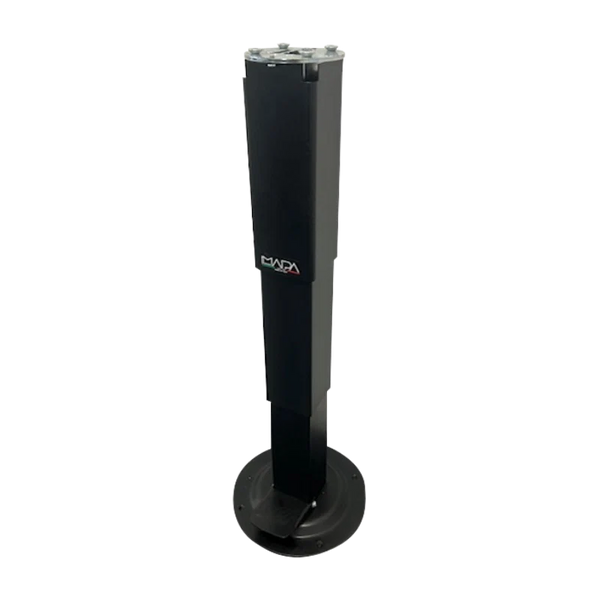

The Nuova MAPA Adjustable Height Table Leg is designed for caravans, campers, and motorhomes to maximise space use. It features a turntable and sliding mechanism, allowing you to move and swivel the table easily. The leg adjusts in height to convert a dining table into an additional bed space. Made with a telescopic height system and durable aluminium sliding parts, this table leg provides reliable control over your layout.

Features

• Convertible table leg – Lowers table to create extra sleeping space.
• Telescopic height adjustment – Change height between dining and bed positions with foot button control.

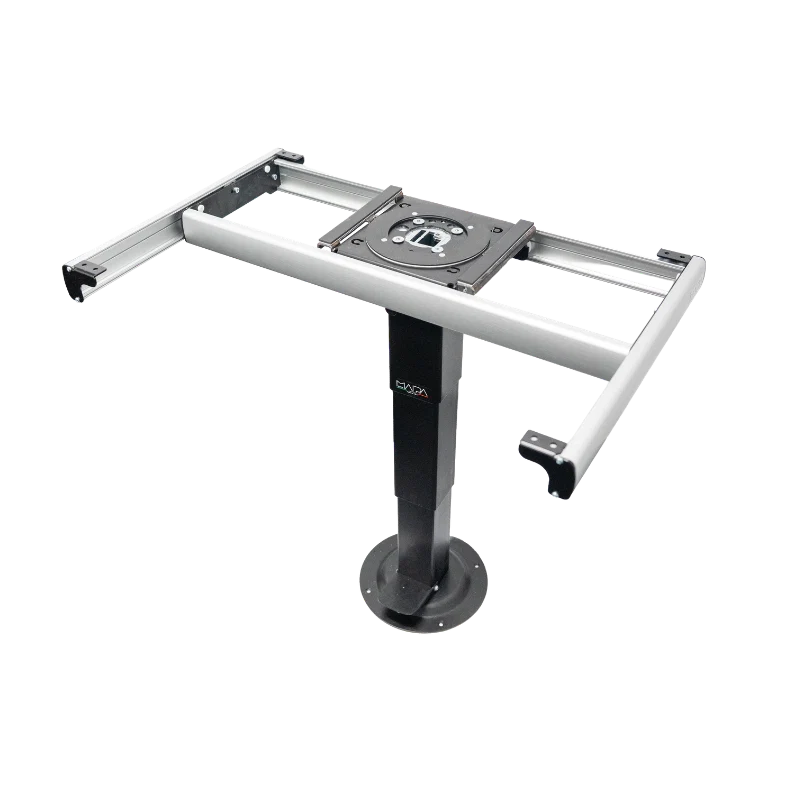

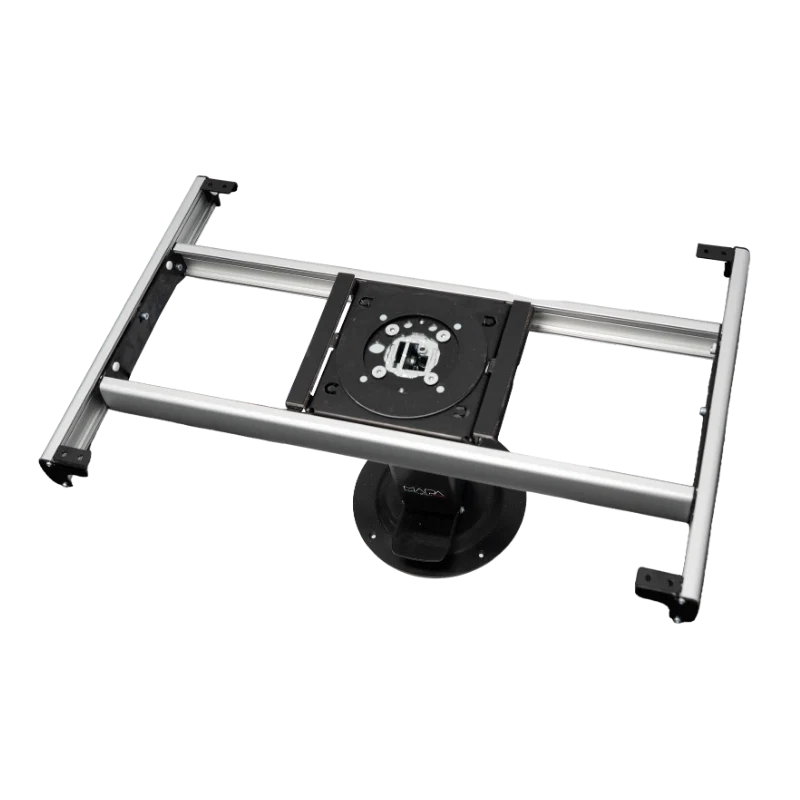

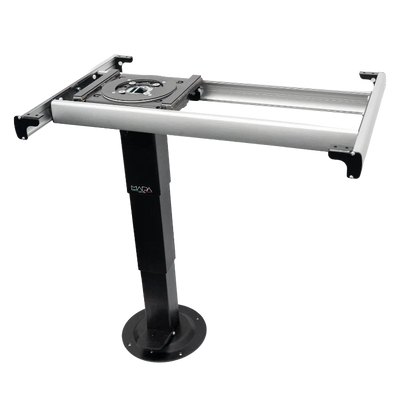

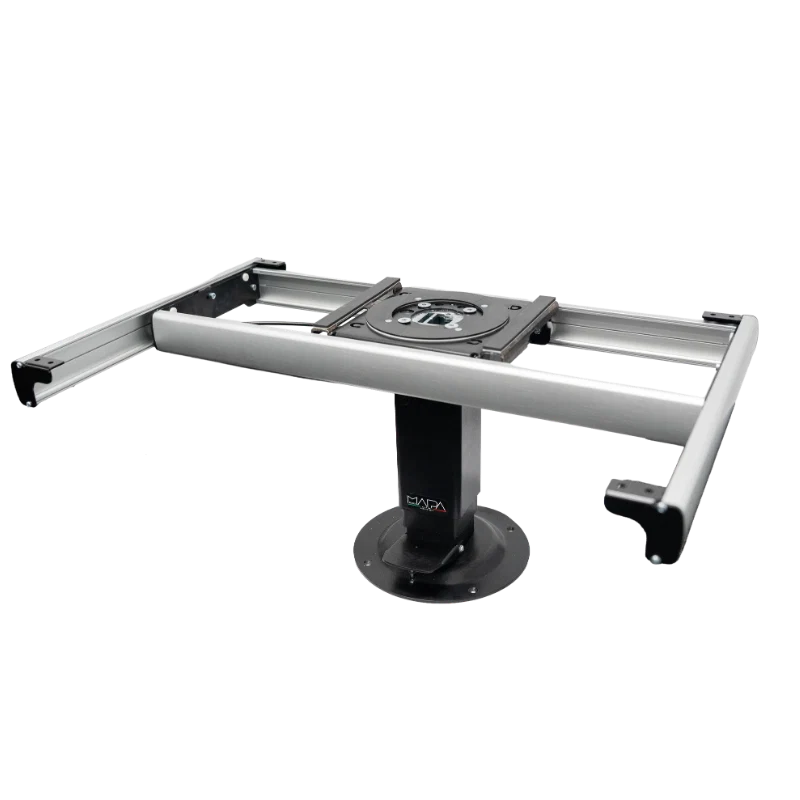

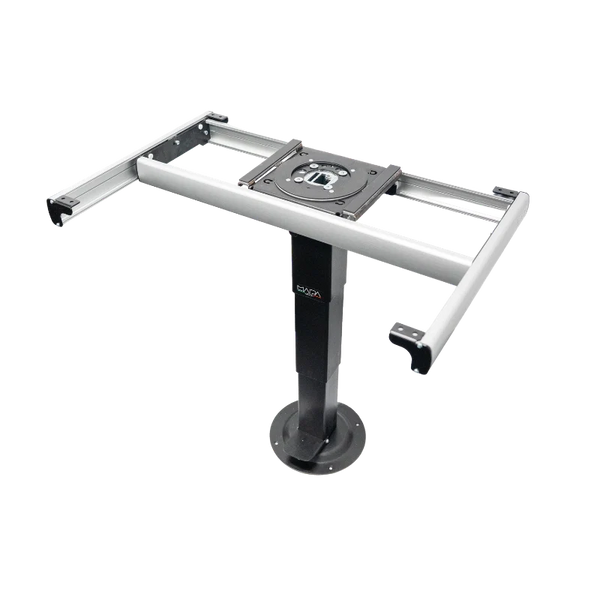

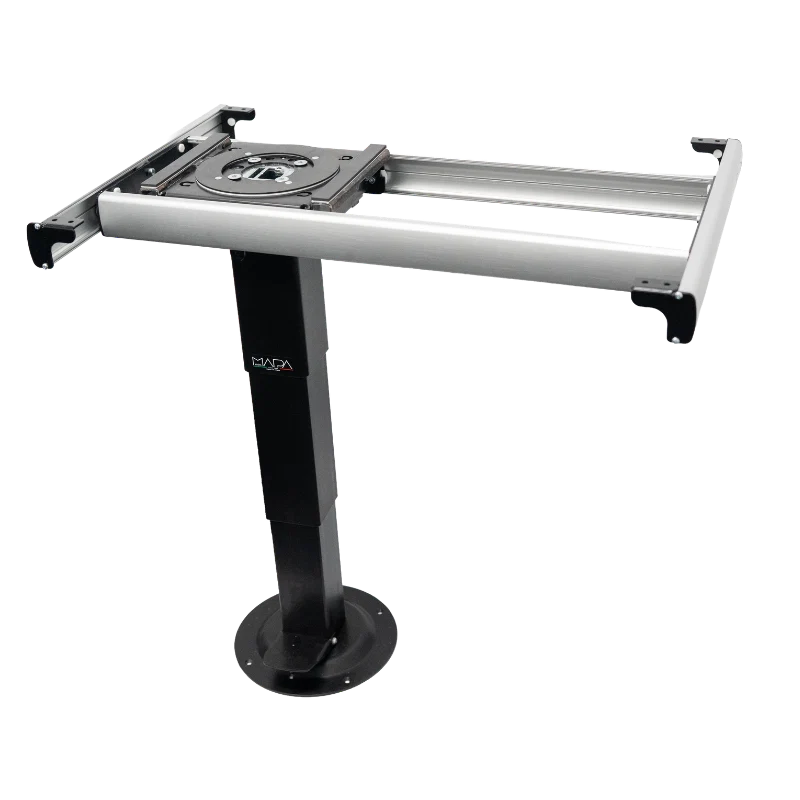

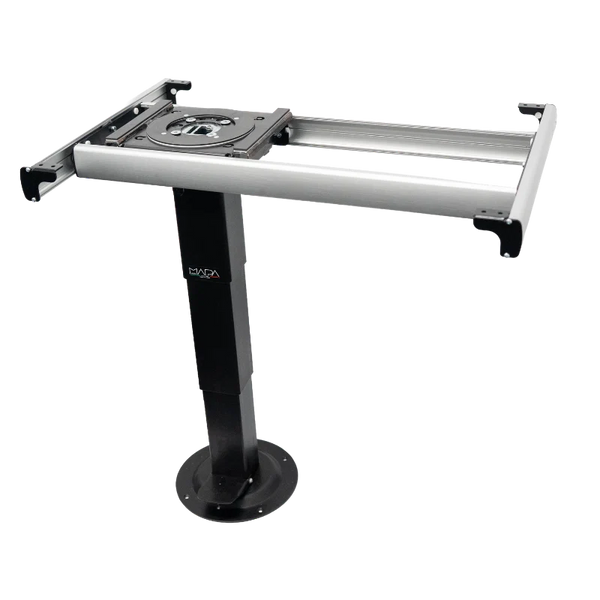

• Turntable and sliding mechanism – Slide tabletop forward/back and sideways, and rotate for flexible positioning.
• Metal bearing system – Ensures smooth sliding and accurate alignment.
• Aluminium construction – Provides strength and durability for long-term use.
• Foot button operation – Easy raise and lower control at the base.
• Italian-made engineering – Manufactured in Italy for build quality.
• Adjustable bed height – Factory set at 330mm, adjustable up to 410mm.
• Black finish – Fits a variety of caravan interiors.

Specifications

• Maximum table height: 710mm (floor to underside of tabletop)
• Minimum height: 345mm
• Preset bed height: 330mm (adjustable to 410mm)
• Top bracket size: 700mm x 440mm
• Base diameter: 240mm
• Weight capacity (bed mode): 100kg
• Slide range:
  • 100mm forward from centre
  • 100mm backward from centre
  • 200mm left from centre
  • 200mm right from centre
• Unit weight: 15kg
• Colour: Black
• Construction: Aluminium sliding mechanism with metal bearings
• Height lock positions: Upright table or lowered bed only (no intermediate locking)

Installation and Use

• Fix base plate securely to a solid floor (fixing screws not included).
• Tabletop not included; choose your own size and style.
• Adjust bed height by removing top cover and adjusting internal bolt with tools.
• Use foot button to raise or lower table leg smoothly.

FAQ

Is installation simple?
Secure the base plate firmly to a solid floor using appropriate fixings (not supplied).

How to adjust bed height?
Fully extend leg via base knob, remove top cover (3 screws), adjust internal bolt and nut with vice grips and 8mm spanner, then replace cover and screws.

How far does the tabletop slide and swivel?
Slides 100mm forward/back and 200mm left/right, plus rotates on integrated turntable.

What weight can it support in bed mode?
Supports up to 100kg.

Is the tabletop included?
No. Tabletop and fixings are sold separately to allow customisation.

Can height be adjusted?
Yes, between 330mm and 410mm bed height (preset 330mm).

Are there locking positions between table and bed height?
No. Locks only at full upright or fully lowered positions.

Note: Tabletop and fixing screws are not supplied.
Height locks only at full table or bed positions; no locking at intermediate heights.
