NovaKool

RFU8220DC

Nova Kool RFU8220 DC 206 Litre Upright Fridge Freezer

NOVA KOOL RFU8220DC 206 Litre Fridge/Freezer                           Made in Canada 206 Litres Total Internal Volume: 161 litres of fridge space at the top where everyday items are easy to reach. The 45 litre freezer space is on the bottom. - Mounting flange included* - LED interior light in fridge - comes standard with black door panels - Optional AC/DC module available - Stainless steel panels are available as an option     *Strongest mounting flanges in the industry  Cut Out Dimensions: 1342 mm (H) X 590 mm (W) x 546 mm (D) The RFU8220 is equipped with a highly efficient variable speed Danfoss BD35F compressor (fan included) that is designed for use in boats, caravans and RV's running 12 and 24 volts DC. Power draw is ~ 5.0 amps when running on 12 volts: average power use will vary depending on ambient temp. how often the door is opened etc. Features
  •     Positive latch system
  •     Storage for tall bottles
  •     Shelves are a powder coated wire for durability
  •     Reversible door swing
  •     Replaceable door panels for a custom finish to your interior
  •     Environmentally sound 134a refrigerant
  •     CFC free urethane foam in cabinet and doors
  •     Magnetic door gaskets for positive seal
  •     Stainless fasteners & hinges used throughout
  •     Maintenance friendly & efficient static condenser
  •     Low battery protection to help prevent full discharge of batteries
    Multi-Voltage Options DC only: 12 & 24vdc standard, optional 10-45vdc for special applications (please contact us!) AC/DC: 12 & 24vac and 100-240vac 50/60HZ

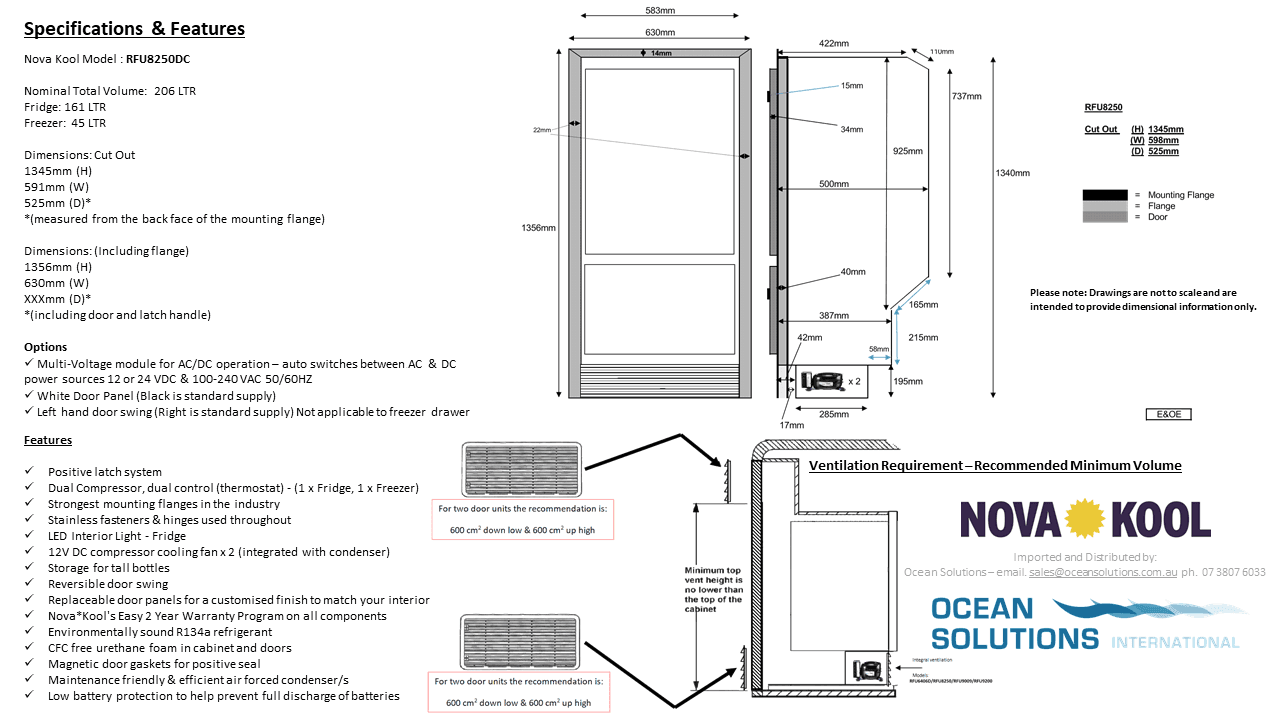

RFU8220 DC - Upright Fridge Freezer Configuration = 2 Door Upright - freezer on the bottom. Gross Shippng Weight: 45 kg's Voltage: 12 or 24 Volts DC (Optional AC/DC available) Compressor: Danfoss / SECOP BD35F Control Module: Danfoss 101N0210 Total volume: 206 litres ( 8.2 cu.ft. ) Fridge space:    161 litres Freezer space:  45 litres Cut Out Dimensions 1342 mm Height 590 mm Width 495 mm Depth at the top (measured from the back face of the mounting flange at the top) 298 mm Depth at the bottom (measured from the back face of the mounting flange at a point 190mm from the bottom) Overall dimensions (Including flange) 1355mm Height 629 mm Width 505 mm Depth at top (including door and latch handle) 308 mm Depth at bottom Standard Options - Multi-Voltage module for AC/DC operation switches automatically between AC and DC power sources: 12 or 24 VDC and 100-240 VAC 50/60Hz - White or  Stainless Steel door panels (black panels are standard) - Right or left hand door swing (right is standard) Note on door swing: If you require a left hand door swing (hinge on the left) please specify this requirement when ordering and we will change this for you: there is no charge for this service.
12 volt fridge, 12 Volt Fridges, Fridge/Freezer, Large - 141 Litres and above, NovaKool
