Nova Kool RFU6800 DC 193 Litre Upright Fridge Freezer

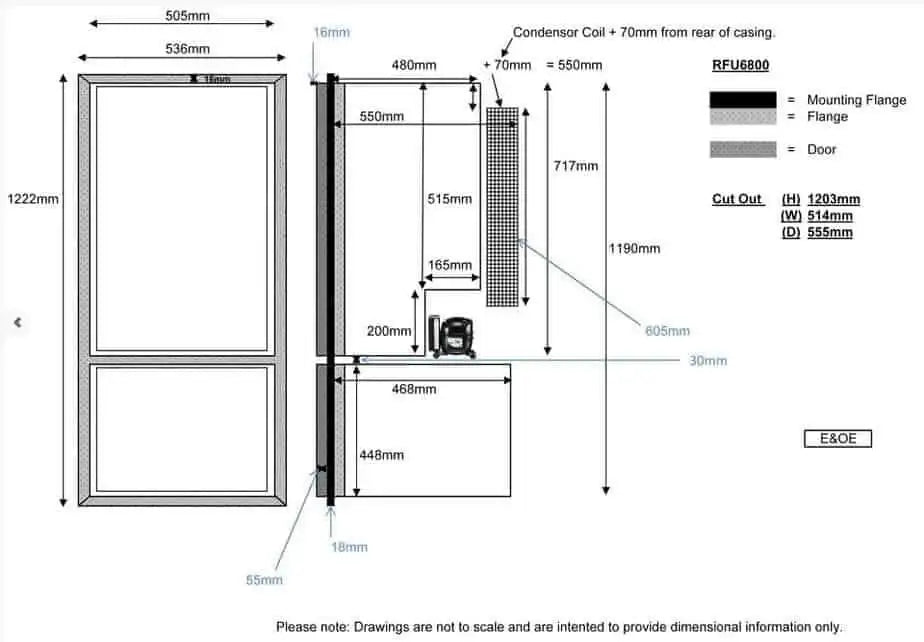

NOVA KOOL RFU6800DC 193 Litre Fridge/Freezer                           Made in Canada 193 Litres Total Internal Volume: 123 litres of fridge space at the top where everyday items are easy to reach. The 70 litre freezer space is on the bottom. - Mounting flange included* - LED interior light in fridge - comes standard with black door panels - Optional AC/DC module available - Stainless steel panels are available as an option     *Strongest mounting flanges in the industry  Cut Out Dimensions: 1205 mm (H) X 515 mm (W) x 546 mm (D) The RFU6800 is equipped with a highly efficient variable speed Danfoss BD series compressor (fan included) that is designed for use in boats, caravans and RV's running 12 and 24 volts DC. Power draw is ~ 4.4 amps when running on 12 volts: average power use will vary depending on ambient temp. how often the door is opened etc. Features
  •     Positive latch system
  •     Storage for tall bottles
  •     Shelves are a powder coated wire for durability
  •     Reversible door swing
  •     Replaceable door panels for a custom finish to your interior
  •     Environmentally sound 134a refrigerant
  •     CFC free urethane foam in cabinet and doors
  •     Magnetic door gaskets for positive seal
  •     Stainless fasteners & hinges used throughout
  •     Maintenance friendly & efficient static condenser
  •     Low battery protection to help prevent full discharge of batteries
    Multi-Voltage Options DC only: 12 & 24vdc standard, optional 10-45vdc for special applications (please contact us!) AC/DC: 12 & 24vac and 100-240vac 50/60HZ
RFU6800 DC - Upright Fridge Freezer Configuration = 2 Door Upright - freezer on the bottom. Gross Shippng Weight: 42 kg's Voltage: 12 or 24 Volts DC (Optional AC/DC available) Compressor: Danfoss Control Module: Danfoss 101N0230 Total volume: 193 litres ( 6.8 cu.ft. ) Fridge space:    122 litres Freezer space:  70 litres Cut Out Dimensions 1205 mm Height 515 mm Width 546 mm Depth Overall dimensions (Including flange) 1228 mm Height 532 mm Width 625 mm Depth (including latch handle) Standard Options - Multi-Voltage module for AC/DC operation switches automatically between AC and DC power sources: 12 or 24 VDC and 100-240 VAC 50/60Hz - White or  Stainless Steel door panels (black panels are standard) - Right or left hand door swing (right is standard) Note on door swing: If you require a left hand door swing (hinge on the left) please specify this requirement when ordering and we will change this for you: there is no charge for this service.
