FRAME INNER for CHAL Mobicool Maygood Caravan Window Inner Frame
The FRAME INNER for CHAL Mobicool is a replacement internal frame for Mobicool / Maygood CHAL caravan windows, supplied as the inner section only and not a complete window.
Features
- Inner frame only for Mobicool / Maygood CHAL caravan windows (this is not a complete window)
- Supplied as a complete inner section including retractable fly screen and blind
- New style rear-mounted design with no visible screw or hole caps
- Uses concealed fixings (clip-on style); concealed window fixing studs are purchased separately
- CHAL = Chinese Alloy, used to differentiate these windows from Dometic / Seitz windows (made in Europe)
- While similar in appearance to Dometic Seitz windows, parts are not interchangeable
- Suits Mobicool / Maygood windows that have a small decal on the window blade
- Measurement size refers to the actual cut-out (hole) in the caravan wall
Measurement and sizing

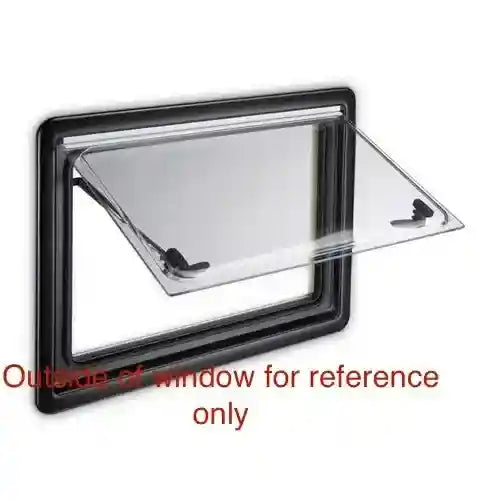

- Measure the external black window frame to the very outside edge of the frame
- Deduct 30 mm from this external measurement
- Select the FRAME INNER **** X *** CHAL NEW size that is closest to this result within 10 mm
Compatible concealed fixing studs

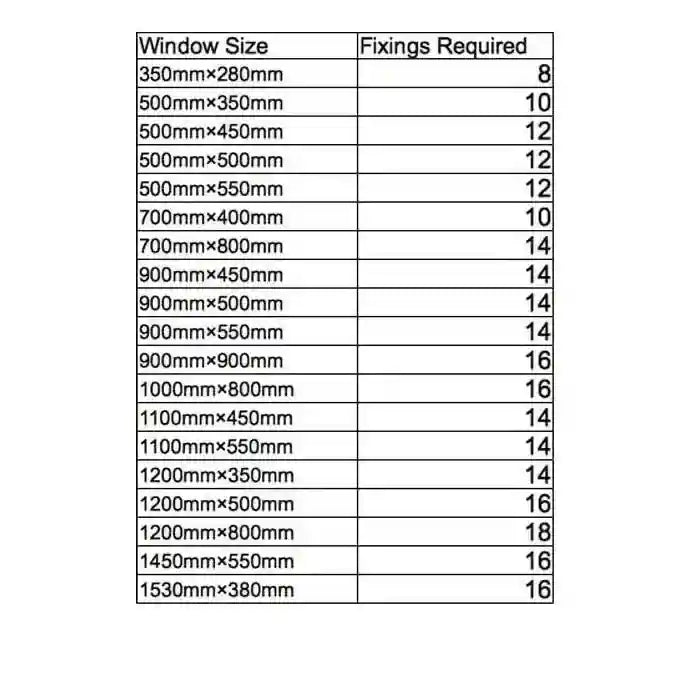

This inner frame uses concealed fixings. Refer to the related product “Concealed Window Fixing Stud to suit Mobicool Maygood CHAL internal frames - NEW STYLE”. The number of fixings required depends on the window size.
| Window size (cut-out) | Concealed fixings required |
|---|---|
| 350 mm x 280 mm | 8 |
| 500 mm x 350 mm | 10 |
| 500 mm x 450 mm | 12 |
| 500 mm x 500 mm | 12 |
| 500 mm x 550 mm | 12 |
| 700 mm x 400 mm | 10 |
| 700 mm x 800 mm | 14 |
| 900 mm x 450 mm | 14 |
| 900 mm x 500 mm | 14 |
| 900 mm x 550 mm | 14 |
| 900 mm x 900 mm | 16 |
| 1000 mm x 800 mm | 16 |
| 1100 mm x 450 mm | 14 |
| 1100 mm x 550 mm | 14 |
| 1200 mm x 350 mm | 14 |
| 1200 mm x 500 mm | 16 |
| 1200 mm x 800 mm | 18 |
| 1450 mm x 550 mm | 16 |
| 1530 mm x 380 mm | 16 |
-
