Flat Out 20m Premium 240V 15amp Extension Lead Narrow Multi-Reel Safety Orange

The Flat Out 20m Premium 240V 15 amp extension lead features a 1.5mm² cable core suitable for everyday use around the home, work sites, and camper trailers with low power requirements. Commonly used for RV power supply in Australia, it supports appliances such as fridges, lights, and phone chargers.

Note: According to the updated AS/NZS 3001 standard, a 2.5mm² cable core is recommended for leads over 15m when supplying caravans or habitable structures due to voltage drop. This 1.5mm² lead is functional in most cases but does not meet the ideal standard for these uses. For higher power or compliance, use the 2.5mm² model (M2015HS).

Features

• Flexible silicone rubber jacket reduces kinks and allows easy winding
• UV stable carbon-infused black cable for outdoor use
• Waterproof cable jacket designed for wet conditions (ensure plugs stay dry)
• Performs in cold weather; cable lays flat and unwinds smoothly
• Clear 15 amp plug and socket enable visual connection checks
• Narrow Flat Out Multi-Reel design prevents tangling and allows stackable storage
• Suitable for appliances with up to 15 amp current draw

Specifications

• Length: 20 metres
• Cable core: 3 x 1.5mm²
• Plug & socket: 15 amp, clear housing
• Insulation: Heavy-duty silicone rubber

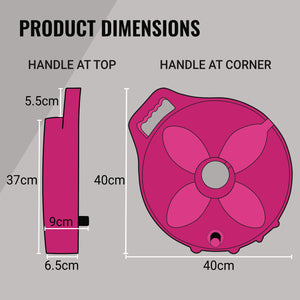

• Reel size: 37cm diameter x 6.5cm depth (Narrow Multi-Reel)
• Weight: 3.9 kg
• Compatible with other Flat Out products (SKUs starting with "M")

Standards & Warranty

• AS/NZS 3100:2022 – General electrical safety
• AS/NZS 3120:2021 – Plugs and socket outlets approval
• AS/NZS 3191:2012 – Flexible cords for appliances
• IEC 60245-4:2011 – Rubber-insulated flexible cable standard
• Warranty: 12 months

Usage

• Use for low power appliances like fridges, lights, phone chargers in RV setups, homes, and work environments
• Recommended for current draw up to 15 amps
• For higher power or longer caravan leads, select the 2.5mm² model (M2015HS)

Usage Tips

• Fully uncoil the extension lead before use to avoid overheating
• Check clear plugs regularly for any damage
• Store on the Narrow Multi-Reel to prevent tangling and increase lifespan
• Ensure compatibility with 15 amp sockets and inlets for caravan power
